The JBL Control CRV-WH curved loudspeaker brings high design and versatility to commercial audio in restaurants, retail stores, lounges, bars, cafes, hotels, museums, leisure venues and other foreground and background music and paging applications with a fashionable look and superb sound quality.

The CRV-WH is rated at 30 Watts when used on 70V/100V line loudspeaker circuits or 60 Watts when used on the ‘4 Ohm’ Thru setting.

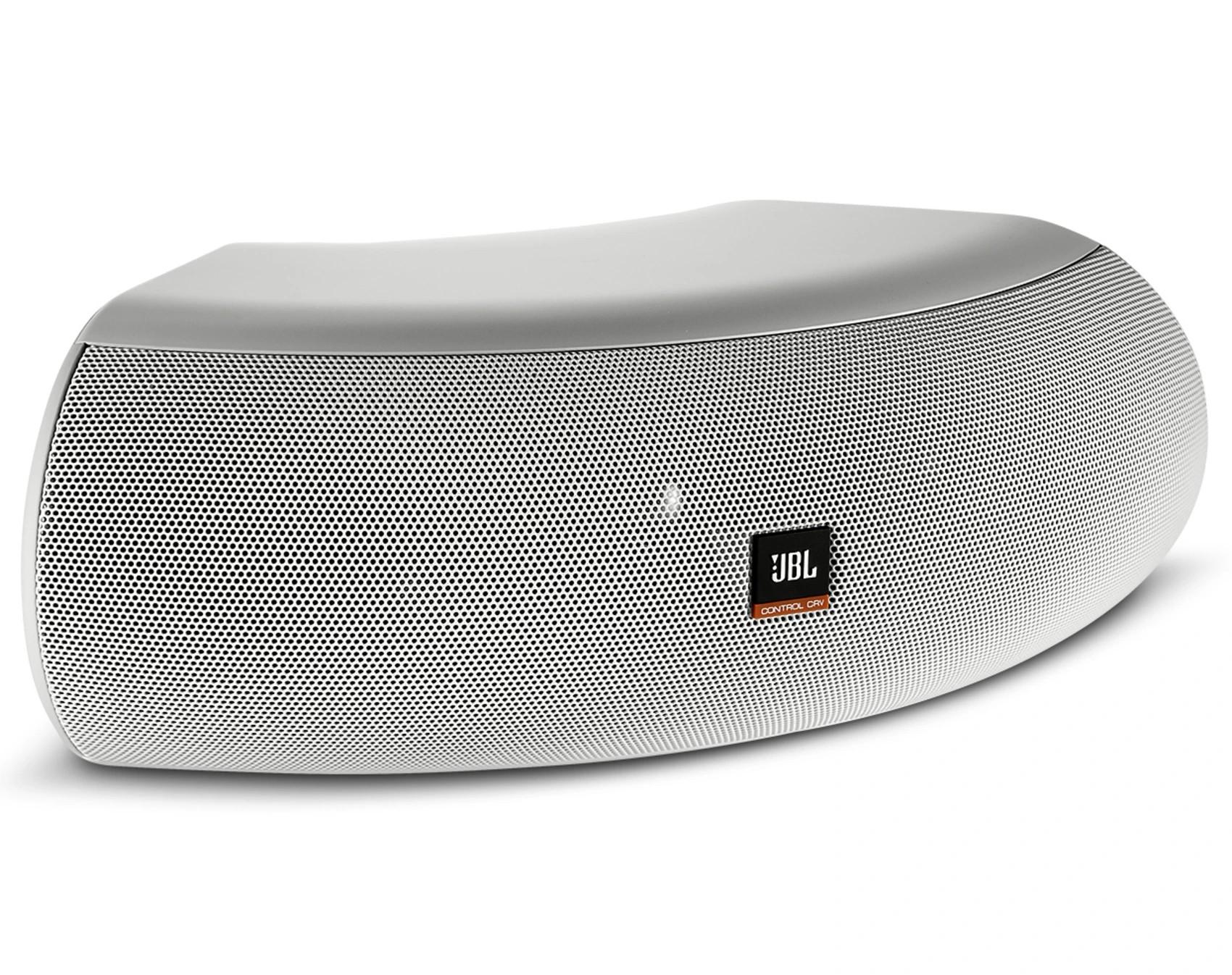

White finish (Control CRV-WH). Also available in black (Control CRV).

Dual 100 mm (4 in) woofers feature Polyplas™ cones for durability, large 32mm (1½in) voice coils wound on vented aluminium formers for high power handling, and dual neodymium magnets for high output with low harmonic distortion.

The 19 mm (¾in) tweeter features a titanium laminate dome tweeter, a shielded neodymium magnet, and Ferrofluid® cooling for maximum power handling and reduced thermal compression. A bi-radial waveguide reduces high frequency variations in the frequency response across the listening area.

The advanced high-slope crossover network (36 dB per octave high-pass to the tweeter and 18 dB per octave low-pass to the woofers) provides natural midrange sound quality along with smooth pattern coverage in the crossover region.

JBL Control CRV-WH speakers are exceedingly versatile, with multiple installation possibilities. The speaker can be wall-mounted aimed straight out from the wall, angled down at a 45° aiming axis, mounted between wall and ceiling, or in a corner between two walls. At a junction, the unique curved shape of the speaker couples well with both boundary surfaces, forming a dual ground plane configuration which increases the acoustic length of the speaker, providing additional spaciousness to the sound character and increased bass output.

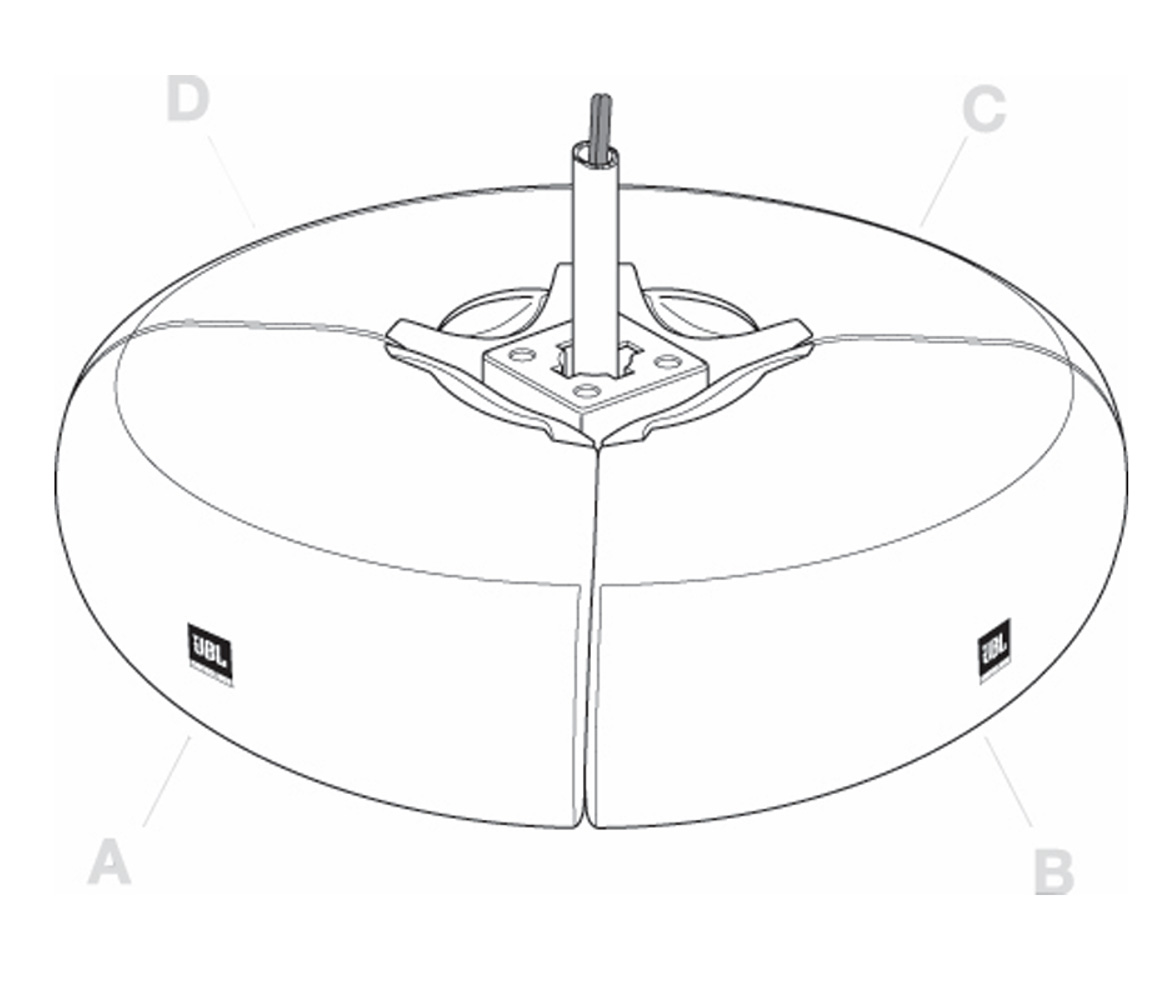

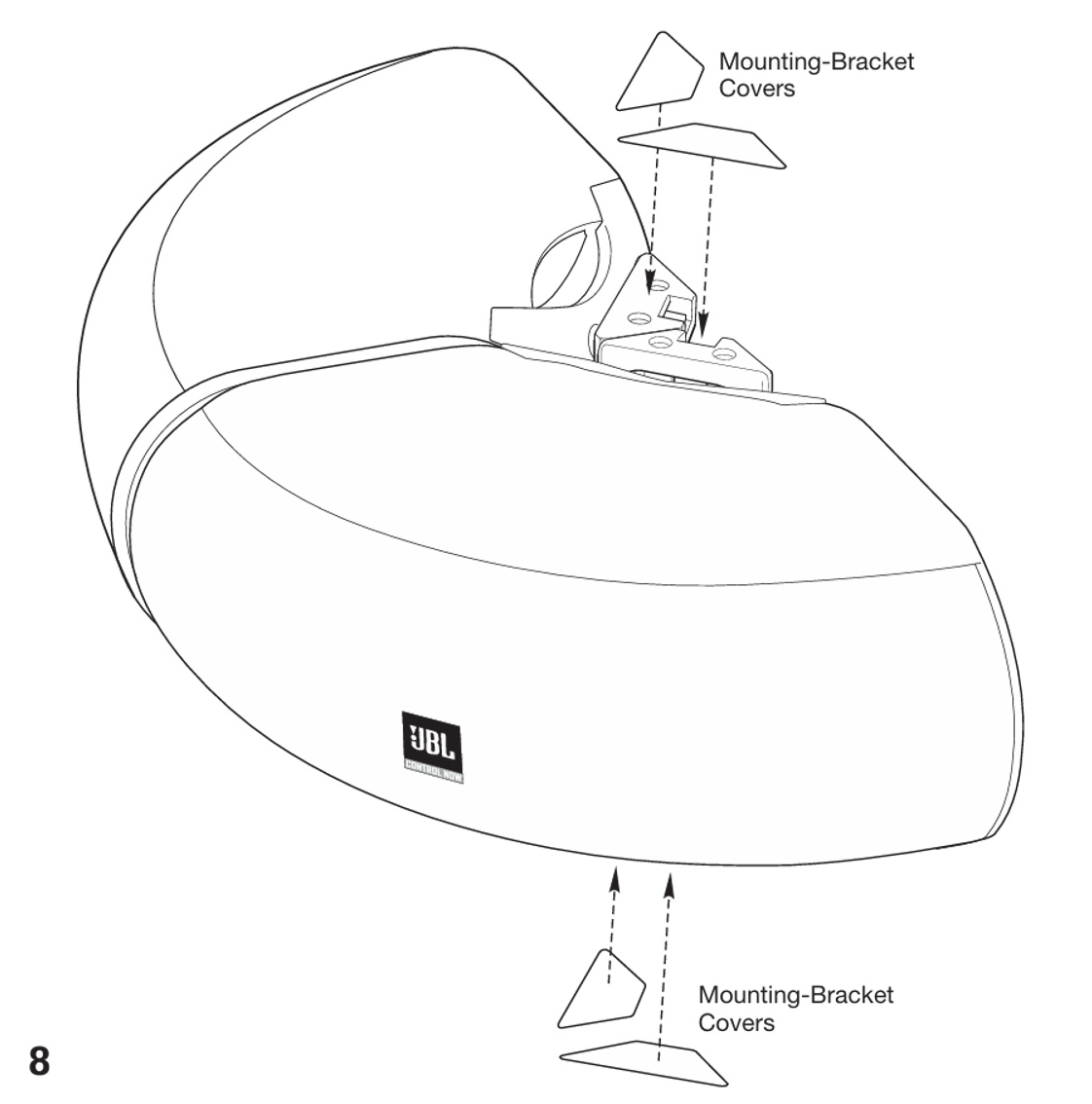

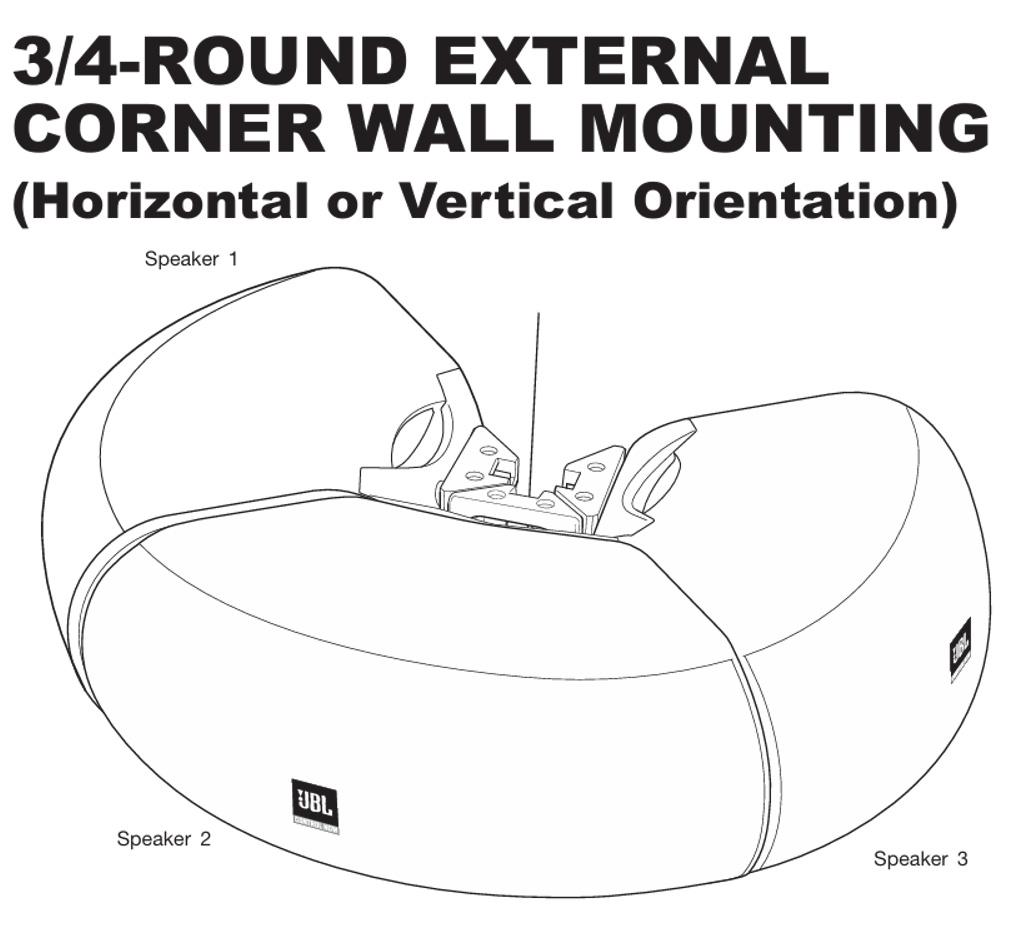

In addition, two or three Control CRV-WH speakers can be joined together to create loudspeaker solutions for a wide variety of coverage, appearance and mounting requirements. An optional PMB pole mount bracket enables four speakers to be joined together and suspended by a ceiling fan pole to form a cluster module with 360° horizontal coverage.

• Unique Curved Design — Stylish, contemporary shape that enhances both aesthetics and acoustics.
• Extremely Versatile Mounting — Wall, corner, wall-ceiling, or cluster configurations (up to 4 speakers).
• Boundary Coupling — Curved cabinet boosts bass and spaciousness when mounted at junctions.
• IP-34 Weather Resistant — Suitable for indoor and sheltered outdoor applications.
• 70V/100V & 4Ω Compatible — Multi-tap transformer plus direct low-impedance operation.
• Premium Drivers — Dual 4" woofers and titanium tweeter for clear, high-fidelity sound.
• Warranty: 2 Years.

Download the current JBL Control Contractor Brochure here:
