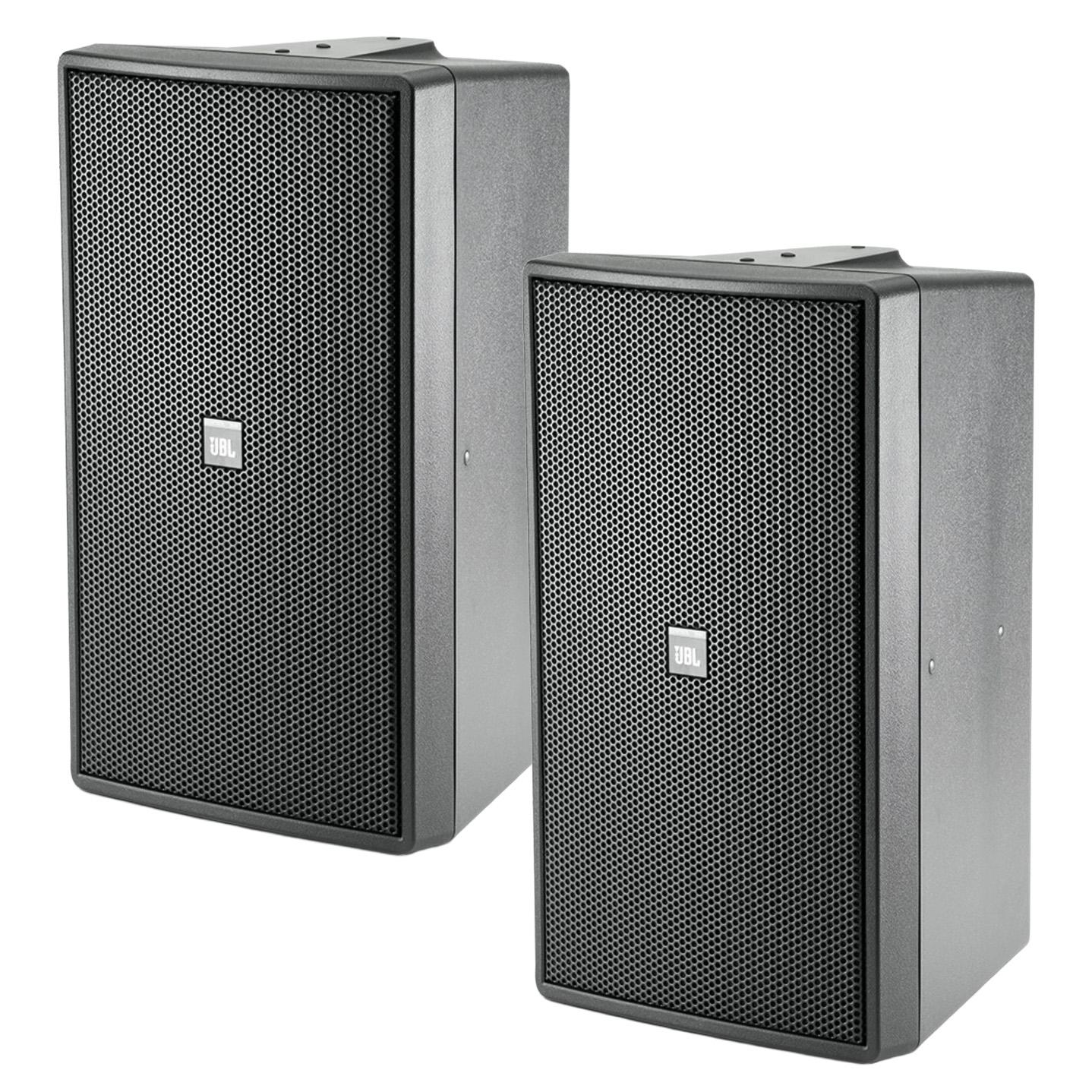

The JBL Control 29AV-1 premium indoor/outdoor monitor speaker is compatible with both 70V / 100V line or low impedance loudspeaker circuits. Rated at 110W at 70V/100V, the top-quality line distribution transformer ensures minimal insertion loss and reduced saturation. The 8Ω bypass provides an output of 150 Watts and allows use of multiple speakers on a loudspeaker line.

Priced and sold as a pair.
Finished in black (JBL-Control 29AV-1), also available in white (JBL- Control 29AV-1-WH).

The Control 29AV-1 provides improved voicing for extremely flat, high-fidelity performance, extended bandwidth and well-controlled defined coverage from a compact loudspeaker.

The rotatable high-frequency horn allows use of the speaker in either vertical or horizontal orientation. Consistent coverage ensures excellent sound character throughout the listening area. Moderate magnetic shielding allows use of the speaker as close as 230 mm (9) to video monitors.

The included InvisiBall mounting method is simple to install, aims easily and provides a high degree of theft deterrence. InvisiBall allows horizontal rotation of up to 41° off-axis and vertical rotation of up to 36° (horn end inward) or 23° (woofer end inward). Attachment points for the optional MTC-29UB U-bracket allows for compact installation.

Weather resistance has been maximized. The woofer’s cone is made of kevlar, surround is pure butyl rubber, and the driver basket is rear loaded to minimize direct exposure. The compression driver’s diaphragm is pure titanium. The grille is thermoset composite coated and comes with foam to minimize incursion of water. Nickel/zinc rust-resistant terminals ensure a secure input connection. An MTC-PC2 sealed-entrance cover is included to further protect the speaker’s
terminals.

JBL’s exclusive SonicGuard overload protection is virtually inaudible to the listener, ensuring reliability while providing full-fidelity sound.

• Extremely smooth, flat frequency response with extended bandwidth
• 110° x 85° HF coverage, rotatable horn
• 110 Watt transformer for 70V or 100V lines, with 8Ω thru
• SonicGuard™ overload protection
• 200 mm (8”) Kevlar cone woofer, 25 mm (1”) titanium diaphragm compression driver
• Includes InvisiBall™ mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket
• Sealed input panel cover and screw-down input terminals
• Warranty: 2 Years

Download the current JBL Control Contractor Brochure here:
