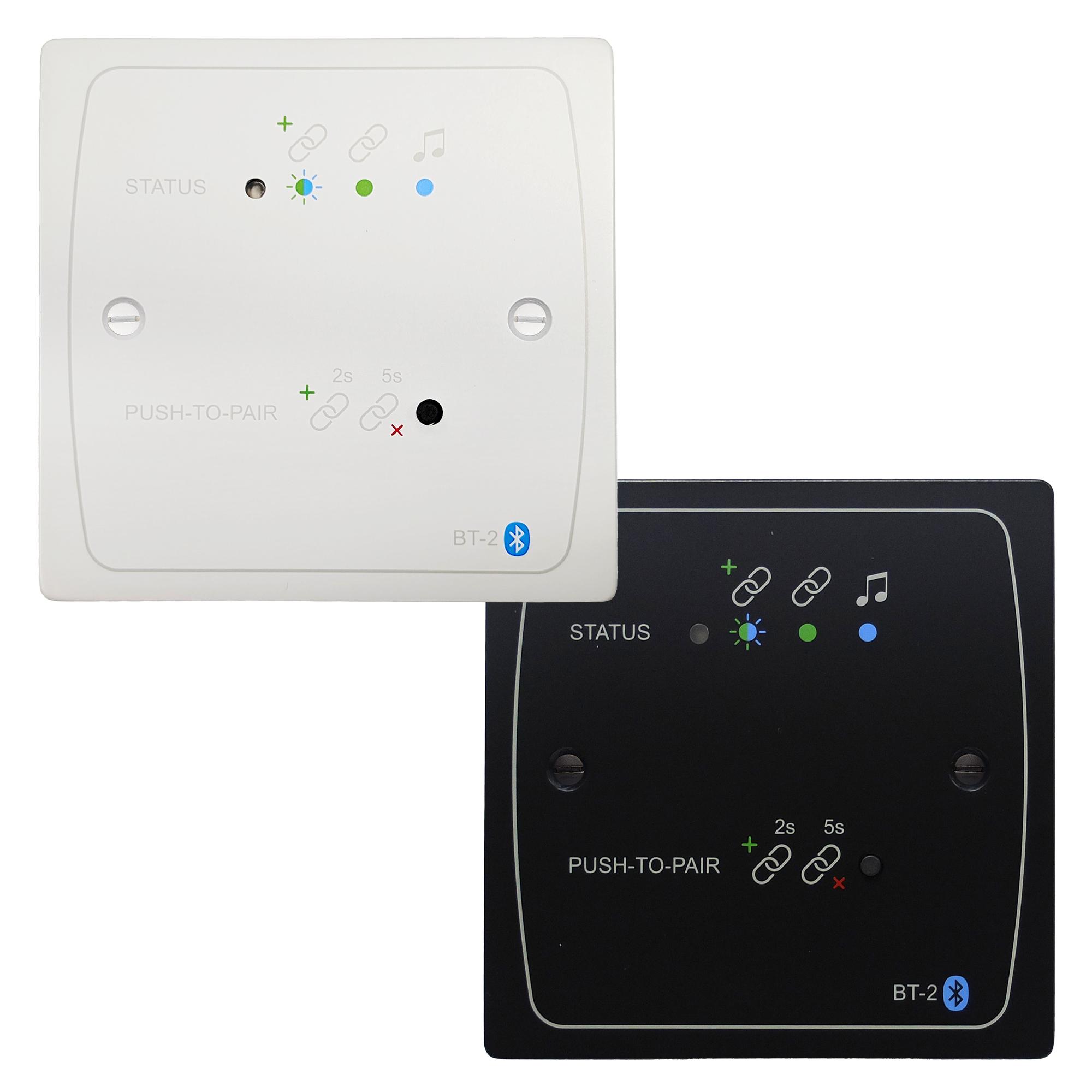

Cloud Electronics BT-2FW
The Cloud Electronics BT-2FW remote Bluetooth wall-mounting input module for use with any Cloud product with an RJ45 Facility Port any amp/mixer via the FPA-1 adapter.
White finish - also available in black, see BT-2FB.
The BT-2 enables Bluetooth compatible devices such as laptops, tablets and smartphones to stream audio wirelessly to the interface, and thereby into the audio system of the Zone where the interface is installed.

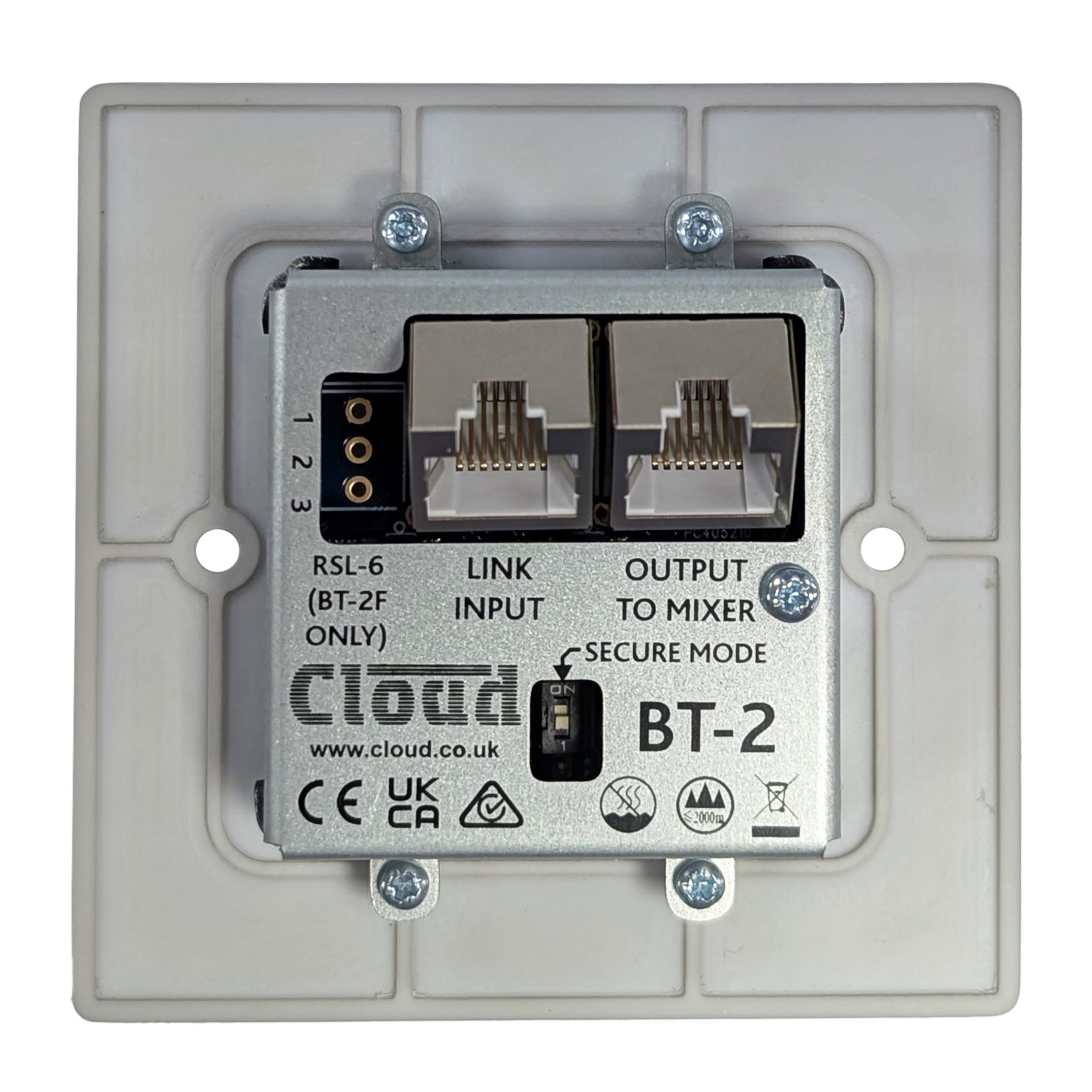

The BT-2FW is simple to connect using a single screened CAT5 cable (with shielded RJ45 connectors) between the RJ45 connector on the rear of the plate to one of the host unit’s Facility Ports. The Cat 5 cable carries DC power as well as balanced audio.
The BT-2F routes a mono sum (L+R) of the streamed audio to the host unit and is compatible with the following Cloud products which are fitted with RJ45 Facility Ports;
- Z4MK4 & Z8MK4 Zone Mixers
- 24-120 & 24-240 Zone Mixing Amplifiers

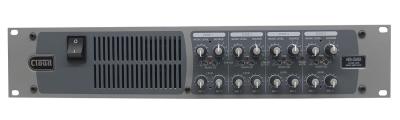

- 46-120MK2 & 46-240 Zone Mixing Amplifiers
- MA40F, MA40T and MA40E Mini Amplifiers
- MA80FT and MA80E Mini Amplifiers
- 46-80 and 46-80T Zone Mixing Amplifiers
- MPA120MK2 & MPA240MK2
Alternatively, the BT2F can be used with any product not equiped with a Facility Port connector by using an FPA-1 adaptor per Zone.
If you do not wish the BT-2F to function as a single-zone priority input, you can use an FPA-1 adaptor to configure it as a global line input. This provides additional flexibility, allowing it to serve as a priority line input across multiple zones, depending on the headend functionality.
Also available in white (BT-2FW).
- Remote Bluetooth input module for Cloud host units with Facility Port Capability
- Easy connection via screened Cat 5 cable (up to 100 m)
- Single-button Bluetooth “pairing” mode for secured operation
- Alternative “unsecured” mode: configurable at installation

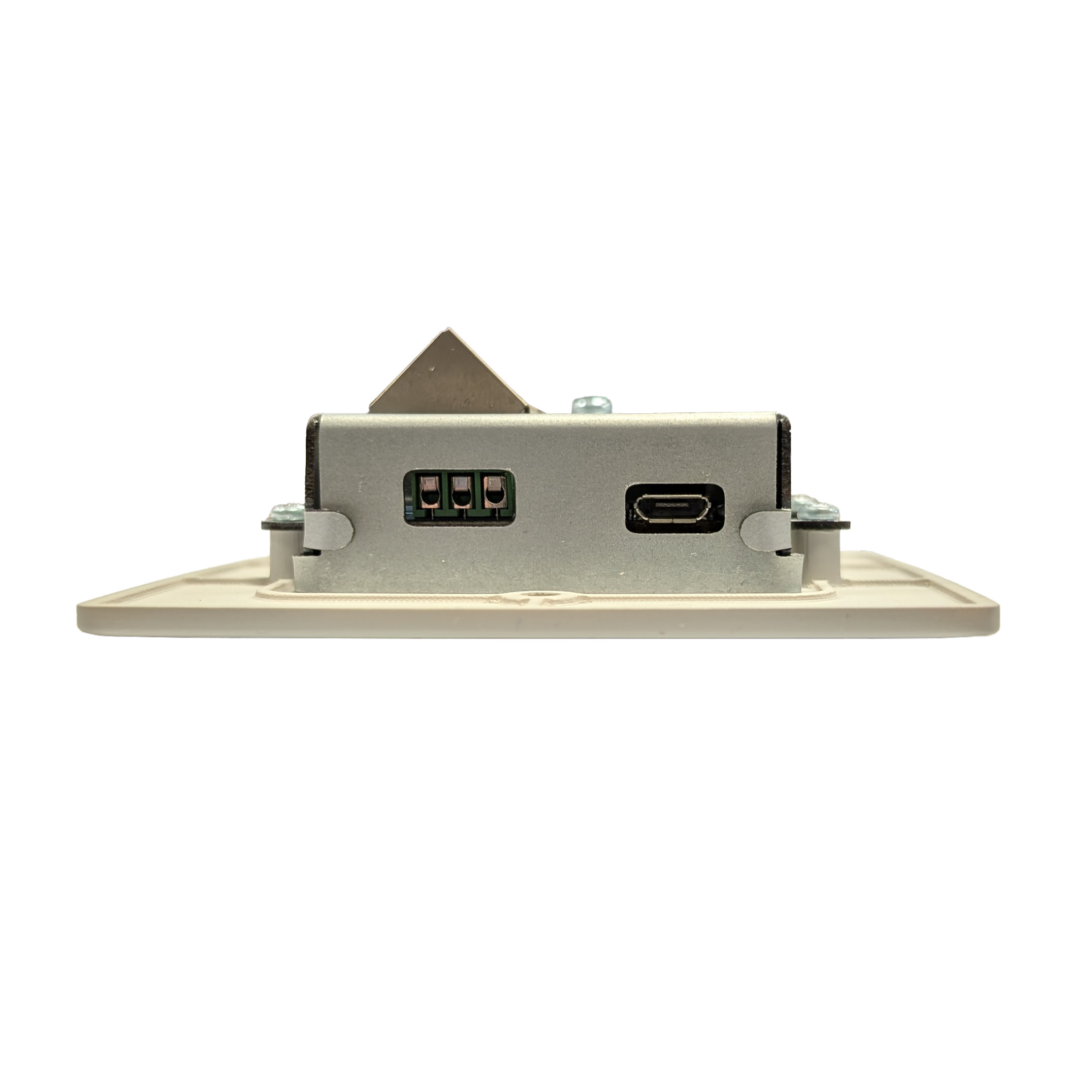

- Micro USB connection for plate naming: Each module may have one of 16 unique identifiers to differentiate receivers in areas where multiple modules are installed

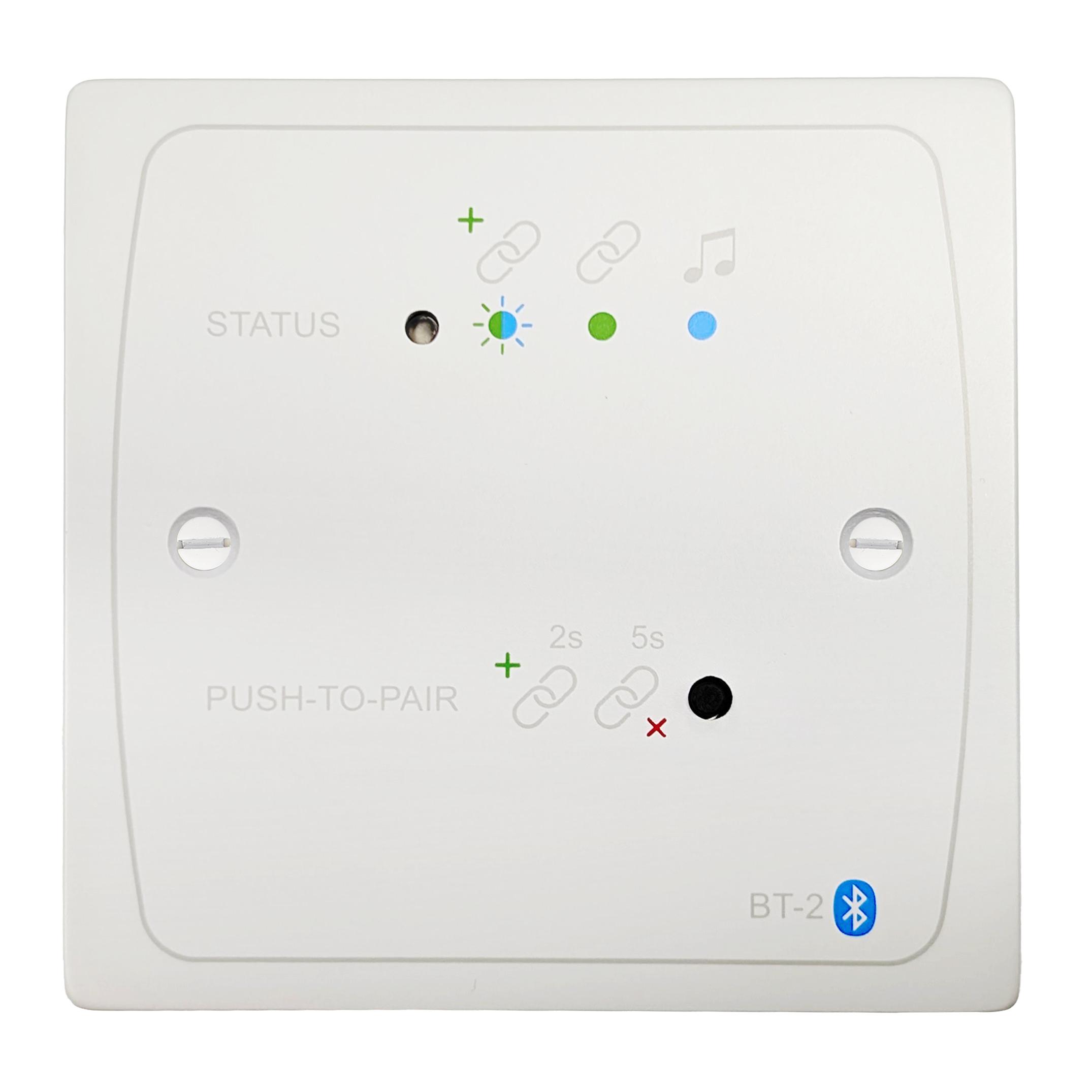

- Bicolour LED indicates connection progress and streaming activity
- May be daisy-chained to remote input modules (e.g., LM-2) in same Zone
- RSL-6 or RL-1 remote plates may be daisy-chained to BT-2F
- UK versions mount into a standard single-gang UK-style electrical back box (85 x 85 mm) and require a back box depth of 35 mm minimum
- Available in black or white
- Warranty: 1 Year
 |
