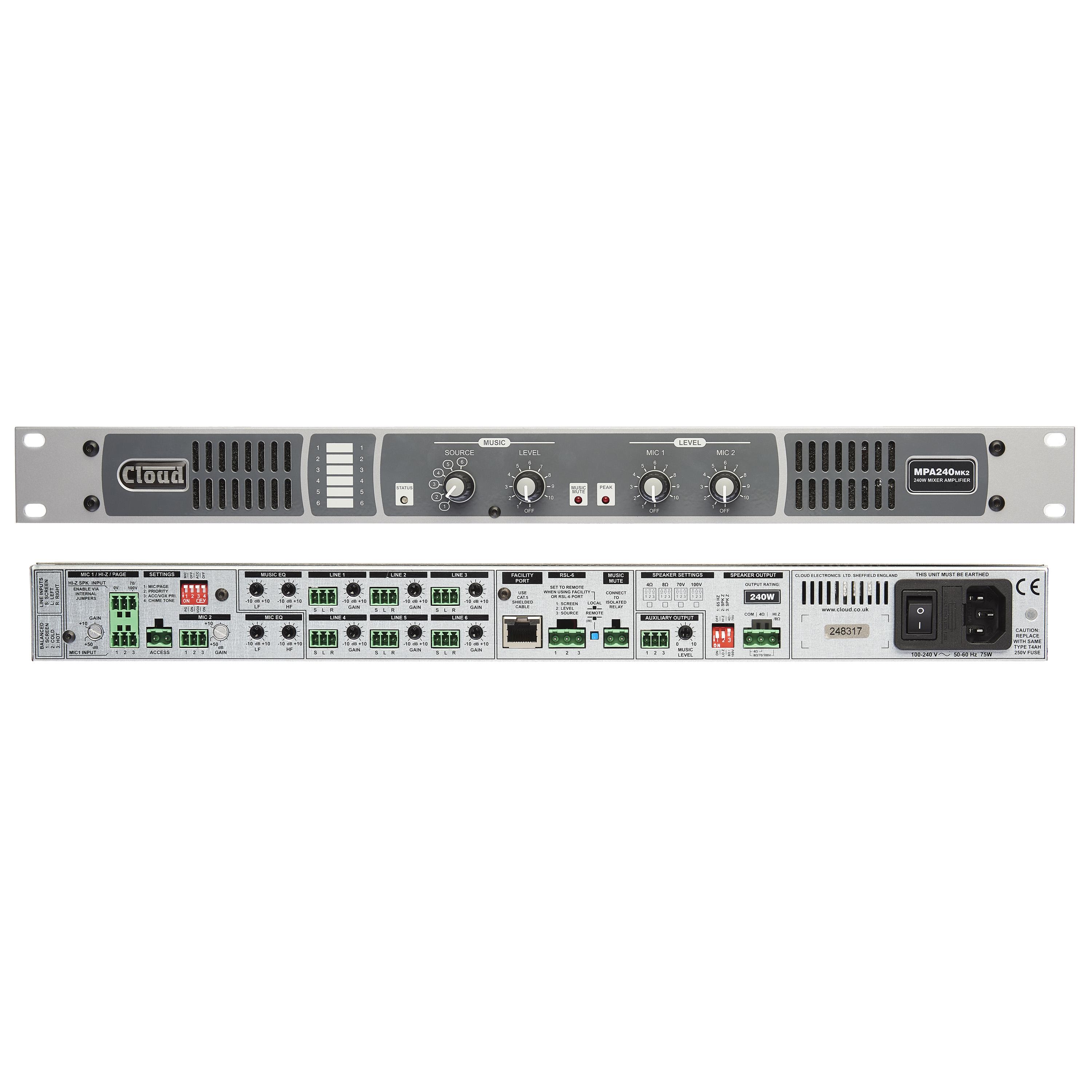

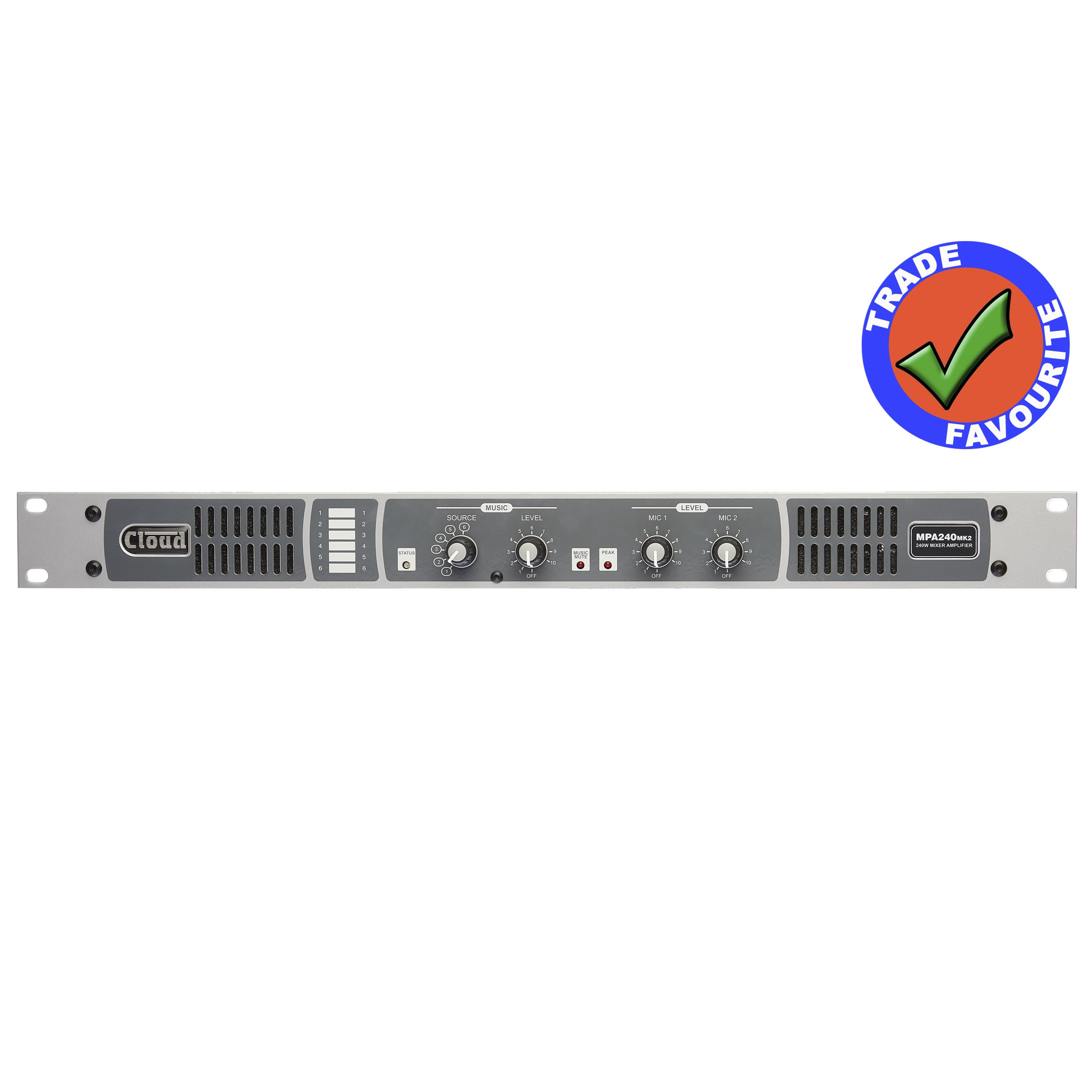

The Cloud Electronics MPA240mk2 240 watt mixer amp, one of our favourite products, offers mixed impedance outputs on 4 & 8 ohms as well as 70V &100 volt line.

The MPA series amplifiers are available in 2 output variations - MPA120mk2: 120 watts and MPA240mk2: 240 watts.

The MPA mixer amplifiers have six unbalanced stereo line inputs for music sources, and two balanced microphone inputs. Each microphone input has its own rear panel sensitivity control and front panel gain control, and the selected music source is mixed with the summed mic signals before being fed to the power amplifier stage.

The selected music source is mixed with the summed mic signals before being fed to the power amplifier stage.

The power output stage is transformerless, and is capable of driving 70/100 V-line loudspeaker distribution systems directly. Rear panel DIP switches allow the output voltage and impedance to be selected, permitting the amplifier to be used to either drive low-impedance (4 or 8 ohm) loudspeakers or 70/100 V-line systems.

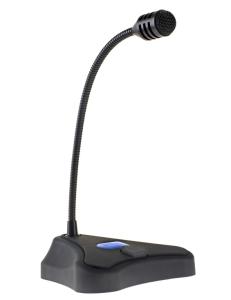

The Cloud PM1 single-zone paging microphone is compatible and the MPA120 can also be used for one of the zones on the Cloud PM4/8/12/16 multizone paging microphone. Alternatively, the Mic 1 input may be configured to suit most OEM paging systems; paging is activated by a short-to-ground access connection, and can have automatic priority over the other mic inputs. A pre-announcement chime is also available.

Mic inputs may be selected to have automatic priority over the selected music source, and additionally, one line input may be set to have priority over any other selected to facilitate connection of a digital sound store or similar device.

• Super compact design with very low power consumption
• Six (unbalanced) stereo line inputs with individual sensitivity adjustment
• Two balanced mic inputs – 12 V phantom power available on either or both
• Separate HF/LF EQ adjustments for mic and music source
• Paging control on Mic 1 input via short-to-ground access connection
• Mic 1 configurable as high-voltage input for paging from existing 70/100 V-line system
• Selectable VOX mic-over-music priority on all mic Inputs
• Automatic Mic 1-over-Mic 2 priority in Page mode
• Selectable LINE 6 priority with choice of release times
• Selectable pre-announcement chime
• Music Mute
• Facility Port supports BT-1 Bluetooth and/or LM-2 Active Input Plates

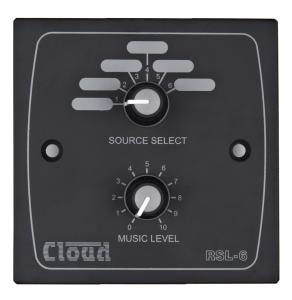

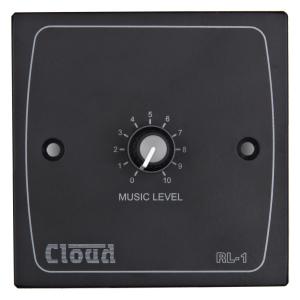

• Compatible with standard Cloud remotes RL-1 &RSL-6 Series
• Power amplifier protection circuitry & input limiter
• Transformerless output stage 70/100 V-line systems directly, or low impedance loudspeakers (4/8 ohms)
• Aux output from pre-amp (balanced, line level)
• Automatic power-down function (user-selectable)
• ENERGY STAR Certification applied for
• Forced-air cooling with variable speed control
• 1U 19” rack mounting unit
