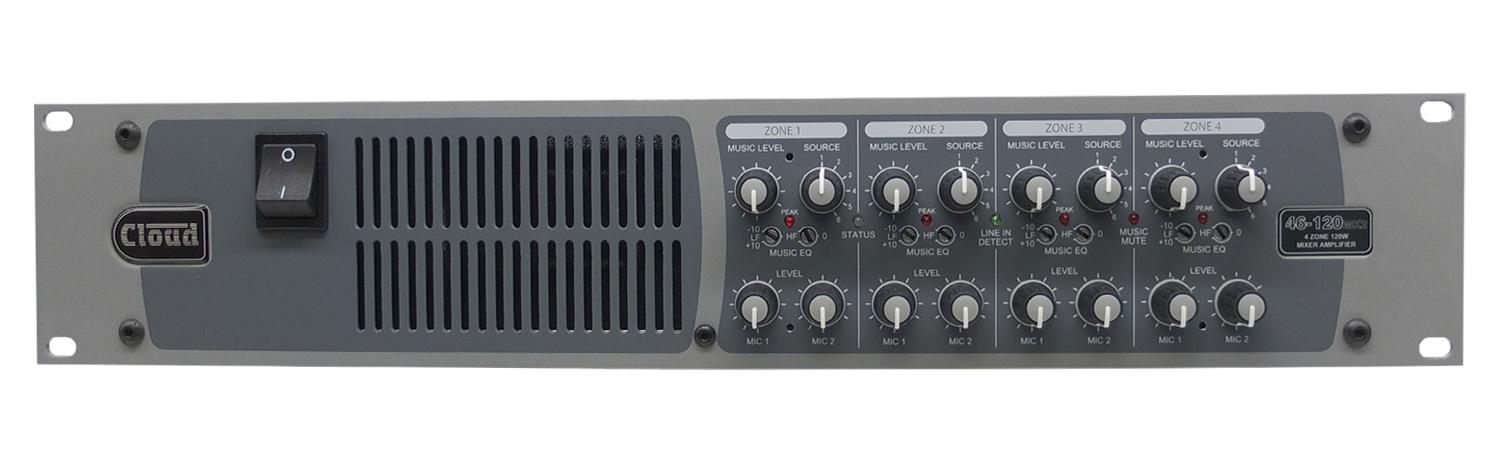

Cloud Electronics 46-120mk2

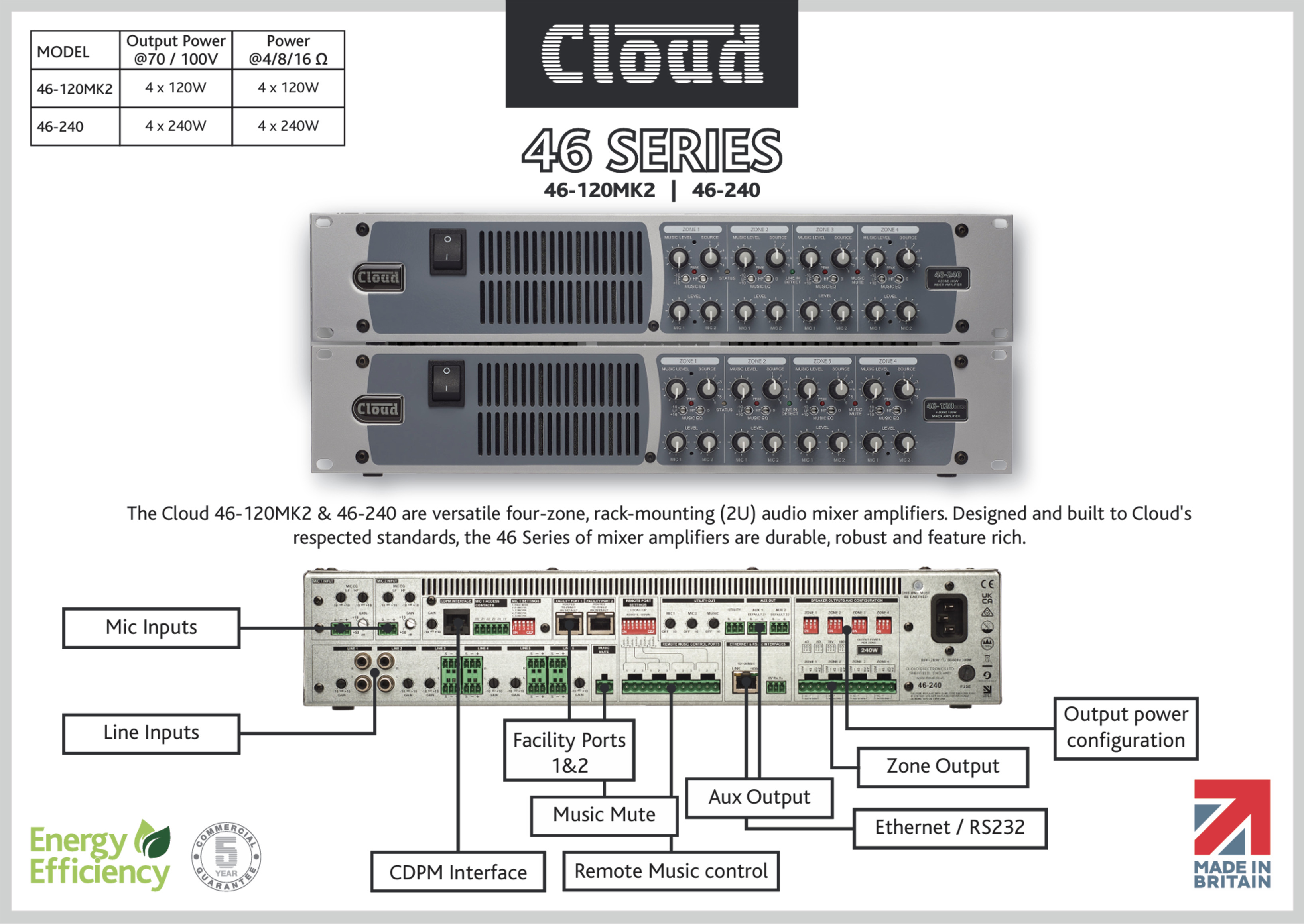

The new Cloud Electronics 46-120mk2 four zone mixer amp offers 4 x 120 watts output 4Ω/8Ω/70V/100V. Power sharing is available, enabling 240 watts total output to be distributed as required across Zones 1 & 2, and Zones 3 & 4.
Available soon - pre-order now. Please contact us for expected deivery date.
The 46-120mk2 4 zone mixer amplifier provides individual source selection and volume control of up to six audio sources and two microphone inputs (with priority) across four zones.
Source selection and volume level control for each zone can be made via the front panel or remotely with the connection of up to four optional RSL-6 Remote Source / Volume Select controllers, one for each zone. A digital paging interface is provided for Cloud Digital PM Paging Microphones and there is also an Ethernet & RS232 Port.
An optional automatic stand-by function reduces power consumption when not in use.
The Cloud 46/120mk2 Class D Mixer Amplifier provides a feature-packed single-box solution for four zone venues of all sizes across retail, leisure, education and hospitality sectors.
- 4 x 120W Class-D Output per zone (4Ω/8Ω/70V/100V).
- Power Sharing across Zones1&2 and 3&4 in 70/100V modes.
- Limiters on each Zone plus Thermal/Short Protection.
- 6 Stereo Line-Inputs (4 Balanced).
- 2 Microphone Inputs with Priority Option.
- Utility Output with Mic & Music Gain Control.
- Remote Music Level and Source Selection via RSL-6 / RSL-6A.
- 2 x Facility Inputs for Zone1 (Z1&Z3 or ALL) & Zone2 (Z2&Z4).
- Ethernet & RS232 Port.
- 2 Aux Outputs, Zone assignable (Z1 + Z2).
- Auto Stand-By Mode Function.
- Digital Paging Interface for Digital PM Paging Microphones.
- Remote Music Mute (NO or NC operation)for Fire Alarm Interface.
- Efficient, Universal Power Supply.
- Variable Speed Fan Cooling.
- Optional Accessories are: PM Series, RSL-6, RSL-1, LM-2, BT-2, M-1, L-1
