The Cloud Electronics BT-1E remote wall-mounting input module for exclusive use with Clouds DCM-1 digital mixers. It enables Bluetooth compatible devices such as laptops, tablets and smartphones to stream audio wirelessly to the interface, and thereby into the audio system of the Zone where the interface is installed.

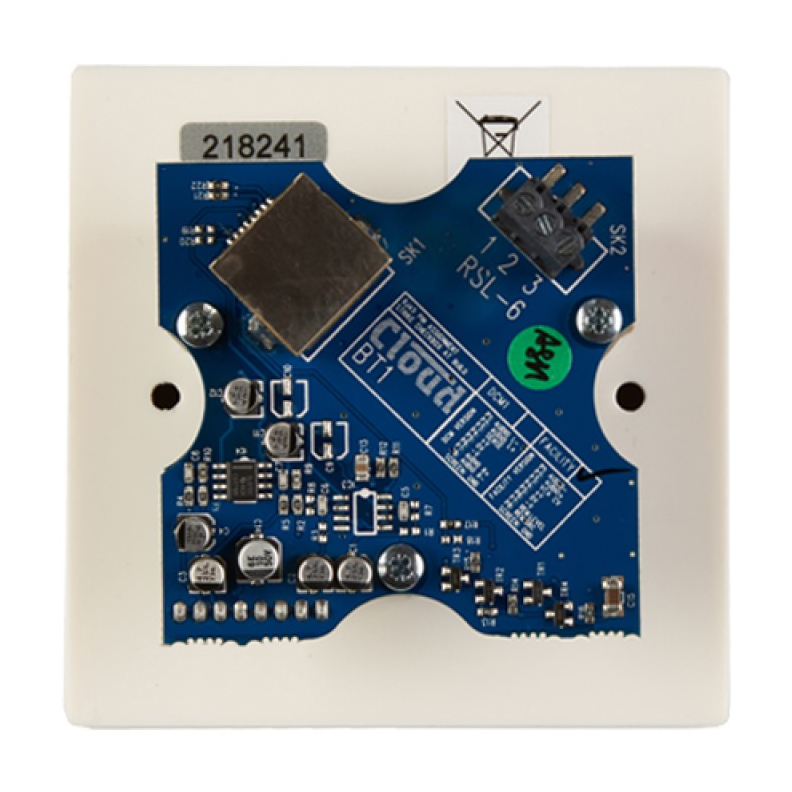

The BT-1E is simply connected using CAT5 cable between the rear RJ45 connector on the rear of the plate to one of the host unit’s Extension Ports. The Cat 5 cable carries DC power as well as balanced audio.

The BT-1E routes audio in stereo to the host unit and is compatible with both the Cloud DCM1 Digital Control Zone Mixer and DCM1e Ethernet Digital Control Zone Mixer.

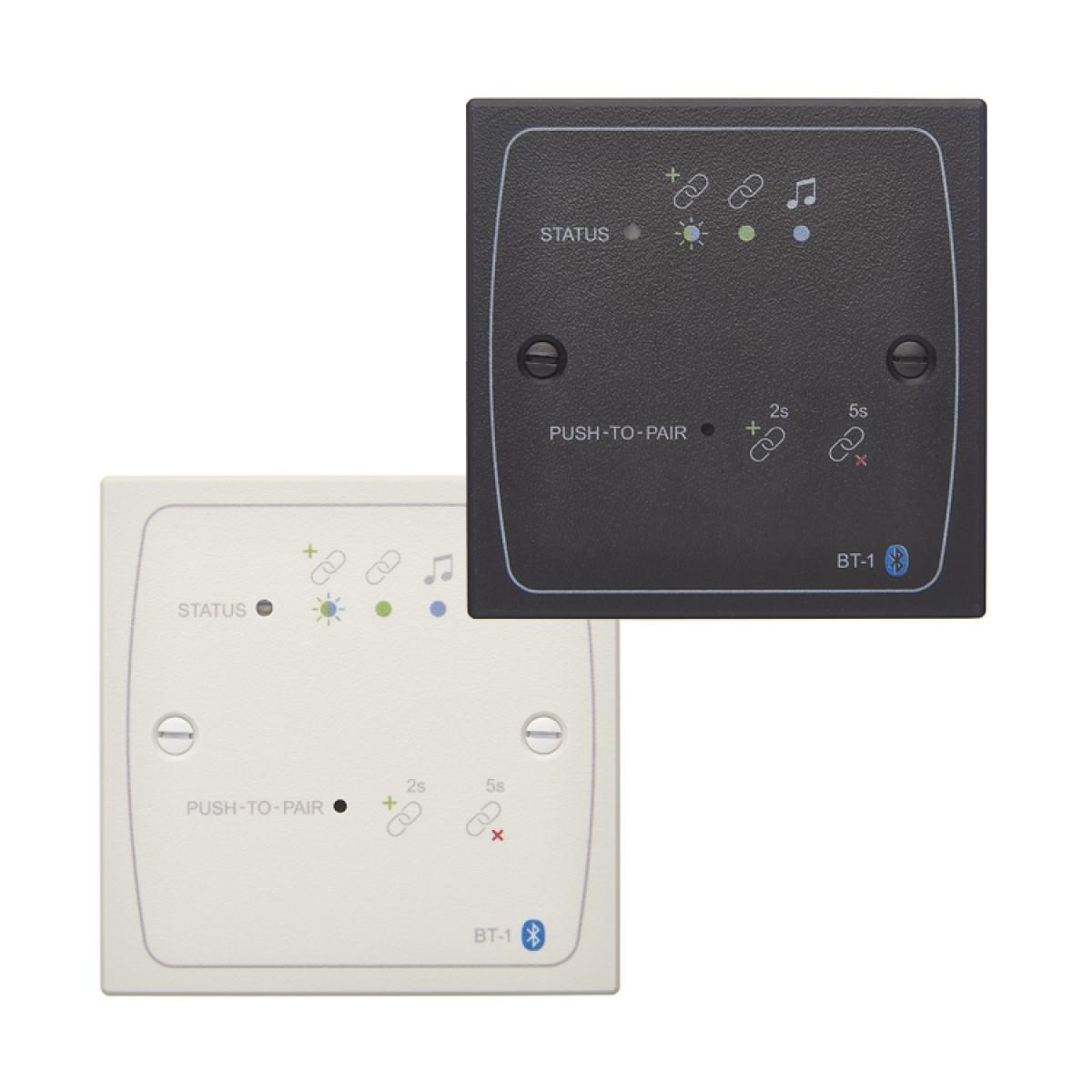

Available in black (BT-1EB) or white (BT-1EW).

• Remote Bluetooth input module for Cloud host units with Extension Port Capability
• Easy connection via screened Cat 5 cable (up to 100 m)
• Single-button Bluetooth “pairing” mode for secured operation
• Alternative “unsecured” mode: configurable at installation
• Each module may have one of 16 unique identifiers to differentiate receivers in areas where multiple modules are installed
• RF power level adjustment to minimise risk of accidental inter-room connection
• Bicolour LED indicates connection progress and streaming activity
• May be daisy-chained to remote input modules in the same Zone
• UK versions mount into a standard single-gang UK-style electrical back box (85 x 85 mm) and require a back box depth of 35 mm minimum
