Cloud Electronics BT-2EW
The Cloud Electronics BT-2EB remote Bluetooth wall-mounting input module is for use with the Cloud DCM1 and DCM1e which are equipped with an RJ45 Extension Port.

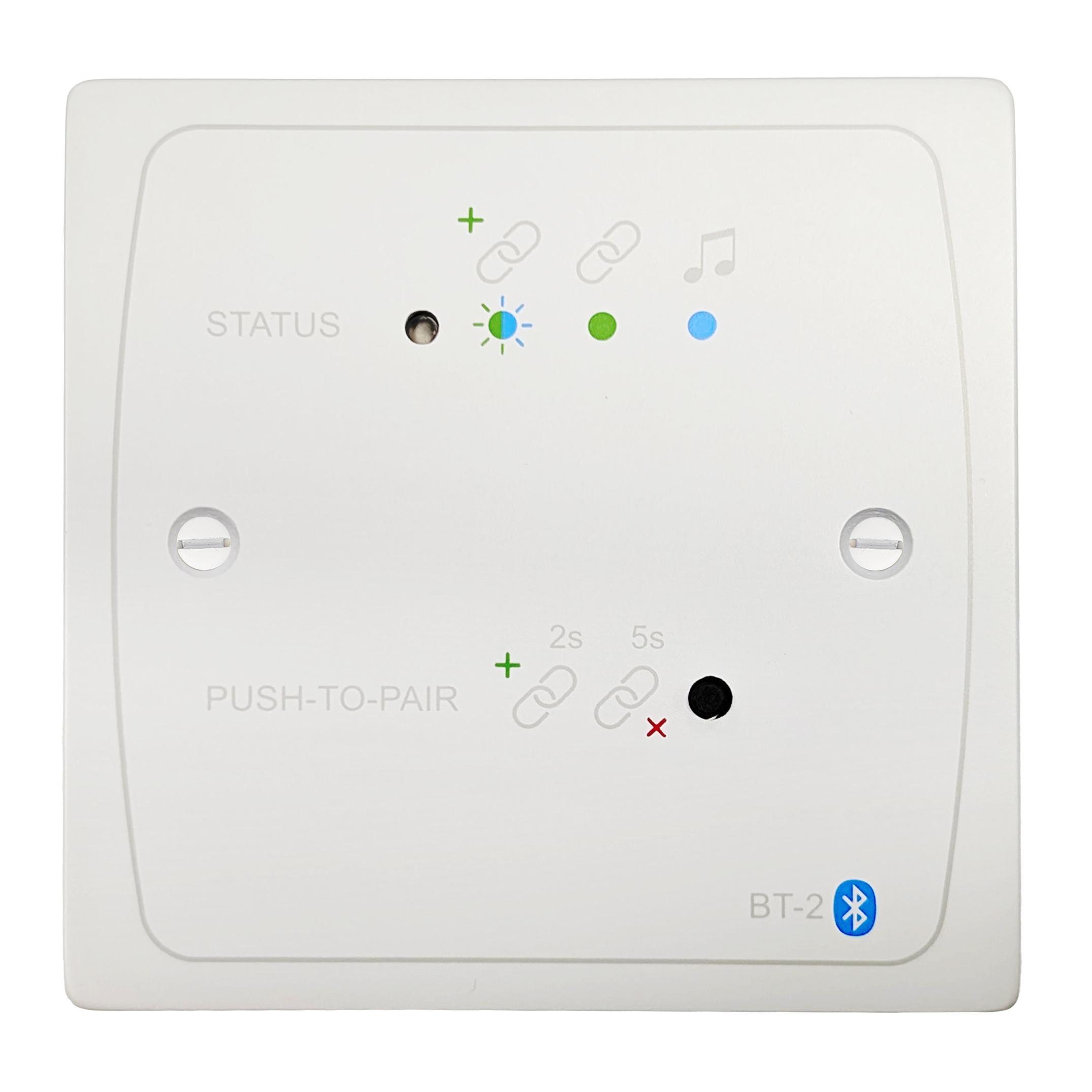

White finish - also available in black, see BT-2EB.
The BT-2 enables Bluetooth compatible devices such as laptops, tablets and smartphones to stream audio wirelessly to the interface, and thereby into the audio system of the Zone where the interface is installed.

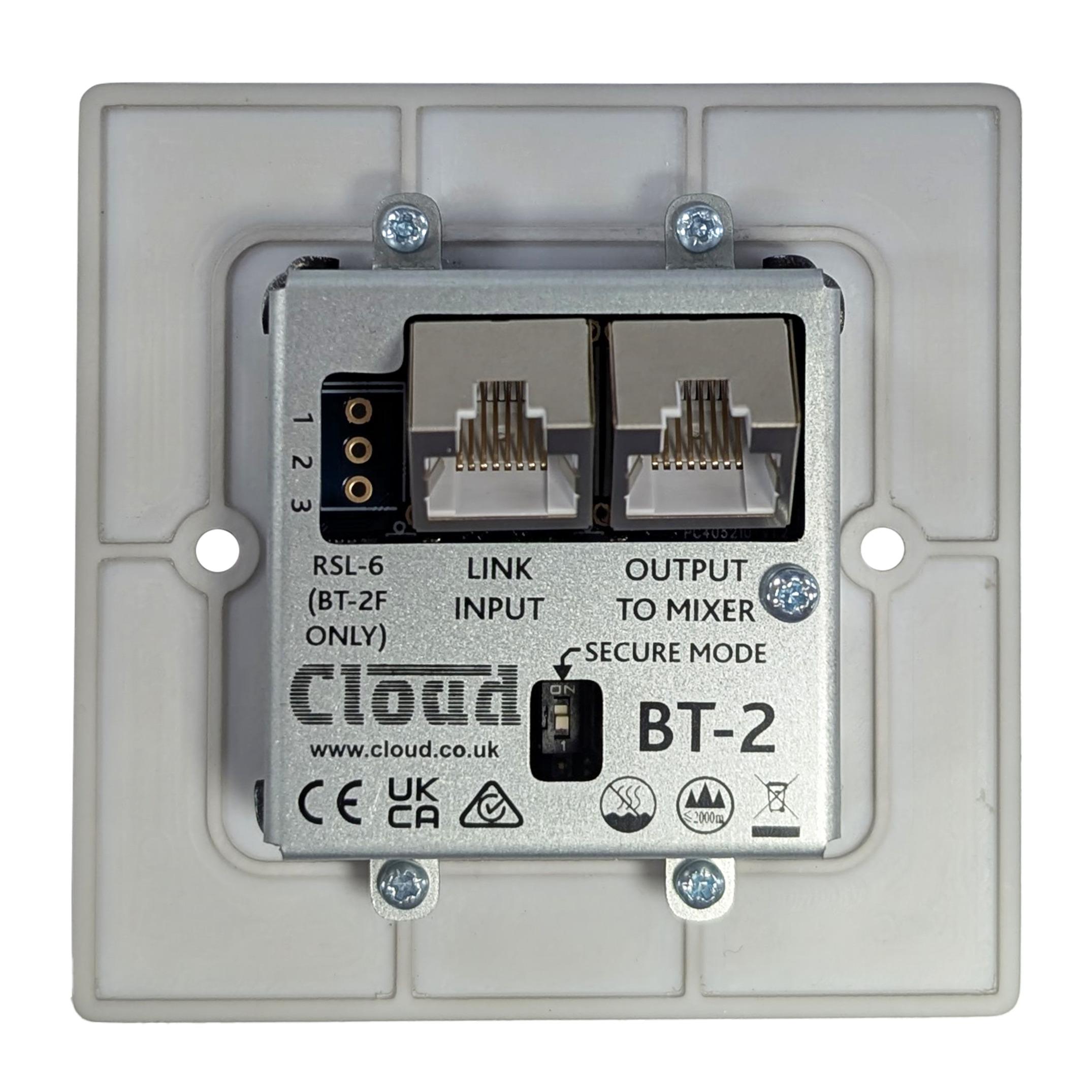

The BT-2EW is simple to connect using a single screened CAT5 cable (with shielded RJ45 connectors) between the RJ45 connector on the rear of the plate to one of the host unit’s Extension Ports. The Cat 5 cable carries DC power as well as balanced audio.
The BT-2E routes audio in stereo to the host unit and is compatible with the following Cloud products;
- DCM1 Digital Control Zone Mixer
- DCM1e Ethernet Digital Control Zone Mixer
If you exceed the number of Extension port inputs on the DCM1/DCM1e you can use an FPA-1 adaptor to configure it as a global line input.
- Remote Bluetooth input module for Cloud host units with Extension Port Capability
- Easy connection via screened Cat 5 cable (up to 100 m)
- Single-button Bluetooth “pairing” mode for secured operation
- Alternative “unsecured” mode: configurable at installation

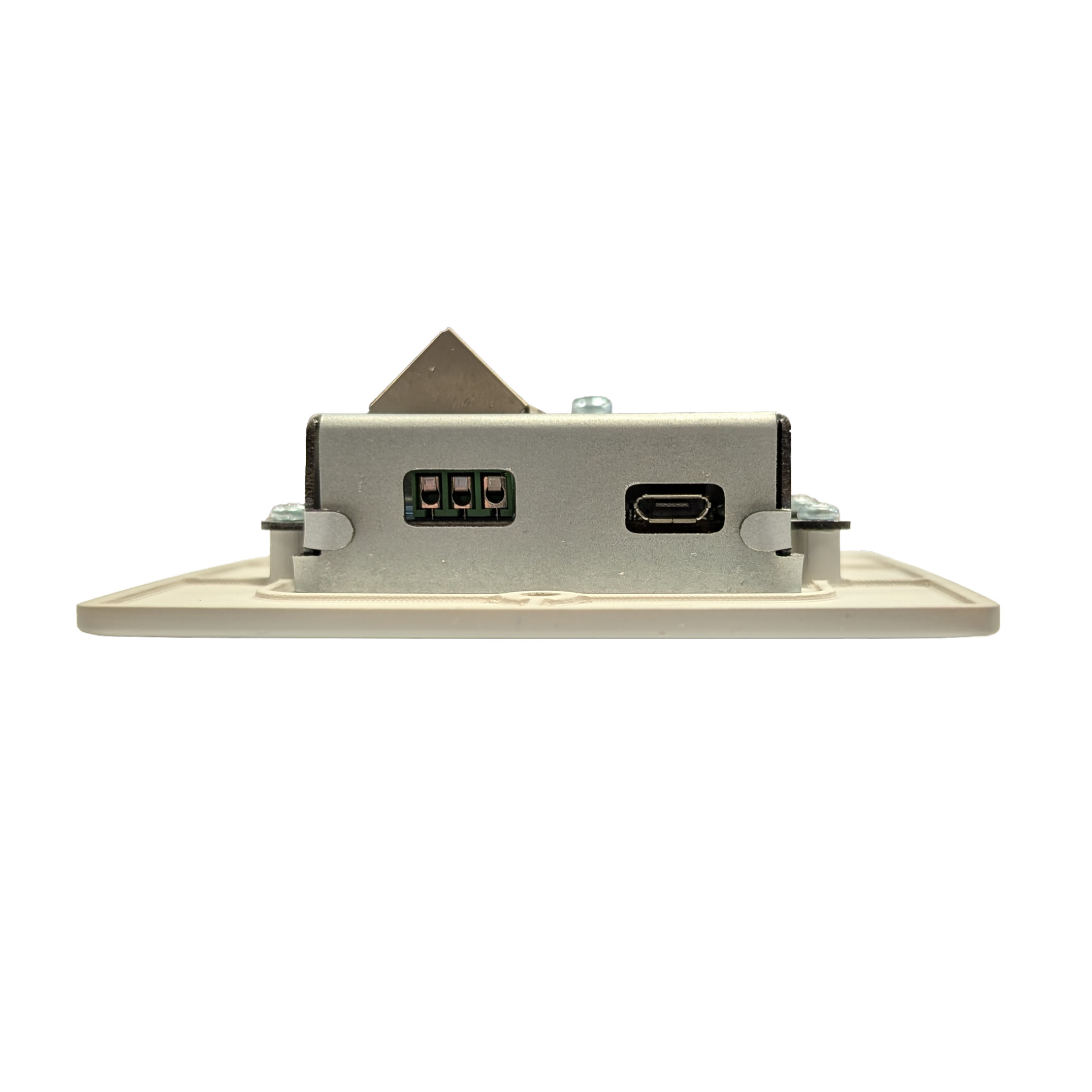

- Micro USB connection for plate naming: Each module may have one of 16 unique identifiers to differentiate receivers in areas where multiple modules are installed
- Bicolour LED indicates connection progress and streaming activity
- May be daisy-chained to remote input modules (e.g., LM-2) in same Zone
- RSL-6 or RL-1 remote plates may be daisy-chained to BT-2E
- UK versions mount into a standard single-gang UK-style electrical back box (85 x 85 mm) and require a back box depth of 35 mm minimum

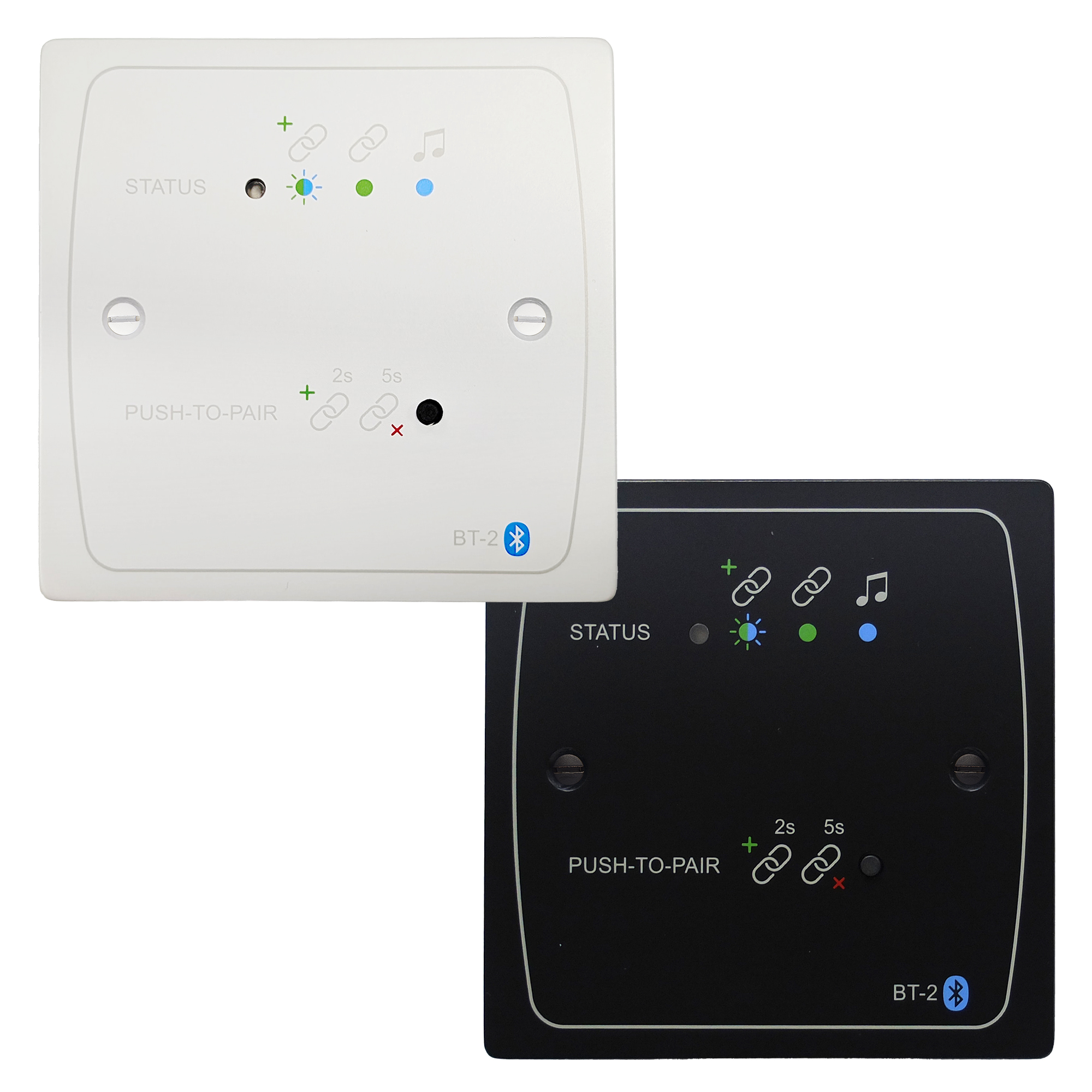

- Available in black or white
- Warranty: 1 Year
 |
