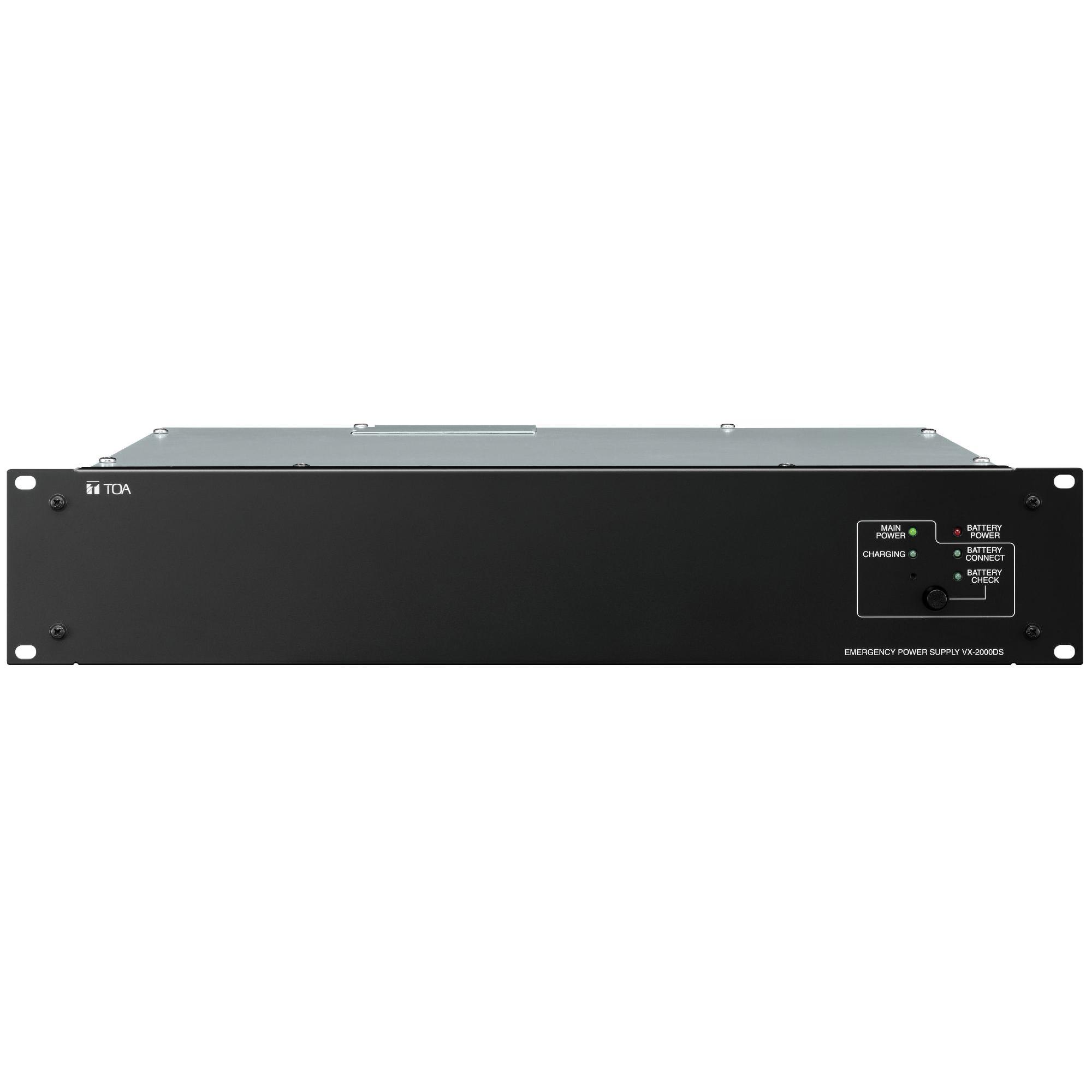

TOA VX-2000DS

The TOA VX-2000DS Emergency Backup Power Supply Unit is used in conjunction with the VM-3000 series Voice Alarm system in order to provide essential power in the event of a mains failure. One VX-2000DS is required for every 3 VM amplifiers in the system.

The VX2000DS requires 2 x 12V sealed lead batteries such as the Panasonic LC-X1265PG/APG. These are kept charged by the unit at all times, and will take over supply of power if the mains supply is interrupted.

This backup power supply can also be used with other voice alarm systems in the TOA range such as the VX and SX-2000 series, but further DC power supplies are needed for this application – please contact us for advice.

  • Keeps 2 x 12 V sealed lead batteries charged while maintaining temperature compensation for the charging voltage.
  • Detects charging circuitry or battery failures and transmits failure signals to the DS LINK of the TOA Voice Evacuation Systems (VX-2000, SX-2000, and VM-3000).
  • Automatically disconnects the battery if its voltage reaches a discharge final level.
  • Automatically switch-over in case of AC mains failure
  • EN 54-4 certified, Certificate No: 1134-CPR-083
100V Evac multi-zn
List Ex VAT: £795.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power source

230 V AC, 50 / 60 Hz

Outputs

DC power output: 6 (25 A max. each) M4 screw terminal, distance

between barriers: 11 mm

Charging method

Trickle charging

Charging output voltage

27.3 V ±0.3 V (at 25 ˚C) Temperature correction coefficient: -40 mV/ ˚C

Battery connection

1 pair of positive and negative terminals, applicable
cable diameter: AWG 6 – AWG 0 1/0

Control connector

RJ45 female connector for connecting the VX-2000SF. Twisted-pair straight cable (TIA/EIA-568A standard)

Type of control signal: Battery check, AC power status, DC power status, charging circuit failure, and battery failure

Operating temperature

0 °C to +40 °C

Accessory (included)

Rack mounting screw x 4, Fibre washer x 4, Blade fuse (40 A) x 3, Fuse (T3.15A L) x 1, Power cord (2 m (6.56 ft) x 1, Insulating sheet x 1, Attention label (German) x 1, Fastener hook x 4, Fastener loop x 4, Sticker (Declaration of compliance) x 1, Thermal insulating sheet x 1

DOWNLOADS

TOA VM-3000 & VX-3000 Series Brochure
TOA VM-3000 Series Short Brochure
TOA VX-2000DS datasheet
TOA VX-2000DS User Manual

Related Products

TOA VM-3240VA
TOA VM-3240VA

Voice Alarm System Management Amplifier. 240 Watts, 6 zones.

see more
List Ex VAT: £1,850.00

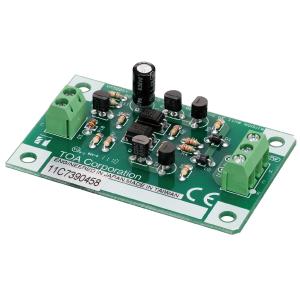

TOA VM-300SV
