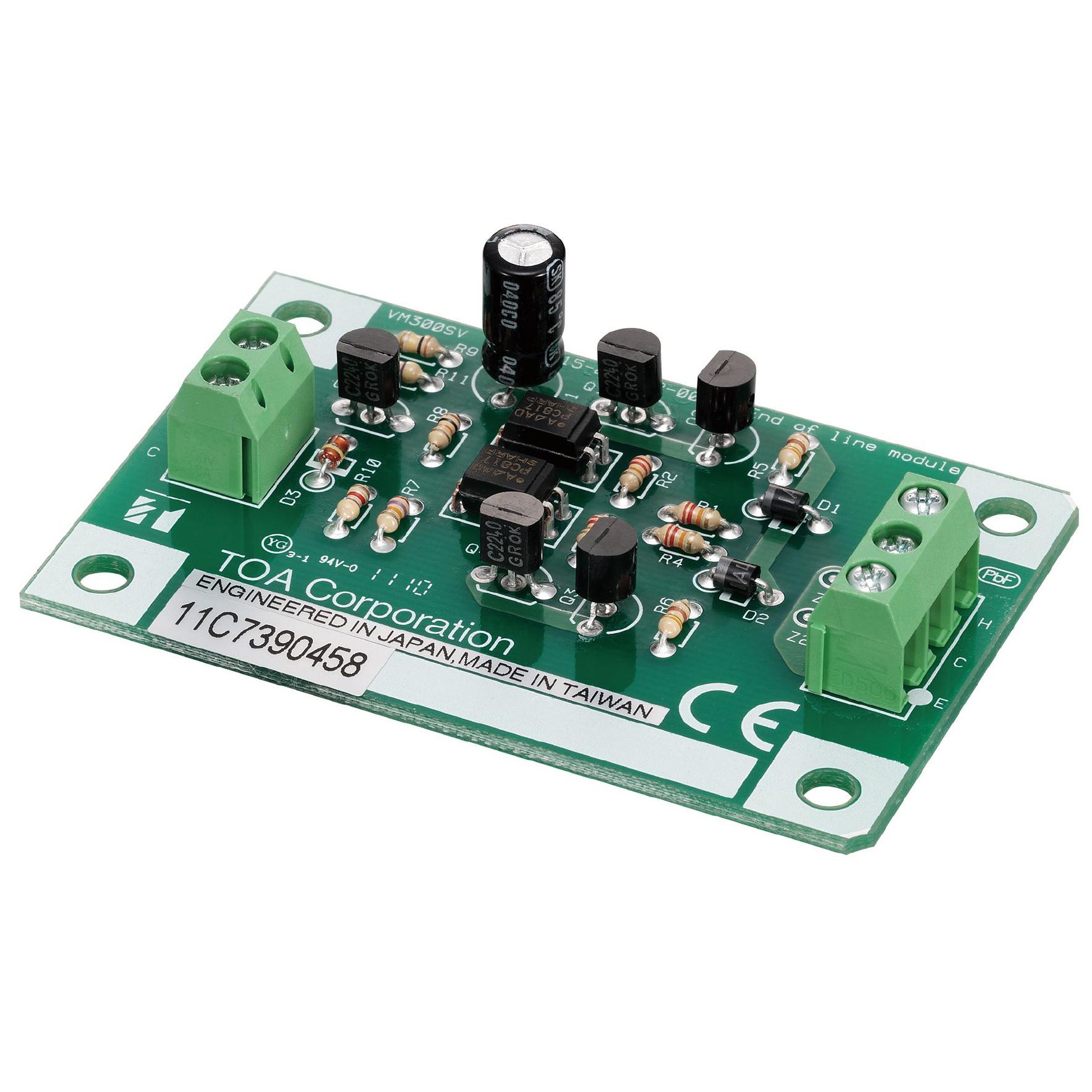

The TOA VM-300SV end of line module detects speaker line failure when connected between the speaker line end and the emergency input terminal of the VM-3240VA, VM-3360VA, VM-3240E, or VM-3360E.
For surveillance of one loudspeaker line on short circuit and break. Can be used with the VM-3000 system or the VX-3008F or VX-3016F.
|
Power source |
Supplied from speaker line output |
|
Power consumption |
0,2 W |
|
Control output |
Line status |
|
Input / Output |
Speaker line input: screw connector, applicable cable diameter: AWG 24 – AWG 19. |
|
Operating temperature |
-5°C until +40°C |
|
Finish |
Steel plate, surface-treated |
|
Dimensions |
70 x 18 x 45 mm (W x H x D) |
|
Weight |
20 g |
