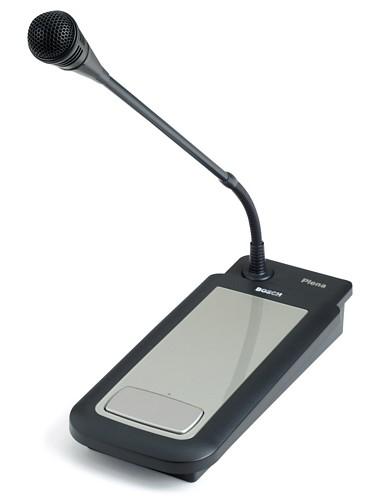

The Bosch Plena LBB1950/10 paging mic is a stylish, high-quality tabletop unidirectional condenser microphone for making calls and announcements in a public address system. Its heavy metal base and rubber feet ensures stability on any flat surface.

The special design of the LBB1950/10 also enables it to be neatly flush-mounted in desktops.

  • Stylish table-top unidirectional condenser microphone on a flexible stem
  • Phantom powered by amplifier
  • Momentary or toggle PTT-key for calls with priority contact
  • Green LED, indicating microphone active
  • Stable metal base design with fixed 2m cable and lockable DIN connector
List Ex VAT: £119.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Phantom power supply



Voltage range

12 to 48 V

Current consumption

<8 mA

Performance



Sensitivity

0.7 mV @ 85 dB SPL (2 mV/Pa)

Maximum input sound level

110 dB SPL

Distortion

<0.6% (maximum input)

Input noise level (equiv.)

28 dB SPLA (S/N 66 dBA ref. 1 Pa)

Frequency response

100 Hz to 16 kHz

Output impedance

200 ohm

Mechanical



Base dimensions (H x W x D)

40 x 100 x 235 mm / (1.57 x 3.97 x 9.25 in)

Weight Approx

1 kg (2.2 lb)

Colour

Charcoal with silver

Stem length with mic

390 mm (15.35 in)

Cable length

2 m (6.56 ft)

Environmental



Operating temperature

-10 ºC to +55 ºC (14 ºF to +131 ºF)

Storage temperature

-40 ºC to +70 ºC (-40 ºF to +158 ºF):

Relative humidity

<95%
