LD Systems MIBS

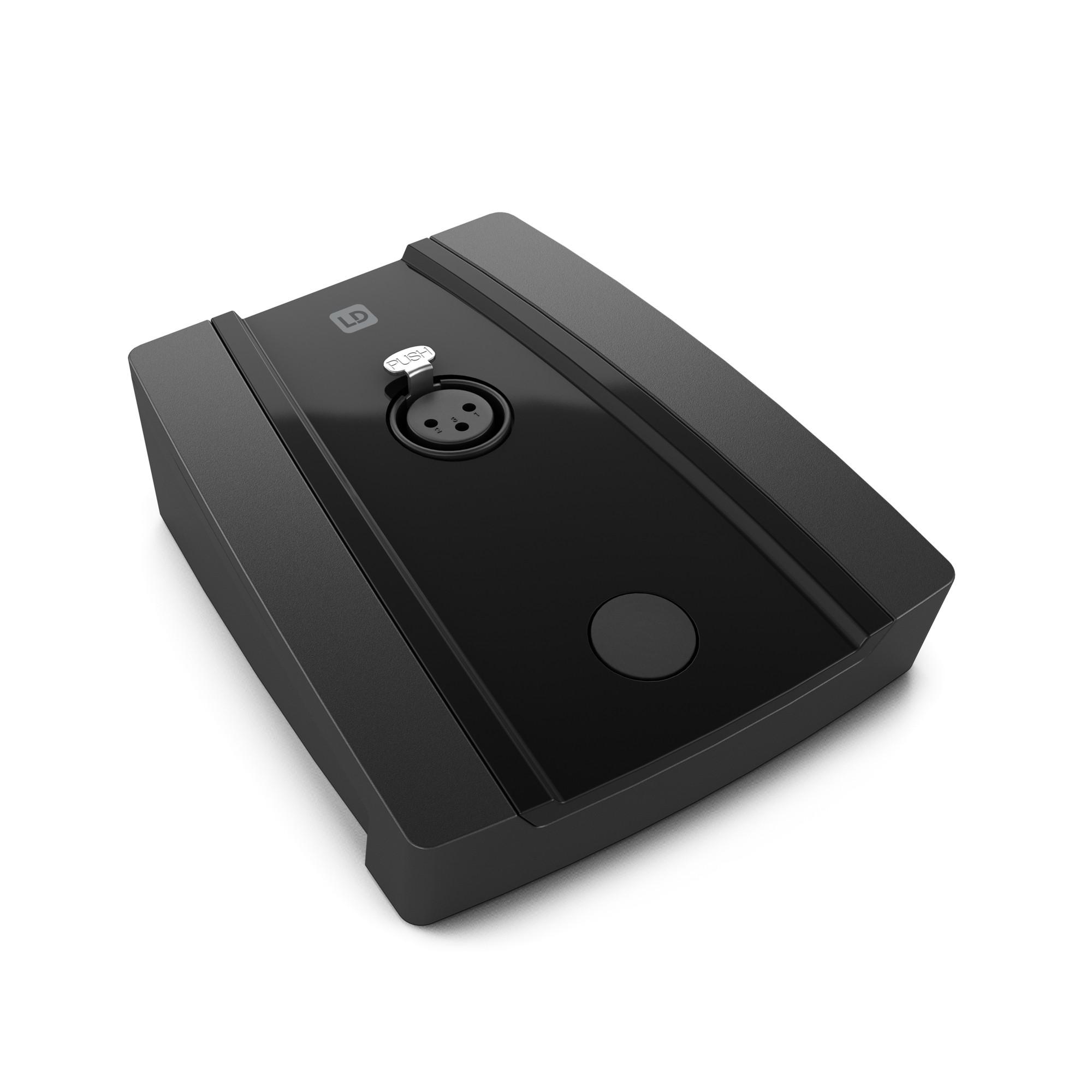

The LD Systems MIBS passive desktop microphone switchable table stand is ideal for pairing with the LD Systems D1015CM gooseneck microphone but is also compatible with any commercially available gooseneck microphone with an XLR3M connector.

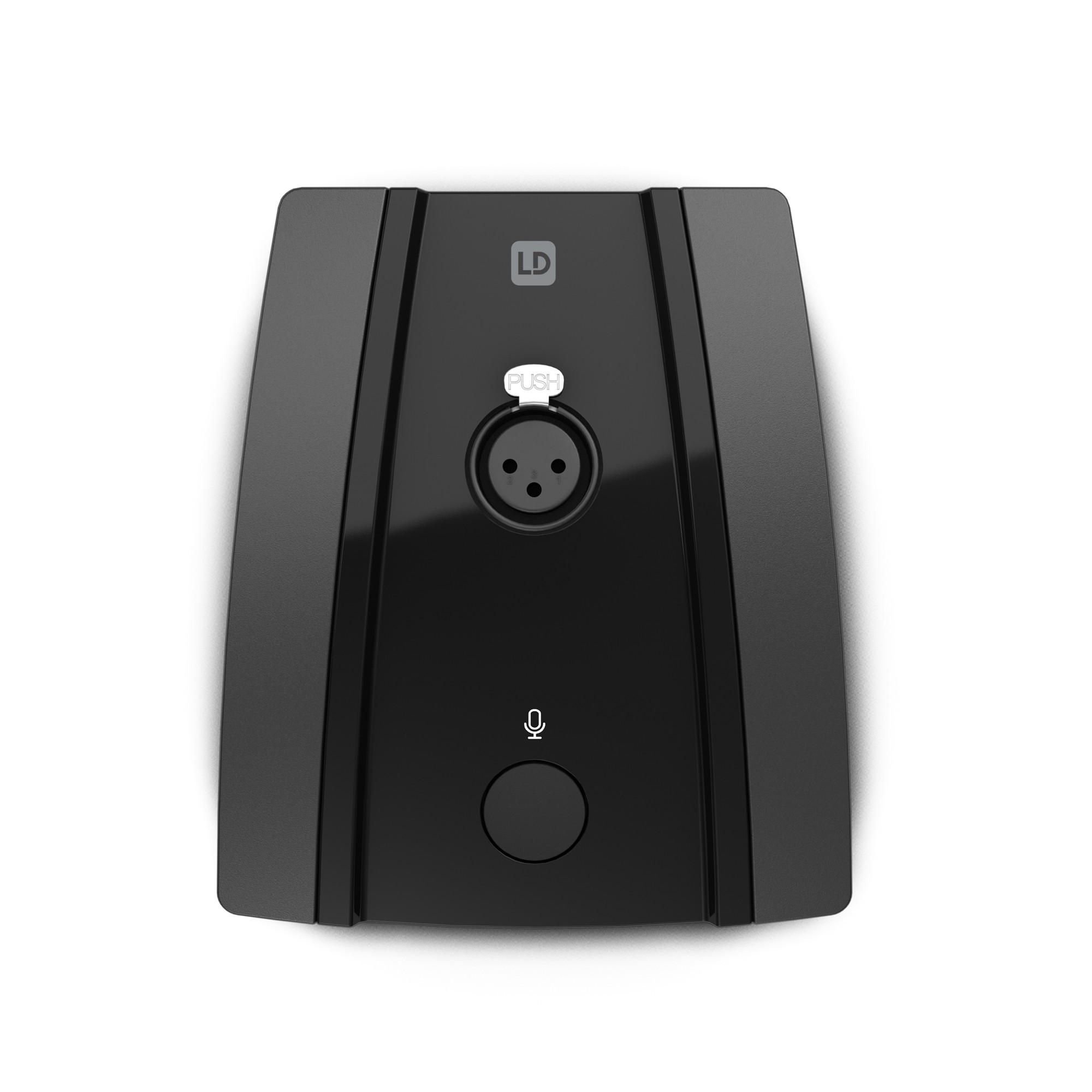

This active microphone base features a configurable button and LED status indicator. The button can be switched between three operating modes: push-to-talk, push-to-mute and latch ON/OFF. The integrated active audio switching circuitry operates extremely quietly without disturbing the participants in the room.

The LED status indicator allows users to see at any time if the microphone is active. When the microphone on the MIBS is muted, the internal attenuation of more than 75 dB ensures that no unwanted information or noise is transmitted.

Both the LED display and the active audio circuitry are powered by the 48V phantom power output from a mixing console or preamplifier for the microphone, so they do not require an additional power supply.

An integrated low-cut filter takes effect from 100 Hz to ensure transparent speech transmission by reducing annoying low frequency noises - rumbling, humming, vibrations - which typically occur during desktop operation.

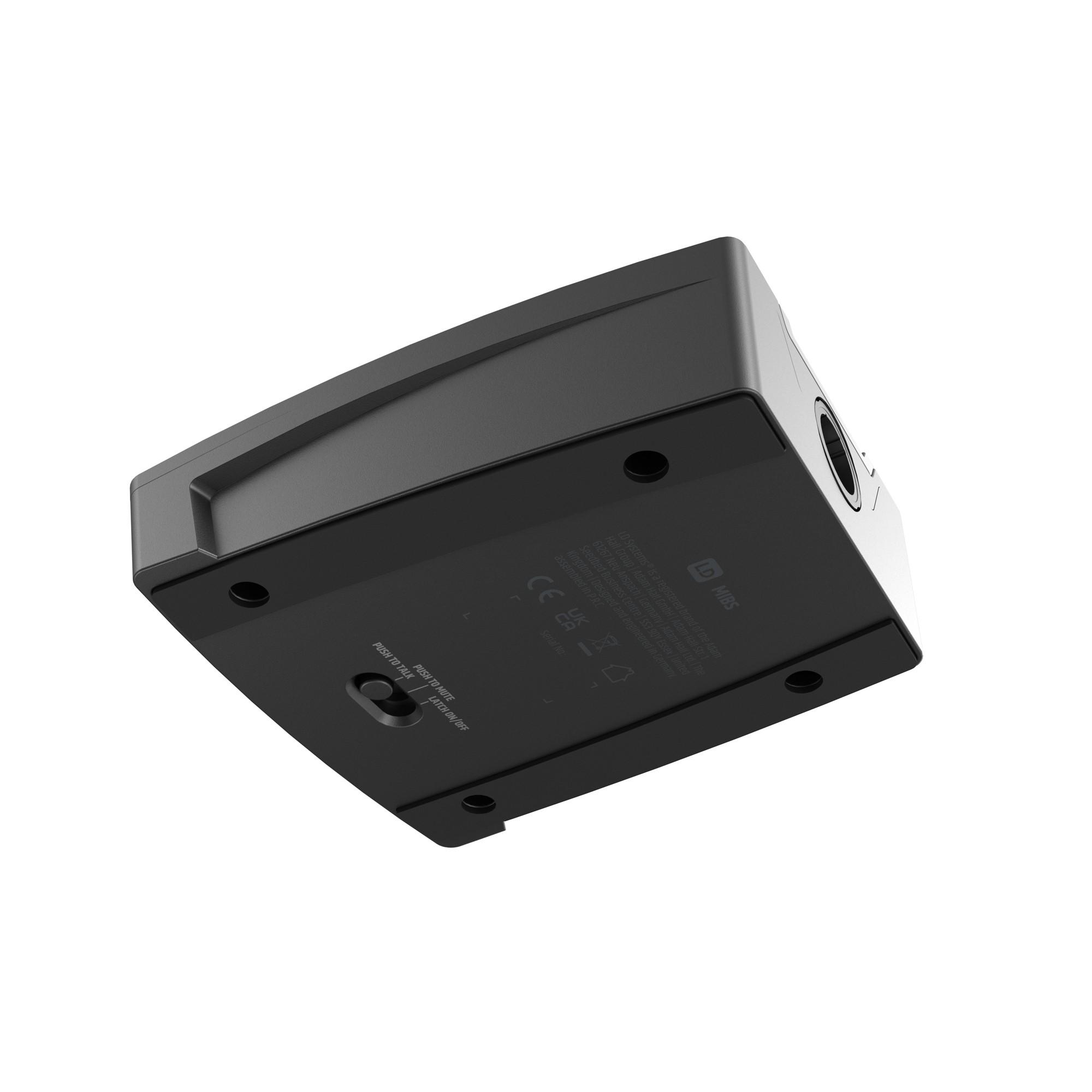

The non-slip long rubber feet on the underside of the housing also reduce the effects of shocks and vibrations on the microphone.

For optimal signal transmission to mixing amplifiers and consoles, the active audio circuitry in MIBS provides an extra+5 dB gain. This also prevents audio signal loss issues due to long cable runs.

  • Active desktop microphone base unit
  • Compatible with all gooseneck microphones with XLR3M connector
  • Integrated LED status display
  • 3 operating modes: Push-to-talk, Push-to-mute, Latch ON/OFF
  • Ultra-quiet active audio switching circuitry
  • >75 dB mute attenuation
  • 100 Hz low-cut filter
  • Slim and elegant design
  • Robust die-cast zinc alloy construction
  • Non-slip long rubber feet
  • Warranty: 5 Years
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Product type

Desktop Microphone Base with switch

Control

Configurable Push button: Push to talk, Push to Mute, Latch On/Off

Frequency response (-3 dB)

90 Hz - 20 kHz

Input Impedance

47 kohms (Balanced)

Output impedance

800 ohms (Balanced)

Off attenuation

>75dB @ 1kHz

CNRR

>65 dB (CMRR IEC)

Gain

5.5 dB

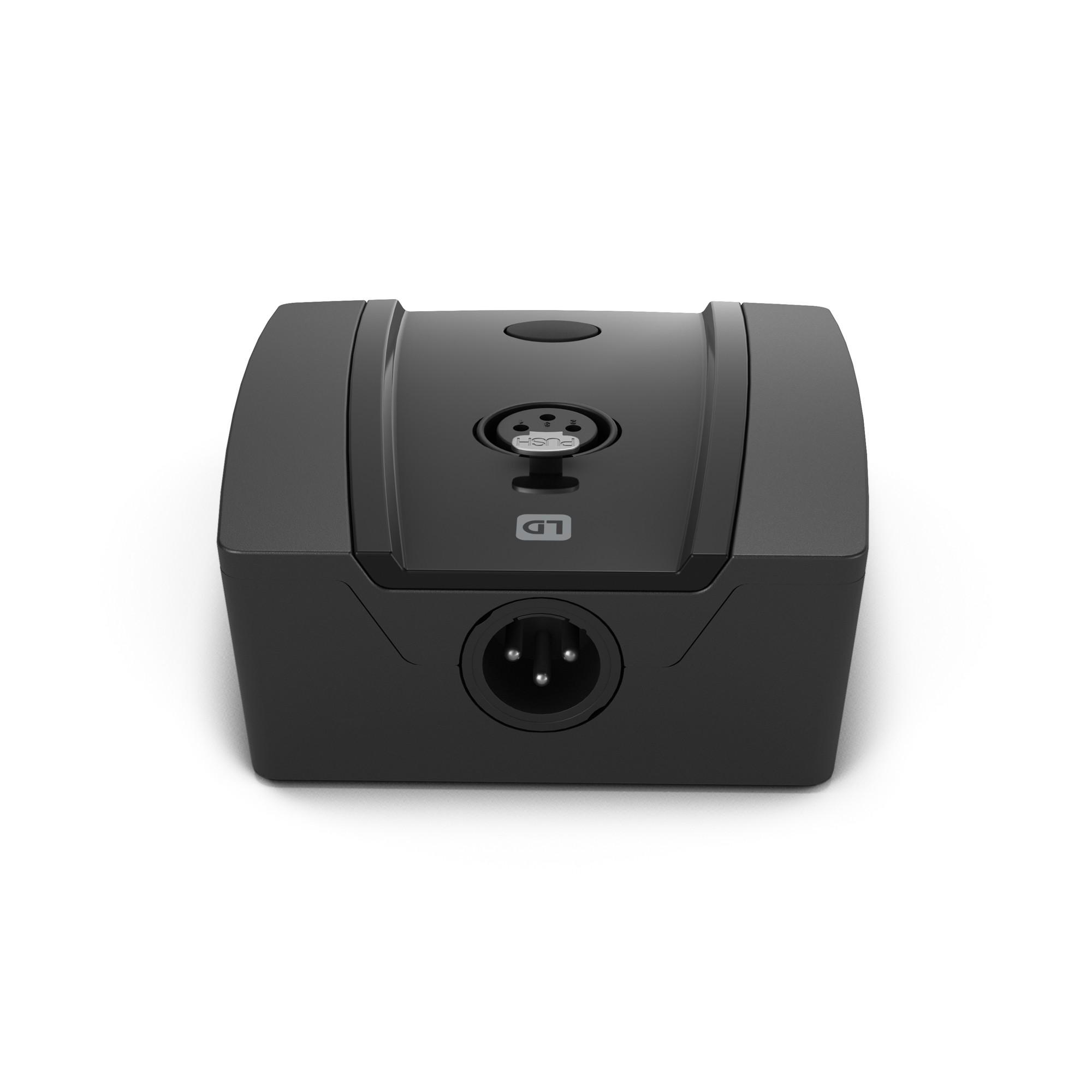

Input connector

3-pin XLRF

Output connector

3-pin XLRM

Phantom Power requirements

15 VDC - 48 VDC (+-10%), 6 mA typical

Idle power consumption

3 mW (MUTED)

Power consumption

6 mA

Colour

Black

Base dimensions (W x H x D)

109.8 x 38.7 x 126.2 mm (height with rubber feet)

Weight

0.54 kg
