LD Systems PAM

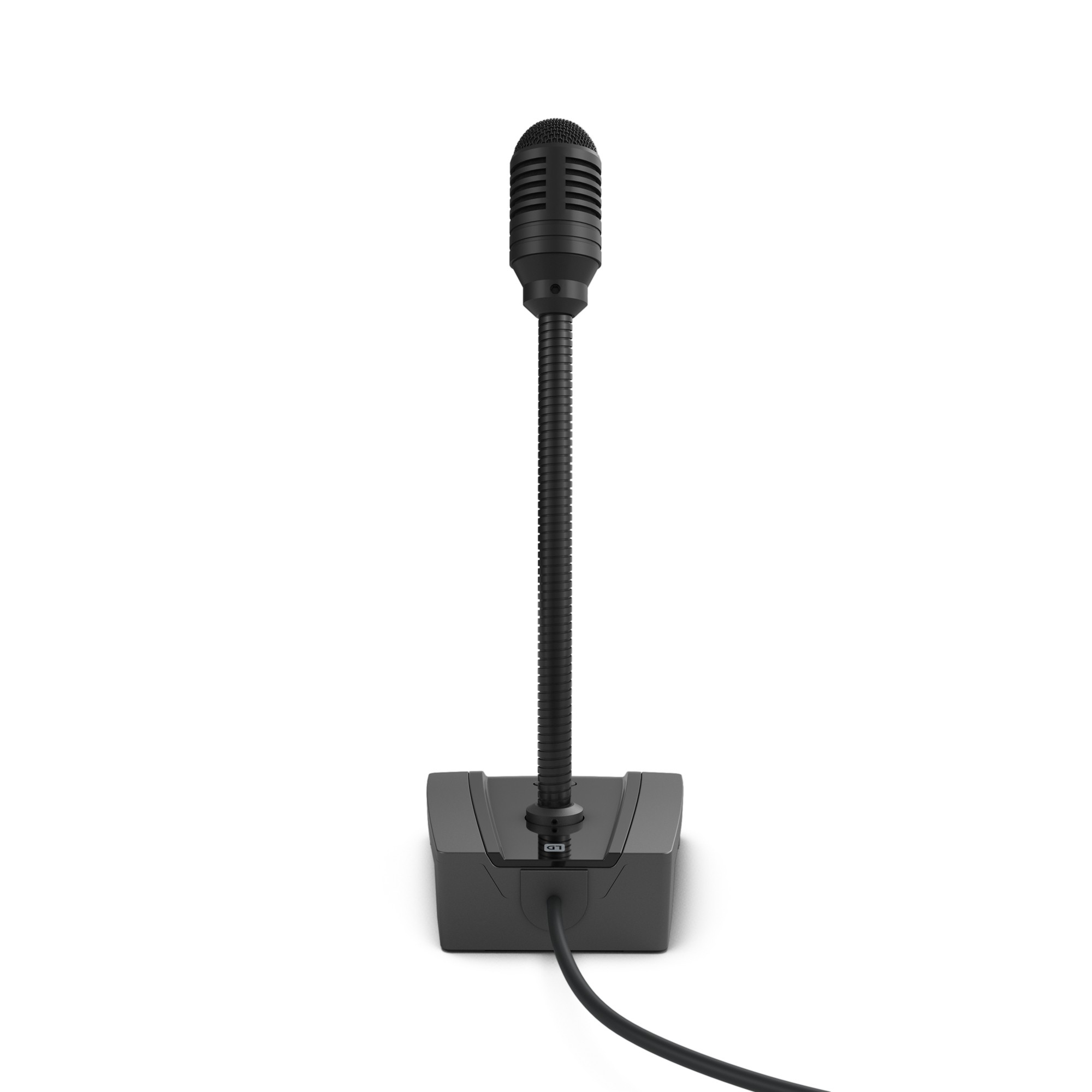

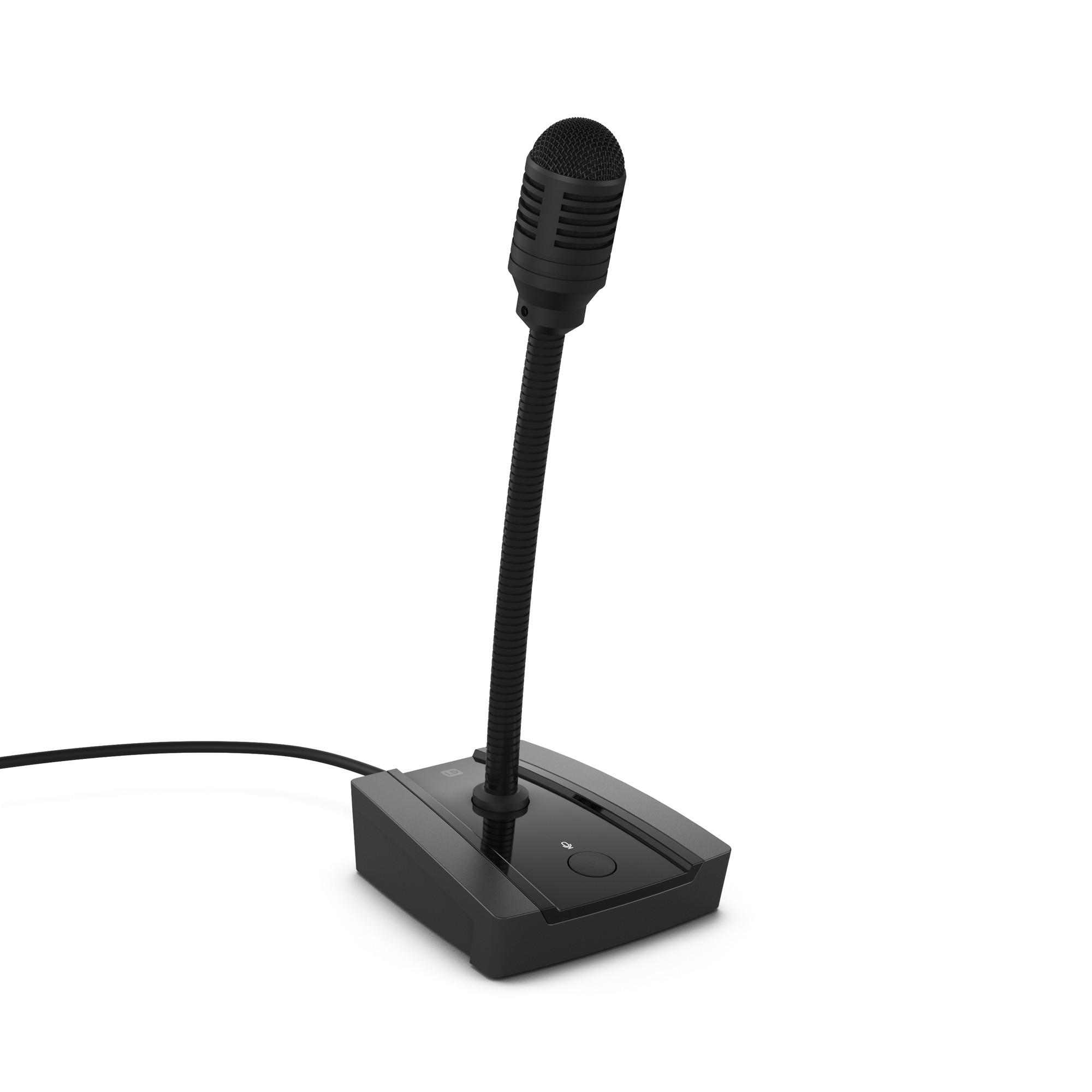

The LD Systems PAM desktop gooseneck paging microphone features a configurable push button for 3 modes of operation: Push-to-Talk, Push-to-Mute, Latch On/OFF. A confidence LED indicator shows the mics status at a glance.

Ideal for all paging announcements in public address systems in commercial and retail applications.

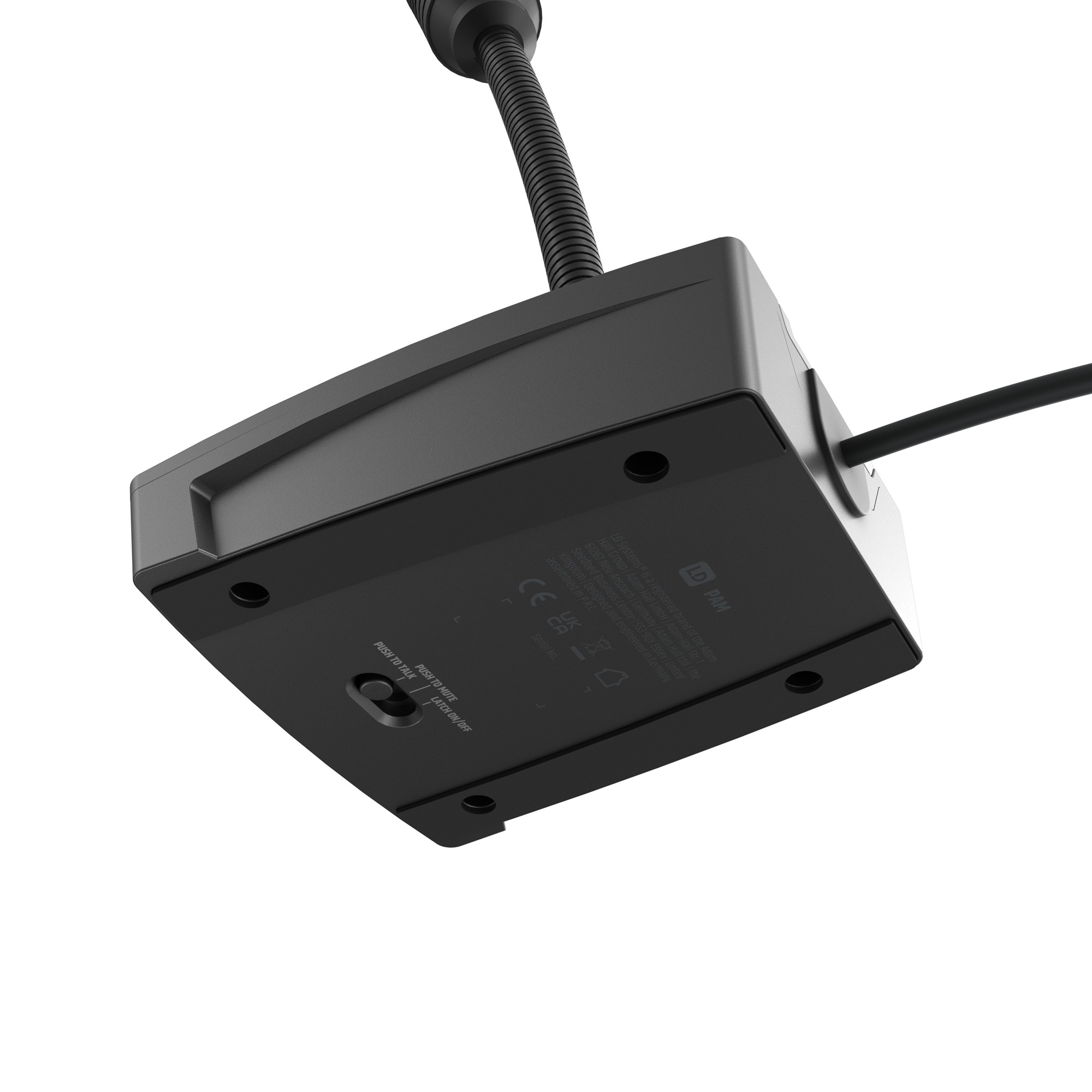

The robust desktop base features non-slip long rubber feet on the underside to minimise the effects of movement, knocks, vibration and structure-borne noise transferring to the microphone.

A balanced audio output is provided as well as a hard-wired contact closure output allowing priority mutes to be triggered in mixer amplifiers and zone mixers via a MOSFET switch.

This makes the LD PAM paging mic perfect for use in combination with the LD Systems IMA series mixing amplifiers or the ZONE mixers. It xan also be used with any third-party devices with a microphone and contact closure input.

The integrated low-cut filter attenuates frequencies below 100 Hz for clear spoken announcements.

  • Paging microphone for announcements
  • Combination of desktop microphone base unit and gooseneck microphone
  • 3 operating modes: Push-to-talk, Push-to-mute, Latch ON/OFF

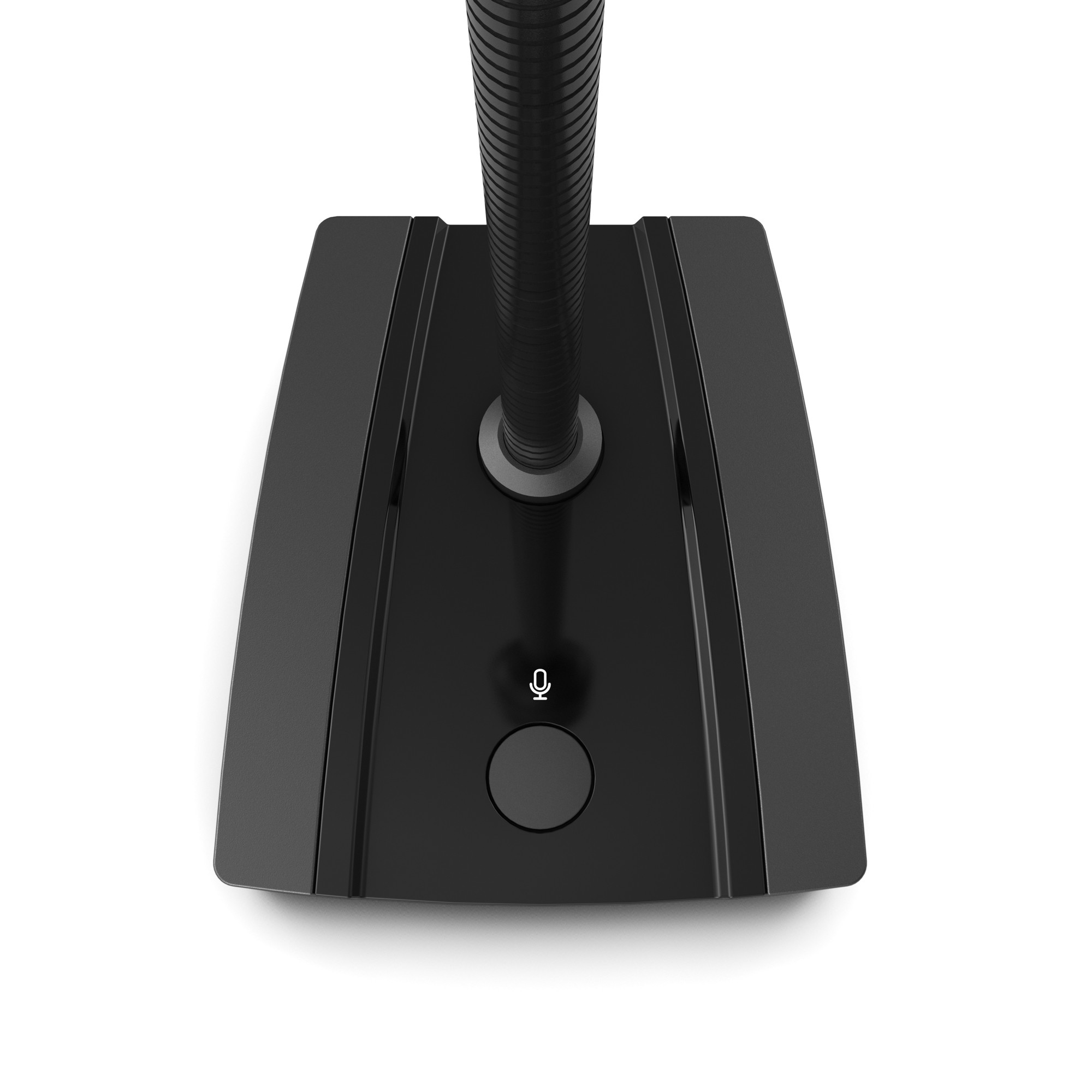

  • Integrated LED status indicator
  • 100 Hz low-cut filter
  • Balanced audio output
  • Contact closure output with MOSFET switch
  • +5 dB signal amplification for optimal signal transmission
  • Slim and elegant design
  • Non-slip long rubber feet
  • Warranty: 5 Years
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Directivity

Cardioid

Capsule

Dynamic

Control

Configurable Push button with 3 selectable modes, Mode switch: Push to talk, Push to Mute, Latch On/Off, Talk LED with white microphone icon when active

Max input handling

870 mV RMS

Frequency range

90 Hz - 20 kHz (-3 dB)

Contact closure type

MOSFET

Contact closure I/O Voltage

0- 50 VDC

Input Impedance

47 kohms (Balanced)

Output impedance

800 ohms (Balanced)

Off attenuation

>75dB @ 1kHz

CNRR

>65 dB (CMRR IEC)

Gain

+ 5.5 dB

Connectors

Balanced audio output and contact closure, Fixed cable with 5 bared wires, 2m

Phantom Power requirements

15 VDC - 48 VDC (+-10%)

Material

Plastic Front panel, Zinc chassis, Black

Base dimensions (W x H x D)

109.8 x 38.7 x 126.2 mm (height with rubber feet)

Gooseneck Length (incl. Mic capsule)

267.5 mm

Weight

0.86 kg

Related Products

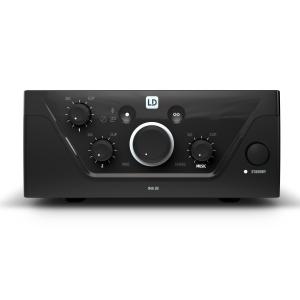

LD Systems IMA 30

Digital mixer amp with Bluetooth. 35 watts, 100 volt line / 4 ohm.

Log In for Trade Prices.

see more
List Ex VAT: Contact Us

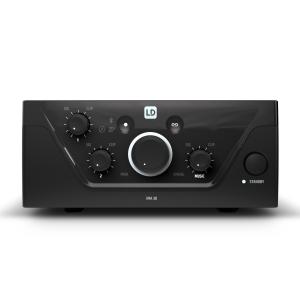

LD Systems IMA 60

Digital mixer amp with Bluetooth. 65 watts, 100 volt line / 4 ohm.

Log In for Trade Prices.

see more
List Ex VAT: Contact Us

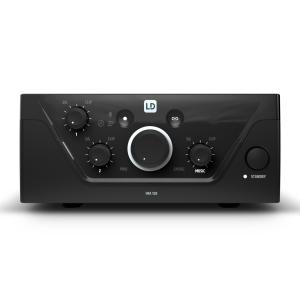

LD Systems IMA 120

Digital mixer amp with Bluetooth. 120 watts, 100 volt line / 4 ohm.

Log In for Trade Prices.

see more
List Ex VAT: Contact Us

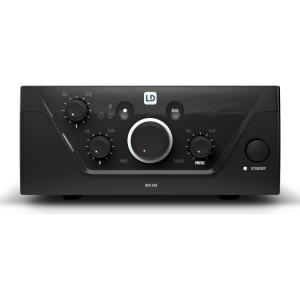

LD Systems IMA 240
