TOA PM-660U
TOA PM-660U
Click to expand

TOA PM-660U

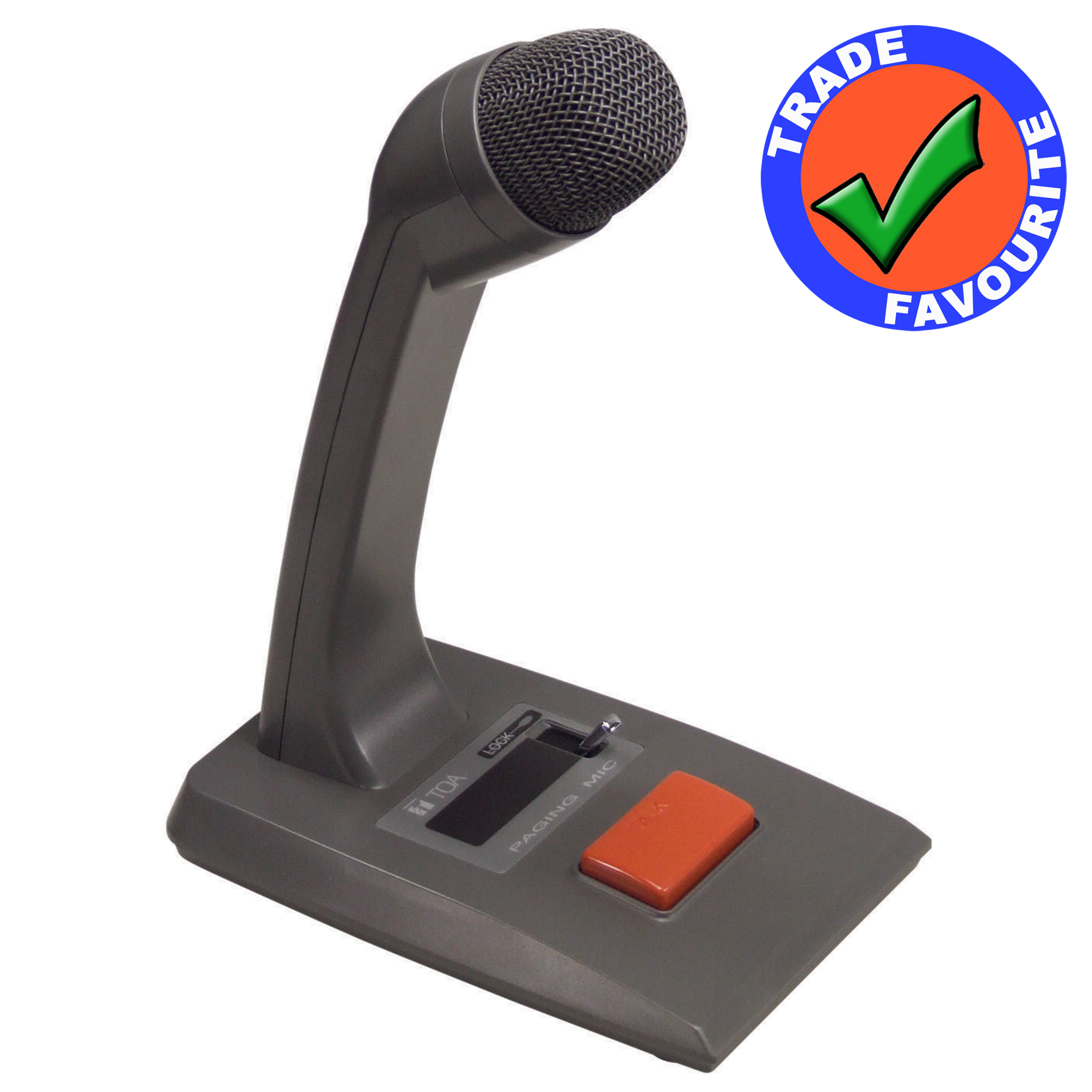

The TOA PM-660U paging microphone is one of our all time favourite products. Its ever popular elegant design and rugged construction makes it ideal for public address  systems in shops & supermarkets as well as warehouses & offices.

The PM660 has a momentary press to talk switch and latching switch & is available in 3 versions depending on the termination you require. This PM-660U unterminated version is balanced with bare wire switch pair.

  • Push to talk / latching switch
  • Dynamic capsule
  • Cardioid pattern
  • Low handling noise
  • Output level -58dB
  • 2.5m cable
List Ex VAT: £80.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Type

Moving coil microphone

Polar Pattern

Unidirectional

Rated Impedance

600 Ω, Balanced

Rated Sensitivity

-58 dB (1 kHz, 0 dB=1 V/Pa)

Frequency Response

100 Hz - 10 kHz

Output

4-conductor (2-shielded) cable (2.5 m (8.2 ft)) - either bare wire, phone or 5-pin DIN plug

Talk Switch

1-push-to-talk switch, 1-locking lever, Short-off type

Remote Control

500 mA or less at 30 V DC

Operating Temperature

-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)

Operating Humidity

95 %RH or less (no condensation)

Material / colour

Main unit: ABS resin, grey
Microphone head: Zinc plated steel wire, grey baked paint

Dimensions

100 (W) × 212 (H) × 150 (D) mm (3.94" × 8.35" × 5.91")

Weight

400 g (0.88 lb) (cord excluded)

DOWNLOADS

TOA PM-660U Datasheet
