RCF BM 3022
Click to expand

RCF BM 3022

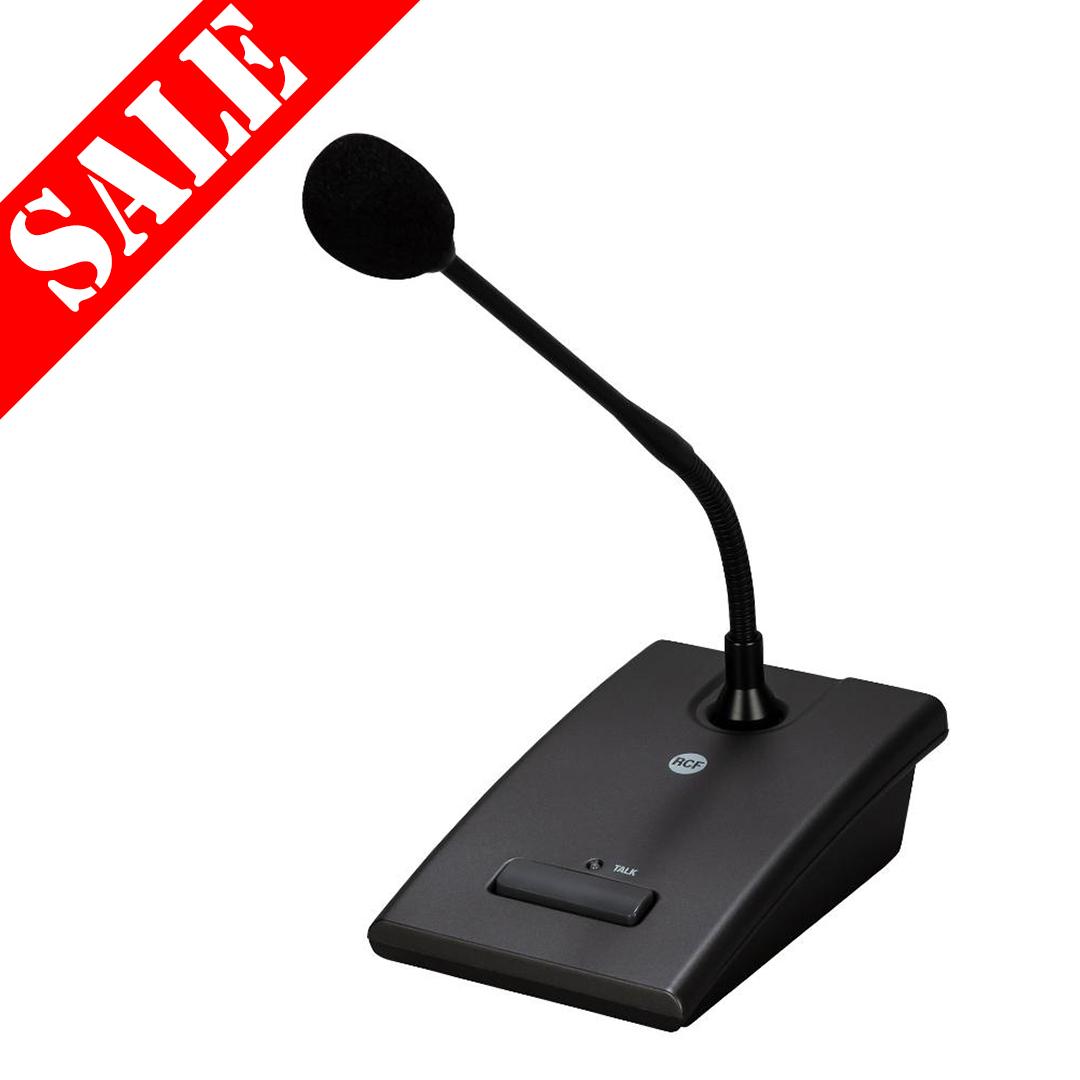

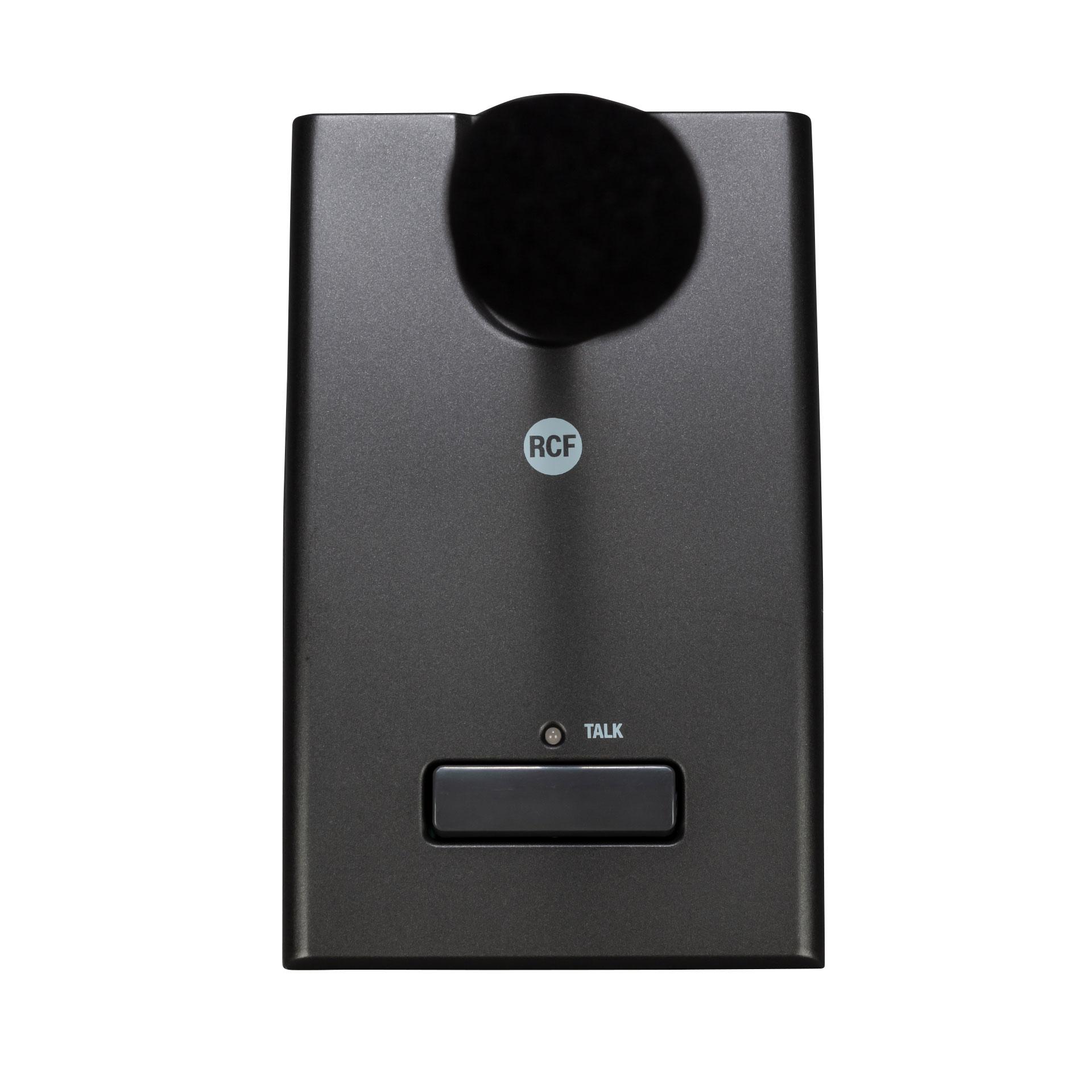

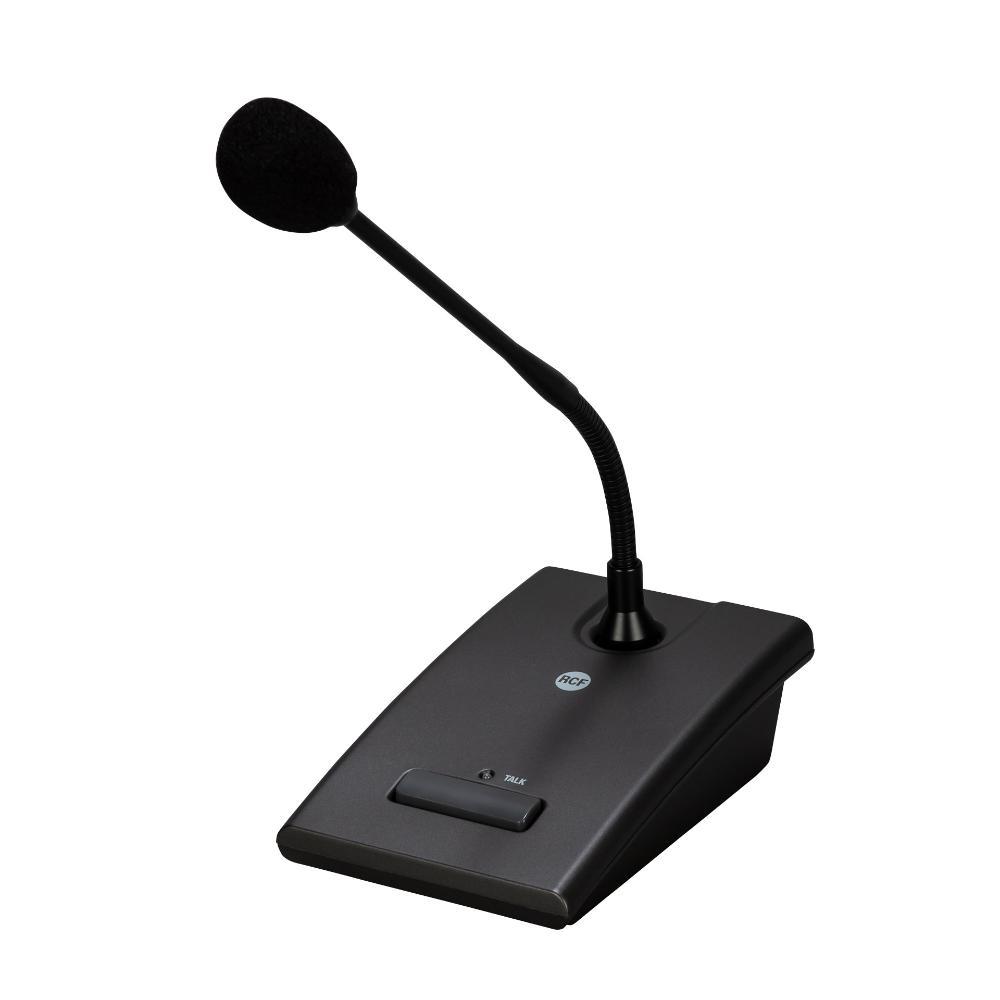

The RCF BM 3022 is a desktop paging gooseneck microphone with a hi-quality unidirectional electret capsule.

Clearance line - limited stock. No original boxes. The mics were installed on site but RCF were then unable to deliver the amp on time so the mics were returned unused in boxes from replacement equipment, therefore 'as new'.

Designed for direct connection to the RJ45 mic input on an RCF amplifier via CAT5 cable, enabling long distance cabling of up to 1km. (If the RCF amp only has XLR mic input, an XLR plug could be fitted to the end of the connecting cable instead – please ask us for guidance on this if necessary).

  • Up to 30 BM3022 paging microphones can be ‘daisy-chained’
  • Adjustable line output with RJ45 connector
  • Switchable automatic gain control (AGC)
  • Up to 30 BM 3022 paging microphones can be linked in a ‘daisy-chain’
  • Selectable mixing, interlocking or priority mode among devices
  • One or more paging microphones can have priority and be activated at any time,
    disabling all other paging microphones without priority.
  • When activating a microphone, the announcement can be preceded by a chime.
  • A 24 V dc power supply is included. This can be used to power up to 4 RCF BM3022 paging microphones.
List Ex VAT: £50.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Type

Desktop paging microphone with electret capsule

Directivity

Cardioid

Sensitivity

-65 dB

Frequency Response (-3dB)

200 Hz ÷ 7 kHz

Output impedance (ohm)

130.00 ohm

Minimum load impedance (ohm)

470.00 ohm

Signal / Noise ratio @1kHz

82.00 dB

Other features

General call, Preamplified, LED indicators, Priority, VOX facility, Tone generator, Smart PTT, Automatic gain control

Connectors

RJ45

Cable

Cable included, length 5m

Colour

Grey

Size H x W x D

48mm x 100mm x 159mm (1.89 x 3.94 x 6.26 inches)

Weight

0.74 kg / 1.63 lbs
