RCF ES 2160
Click to expand

RCF ES 2160

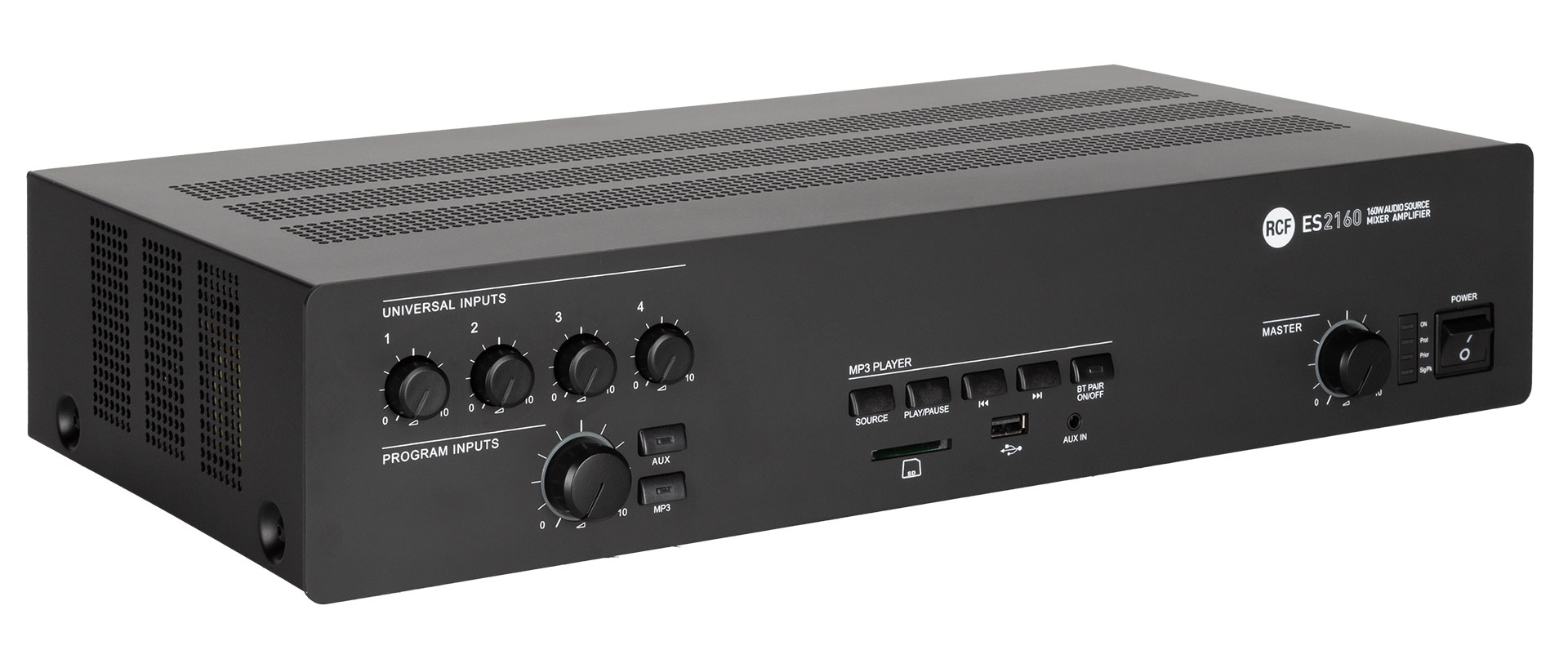

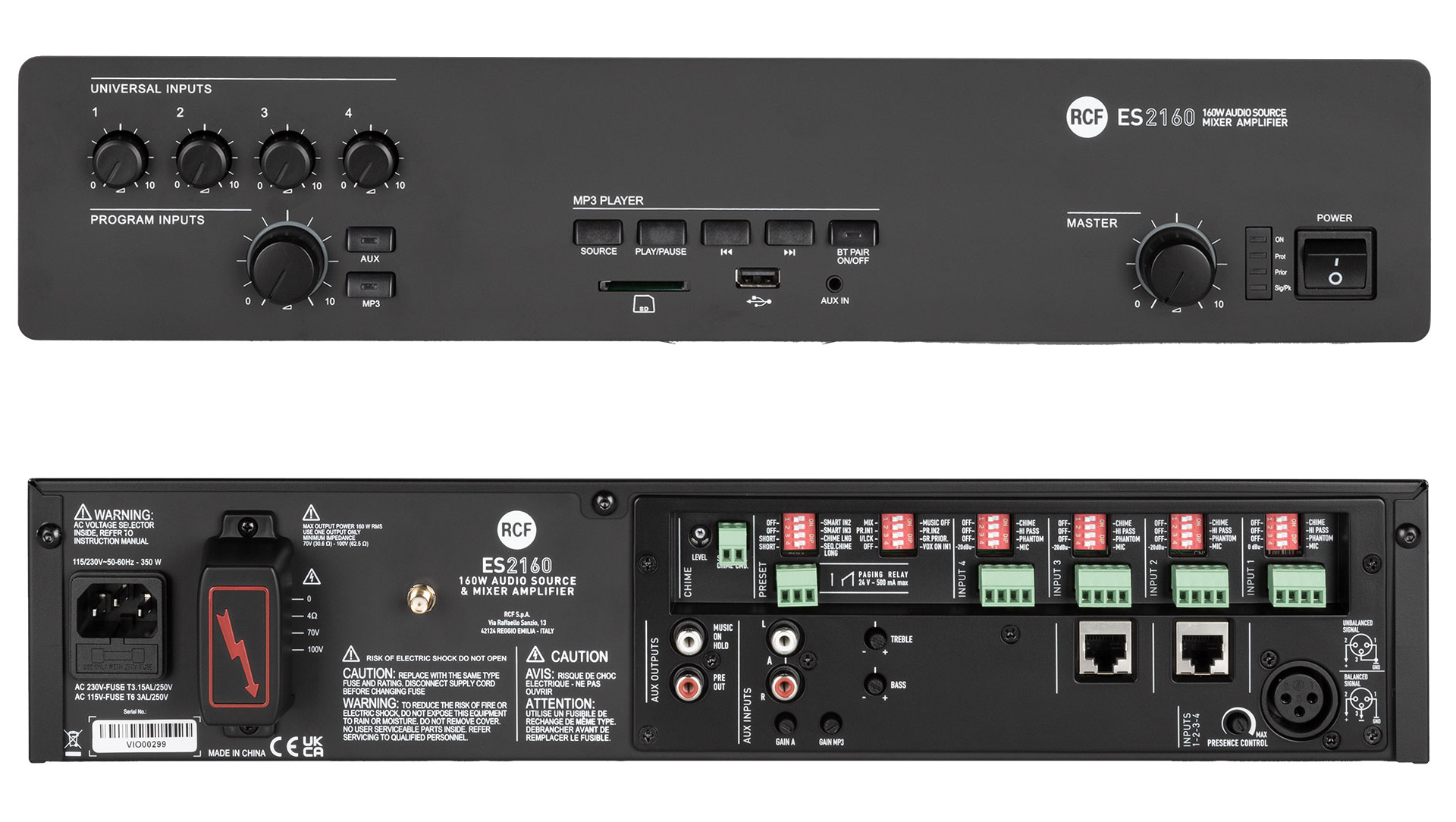

The RCF ES2160 is a 160 watt, Class D mixer amplifier with 4 universal mic / line inputs as well as USB & SD card inputs & Bluetooth. There's also a 3.5mm aux input.

Suitable for use on  70 / 100 volt line distributed sound systems or low impedance (4Ω) music systems.

Input 1 has a signal detection circuit ('VOX') providing automatic priority operation.

All inputs 1, 2, 3 and 4 can access the priority through an external command (connected to the removable connector).

Inputs 2 and 3 also have an RJ 45 socket for quick connection of a single zone RCF BM 3001 paging microphone (through CAT5 cable).

The amplifier output is compatible with either low impedance speakers (min. 4 Ω) or 100 – 70 V constant voltage line (for speakers having 100 – 70 V transformers).

The MUSIC ON HOLD output directly sends the internal MP3 player signal to additional amplifiers, mixers, phone systems ('music on hold' function), etc.

The PRE OUT output sends the signal (the same mix routed to the internal amplifier) to additional amplifiers.

The 4 mic/line inputs have a common PRESENCE control and separate high-pass filters for improving speech intelligibility.

Rear mounted bass & treble controls are common to the internal MP3 player and the AUX INPUT.

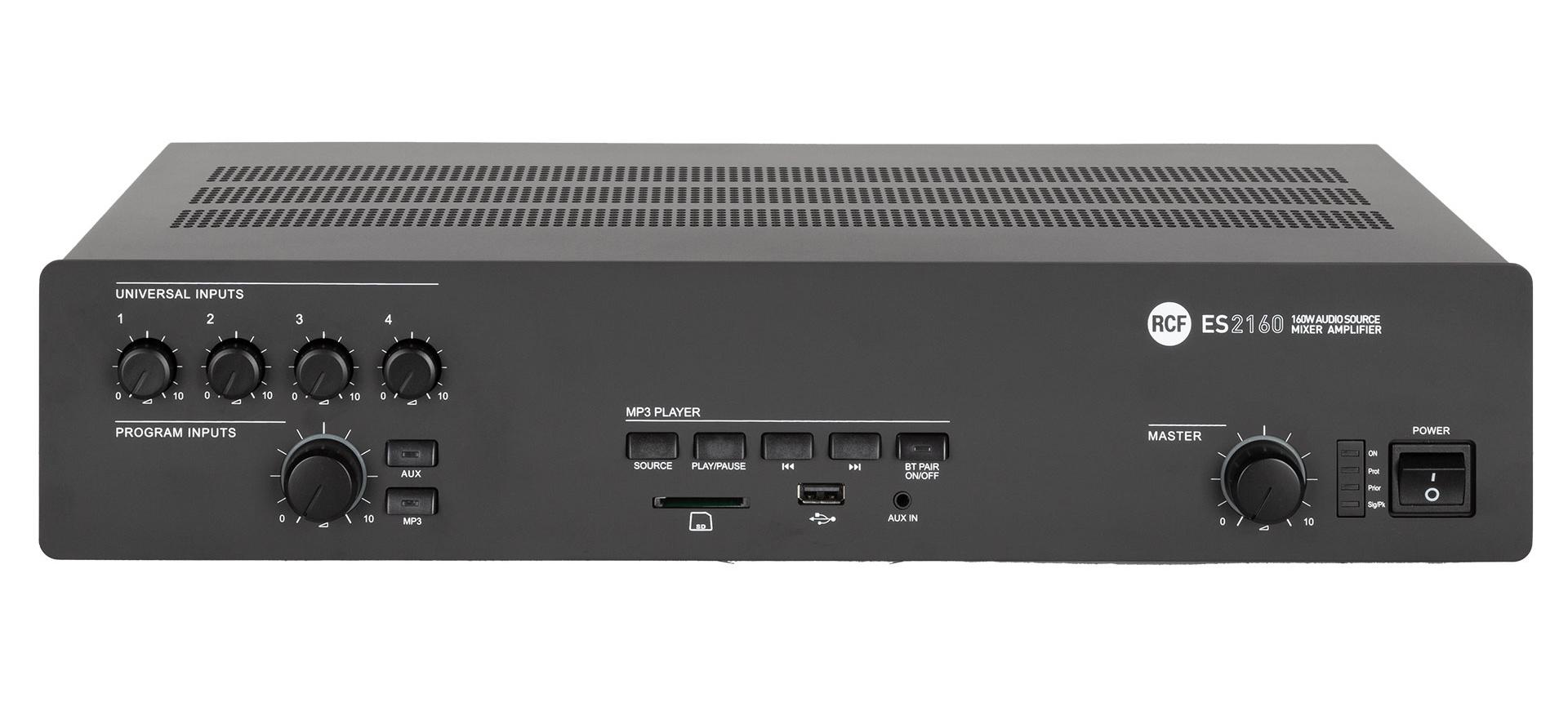

Front panel LEDs indicate the device state (ON, PROT), priority circuit enabled (PRIOR) and the signal level / peak (SIG/PK).

An 80W version of this amplifier is also available - see Related Products.

100 volt line 4ohms bluetooth SD USB
List Ex VAT: £703.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Output Power

160W

Frequency Response (± 3 dB)

50 Hz - 14 kHz

Speaker Outputs

4 Ω (Low impedance) 70 V (31Ω) / 100 V (62Ω)

Line inputs:

2 x RCA

Mic+Line inputs:

4 x Euroblock, XLR

Mic+Line Phantom:

32 V DC

VOX:

Yes

Paging inputs:

2 x RJ45

Paging command:

Contact

General Purpose Inputs (GPI):

2

Signal outputs:

2 x RCA

Power output connectors:

Euroblock

Protections:

Convection Cooling, Short Circuit, Thermal, DC & Fuses

Audio Sources:

USB, SD, Bluetooth

Dimensions HxWxD:

88m x 442mm x 230mm

Weight:

5.4Kg
