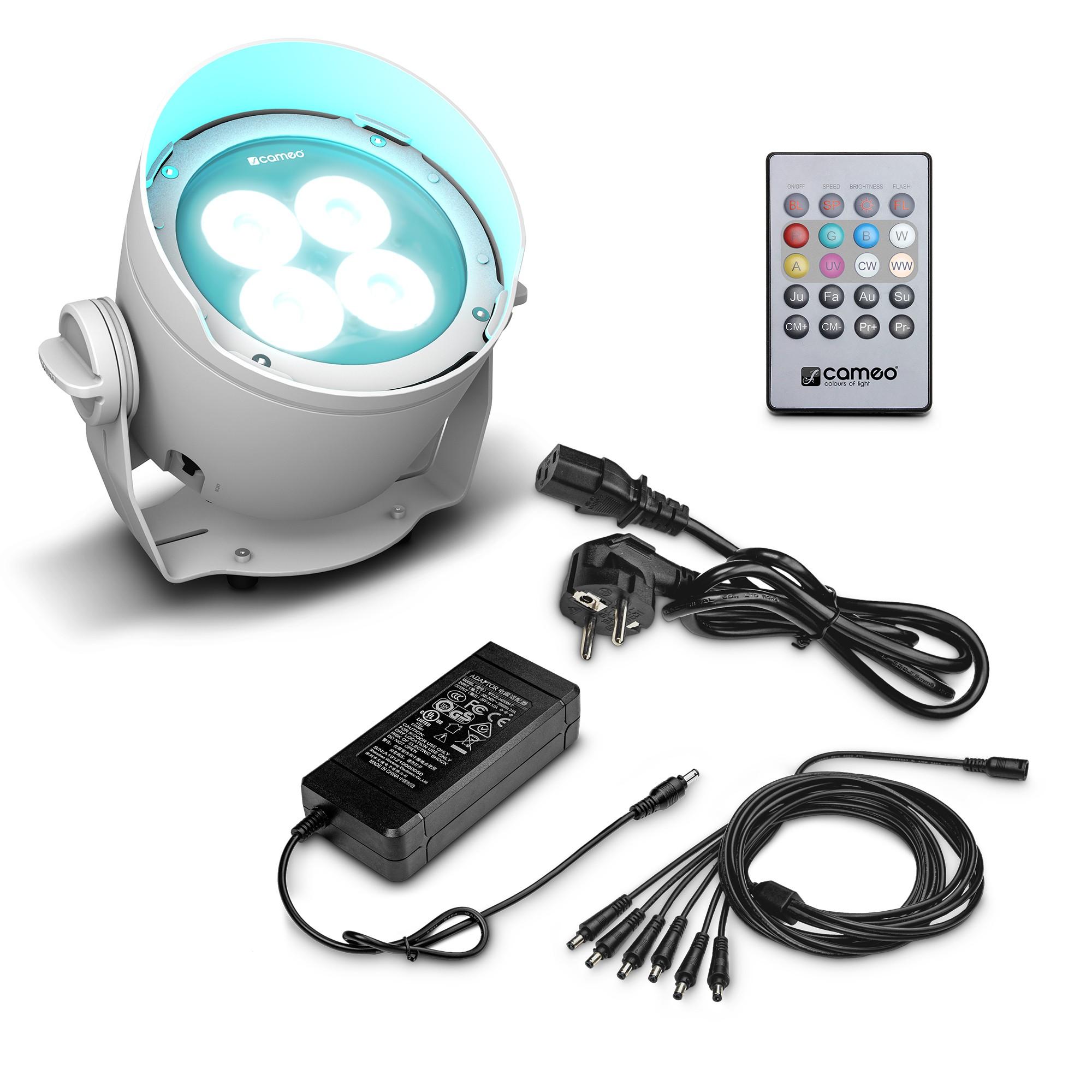

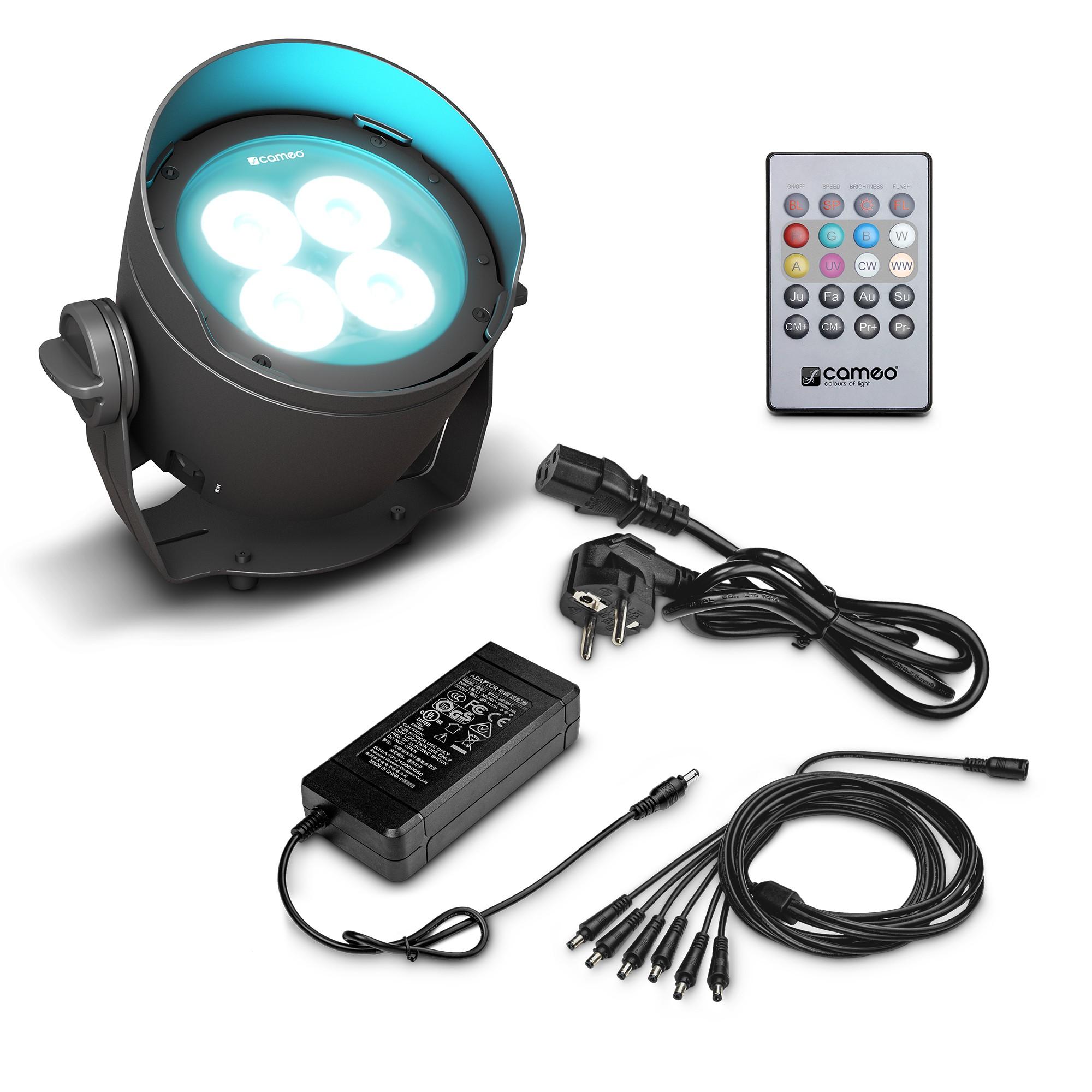

The Cameo DROP B1 SET consists of one DROP B4 battery-powered outdoor uplight with power supply and remote control.

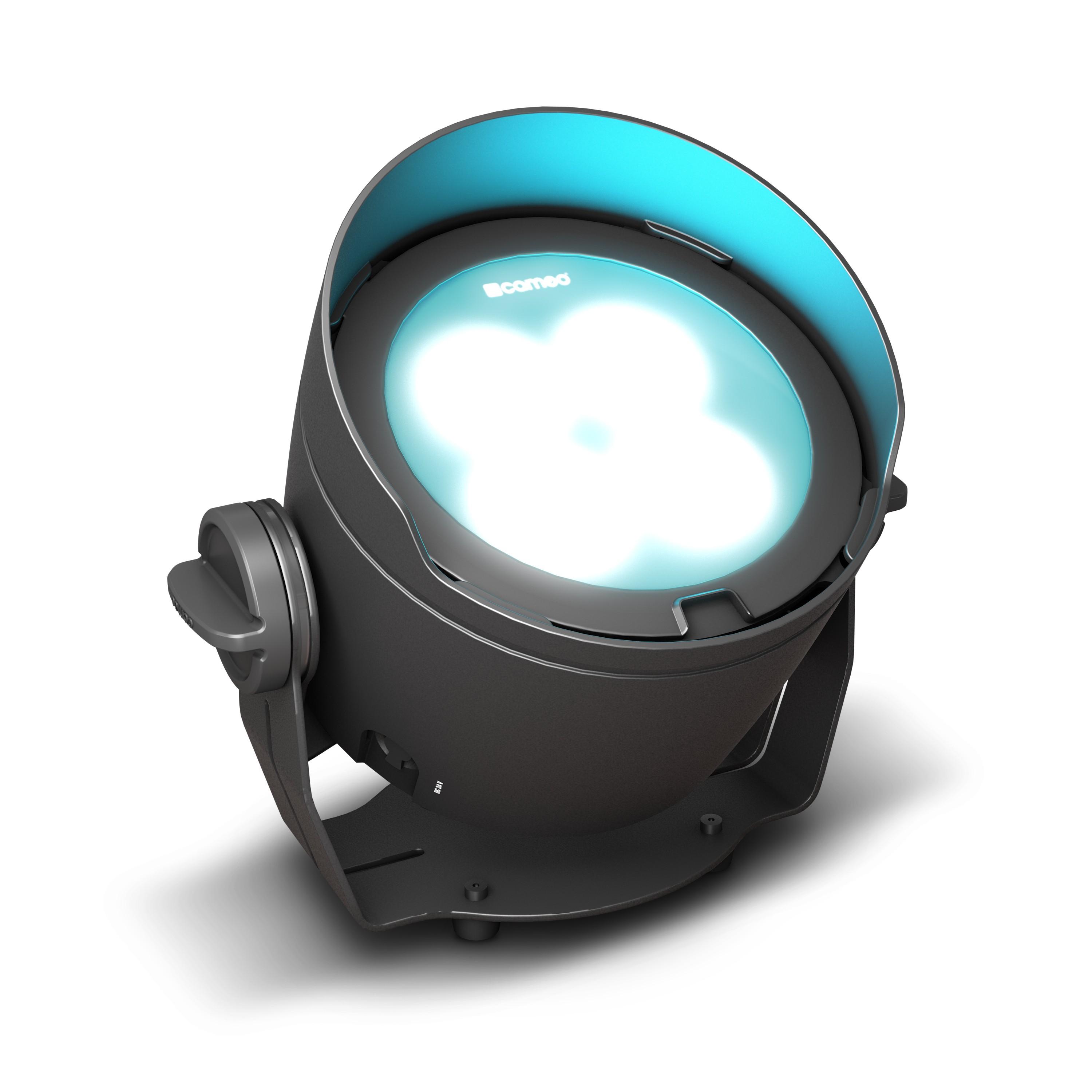

The Cameo DROP B4 battery powered Outdoor Uplight offers flexible lighting design indoors or outdoors thanks to it’s IP65 rating. Four 6-in-1 15W LEDs provide up to 1400lm total power output with an extended range of colours and the opportunity for effects with the integral UV light feature.

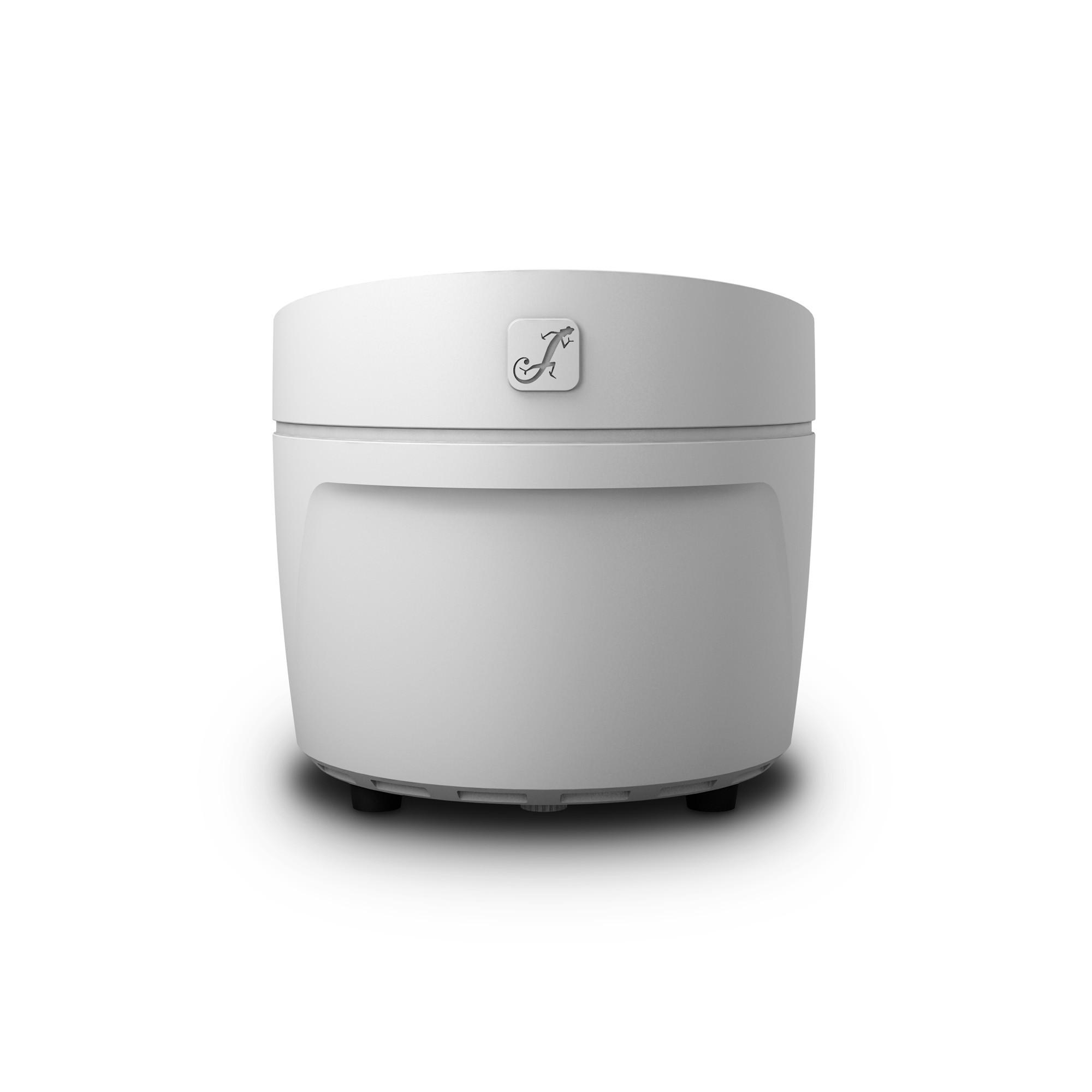

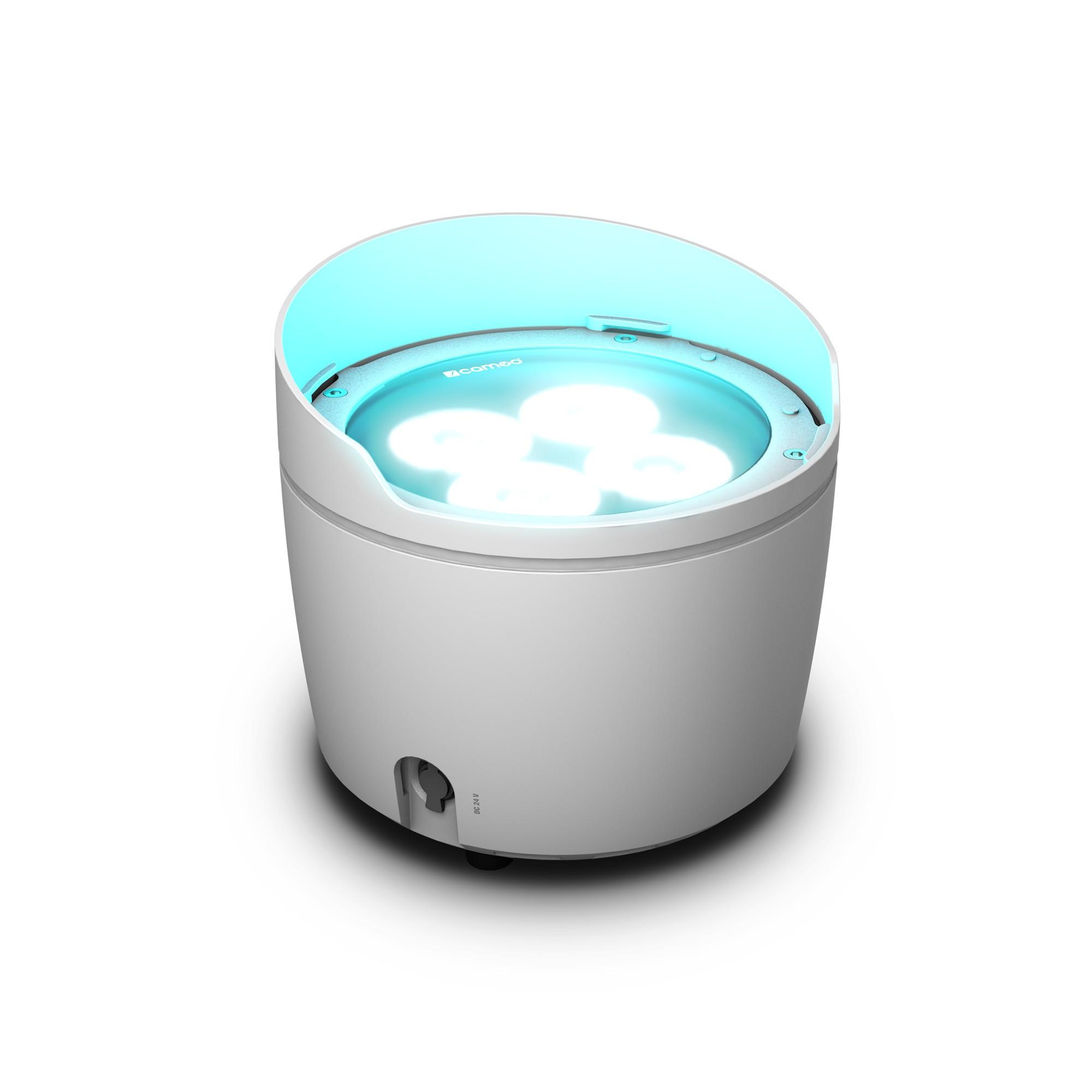

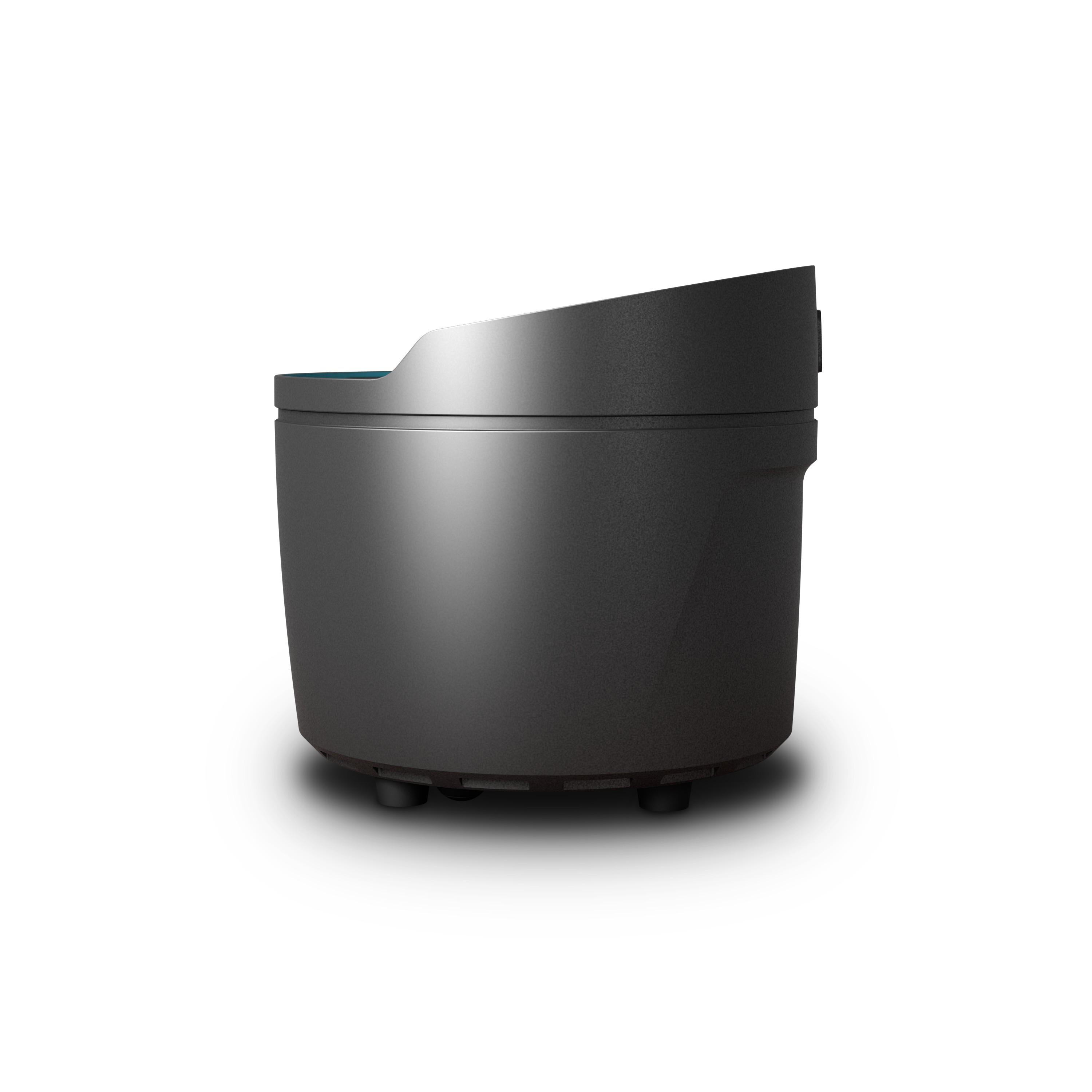

The neat mounting bracket is attached without visible screws for a smart clean finish. Whilst the Drop B4 can be mounted and positioned using the bracket, the clever design of the base also enables it to be used free standing on rubber feet and the tilt angle can be adjusted with an adjustable screw.

The built in rechargeable lithium-ion long-life battery (by LG Chemicals) offers an extremely high capacity for running times of up to 12 hours in Eco mode.

Diffusers are included for flexible beam angles; 22°, 32° or 45°.

The dedicated power supply (Cameo DROP B4 PS6) is required for charging. This is available separately. Alternatively, the light is available in a kit complete with the power supply. (See Cameo DROP B4 SET)

  • Running time up to 12 hours

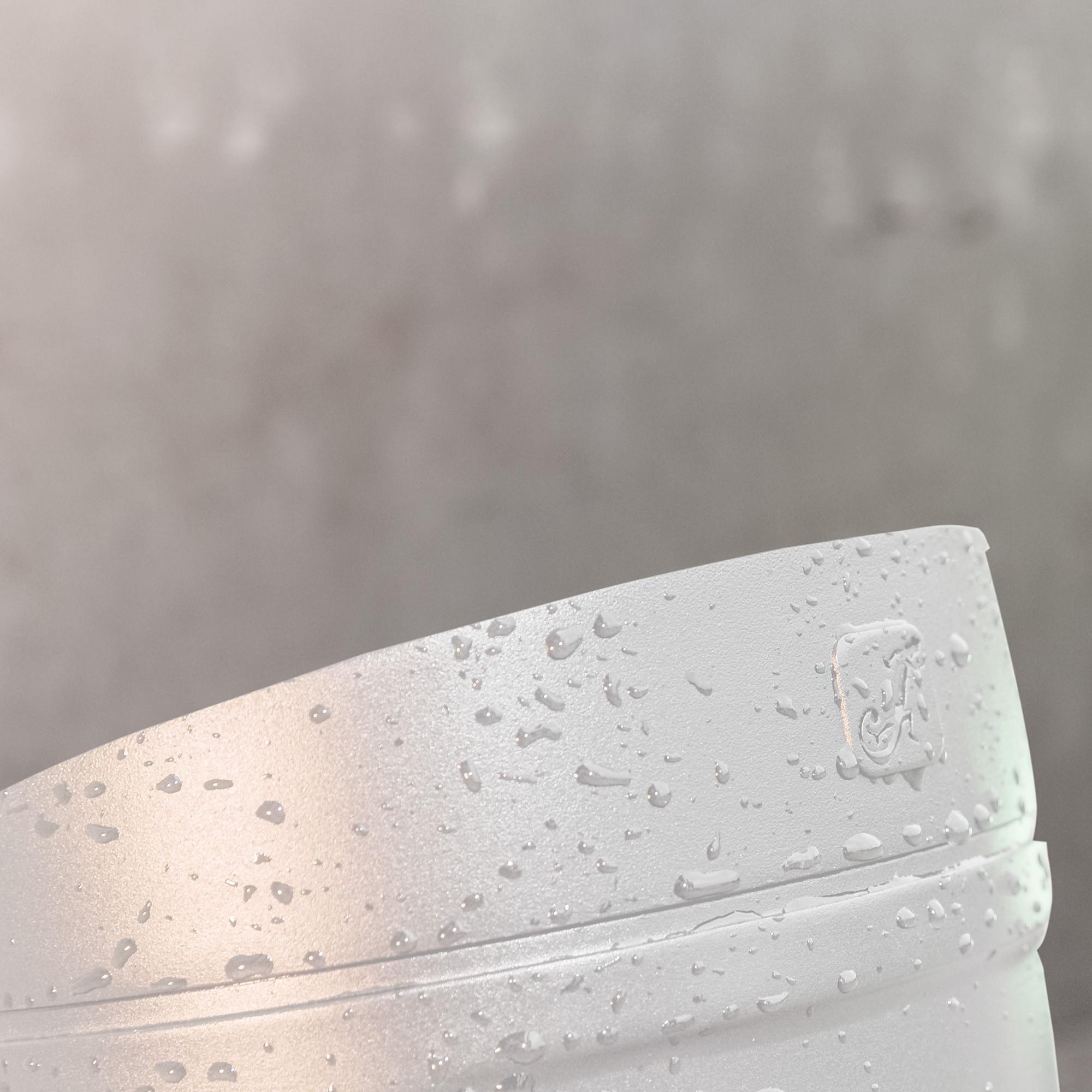

  • IP65 for outdoor use
  • Built-in 2.4 GHz W-DMX™ receiver
  • 4 x 15 W highly efficient 6-in-1 RGBWA+UV LED
  • LG Chemicals rechargeable lithium-ion long-life battery with extremely high capacity
  • Battery management system prevents overcharging and deep discharging
  • 16-bit technology for high-resolution colours and dimming

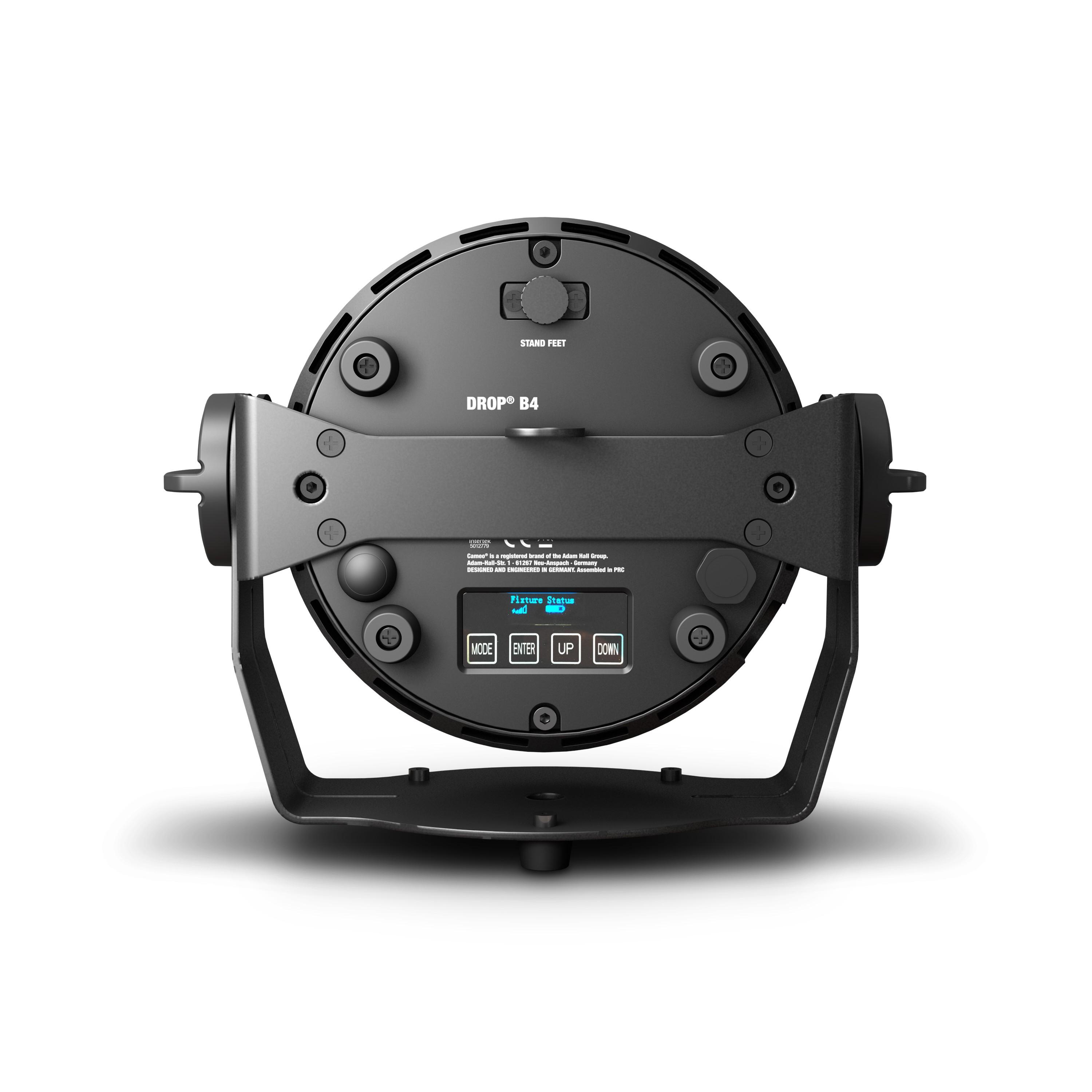

  • Operation via W-DMX or on-board OLED display
  • Optional remote control available
  • Diffusers included for flexible beam angles 22°, 32° & 45°

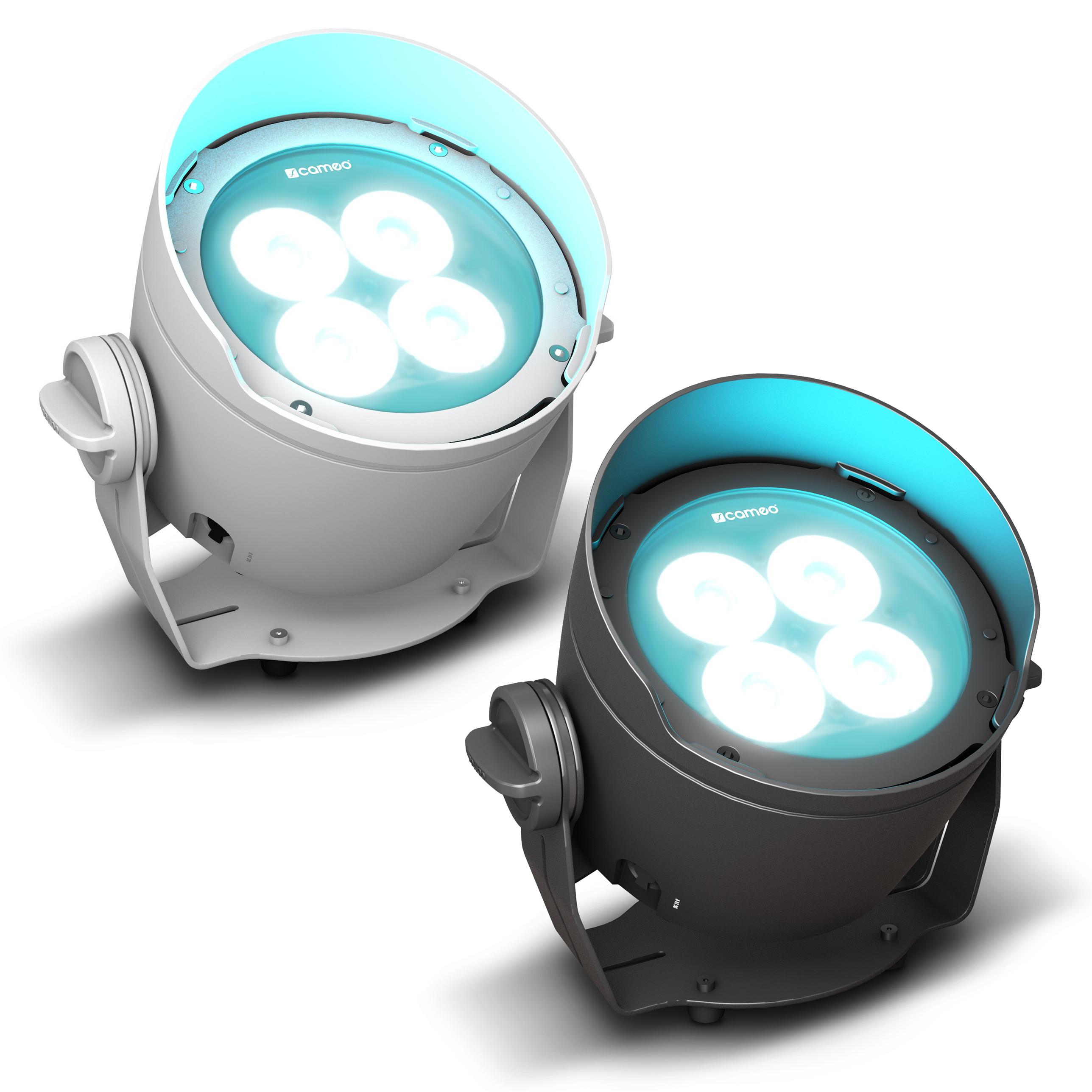

  • Available in black or white
  • The DROP B4 light is also available on it's own or as touring set consisting of six units in a flightcase with charging feature (product no. CLDROPB4SET2)

For more details, please download the datasheets and User Manual via the links below.

You may also like to download the Cameo Lighting Brochure here.

Please see the Cameo Lighting Glossary for more information on any of the following features:

z:ETL z:IP65 z:Standalone z:WDMX z:LED z:UV z:Multi-Angle z:6-in-1 z:Battery
List Ex VAT: Contact Us
Log in for Trade Prices


Product type

Battery Powered Outdoor LED Lighting

Colour Spectrum


Luminous flux

1400 lm

Number of LEDs

4 x 15W


22 °, (or 32° / 45° with supplied diffusors)

DMX Mode

2 x 13, 20, 3, 4, 6 & 7 channel

DMX Functions

CCT, colour change, colour fade, colour macro, Dimmer, Dimmer Curve, Dimmer Fine, Dimmer Response, DMX Delay, RGBWA + UV Fine, Strobe

Standalone modes

Auto programs, Colour macro, Colour mix, Strobe, Tunable white, User colours


4 Buttons - Enter, Mode, Up, Down


OLED display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption




Protection Class


Width x Height x Length

247.9 mm x 236.8 mm x 171.7 mm
(including mounting bracket)

Accessories (included)

included: 2 x filters, 1 x Mounting bracket

Additional accessories in this set: IR Remote Control, External power supply with 6 outlets


3.1 kg

Related Products

Cameo DROP B4

Rechargeable, battery powered outdoor uplight with four 15W RGBWA + UV 6-in-1 LED's. Black or White.

see more
List Ex VAT: Contact Us

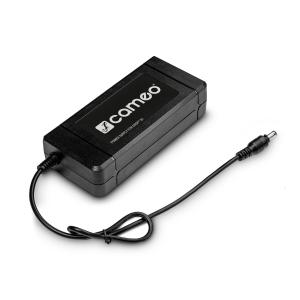

Cameo DROP B4 PS6
