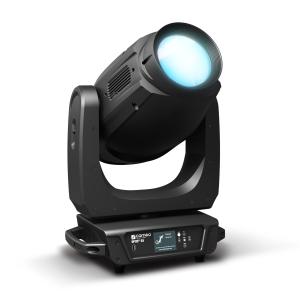

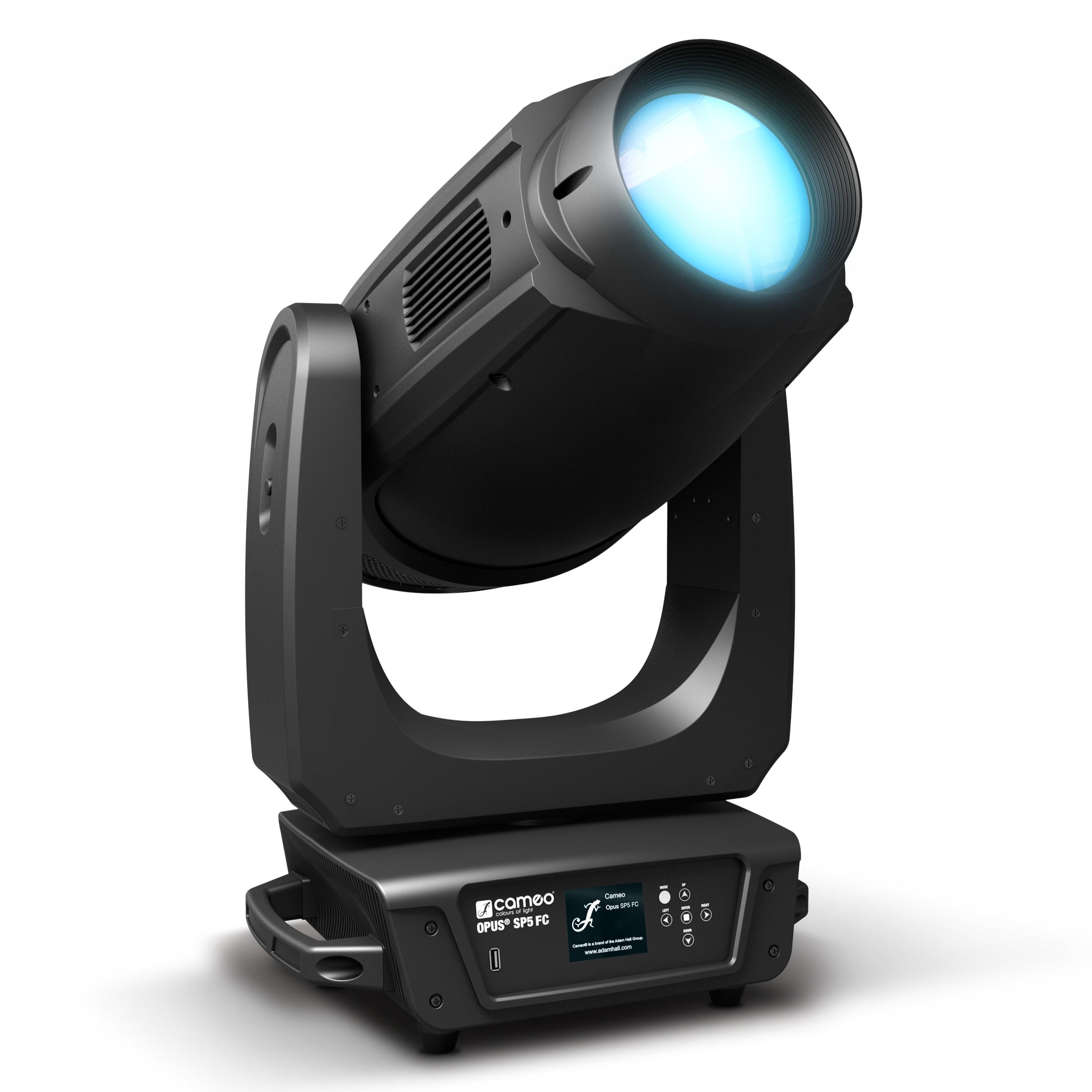

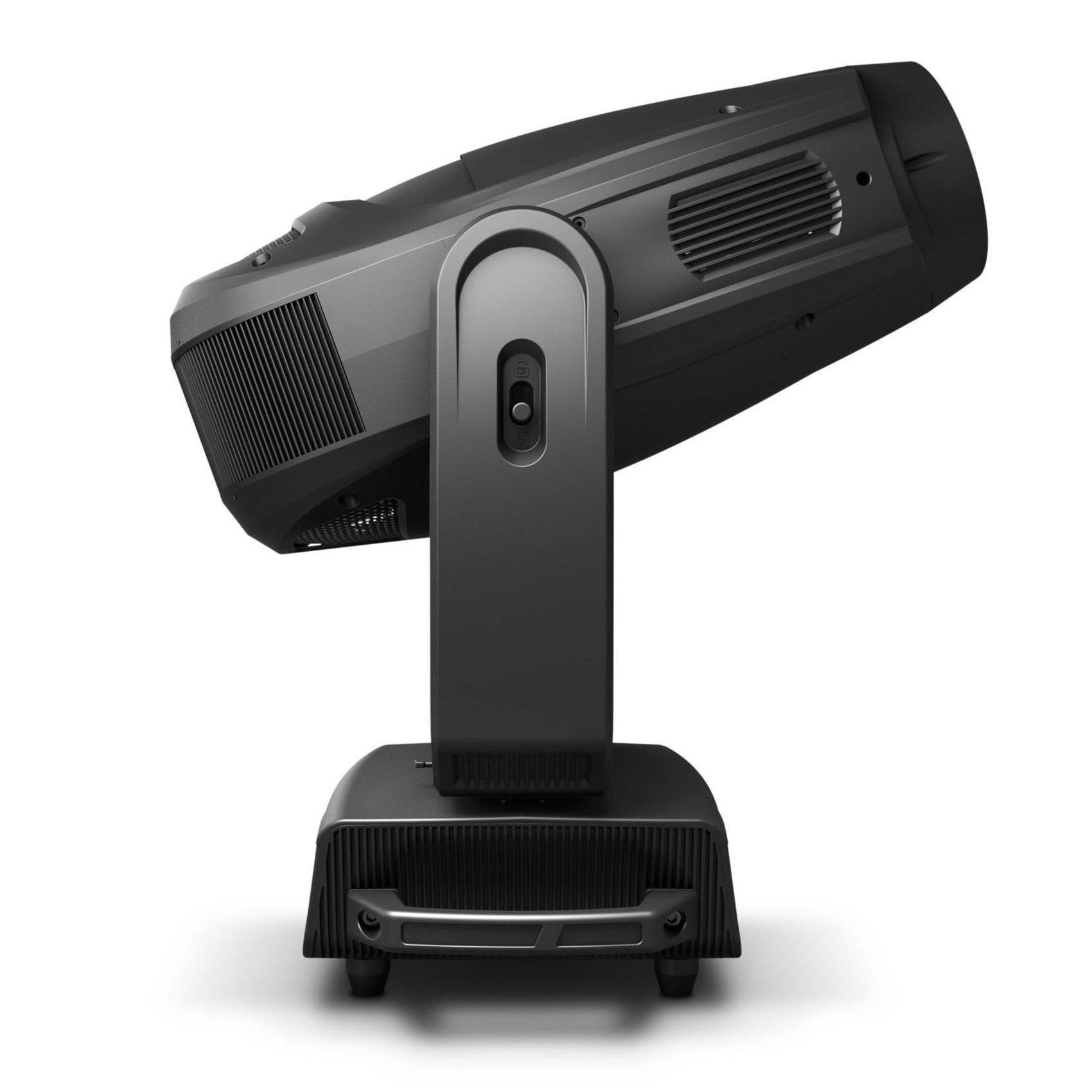

The Cameo OPUS SP5 FCis a powerful Profile Spot Moving Head with 300 W Full Colour RGBAL-LED lamp offering a broad colour palette and lightning-fast colour changes.

The high-quality optical system ensures even projection without colour shadows and features a particularly long zoom range of 6° to 44°, plus a continuously variable iris diaphragm and motorised focusing.

A continuously adjustable frost filter produces a soft, washlight-like spread.

Flicker-free and almost noiseless with a colour reproduction index of over 90, the OPUS SP5FC is perfect for use in theatre, film and TV production.

The four diaphragm sliders (shutter framing blades) can be individually angled or inserted all the way to create a range of geometric shapes or for complete shading. The complete diaphragm slider system turns +/- 45° for precise positioning.

Incredible morphing effects are created with the simultaneous use of both gobo wheels with 6 rotating and 7 static glass gobos. These can be combined with the animation wheel for exceptionally vivid projections. The spotlight offers a rotatable and indexable circular threefold prism and a rotatable and indexable linear sixfold prism for projection reproduction. In addition, four 16-bit dimmer curves are available to choose from.

The OPUS® SP5 FC offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver.

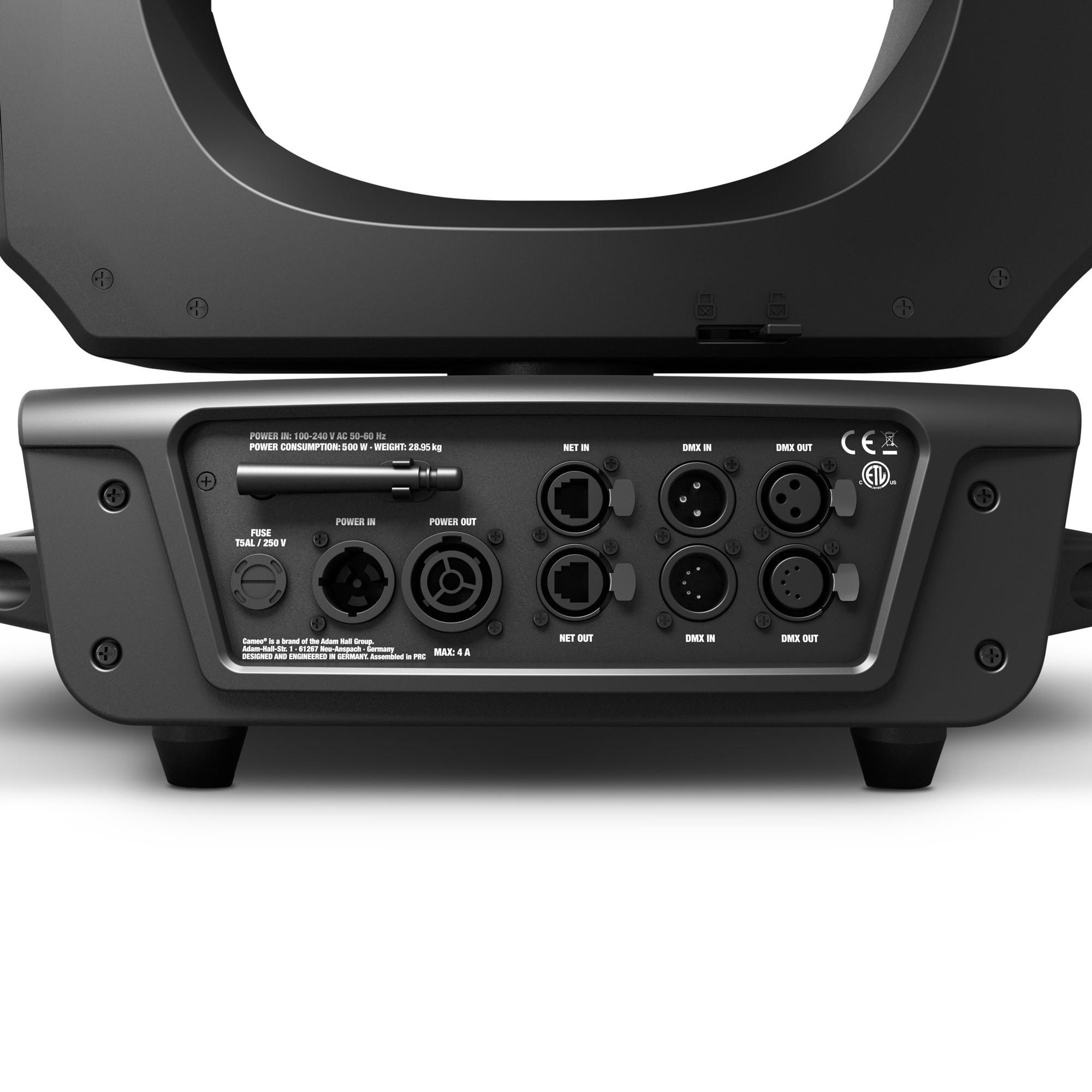

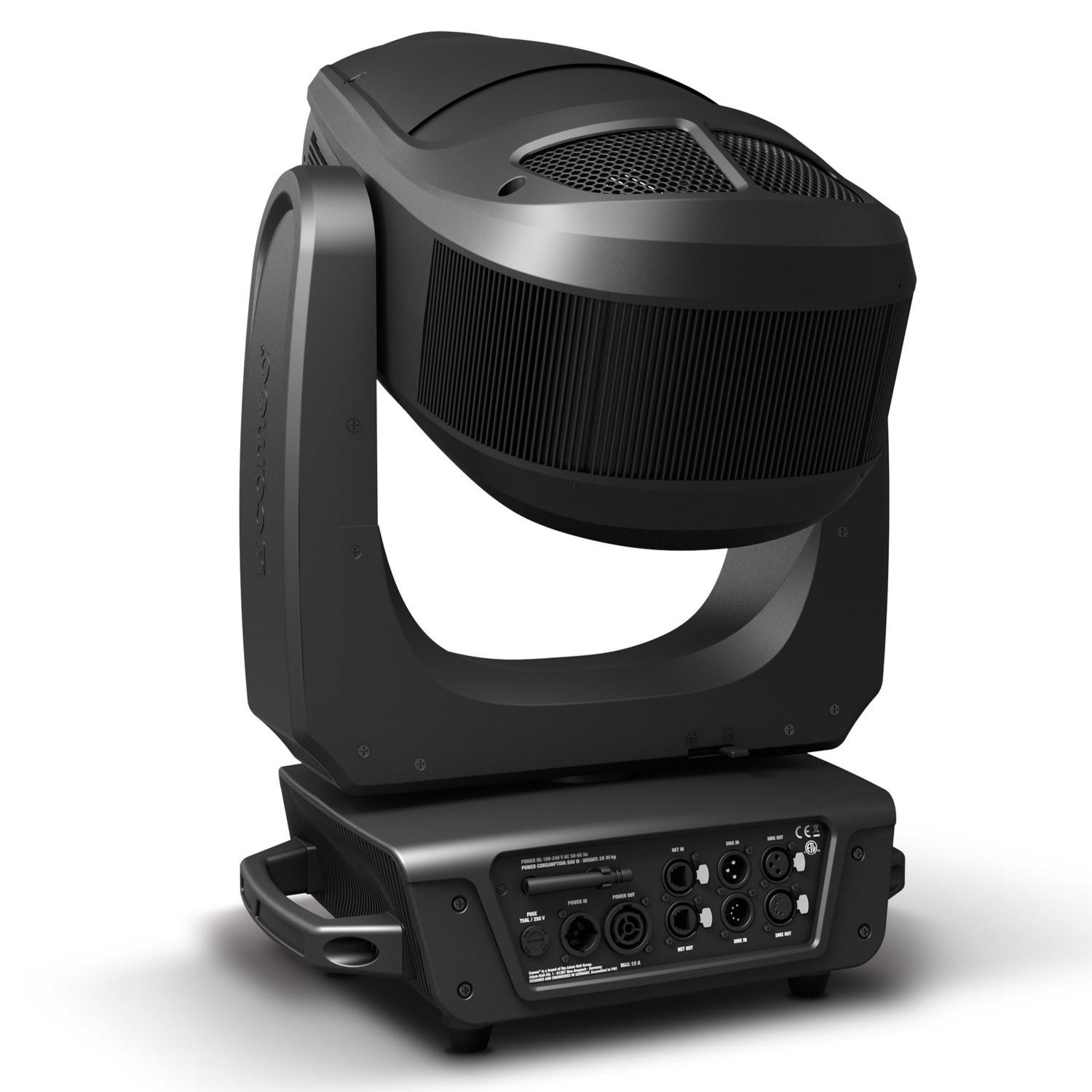

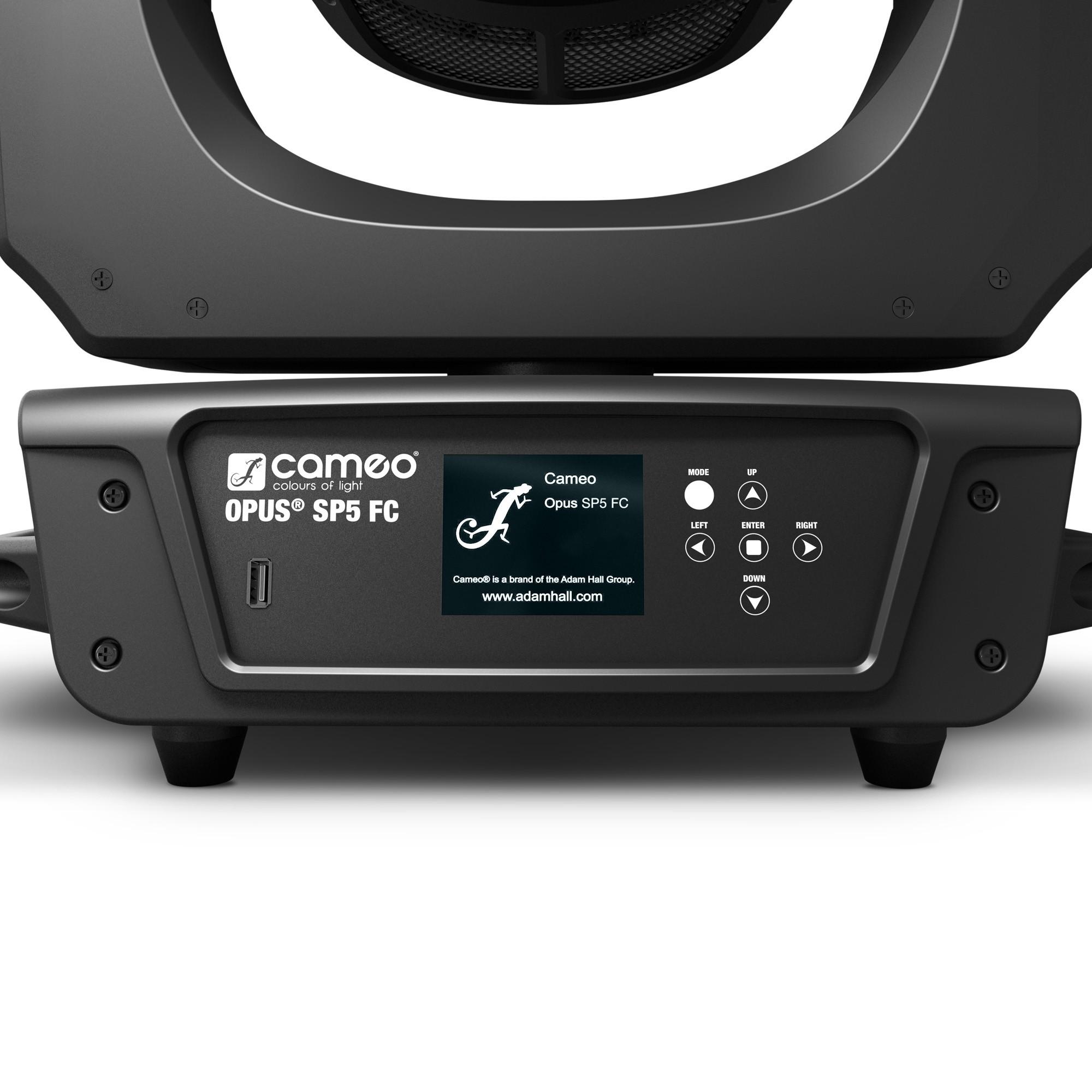

The robust ABS and metal housing is equipped with Neutrik® DMX and powerCON TRUE1 power sockets, while highly efficient heat pipe cooling and temperature-controlled fans ensure optimal operation. A battery-powered touchscreen display and 6 additional touch buttons facilitate convenient, mains-free configuration and two methods for navigation.

Supplied with two Omega brackets and power cable.

• Profile Spot Moving Head with 300 W Full Colour RGBAL-LED
• Display the complete colour spectrum with CRI >90 and TLCI 93
• High-quality optic with especially long zoom range of 6° to 44°
• Even projection without colour shadows
• Fourfold diaphragm slider system with +/- 45° rotation
• Angle and position of each diaphragm slider adjustable up to complete closure
• Rotatable animation wheel
• Rotating gobo wheel with 6 indexable and rotatable replaceable glass gobos plus
  open
• Static gobo wheel with 7 replaceable glass gobos plus open
• Rotatable and indexable circular threefold prism and linear sixfold prism
• Variable frost filter for washlight effects and continuously variable iris diaphragm
• Smooth dimming with 16-bit resolution and 4 selectable curves
• Flicker-free thanks to selectable PWM frequencies up to 25 kHz
• Battery-powered touchscreen display with 6 touch keys for mains-free configuration
• Flexible control options via built-in W-DMX™ Receiver, DMX, RDM, Art-Net or sACN
• 50 colour presets matched for use with LEE filters

For more details, please download the Cameo OPUS SP5 FC datasheet via the link below.

You may also like to download the Cameo Lighting Brochure here.

Please see the Cameo Lighting Glossary for more information on any of the following features:
