The Cameo Opus S5 is a compact super bright spot moving head light with a powerful 380W white LED engine, CMY mixing system and linear CTO correction.

Ideal for illuminating stages with brilliant, lively colours and effective in venues of all sizes thanks to its extra wide zoom range (from 6° to 46°) and stepless iris. An additional colour wheel with 7 dichroic filters enables instant colour changes and split colour projection.

The Opus S5 has an enormous 17,500 lm output, huge illuminance of 39,000 lux at a distance of 5 meters and rapid 540° pan and 270° tilt movement. A continuously variable frost filter provides soft, wash-like diffusion.

Generating spectacular morphing effects when used simultaneously, the OPUS® S5 has two gobo wheels with 7 rotating and 8 static glass gobos which can also be used in combination with the rotating animation wheel for amazingly vivid projections. In addition to a rotatable and indexable 3-facet circular prism and a 6-facet linear prism to multiply gobo projection, the luminaire includes 16-bit dimming with a choice of 4 curves.

The OPUS® S5 offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver.

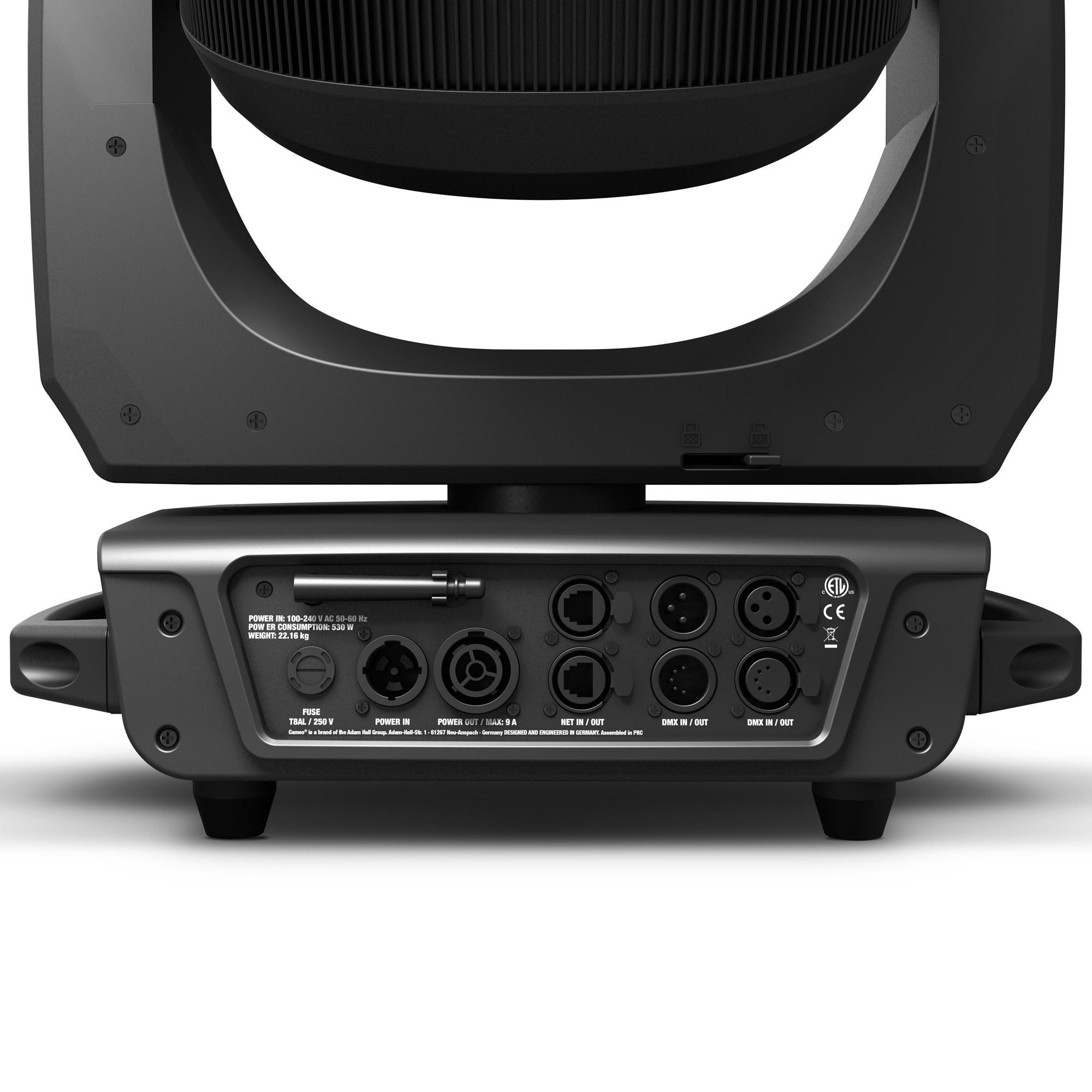

The rugged ABS and metal housing has Neutrik® DMX and powerCON TRUE1 connectors and super efficient heat pipe cooling system with temperature controlled fans to ensure optimal cooling. A battery-powered touchscreen display with 6 additional touch buttons permits convenient offline configuration and two modes of menu navigation.

Supplied with two omega brackets and power cord.

• Compact super bright Spot Moving Head with 17.500 lm output and huge illuminance of 39,000 lux @ 5m
• Advanced CMY colour mixing system plus colour wheel with 7 dichroic filters
• Linear CTO correction from 6,500 - 2,600 K
• Highly efficient optics with extra wide 6° - 46° zoom range
• Even and flat projection field without hot spots at any zoom angle
• Rotating animation wheel
• Rotating gobo wheel with 7 interchangeable indexable glass gobos + open
• Static gobo wheel with 8 interchangeable glass gobos + open
• Rotatable and indexable 3-facet circular prism plus 6-facet linear prism
• Variable frost for wash-like effects plus stepless iris
• Ultra smooth 16-bit dimming with 4 selectable curves
• Flicker-free operation thanks to selectable PWM frequencies up to 25 kHz

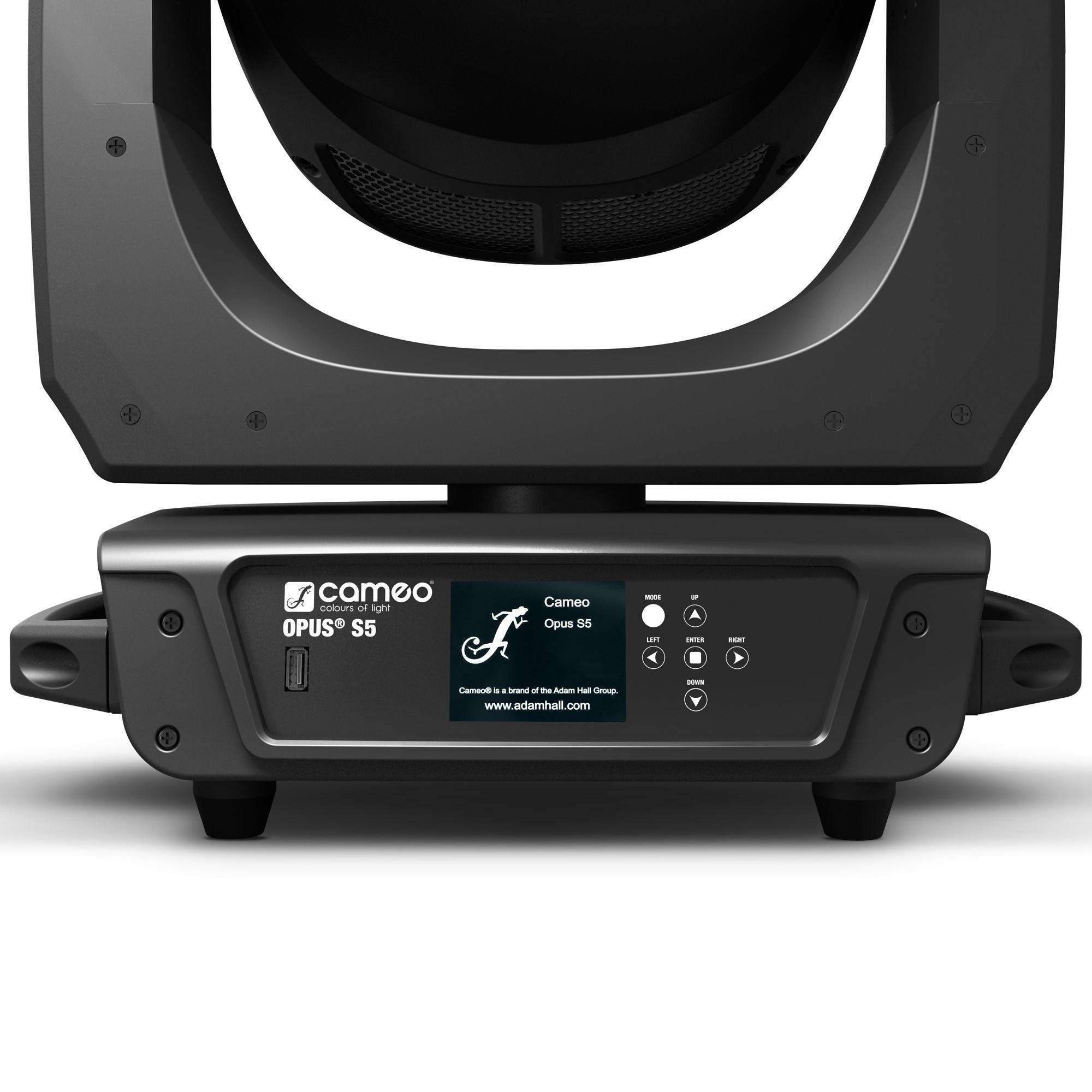

• Battery powered touchscreen display plus 6 touch buttons for offline configuration
• Flexible control via built-in W-DMX™ Transceiver, DMX, RDM, Art-Net or sACN

For more details, please download the Cameo OPUS S5 datasheet via the link below.

You may also like to download the Cameo Lighting Brochure here.

Please see the Cameo Lighting Glossary for more information on any of the following features:
