Terracom APH30-IP
Click to expand

Terracom APH30-IP

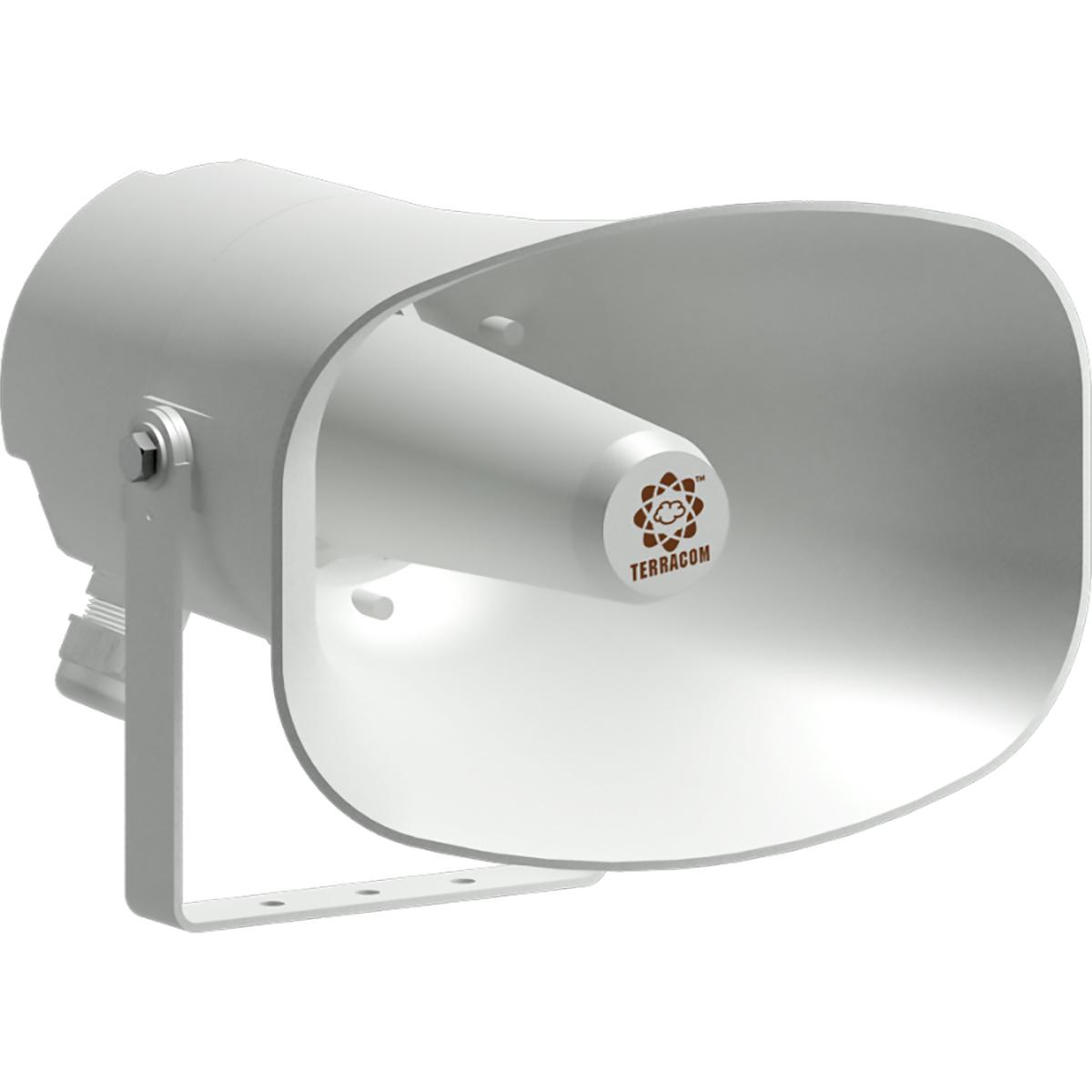

The TERRACOM APH30-IP POE network horn speaker has an integrated TERRACOM IP module with 2 x 20w amplifier, three control inputs and one output contact for triggering events. Integrated DSP tools for audio enhancement and memory storage are just two other features of the APH30-IP.

This lightweight, weatherproof re-entrant horn is manufactured from Low Smoke Zero Halogen UL-94V0 moulded plastic with UV inhibitors and is supplied with a high-grade epoxy coated U bracket.

Offering high efficiency and clarity of speech, these horns are suitable for speech or signal warnings in hostile environments. They are also ideal for marine and industrial applications as they are non-corrosive and resistant to salt laden air & most chemicals.

Finished in grey, RAL7035.

  • Rated power: 30W
  • Driver impedance: 8Ω
  • Material: Low Smoke Zero Halogen UL-94V0 Plastic with UV Inhibitors
  • Mounting: Stainless Steel U Bracket and Hardware
  • Supports PoE+ and PoE power
  • Standard RJ45 interface, PCB control and Class-D amp board (2 X 20w)
  • Cost effective and simple installation with single cable deployment
  • Easily configured, controlled, managed, and monitored via web browser
  • Full DSP includes Ducker, AGC, PEQ, Hi/Low Pass, Compressor, Limiter, etc.

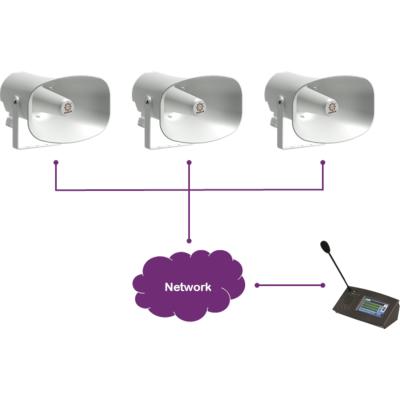

  • IP based for music streaming, routing, paging and control over LAN/WAN
  • VoIP call via SIP protocol
  • Supports audio codecs G.711u, G.711a, G.722, PCM16K and MP3
  • 3 control inputs, 1 contact output
  • Internal storage (200mb) plus microSD card of up to 512GB available for message or music storage
  • Warranty: 3 Years.
List Ex VAT: £510.22
Log in for Trade Prices
CONTACT US

Related Products

Terracom RAC5

Wall mounted volume & source selector for up to 5 Terracom devices.

see more
List Ex VAT: £63.00
Terracom RAC8

Wall mounted volume & source selector for up to 8 Terracom devices.

see more
List Ex VAT: £88.95
Terracom MSH30-IP

AoIP horn speaker with integrated IP module.

see more
List Ex VAT: £766.37

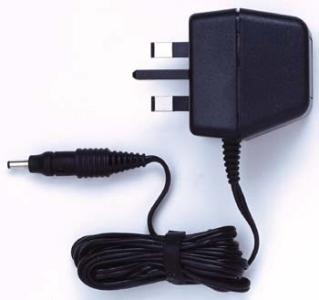

Cloud Electronics PSUK

Power supply unit for Cloud PM4/8/12/16 paging microphones.

see more
List Ex VAT: £20.00
Terracom TERRA-DS1

Wall mounted SIP/IP Intercom Door Station with contacts for door/gate lockdown.

see more
List Ex VAT: £647.78
Terracom CELL10-IP

Weatherproof AoIP sound projector with integrated IP module.

see more
List Ex VAT: £603.04

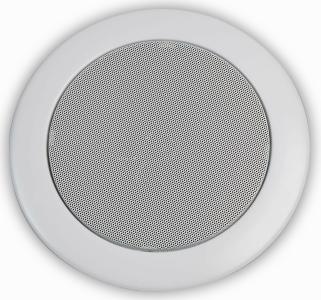

Terracom RCS6COAX-IP
