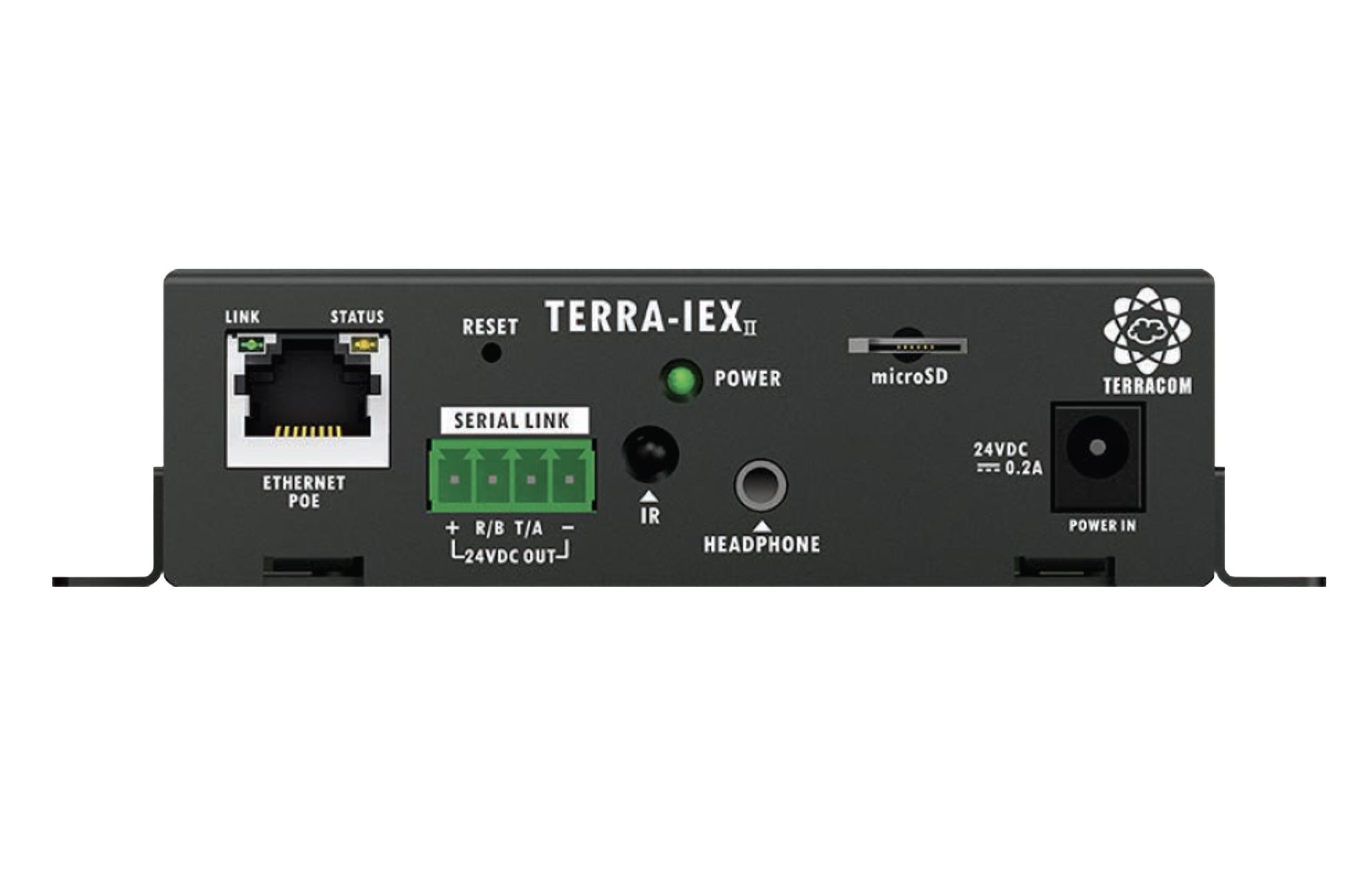

The Terracom TERRA-lEX/G2 is designed for simple point-to-point or point-to-multi-point audio distribution, as well as converting analogue audio via an Ethernet/Internet network without the need for a computer.

TERRA-lEX/G2 incorporates a high-quality MP3 encoder and decoder. The decoder converts MP3 audio from the network, and the encoder converts analogue audio sources, such as a CD player, to the network.

Internal memory supports up to 200MB for storage of music / messages / recordings. Audio files can be easily stored through a computer on the local network and played locally. Audio files may also be stored on micro SD card for playback via the Micro SD slot on the front of the unit.

The typical application involves integrating BGM playback and emergency calls using a single TERRA-lEX/G2.

Generally, it is used for decoding MP3 audio streaming from the network. A push button is connected to the control input of for emergency calls. Additionally, users can connect an external microphone* of their choice to the mic input.

Users can program one or several target IP addresses through the TERRA-IEXII web browser. When the push button is pressed, BGM playback automatically stops, and the emergency call is triggered to play to the pre-programmed target or to multiple targets sequentially as predefined. The call can be a live broadcast or predefined messages.

• Use for paging, intercom, music streaming, audio routing, pre-recorded and scheduled announcements, VoIP communication or as a SIP device.
• Input or output digitised audio from a network and provide an analogue output with I/O or optional RS232 control.
• Store messages, music or alerts on the 200mb internal memory and micro SD card port (512GB).
• Trigger messages, music or alerts with the integrated scheduler.
• Integrate with 3rd party devices such as door access and AV systems
• Configured, controlled and monitored via web browser.

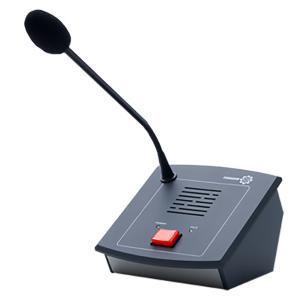

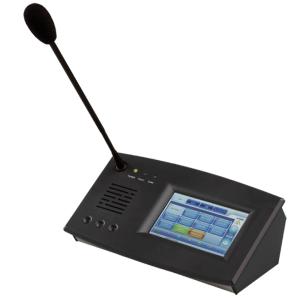

• Compatible paging consoles include the PPM-IT5 and TERRA-K
• Support PoE+ and PoE power
• Power, link and status LED indicators

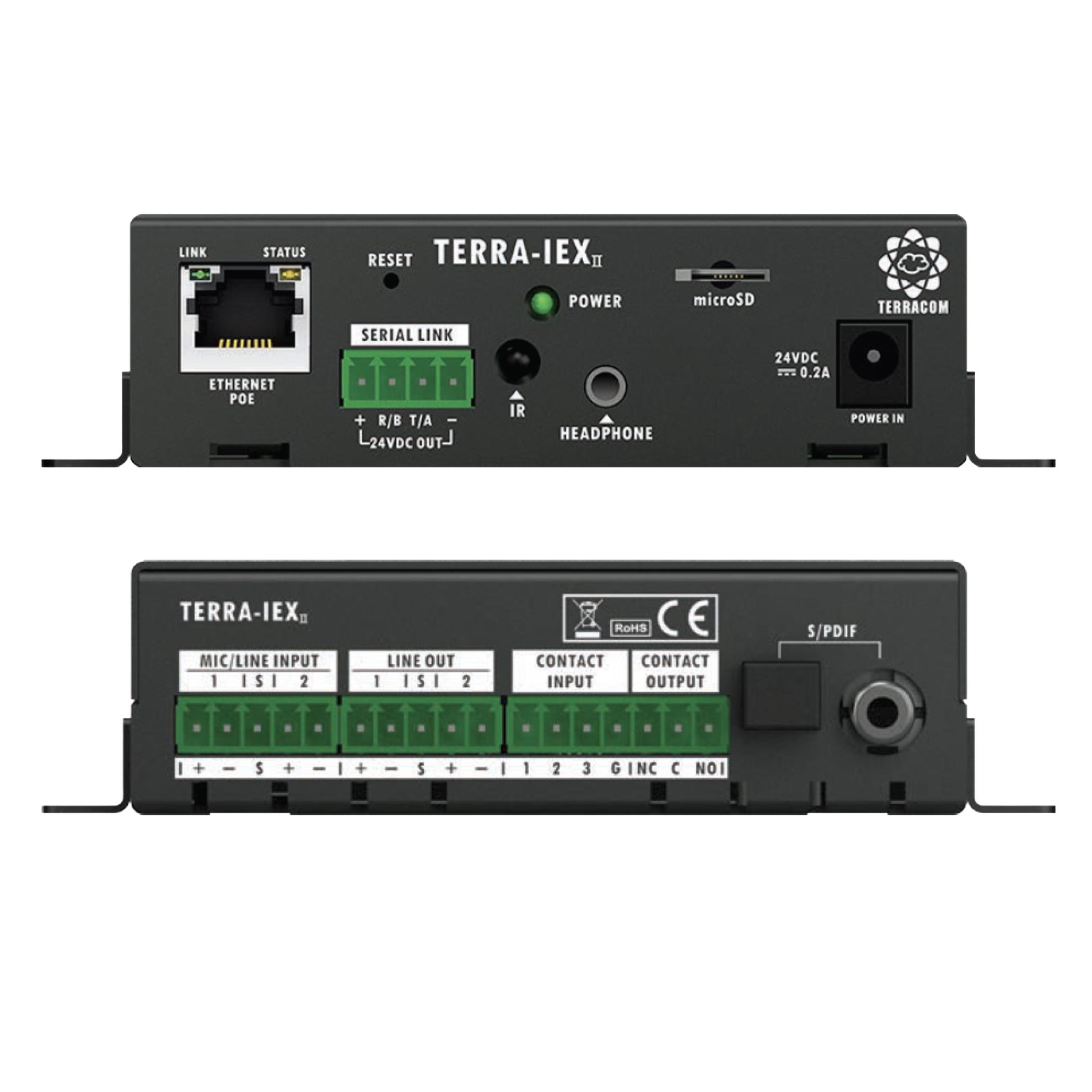

• 2 balanced Mic/line inputs
• 1 stereo or 2 mono line output with 3.81 mm Euro-block
• 1 headphone output (3.5 mm mini-jack)
• 3 logic contact inputs and 1 contact output
• Paging with priority that can automatically override other audio sources, such as background music
• Easily configured, controlled, managed and monitored via web browser
• Internal 200MB storage and micro SD card interface for music/message recording storage
• Warranty: 3 Years.

The Terra IEX/G2 is also known as the TERRA-IEXII and is available with optional RS232 or RS485 interface – please contact us for more information about these varients.
