CAS ATT50R

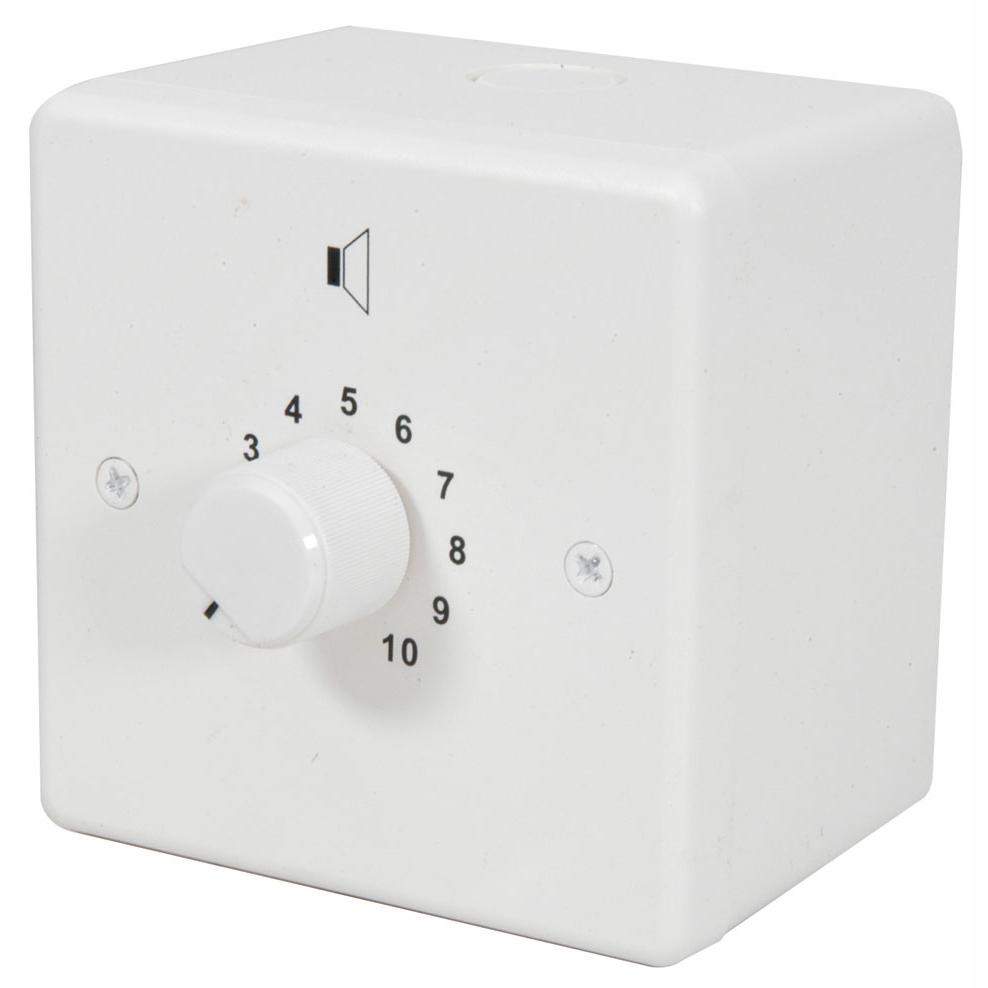

CAS ATT50R is a 50 watt, 100 volt line wall mounted volume control attenuator with a 24V relay to enable bypass to full volume when triggered from a fire alarm panel.

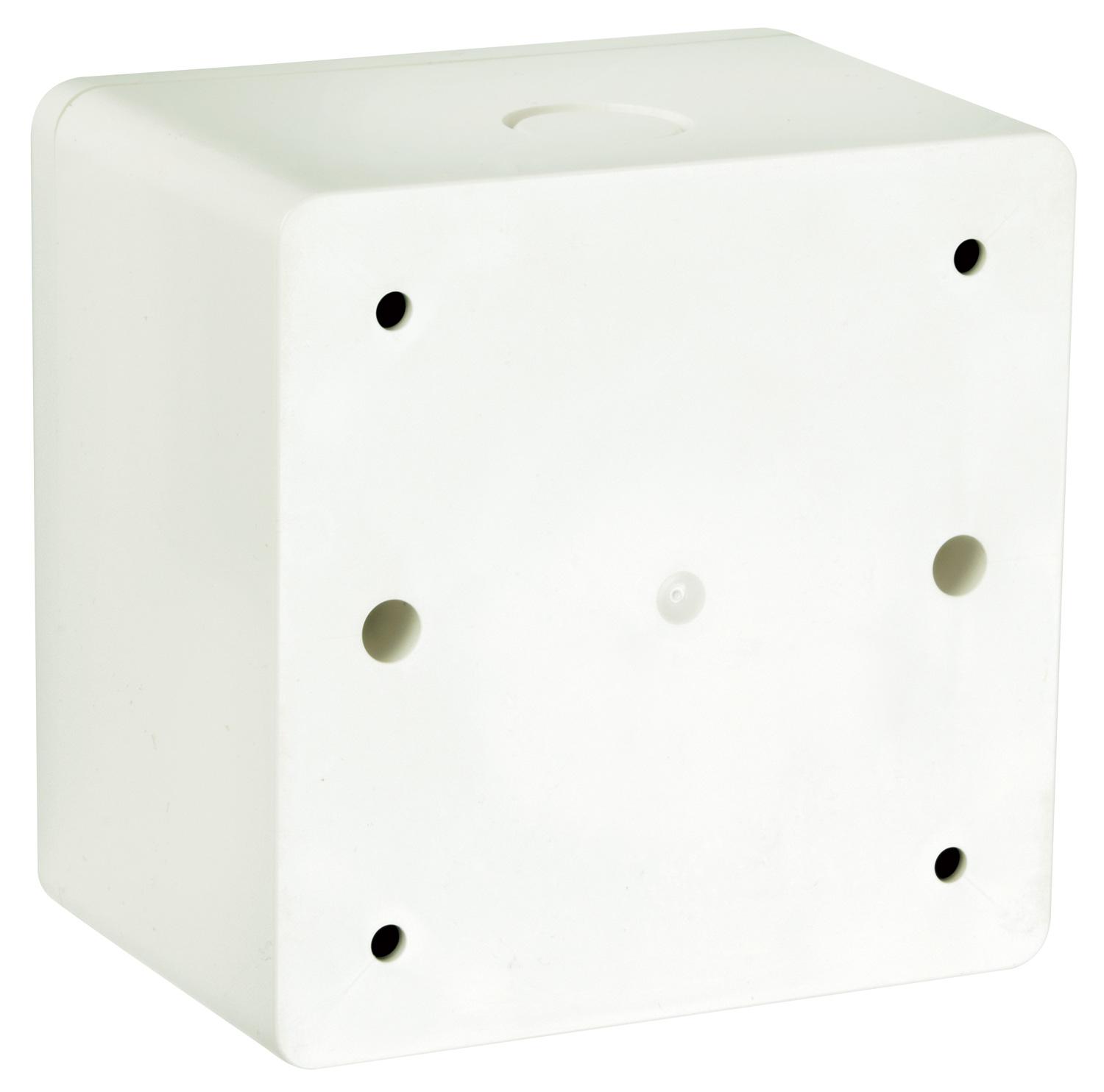

Surface mount back box included.

  • 50 watt 100v line
  • Attenuation in 10 steps: 8 x 3dB and 2 x 6dB steps
  • 100V line audio transformer

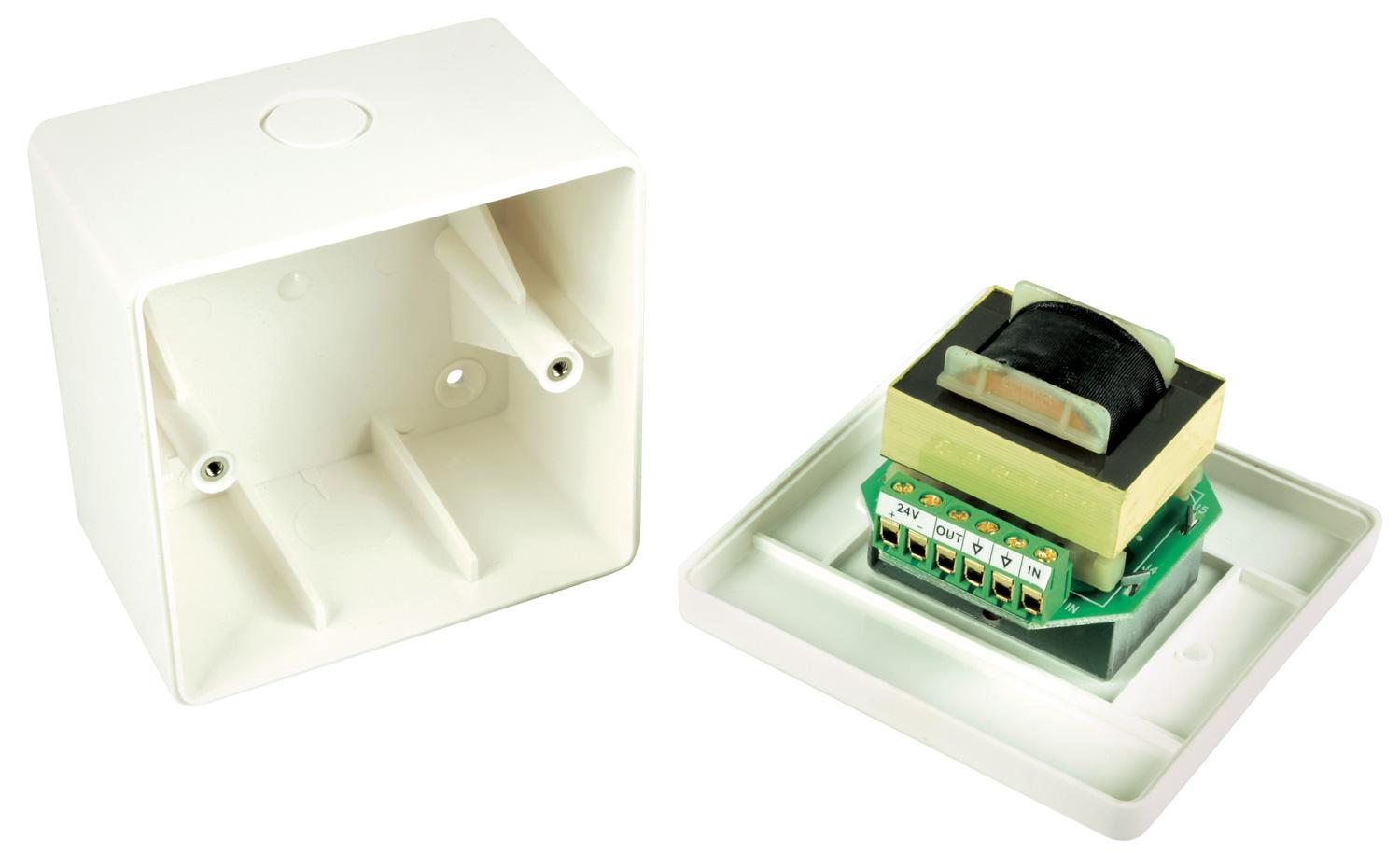

  • Flush mounts onto supplied single gang back box
100V
List Ex VAT: £27.14
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Attenuation

3dB per graduation

Frequency response

35Hz - 20kHz

Relay

24V, 50mA

Dimensions (assembled)

85 x 85 x 75mm (inc. back box)

Mounting depth

47mm
