CAS ATT24R
CAS ATT24R
CAS ATT24R
Click to expand

CAS ATT24R

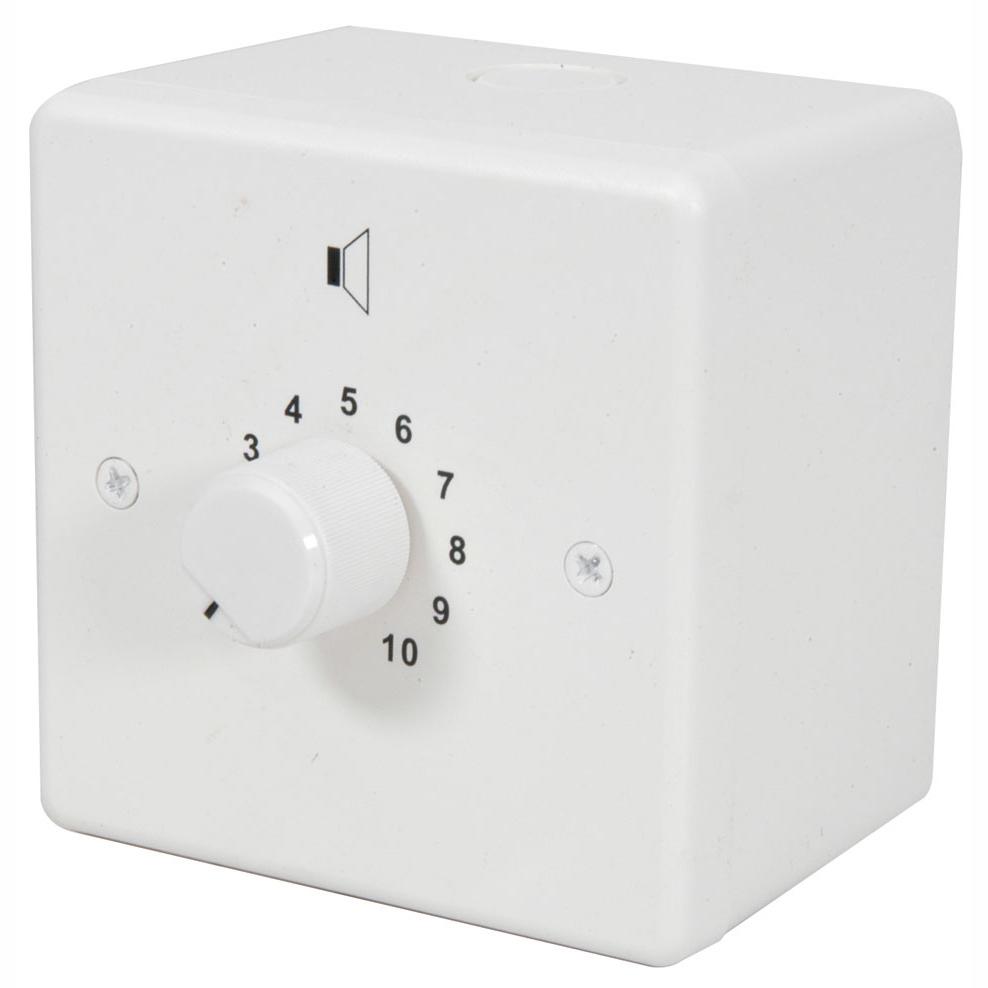

CAS ATT24R is a 24 watt, 100 volt line wall mounted volume control attenuator with a 24V relay to enable bypass to full volume when triggered from a fire alarm panel.

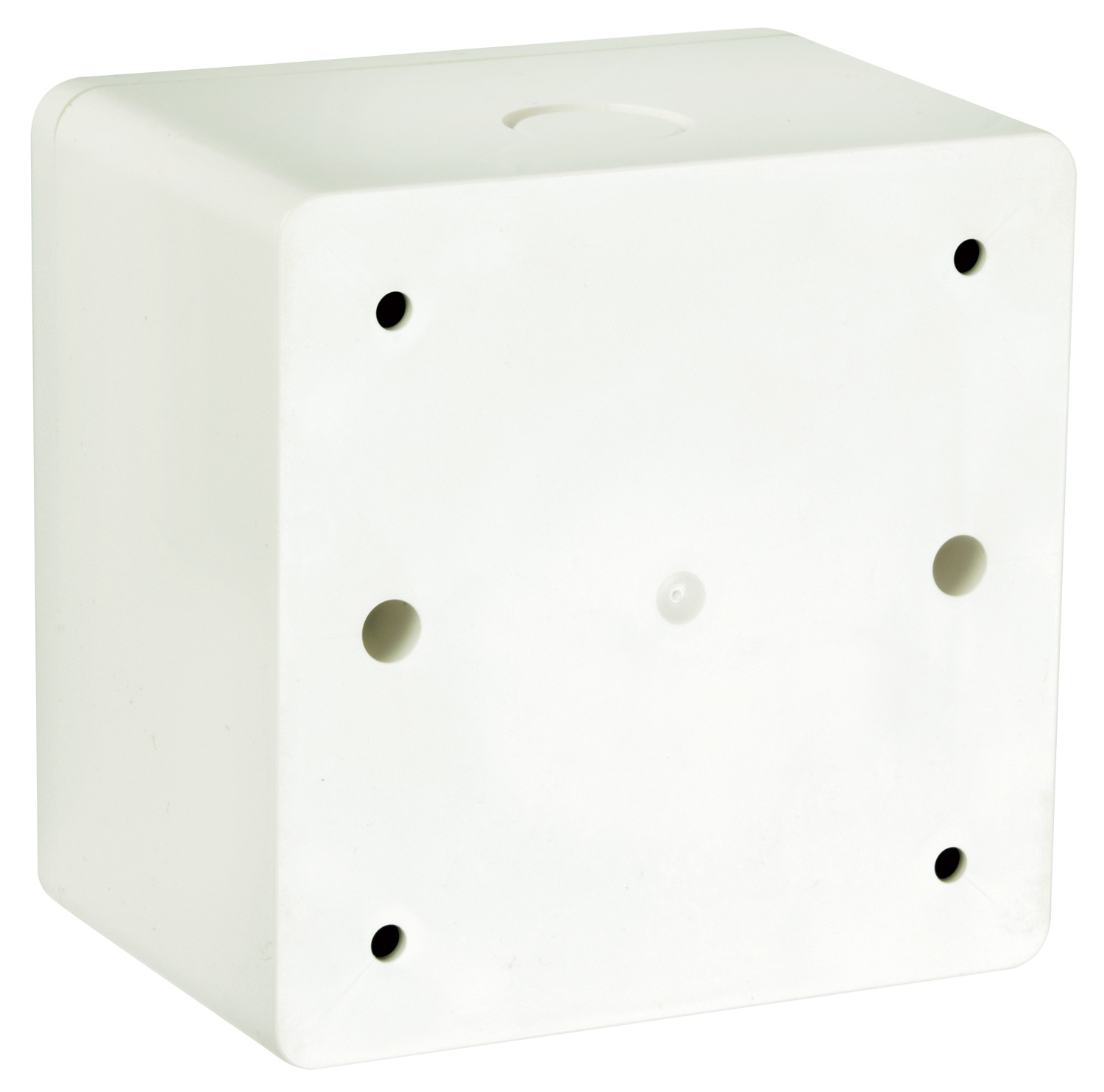

Surface mount back box included.
  • 24 watt, 100v line
  • Attenuation in 10 steps: 8 x 3dB and 2 x 6dB steps

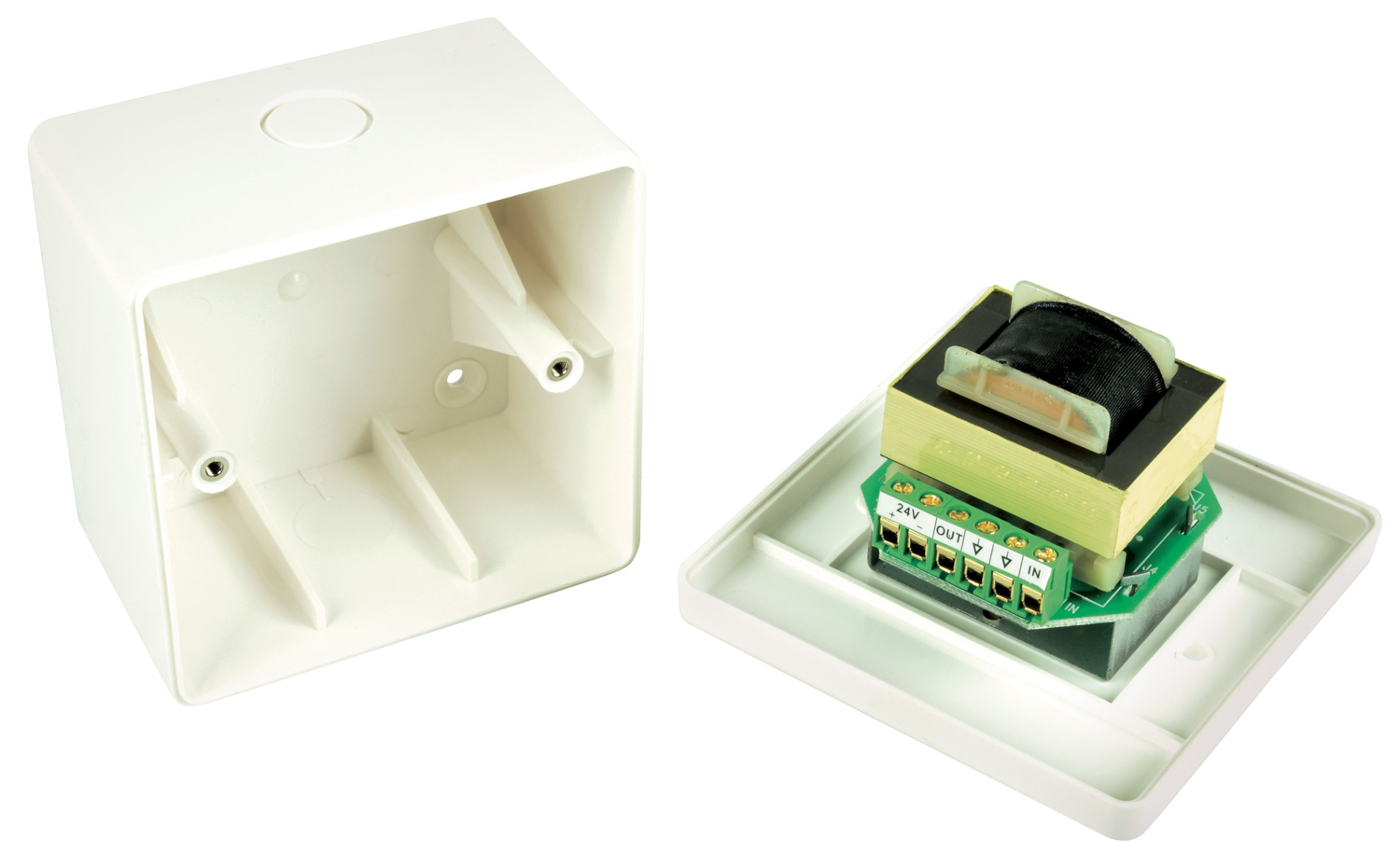

  • 100V line audio transformer
  • Mounts onto supplied single gang back box
1a: 100V
List Ex VAT: £29.14
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Attenuation

3dB per graduation

Frequency response

35Hz - 20kHz

Relay

24V, 50mA

Dimensions (assembled)

85 x 85 x 75mm (inc. back box)

Mounting depth

47mm
