Cloud Electronics CVC-30

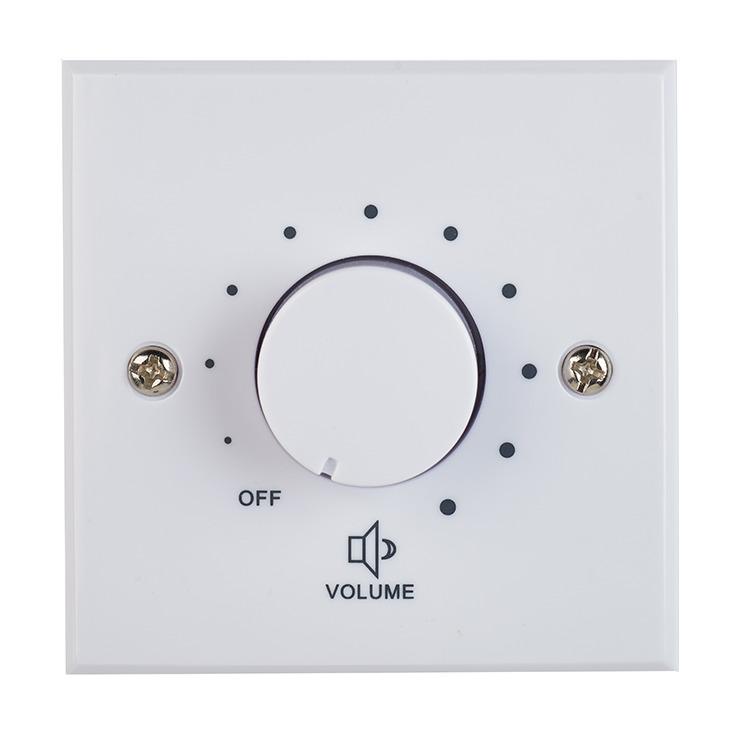

The Cloud CVC-30 100V Attenuated Volume Control enables control over 100 Volt line loudspeaker circuits where the wattage reaches a maximum of 30 Watts in total.

The CVC30 volume control features 10-step attenuation including ‘OFF’ position and fits a standard UK single gang electrical back box.

100V Line Attenuators offer the ability to precisely control audio level of individual 100V speakers or multiple 100V speakers in a daisy chain wiring configuration.

Ideal for use with the Cloud 'Contractor' VMA Series mixer amplifiers and VA Series multichannel power amplifiers but are also compatible with any 100V line circuit.

Available in a range of maximum wattage ratings, handling up to 120 Watts - see CVC-6, CVC-60 and CVC-120.

Warranty: 2 Years.

List Ex VAT: £25.00

SPECIFICATIONS

Power Rating	30W
Attenuation Positions	10 Plus Off
Attenuation Steps (dB)	0,-3,-7,-10,-12,-15,-18,-21, 27,-33, OFF.
Output Level (dBrA)	-10,-13,-17,-20,-22,-25,-28,-31,-37,-43.
Nominal THD	0.02%
Frequency Response	20Hz-20Khz, +3.9dB to -1.4dB
Colour	White
Termination	4 pin Euroblock
Faceplate Material	ABS
Packaging	1 per box
Dimensions (Net) (HxWxD)	87mm x 87mm x 40mm
Weight (Net)	2.32kg
Min Mounting Depth	50mm

DOWNLOADS

Cloud Electronics CVC-6, 30, 60 & 120 Datasheet
