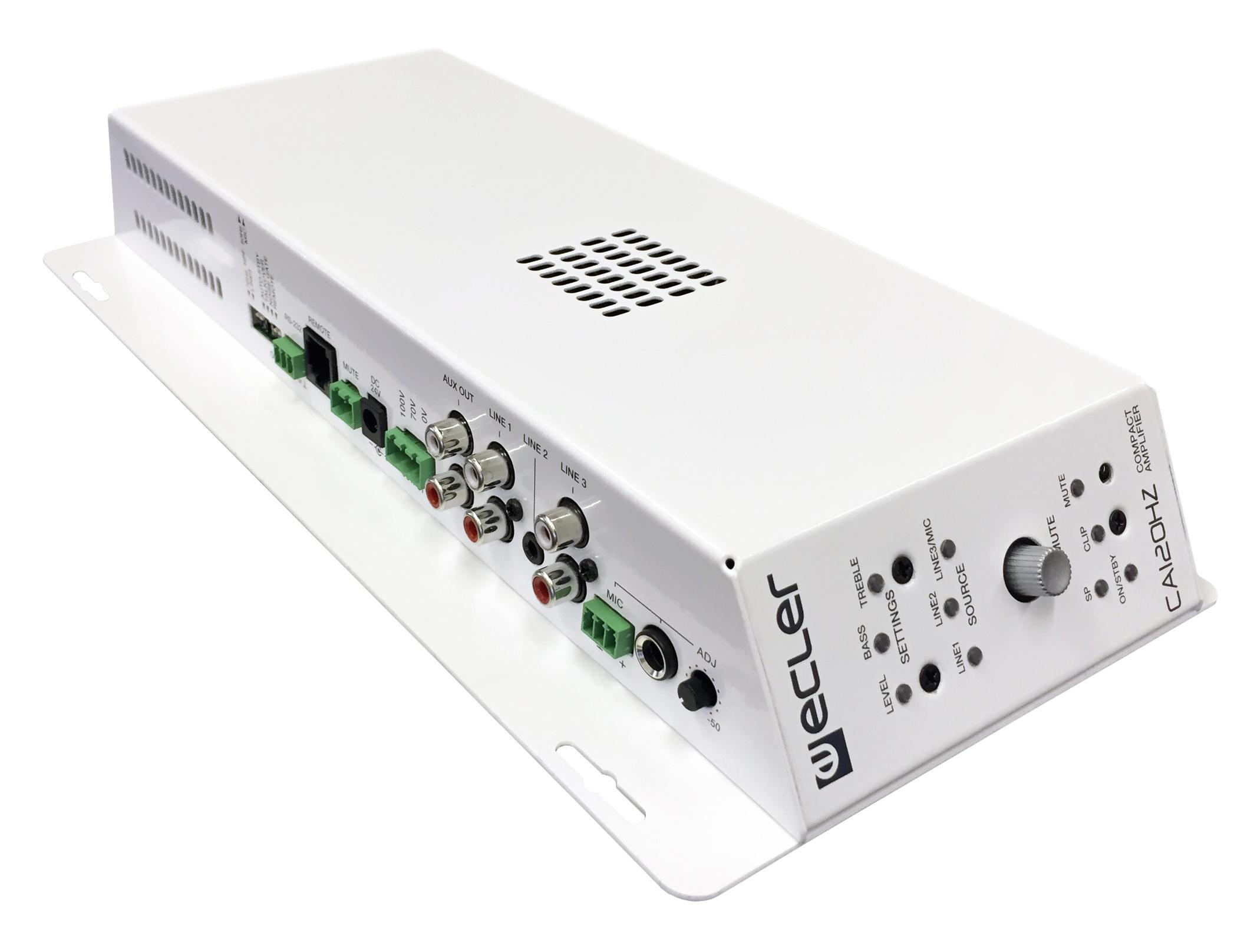

Ecler CA120HZ
Click to expand

Ecler CA120HZ

The Ecler CA120HZ micro amplifier is the high impedance version of the CA120, offering 120 watts output @ 70 / 100 volt line. Great for long loudspeaker cable runs or for increased numbers of loudspeakers that a low impedance amplier could cope with. Offers an RS232 port, 0-10 VDC remote port and infra red remote for volume adjustment.

Ideal for integration with external control devices in audiovisual applications in classrooms, meeting rooms and shops etc.

  • 1 x 120 W RMS @ 70/100V amplifier

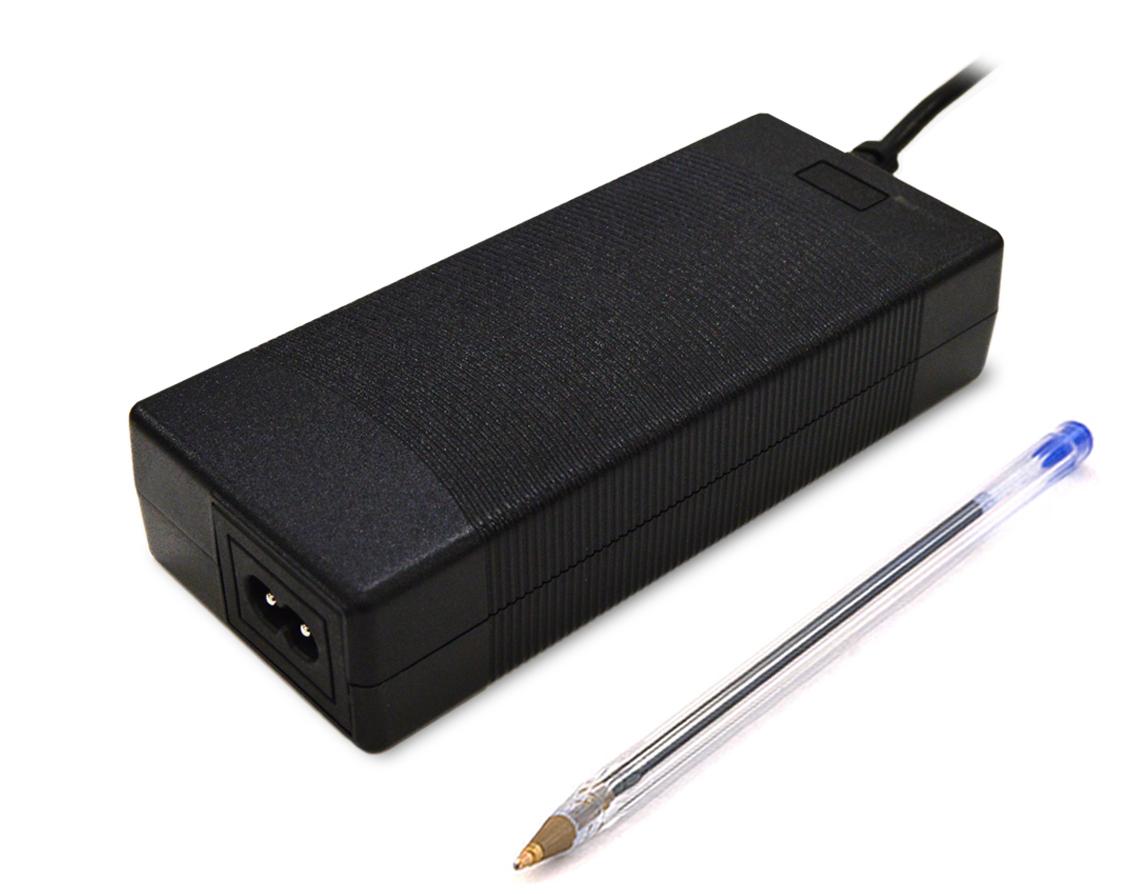

  • Universal external power supply
  • AUTO STANDBY function: in the absence of an audio signal the unit automatically goes into STANDBY mode, minimising power consumption
  • Lightweight, silent, high-performance amplifier (fan-free convection cooling)
  • 1 switchable balanced mic / unbalanced line input, with high quality microphone preamplifier, phantom power supply, noise gate and “talkover” function or priority over the rest of input
  • 2 stereo lines (unbalanced)
  • 2-band independent tone control (Bass, Treble) for the microphone / line 3 and line 1&2 input connection.
  • Auxiliary output for liaison with other amplifiers or external audio devices

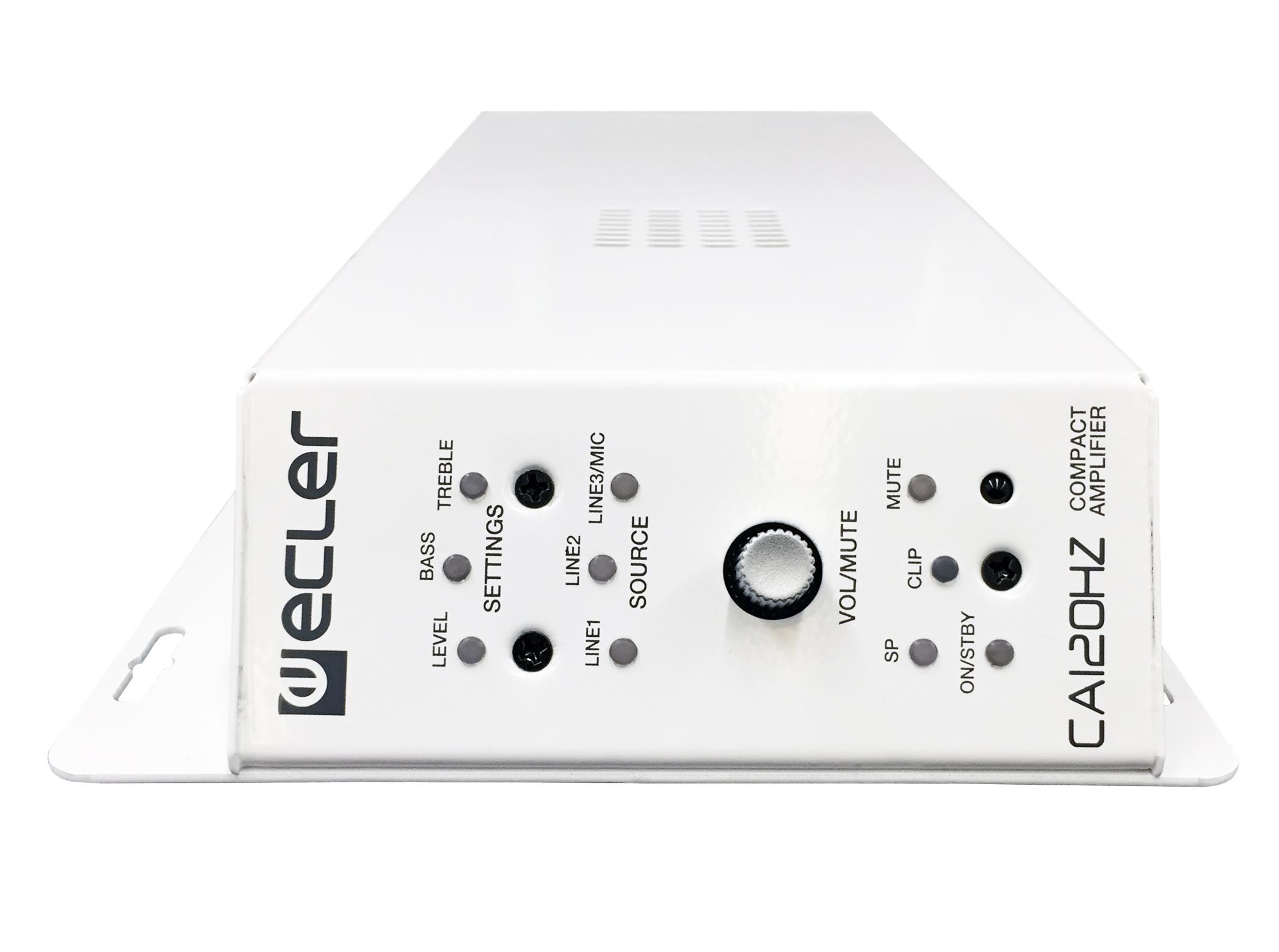

  • Local control by digital rotary knob (“encoder”)
  • Remote control by infrared remote control
  • Remote control by WPmVOL or WPmVOL-SR (0-10 VDC) wall panel
  • RS-232 control port, compatible with EclerCOMM software (free) and control protocol CA-NET
  • MUTE port to silence the entire unit by closing external contact
  • Warranty: 5 Years.

Compatible with wall mounted controls from the WP series to enable remote volume adjustment and input selection etc from a more convenient location. - see related products.

Click here to download the full
Ecler Product Catalogue.

Ecler Product Brochure



100V
List Ex VAT: £471.75
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power



MONO RMS

96W @100Ω

Frequency response:

50Hz - 30kHz (-3dB)

THD+Noise @ 1kHz Full Pwr. SPKR OUT

< 0.09%

THD+Noise AUX OUT

< 0.02%

Channel crosstalk @ 1kHz

>65dB

Inputs Sensitivity nom/Impedance:

 LINE 1 -6dBV (0dBV*) / >8kΩ
 LINE 2 -6dBV (0dBV*) / >8kΩ
 LINE 3 -6dBV (0dBV*) / >8kΩ
 MICRO (BAL) -20 to -50dBV / >1kΩ

CMRR: MICRO (BAL)

>65dB @ 1kHz

Outputs Level/Minimum Load: AUX OUT

>-2dBV/10kΩ

Tone control (LINE & MIC)

BASS: 100Hz ±10dB / TREBLE: 6KHz ±10dB

Signal Noise Ratio

LINE: >70dB / MIC (BAL): >50dB

Phantom voltage

+24VDC/10mA max.*

Mains (using supplied DC adapter 24V)

90-264VAC 47-63Hz

Power consumption:



pink noise, 1/8 power

33VA / 24W

pink noise, 1/3 power

58VA / 52W

Stand By (time 2 minutes)

<2.5W

Dimensions WxDxH

160x325x48mm

Weight

2.92Kg
