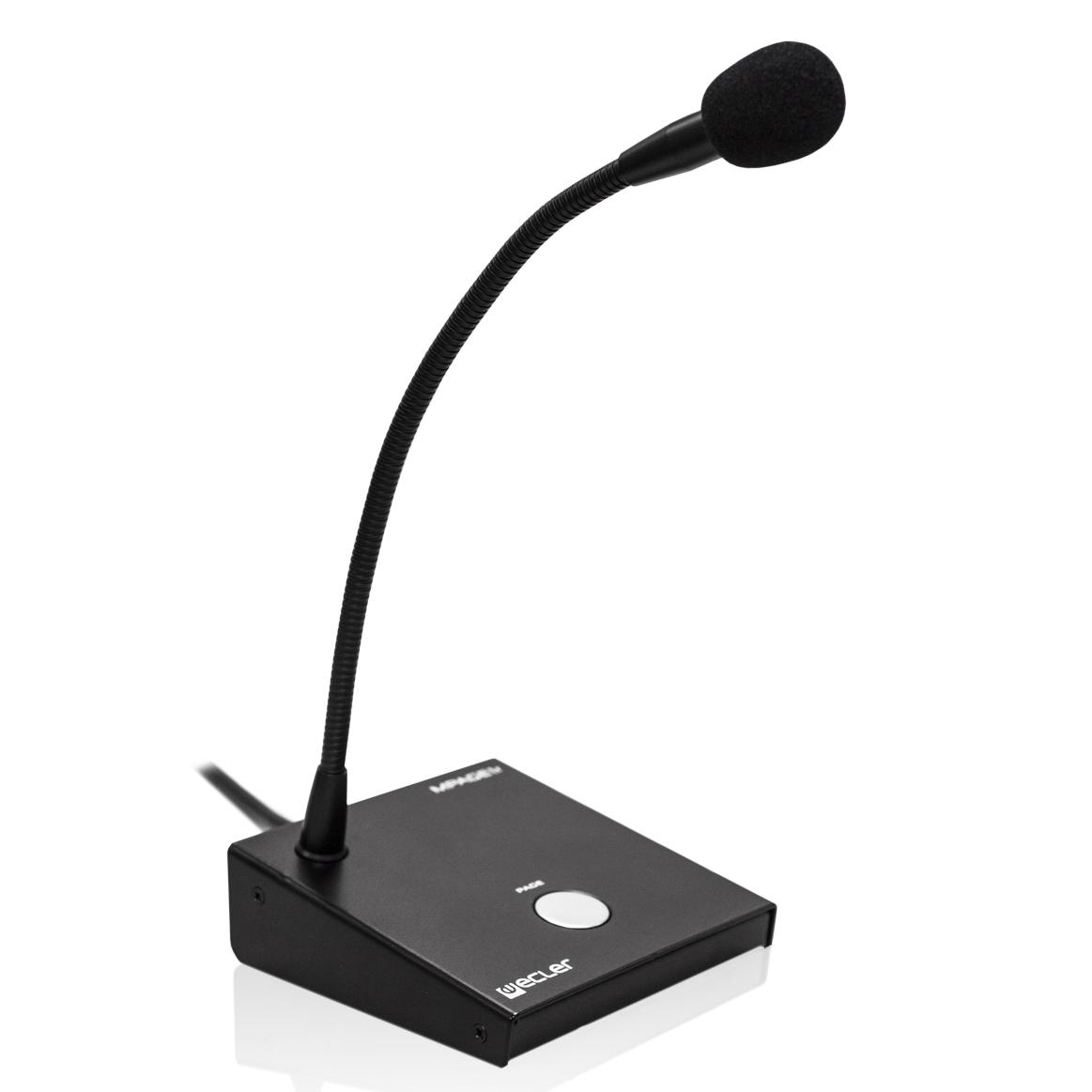

The Ecler MPAGE1r desktop microphone paging station is compatible with any phantom powered microphone input including the SAM, CA. HMA &COMPACT series, DAM614 and MIMO88 from Ecler.

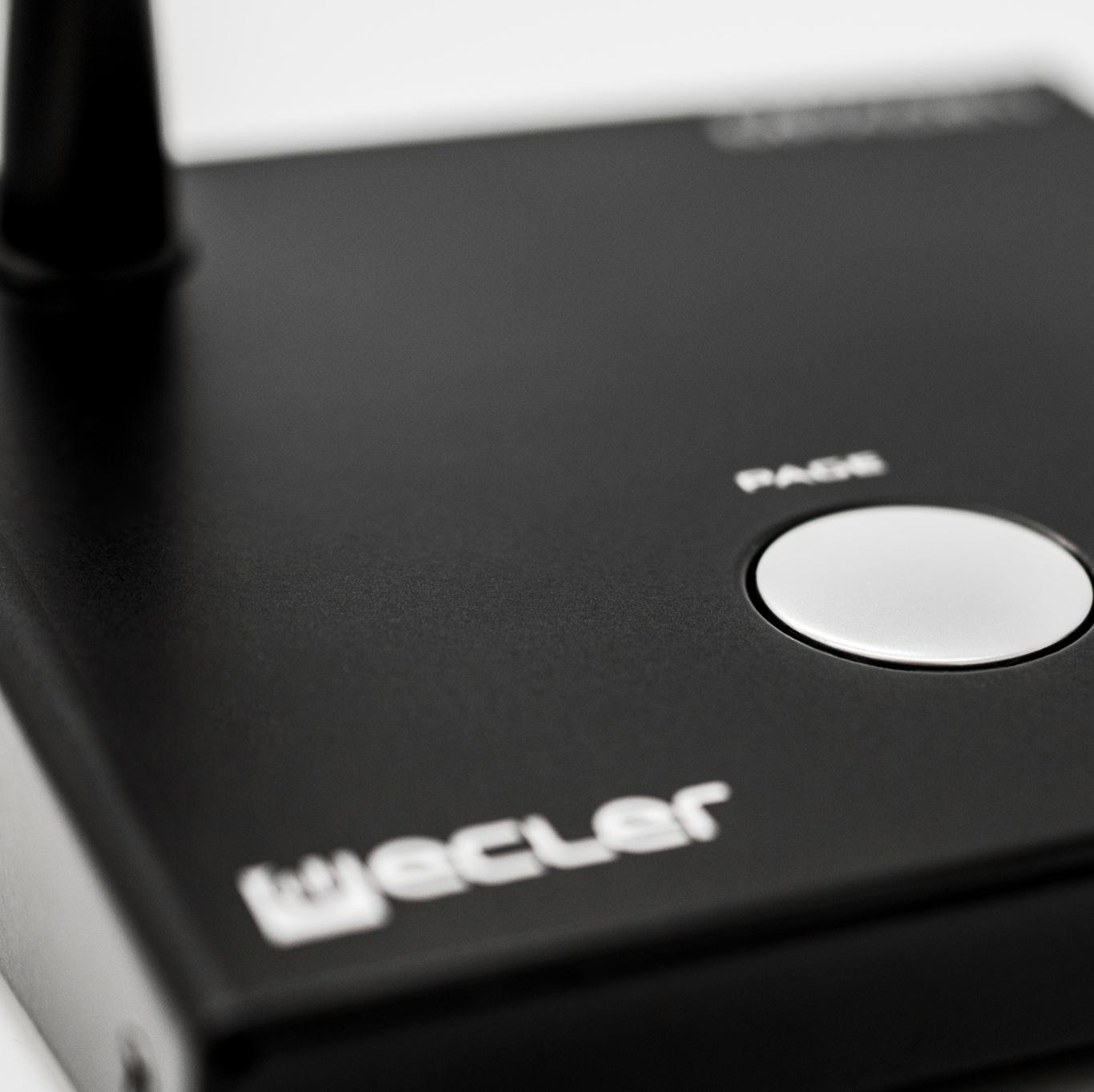

The MPAGE1r features a fixed gooseneck mic with unidirectional pickup and press to talk paging button.
 |
|
Microphone type |
Non removable gooseneck condenser microphone |
|
Microphone frequency response |
50Hz – 18KHz (-10dB) |
|
Polar pattern |
Unidirectional |
|
Output level |
-24dBV @ 104dB SPL / -34dBV @ 94dB SP |
|

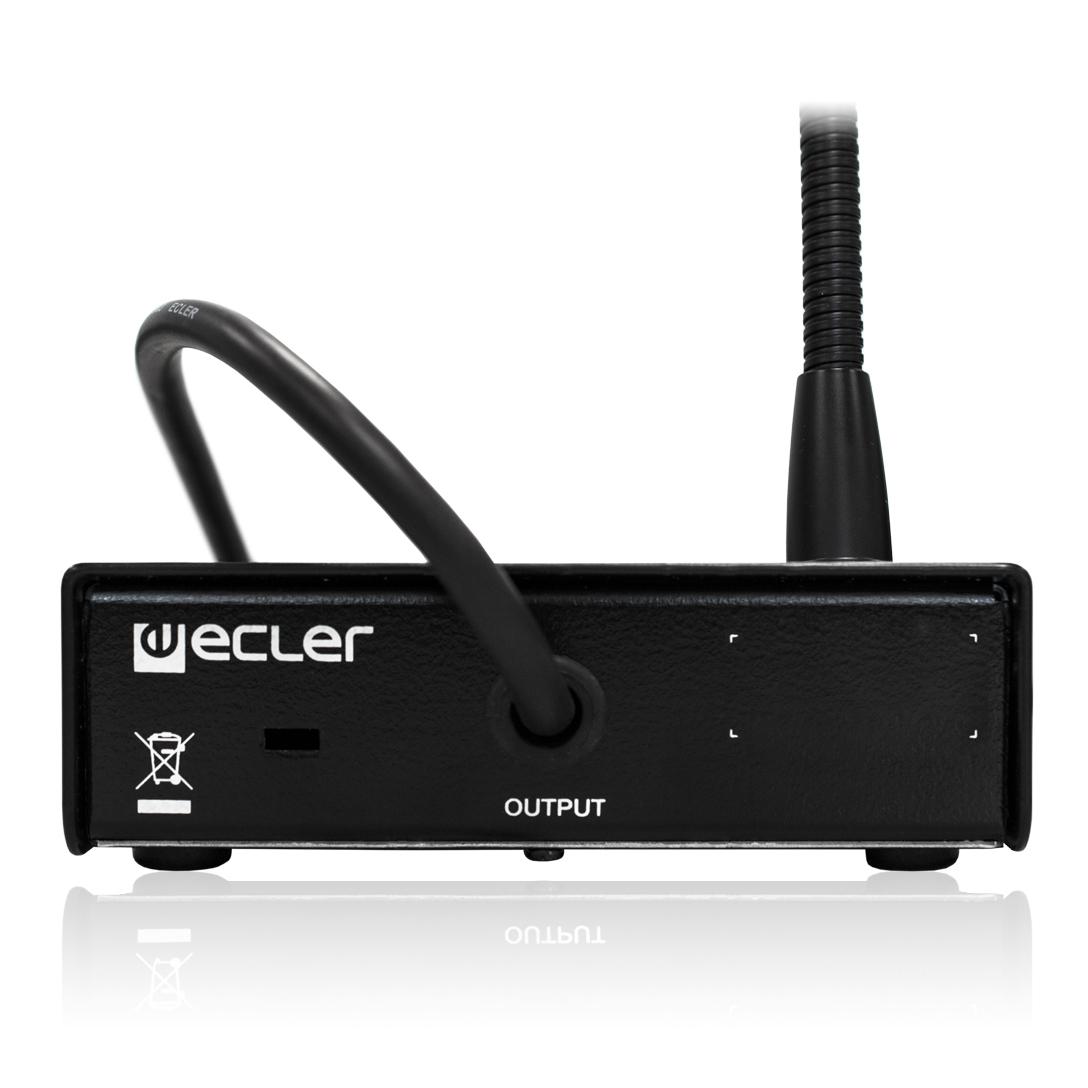

Audio Output |
Balanced, detachable 3 pole screw terminal |
|
Control output (TRIGGER port) |
Open drain N channel mosfet N.C./N.O, internally selectable |
|
Phantom Power |
+10 to +48VDC |
|
Dimensions (microphone excluded) |
120 x 126 x 43 mm |
|
Weight |
625. |
|
Accessories included |
Windscreen & connectors |
