The Audio Technica System 10 Pro ATW-R1320 dual channel wireless microphone receiver unit includes a rack mountable dual receiver chassis fitted with two receiver modules operating on 2.4GHz, free from interference from TV frequencies.

The system offers three levels of diversity: frequency, time and space. Frequency diversity sends the signal to two frequencies allocated for communication without interference. The time diversity sends the signal in several time slots to optimize immunity against multipath interference. Finally, space diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

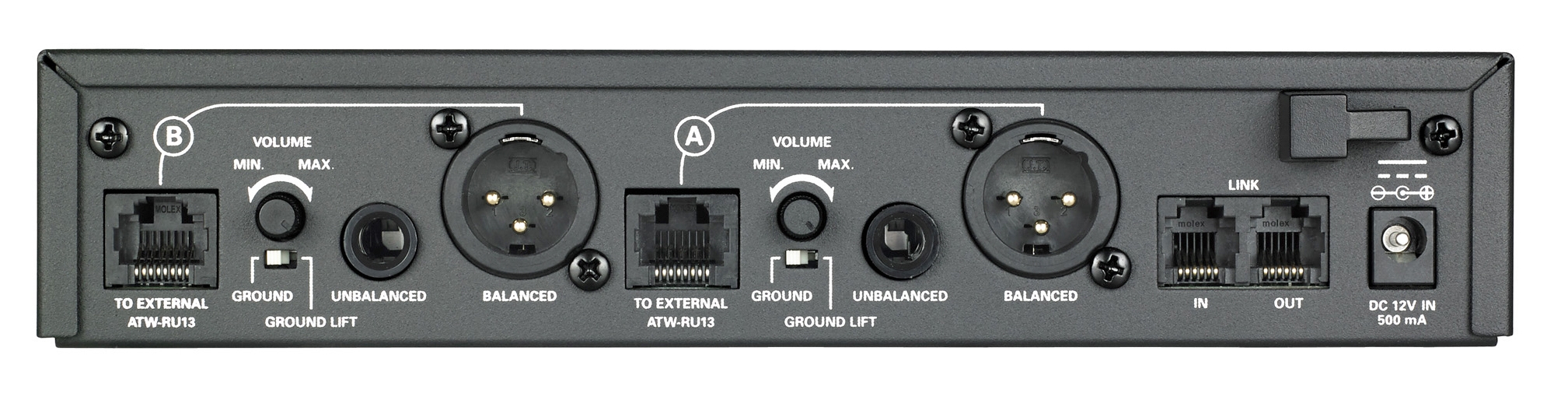

The System 10 PRO is easy to set up and operate and each ATW-RC13 receiver chassis can hold two ATW-RU13 receiver modules. The half-rack width chassis comes complete with the rack mount brackets as well as a joining plate so two receiver chassis can be mounted side by side in just one rack unit.

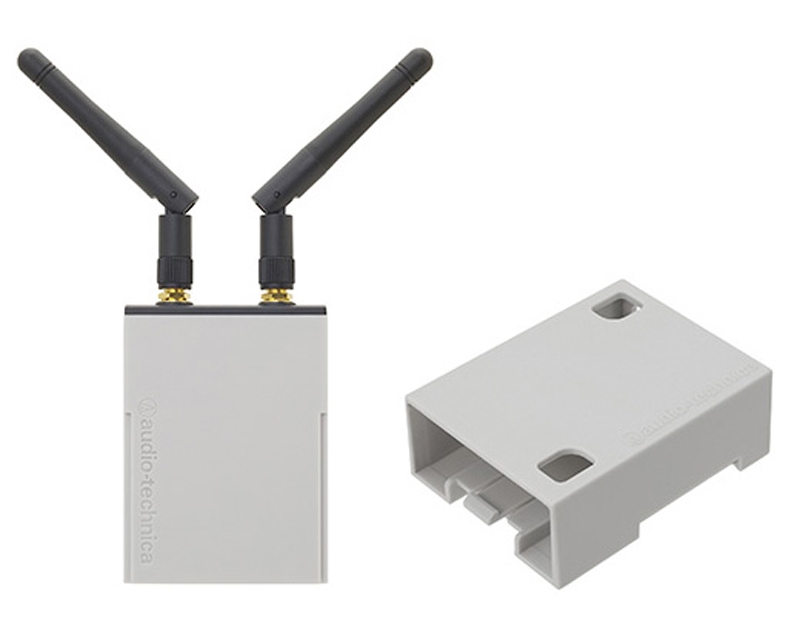

The receiver module can be removed from the housing and connected remotely via ethernet cable up to 100m long enabling the audio rack to be placed safely and securely in a remote location. The receiver can be mounted on a stand, bracket or on the wall using the wall mount sleeve provided.

Up to 10 transmitters can be paired with each receiver ready for use. Up to 10 channels can be used simultaneously by linking multiple receivers.

The display on the receiver indicates RF signal level, transmitter battery status, audio level and 'pair'. An ID number is also displayed to show which transmitter is associated with the receiver.

• 2.4 GHz 24-bit / 48kHz >Digital wireless system
• Automatic Frequency Selection. Plug & Play. Ease of use and reliability
• Offers 3 levels of diversity (frequency, time and space) to ensure communication without interference
• Rack mountable metal chassis (rack mount kit included)
• Extractable ATW-RU13 receiver can also be deployed at up to 100m from the chassis via an Ethernet cable
• Possibility of extractable 2 receivers per chassis
• Users can pair each receiver with up to 10 transmitters
• Delivers high-fidelity audio quality over the whole frequency band (20Hz to 20kHz)
