The Audio Technica System 10 PRO ATW-1301 wireless radio microphone system includes a rack mountable dual receiver chassis fitted with one receiver and a beltpack transmitter. Operating on 2.4GHz, free from interference from TV frequencies.

The system offers three levels of diversity: frequency, time and space. Frequency diversity sends the signal to two frequencies allocated for communication without interference. The time diversity sends the signal in several time slots to optimize immunity against multipath interference. Finally, space diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

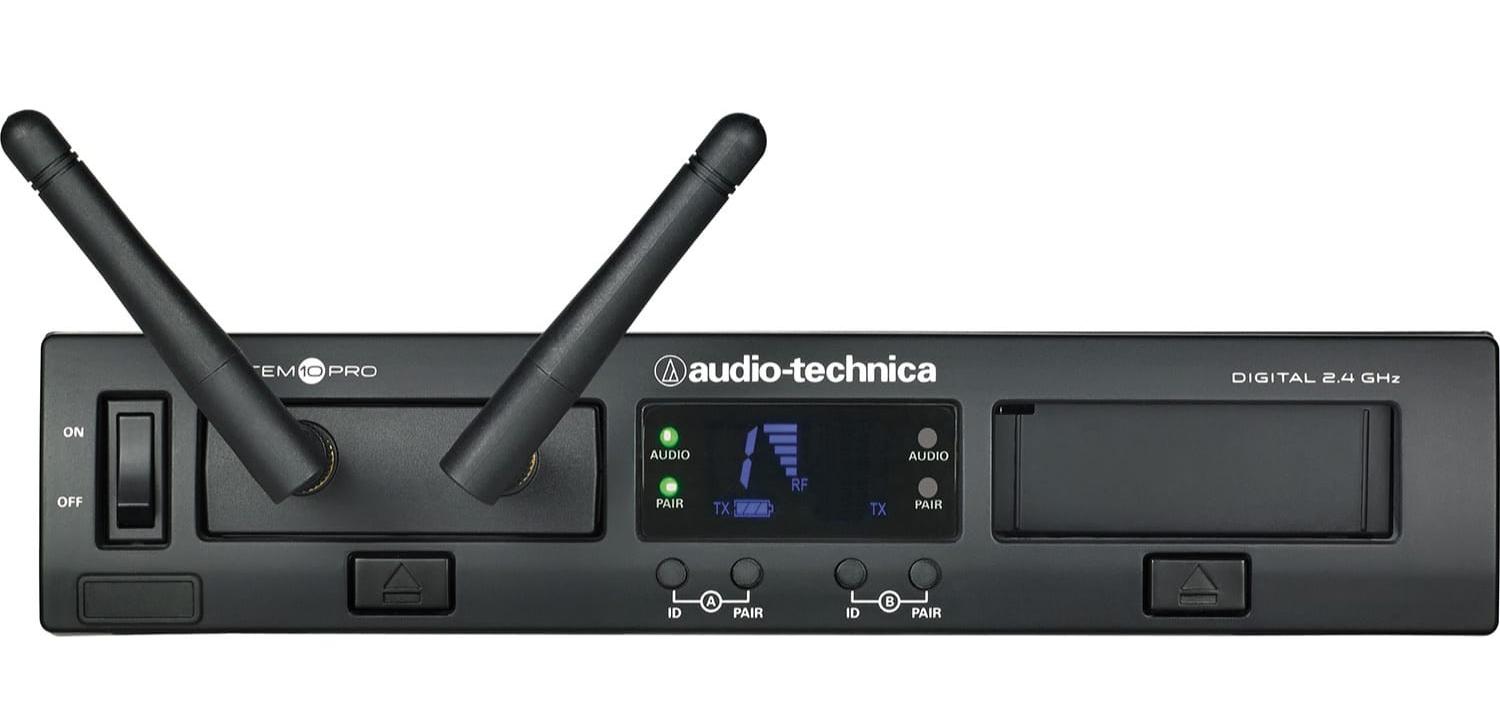

The System 10 PRO is easy to set up and operate and each ATW-RC13 receiver chassis can hold two ATW-RU13 receiver modules. The half-rack width chassis comes complete with the rack mount brackets as well as a joining plate so two receiver chassis can be mounted side by side in just one rack unit.

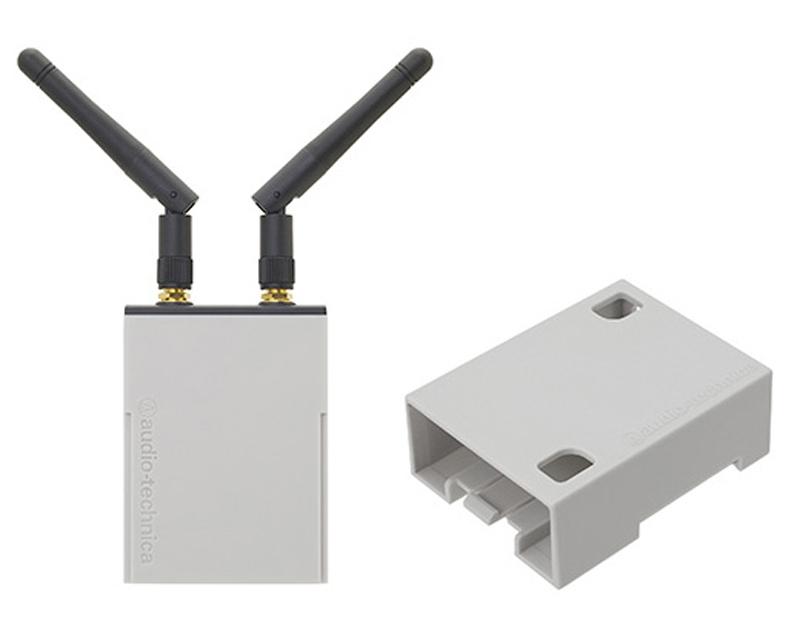

The receiver module can be removed from the housing and connected remotely via ethernet cable up to 100m long enabling the audio rack to be placed safely and securely in a remote location. The receiver can be mounted on a stand, bracket or on the wall using the wall mount sleeve provided.

Up to 10 transmitters can be paired with each receiver ready for use. Up to 10 channels can be used simultaneously by linking multiple receivers.

The display on the receiver indicates RF signal level, transmitter battery status, audio level and 'pair'. An ID number is also displayed to show which transmitter is associated with the receiver.

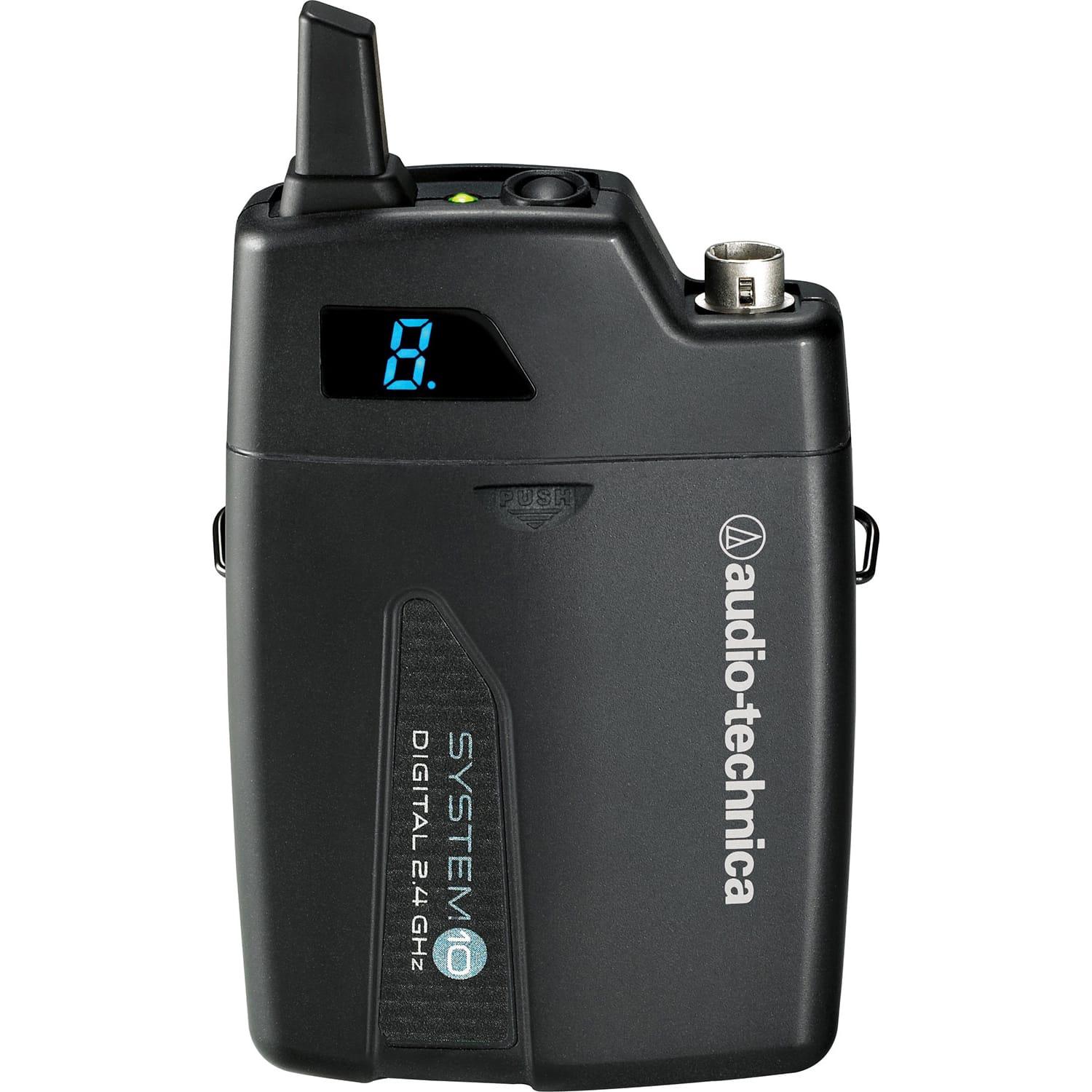

The ATW-T1001 beltpack tranmitter operates on AA batteries and there is a mute button with two colour LED to show its current status. Theres also a channel display.

• This bundle contains 1 x ATW-RC13 Rack-mount receiver chassis, 1 x ATW-RU13 Receiver unit and 1 x ATW-T1001 beltpack transmitter.
• 2.4 GHz 24-bit / 48kHz Digital wireless system
• No interference, as operates outside of DTV or 3G bands
• Automatic Frequency Selection. Plug & Play. Ease of use and reliability
• Offers 3 levels of diversity (frequency, time and space) to ensure communication without interference
• Rackable metal chassis, comes with a removable receiver (Kit setting rack included)
• Possibility of 2 interchangeable receivers per chassis
• Users can pair each receiver with up to 10 transmitters
• 2 frames or 4 receivers can fit in a 19" 1U rack
• Possibility to chain up to 5 frames (10 receivers) using RJ12 type cables (one cable per system)
