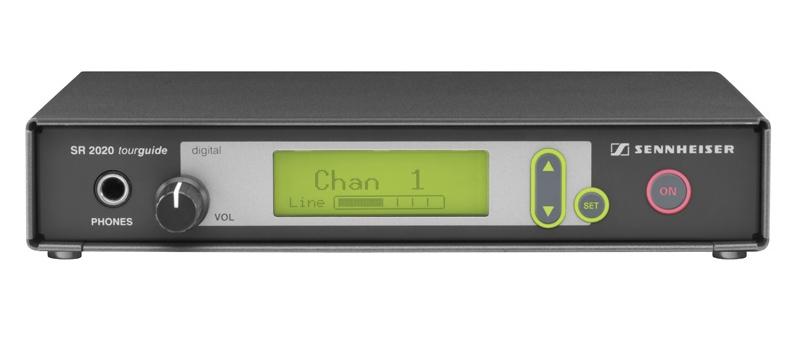

Sennheiser SR 2020-D

Sennheiser SR 2020-D

The Sennheiser SR 2020-D rack mountable fixed tourguide transmitter can be used for multilingual interpretation in either a conference or stationary tour situation.

Choose from 6 channels in conference mode or 8 channels in stationary tour mode. You will need one SR 2020D for each language.

  • Digital RF signal transmission
  • Licence free Frequency range (EU, US)
  • 19" rack-mount kit included
  • 6-8 Channel Transmitter
  • Balanced XLR-3F-Input with switchable phantom-power (48V)
  • 6,3mm jack-plug headphones connection for monitoring
  • Backlit display

Sennheiser part number 500550.

List Ex VAT: £874.17
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency range

863 – 865 MHz

Frequency response

100 – 7,000 Hz

THD

≤ 1%

Range

50m/100m (Indoor/Outdoor)

Phantom Powering

48V

Operating temperature

0 - 50 °C

Signal-to-noise ratio

> 70 dB(A)

RF output power

10 mW

Number of channels

6 / 8

Modulation

2-FSK

Current consumption

max 300 mA

Input voltage range

160 mV - 2.5 V (Line), 2 mV - 125 mV (Mic)

Dimensions

approx. 212 x 145 x 38 mm

Weight

approx. 2430 g

DOWNLOADS

Sennheiser SR 2020-D Fixed Transmitter User Manual
Sennheiser SR 2020-D Fixed Transmitter Datasheet
