RCF PL 60

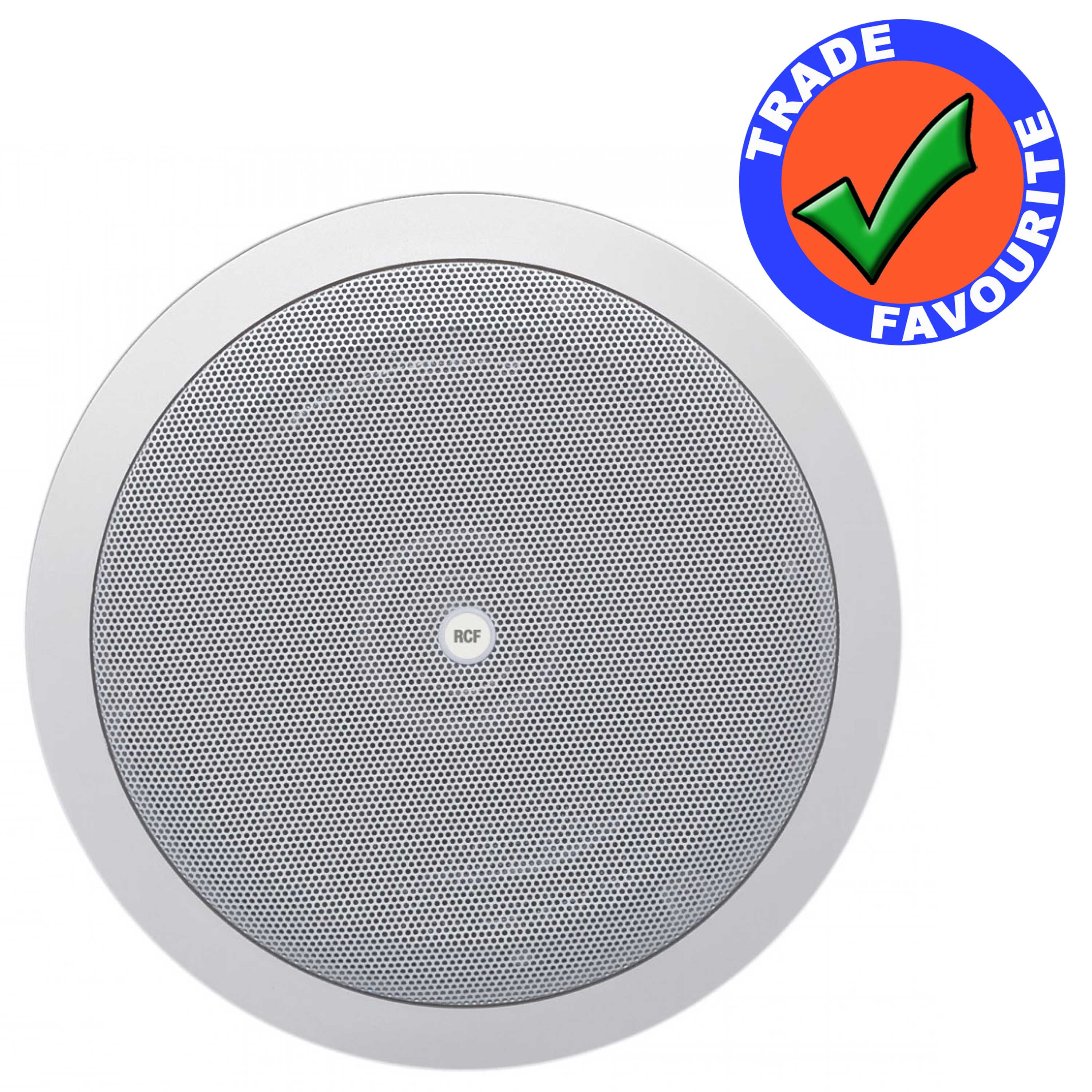

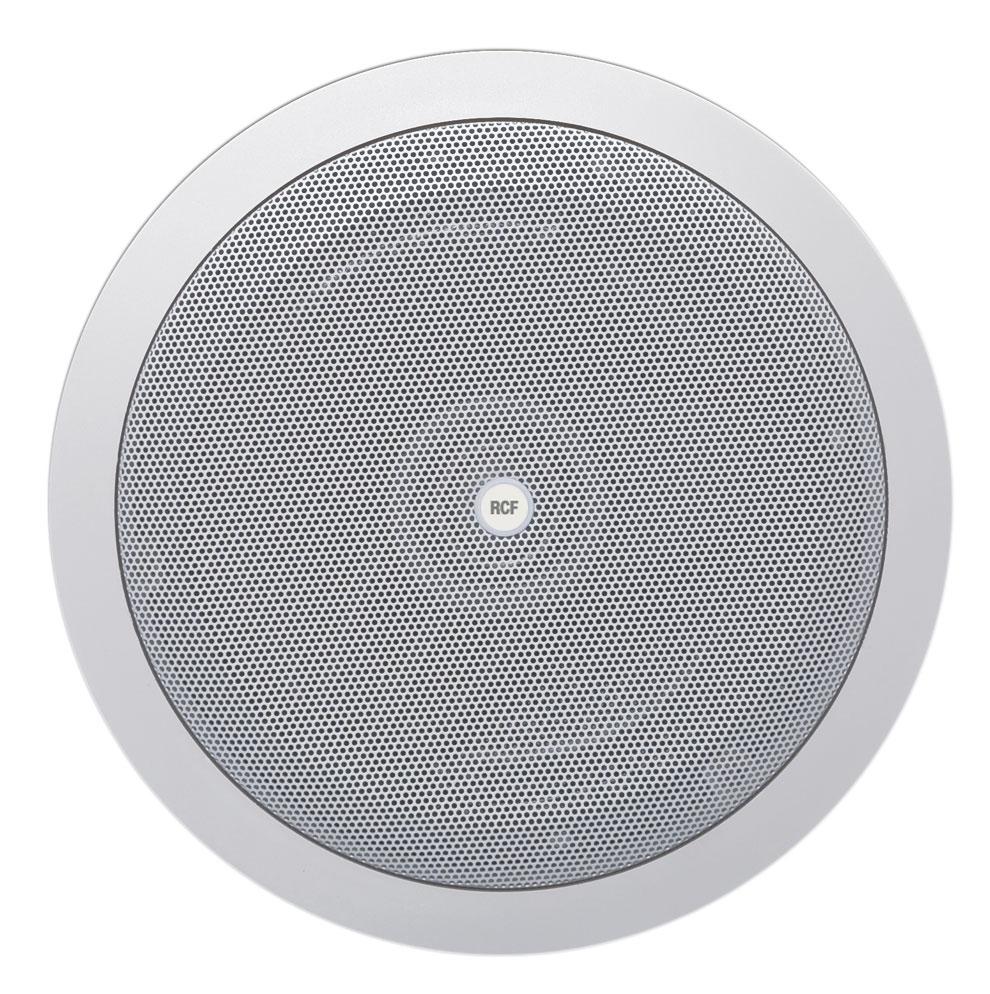

The RCF PL 60 ceiling speaker incorporates a 6" dual cone driver and is rated at 6 watts, 100 volt line.

Installation is quick and easy thanks to a special three-terminal system that avoids the need for using screws or other hardware.

The dual cone wide band speaker in the RCF PL60 ensures high intelligibility for speech and background music.

  • 6” Dual-Cone wide-band speaker
  • 6 / 10 Watt (RMS/Music Power)
  • 90 Hz ÷ 20 kHz
  • 107 dB (1 m / POWER MAX) max. SPL
  • Built in 100V multitap transformer
  • Easy to install
  • Simple power settings
  • Warranty: 3 Years
100V
List Ex VAT: £26.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response (-10dB)

90Hz – 20kHz

Max SPL @ 1m

107dB

Coverage Angle

90°

System Sensitivity

91dB

Nominal Impedance

8 ohm

Power Handling

6W RMS

Peak Power Handling

24W Peak

Transducers

6”

Input Connectors

Screw Terminals

Output Connectors

Screw Terminals

Constant Voltage Transformers

100V

Power Tappings

6, 3W (100V)

6, 3, 1.5W (70V)

Construction

Plastic Cabinet & Bracket, Steel Grille

Colour

White – RAL 9003

Depth

75mm / 2.95”

Diameter

204mm / 8.03”

Weight

0.34kg / 0.75lbs

DOWNLOADS

RCF PL 60 Ceiling Speaker Datasheet
RCF PL 60 Ceiling Speaker User Manual

Related Products

Adastra C6D
Adastra C6D

Low Impedance flush mount ceiling speakers with directional tweeter.
Clearance line - limited stock.

see more
List Ex VAT: £5.00
Bosch LHM 0606/10
Bosch LHM 0606/10

Ceiling speaker. Flush mount, clamp fit. 6.5". 6 watts, 100 volt line.

see more
List Ex VAT: £16.00

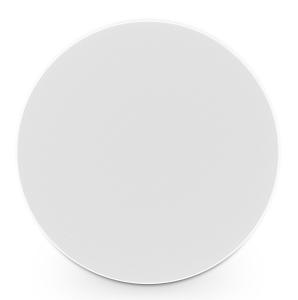

LD Systems CE C6
