Audio Technica ATW-11

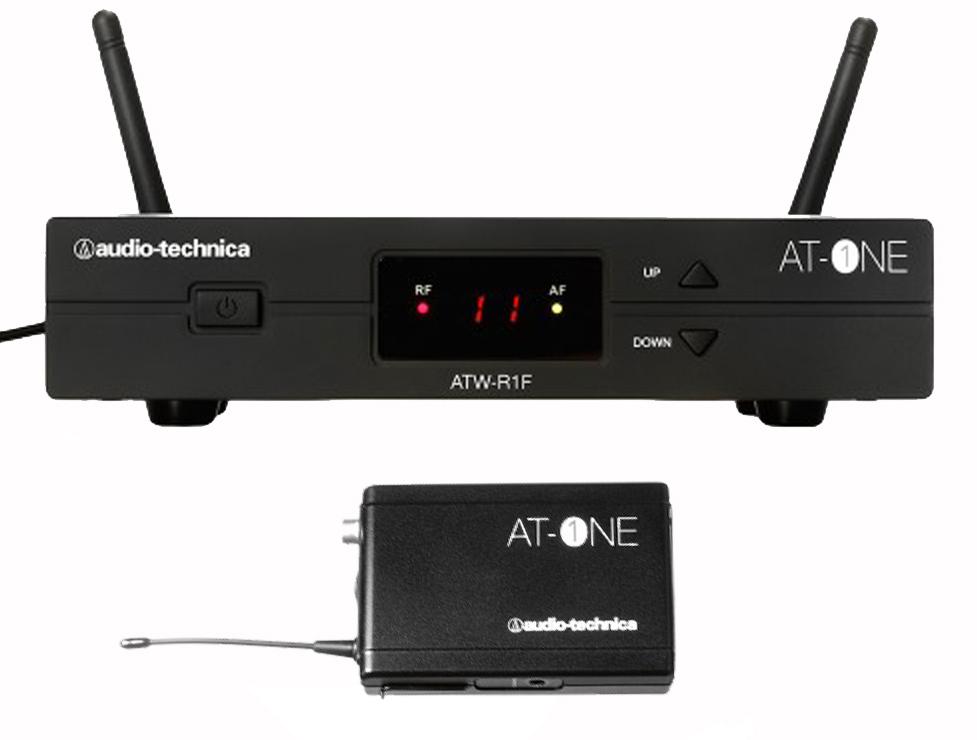

The Audio Technica ATW-11 UHF radio mic system is part of the AT-One entry level UHF wireless microphone range. The receiver and beltpack transmitter are designed for use with a lavalier microphone or instrument cable (available separately).

The range benefits from a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface. The frequency plan is divided into two groups with 4 available channels in each group split between the Europe wide licence free frequency range (Channel 70) and the licensed LTE duplex gap. Users can choose up to 4 channels within one group.

The AT-One system is designed for ease of use and is supplied with a practical hard carrying case, rack-mount kit and detachable antennae.

  • Rack mountable for easy installation
  • Intuitive receiver and transmitter controls
  • Designed for quick and easy use
  • Frequency plan of 2 groups of 4 channels for increased flexibility
  • Discreet and robust beltpack transmitter
  • RF transmission power 10mW
  • Up to 10 hours with 2 x 1.5V AA batteries
  • Supplied with ATR35cW omnidirectional condenser lavalier microphone
  • RF Indicator light
  • Robust construction with superior quality components

The AT-One system is also available complete with a lavalier mic or hand held microphone transmitter - see related products.

CH70 UHF
List Ex VAT: £170.83
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

OVERALL SYSTEM



Operating Frequencies

824 - 831 MHz, 863 - 865 MHz

Number Of Channels

2 x 4 frequencies

Modulation Mode

FM

Frequency Response

60 Hz - 16 kHz

Operating Range

60m, typical

RECEIVER SPECIFICATIONS



Receiving System

Antenna switching diversity

Output Connectors (Microphone)

Balanced: XLRM-type

Output Connectors (Instrument)

Unbalanced: 6.3 mm mono jack

Maximum Output Level

Mic / Line (0 / -20dB)

Antenna Input

BNC type, 50 - BIAS voltage 12V DC 100mA each

Dimensions

200 mm x 42 mm x 122 mm (W x H x D)

Weight

418 g without accessories

Accessories Included

AC Adapter, Antennas, Rack mount adapter, protective carrying case

BELTPACK TRANSMITTER



RF Power Output

10 mW

Input Connections

Pin 1: GND
Pin 2: INST
Pin 3: Mic
Pin 4: DC Bias +10V

Battery Type

Two 1.5V AA alkaline (not included)

Battery Life

10 hours - depending on battery type and use pattern

Dimensions

66 mm x 98 mm x 22 mm (W x H x D)
