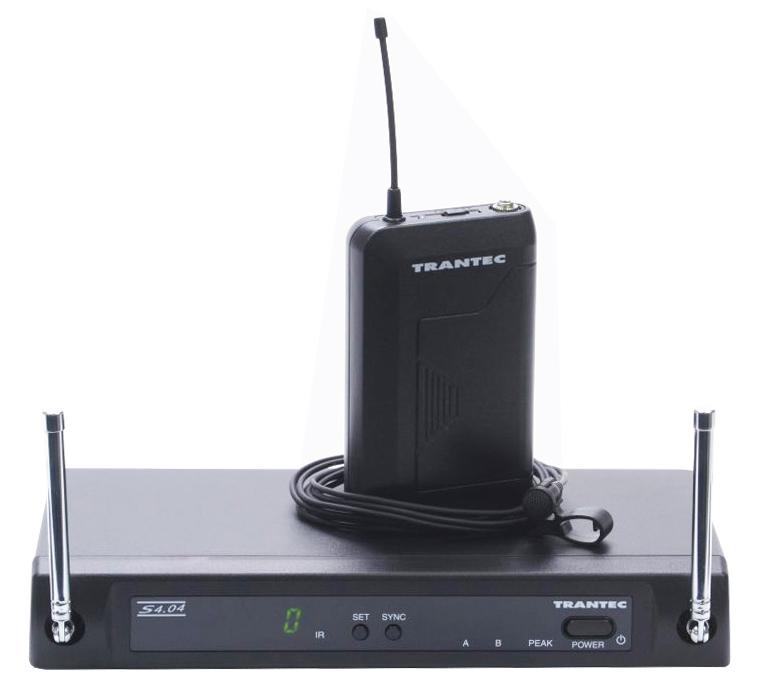

The Trantec S4.04-L-EB GD5 UHF hand held radio mic system consists of the Trantec S4.04-RX-EB UHF wireless microphone receiver and a Trantec S4.04-BTX-EB beltpack transmitter.
Four selectable frequencies are available on Channel 70 - licence free.
A compander circuit minimises the effect of ambient noise.
A single AA battery can power the beltpack transmitter for up to 10 hours.
| Specifications | |
|---|---|
| Receiver | |
| Diversity Reception | Antenna Diversity |
| Sensitivity | 10uV at 45dBA, S/N |
| Squelch | Tone SQ, Carrier SQ, Noise SQ |
| Audio Frequency Response | 50Hz – 15kHz |
| Audio Output Level (Max.) | Balanced (XLR socket): -20dBu, Unbalanced(1/4″ jack socket): 10dBu |
| Power Supply | 12 VDC 500mA |
| Dimensions | 215(W) x 39(H) x 102(D)mm |
| Weight | 480g |
| Beltpack Transmitter | |
| RF Carrier Power | 10mW |
| Audio Frequency Response | 50Hz – 15kHz |
| Audio Input Level | -6dBV (maximum), mic gain 0dB |
| Battery Life | Approximately 10 hours |
| Power Supply | 1 AA size battery, 1.5V |
| Finish | Resin, coating |
| Dimensions | 62(W) x 100(H) x 25(D)mm |
| Weight | 85g with battery |
