Yamaha VXC8
Click to expand

Yamaha VXC8

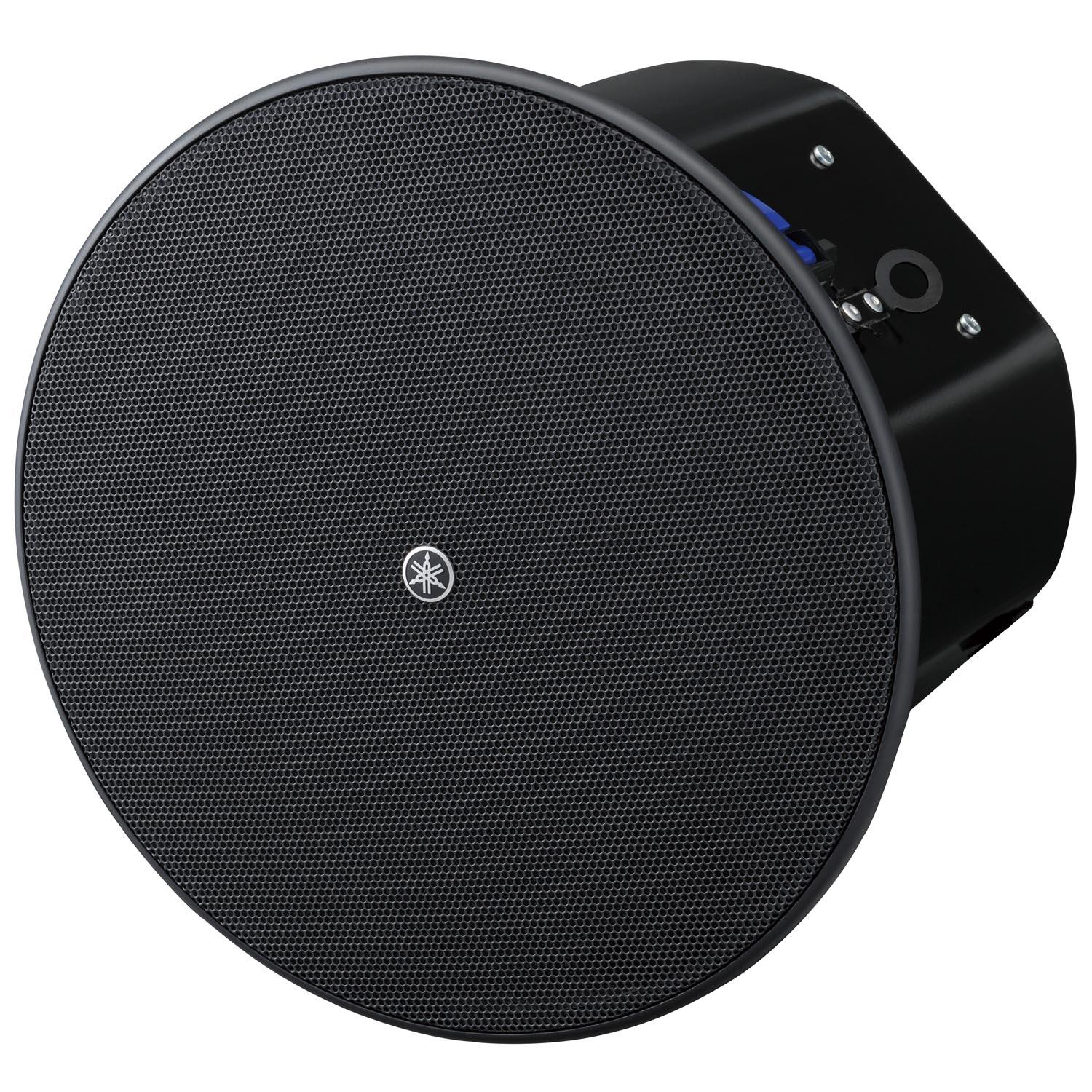

The Yamaha VXC-8 ceiling speakers have an 8" cone speaker unit with a 1" soft dome tweeter, program power 180 watts, and are compatible with 8 ohm low impedance background music systems as well as high impedance sound systems. Tappings at 60w, 30w &15w.

The design enables a safer, faster installation. A carry strap enables safe carrying of the speaker, especially when climbing ladders and an anti-drop tab mechanism holds the speaker in place whilst tightening the clamp screws.

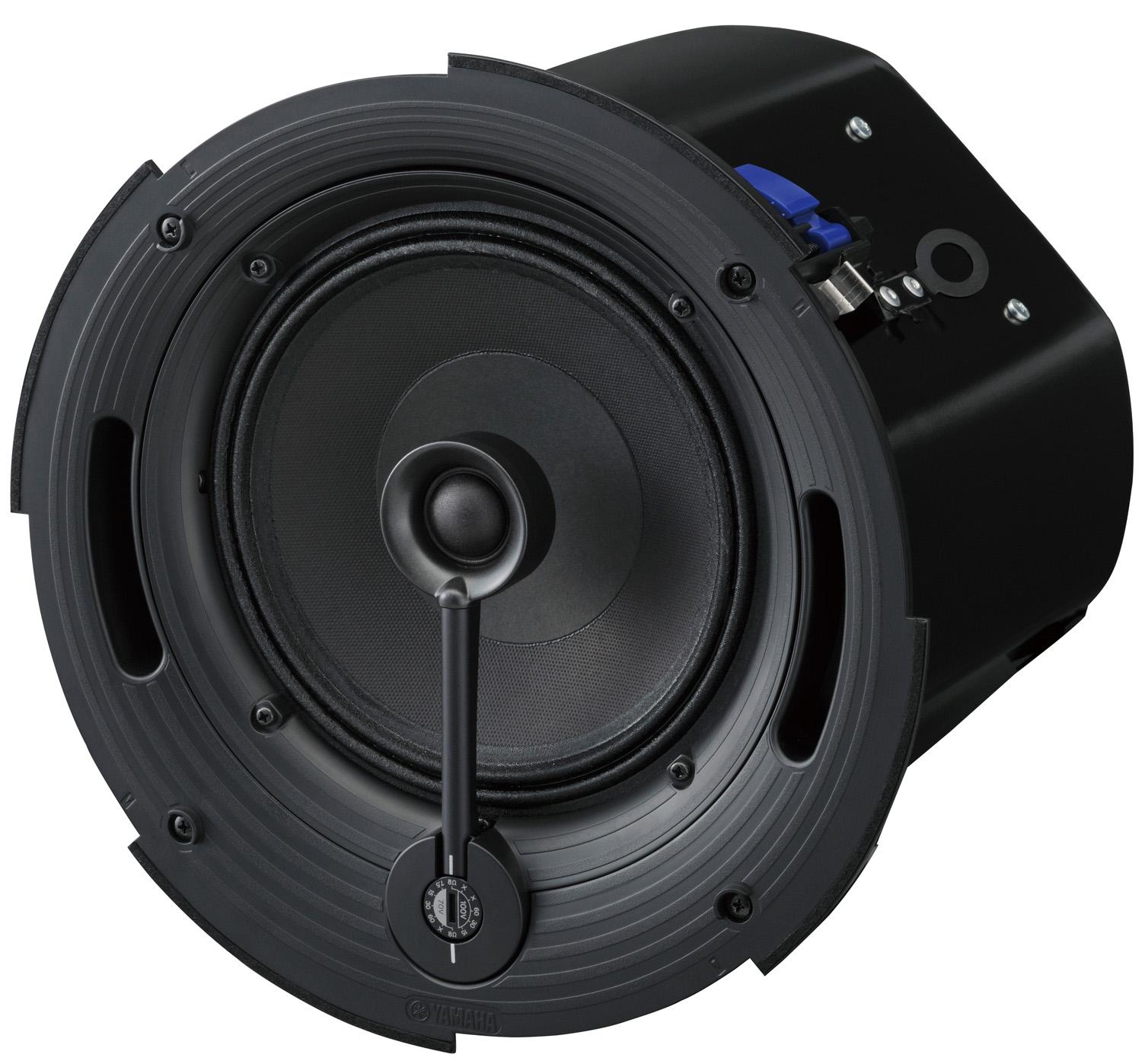

The tapping selector is mounted on the downward facing side of the loudspeaker, to enable easy adjustment after installation. The grille then simply clips into place,for a streamlined appearance.

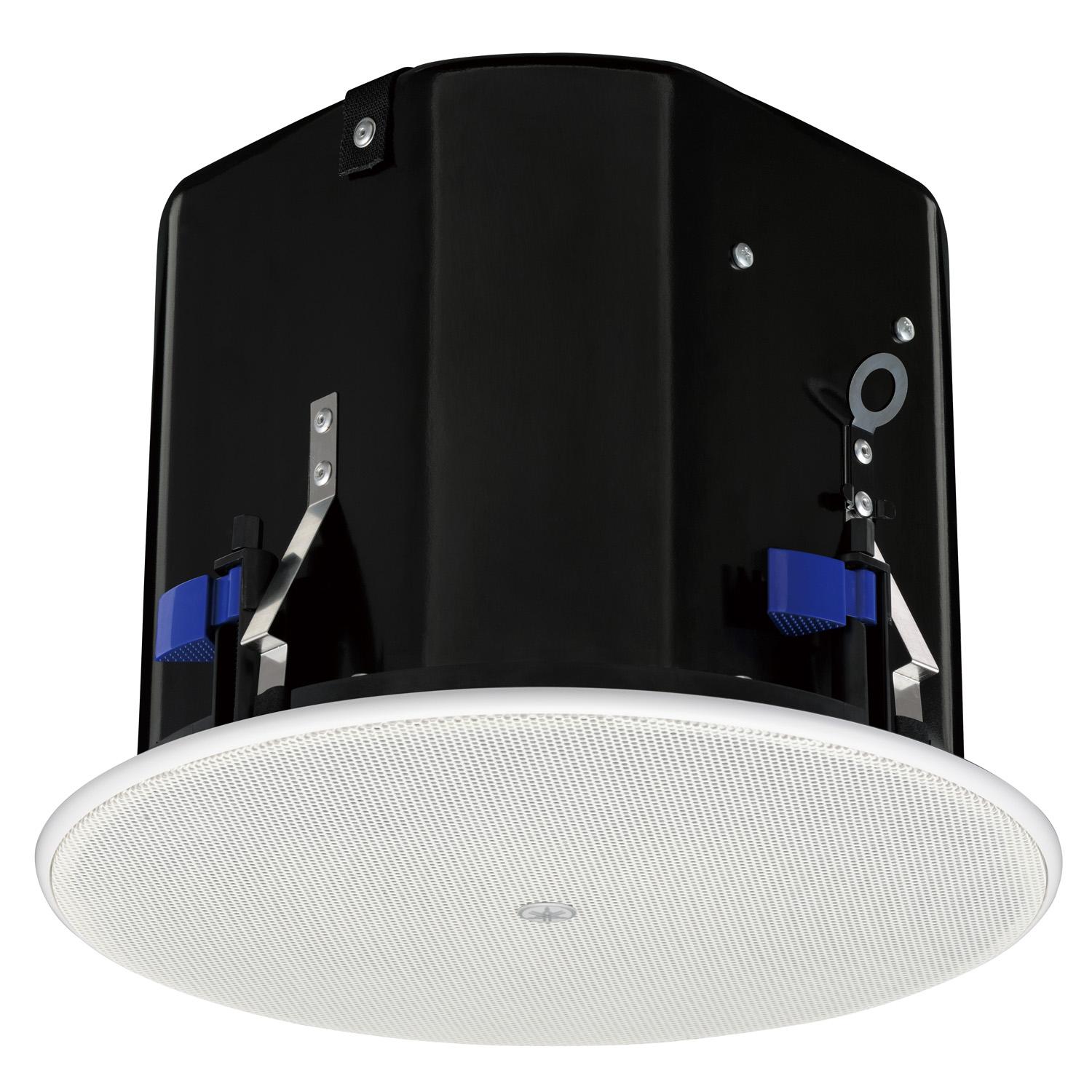

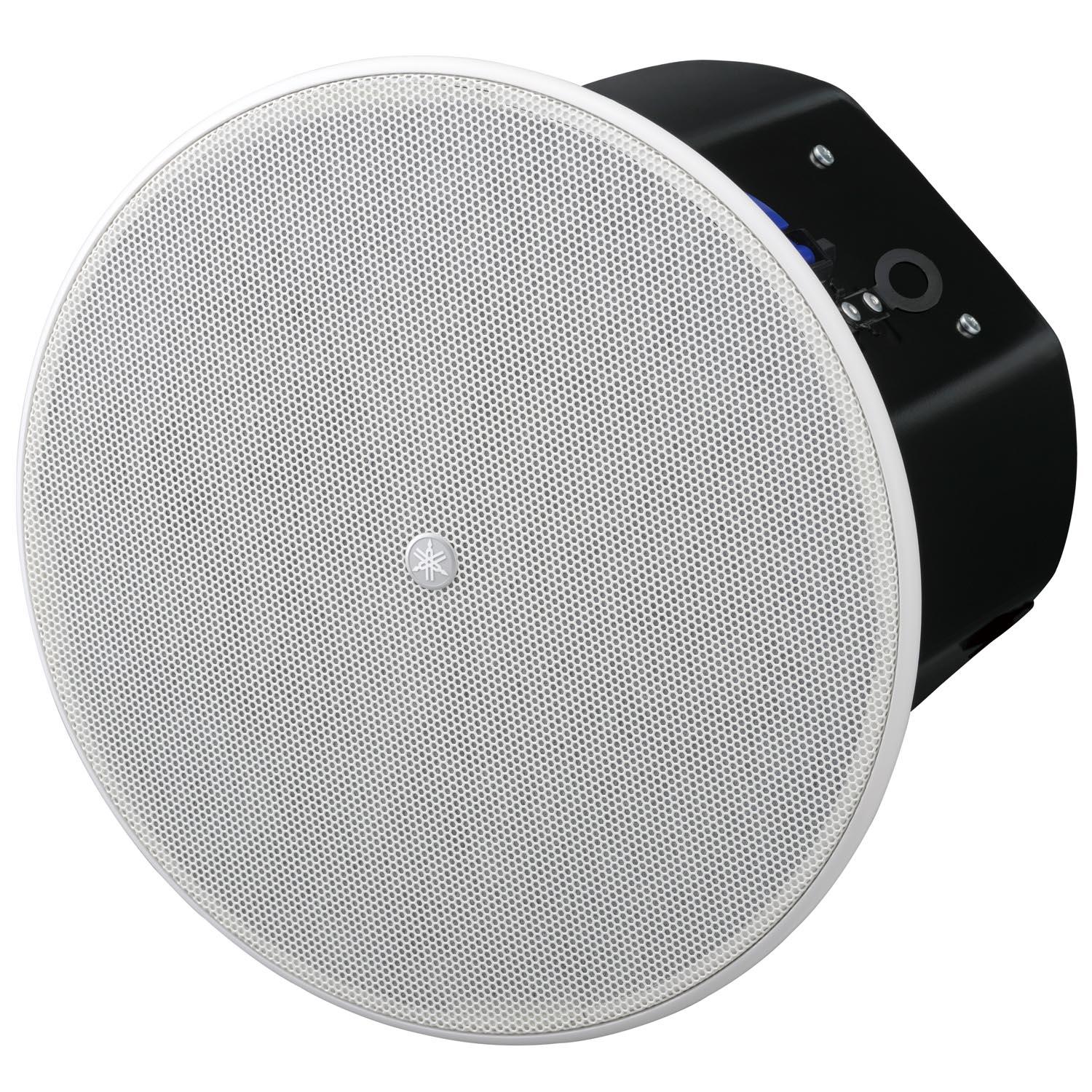

Available in black or white.

  • Features newly customized transducers for superb music reproduction as well as crystal clear announcements.
  • Equipped with internal transformers that allow both high and low impedance drive, which can be selected by simply switching the tap on the baffle.
  • Anti-Drop tab allows the speakers to be mounted temporarily in the ceiling for improved safety and ease of installation.
  • A flexible carrying band makes the speakers very portable and allows carrying multiple speakers at once.
  • Comes complete with O-rings and tile rails for safer and smoother installation.
  • Overload protection circuit provided to protect speaker components.


*****SUPPLIED & PRICED IN PAIRS*****

100V 8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS



VXC8 / VXC8W

Speaker type

2-way, Coaxial type, Acoustic Suspension

Frequency range (-10dB)

55 Hz - 20 kHz

Nominal coverage

100° conical

Components: LF-HF

8” cone & 1" soft dome tweeter

Power rating: NOISE

90 W

Power rating: PGM

180 W

Nominal impedance

8 Ω

Transformer taps: 70V

60 W, 30W, 15 W, 7.5 W

Transformer taps : 100V

60W, 30 W, 15W

Sensitivity (1W; 1m on axis)

90 dB SPL

Max Sensitivity

116 dB SPL

I/O connectors

Euroblock (4 pin) x 1 (input: +/-, loop-thru: +/-)

Finish

VXC8: Black, VXC8W: White

Diameter

325 mm (12.8")

Depth

259 mm (10.2")

Net weight

6.6 kg (14.5 lbs)

Accessories

O-ring, Tile Rail, Cutout Template, Screws, Manual

Packaging

Packaged in pairs
