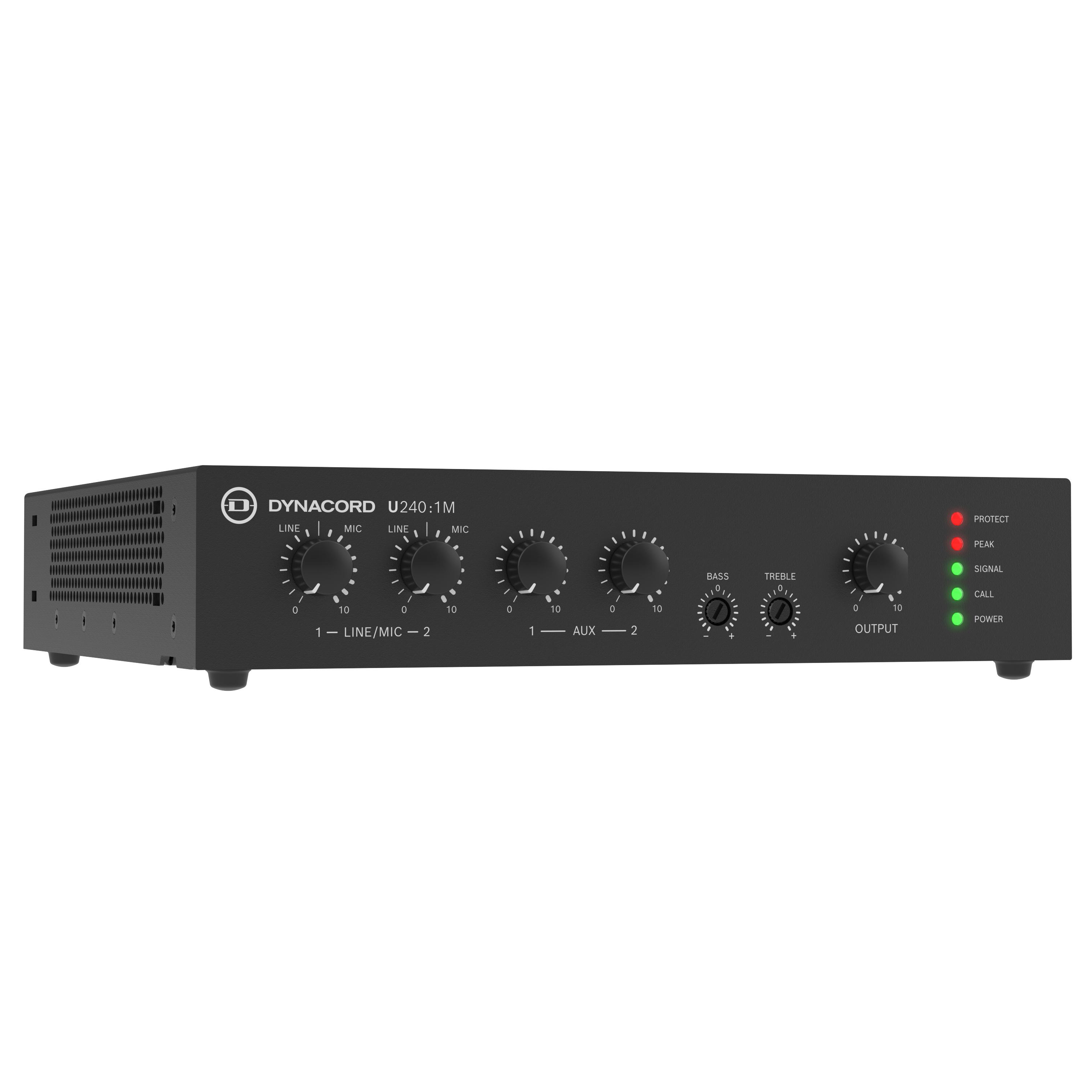

Dynacord U240:1M, 4 Input Mixer Amplifier, Front Angled View
Click to expand

Dynacord U240:1M

The Dynacord U240:1M is a versatile mixer amplifier with four inputs rated at 120 Watts RMS and compatible with 4Ω, 8Ω, 70 V and 100 V loudspeaker circuits.

The U240:1M is ideal for small to medium sized installations where paramount considerations include quality, performance and unwavering reliability. Perfect for background music and crystal-clear voice announcements in diverse environments such as bars, restaurants, retail outlets, educational institutions, houses of worship, museums, galleries, transport hubs, and conference centres.

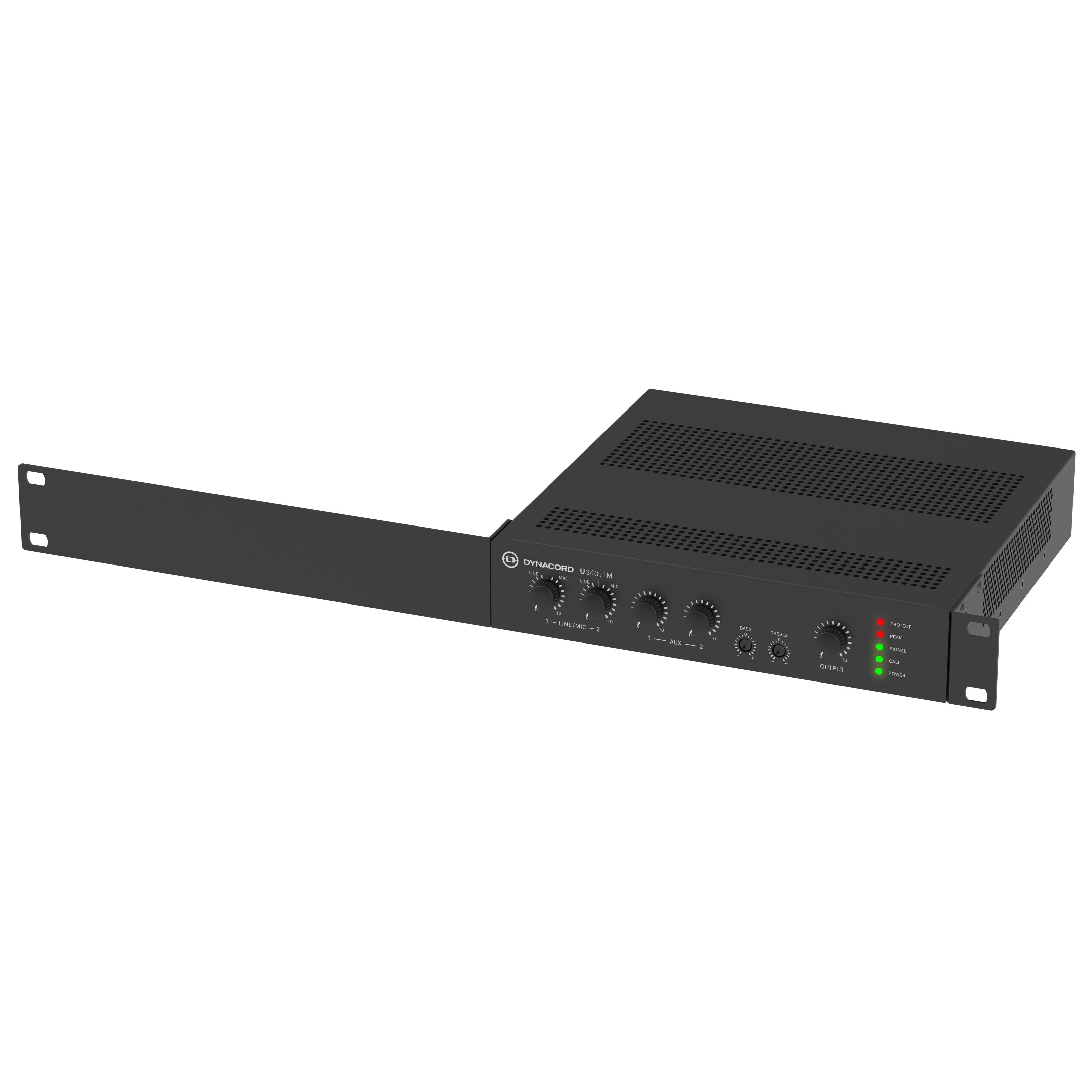

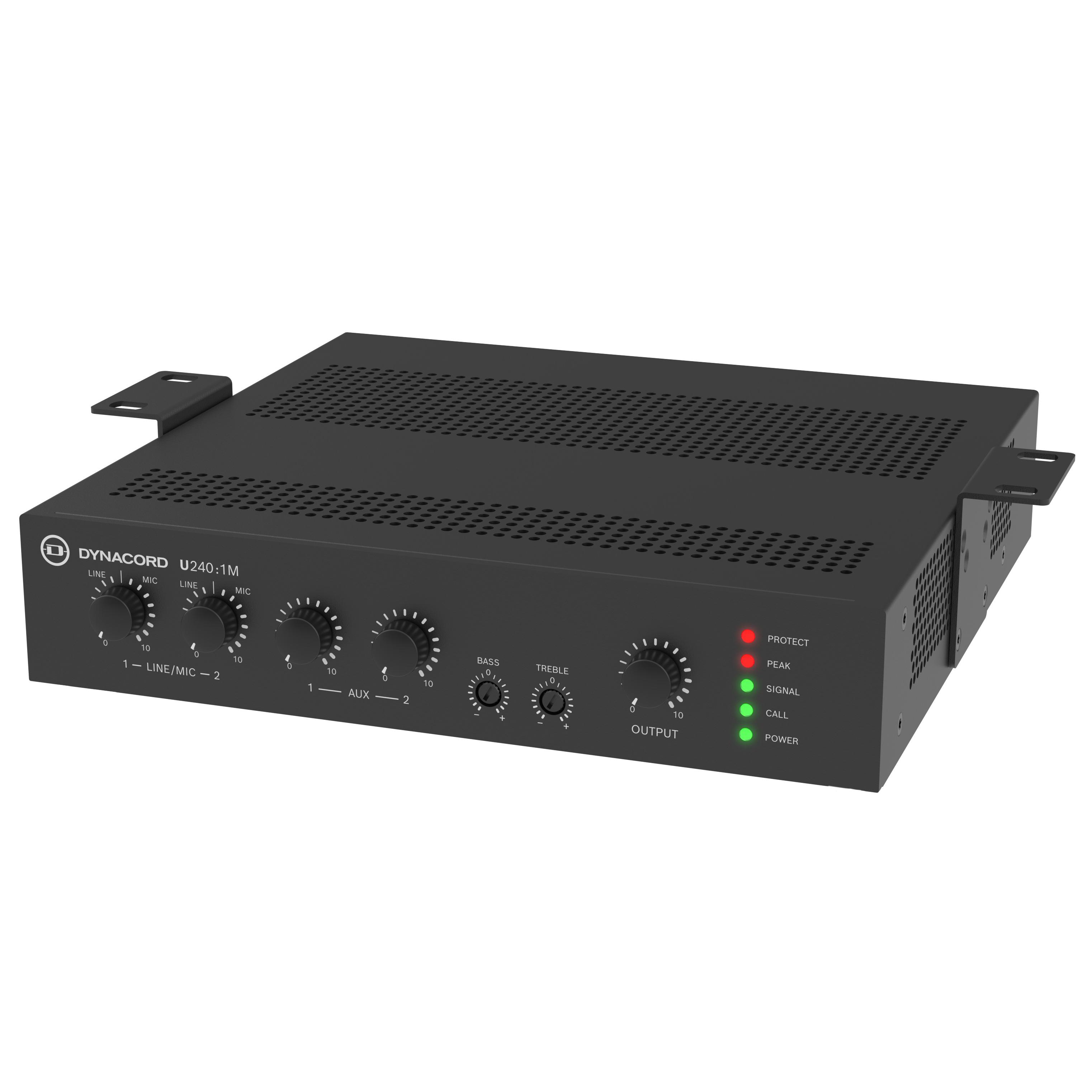

The compact chassis of the Dynacord U-Series U240:1M is just one rack unit high and half rack width with versatile mounting options including desktop and under-counter installation or, using the supplied brackets, rack mounting in single or dual configurations.

  • Versatile inputs: 4 inputs, 2 mic/line options with phantom power support
  • Full power output supporting 4Ω, 8Ω, 70 V and 100 V
  • EMG override input, ensuring critical messages are heard clearly
  • Contact override with 2-tone chime for attention-grabbing alerts
  • 70 Hz and 120 Hz high-pass filters to customize audio output and eliminate unwanted low-frequency noise
  • Space-saving compact ½ rack design, providing versatility without compromising performance
  • VOX Ducking that automatically adjusts background music volume for clear voice communication
  • Remote activation of standby mode with Remote OFF (Standby), enhancing energy efficiency
  • Warranty: 3 Years
1a: 100V 1c: 4ohms 1e: 8ohms 1U
List Ex VAT: £463.76
Log in for Trade Prices

Please contact us for availability

CONTACT US

SPECIFICATIONS

Rated Output Power

240W

Max output voltage, 1 kHz, THD=0.5%, no load

4 Ω 8 Ω 70 V 100 V,
31 VRMS 45 VRMS 71VRMS 102VRMS

Number of inputs

2 mic/line, 2 aux (+EMG)

EMG Input

Line; 100 V

Front Status LEDs

Protect, Peak, Signal. Call, Power

Remote power OFF

Contact closure

Protections

Audio limiters, high temperature, DC, HF, short circuit, over current protection

Cooling

Fanless (convection cooling)

Dimensions

44.2 mm x 218 mm x 217.7 mm,
(1.74 in x 8.6 in x 8.57 in)

Weight

1.9kg (4.18lb)
