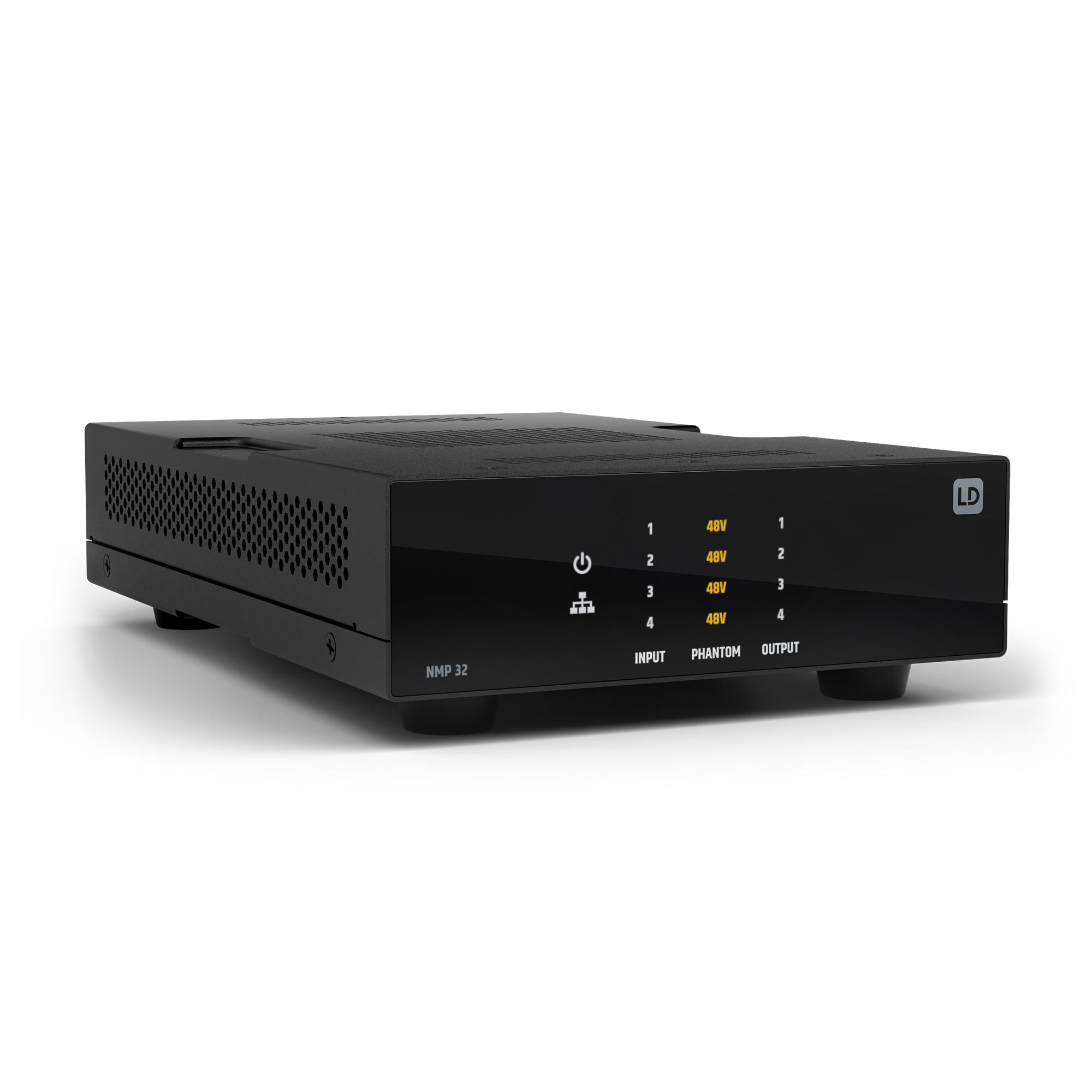

The LD Systems NMP 32 is a compact 32x32 DSP matrix processor with 4 balanced mic/line inputs featuring switchable 48 V phantom power per input, as well as 4 balanced line outputs.

For networked installations, NMP 32 adds 28x28 AES67 network audio channels (Dante-compatible via AES67), enabling open AoIP integration and scalability across multiple rooms and system endpoints.

Part of the TICA® Series, it is designed to route, mix and optimise audio across medium to large-scale installed and networked AV systems enabling the connection of local microphones, media sources, amplifiers and powered speakers in a clean, streamlined setup.

The NMP32 is perfect for campus and corporate applications with many rooms and audio zones, hotels and event venues with ballrooms and breakouts, multi-zone hospitality, and public facilities where audio must be routed reliably across a wider system. Audio can be shaped with per-channel DSP tools including EQ, delay and dynamics. Integrated functions such as gain sharing, gating automixers, feedback suppression and priority ducking can be added to support clear speech and automated mixing.

(Please note, this model does not have the automatic echo cancellation feature found on the NMP 8.)

NMP 32 is fully integrated in QUESTRA® and designed to scale with other QUESTRA-enabled devices. Installation is straightforward: PoE powered (IEEE 802.3af) with optional DC backup, fanless for silent operation, and built in a 1/3 19″ rack, 1U format with an optional rack tray for flexible mounting.

Provides the perfect solution for professional installers and users who need a compact network-centric platform for large scale multi-zone audio, AoIP interoperability, and a scalable QUESTRA® workflow..

• 32x32 DSP matrix for large-scale installed and networked AV systems
• Fully integrated in QUESTRA® software with visual workflow

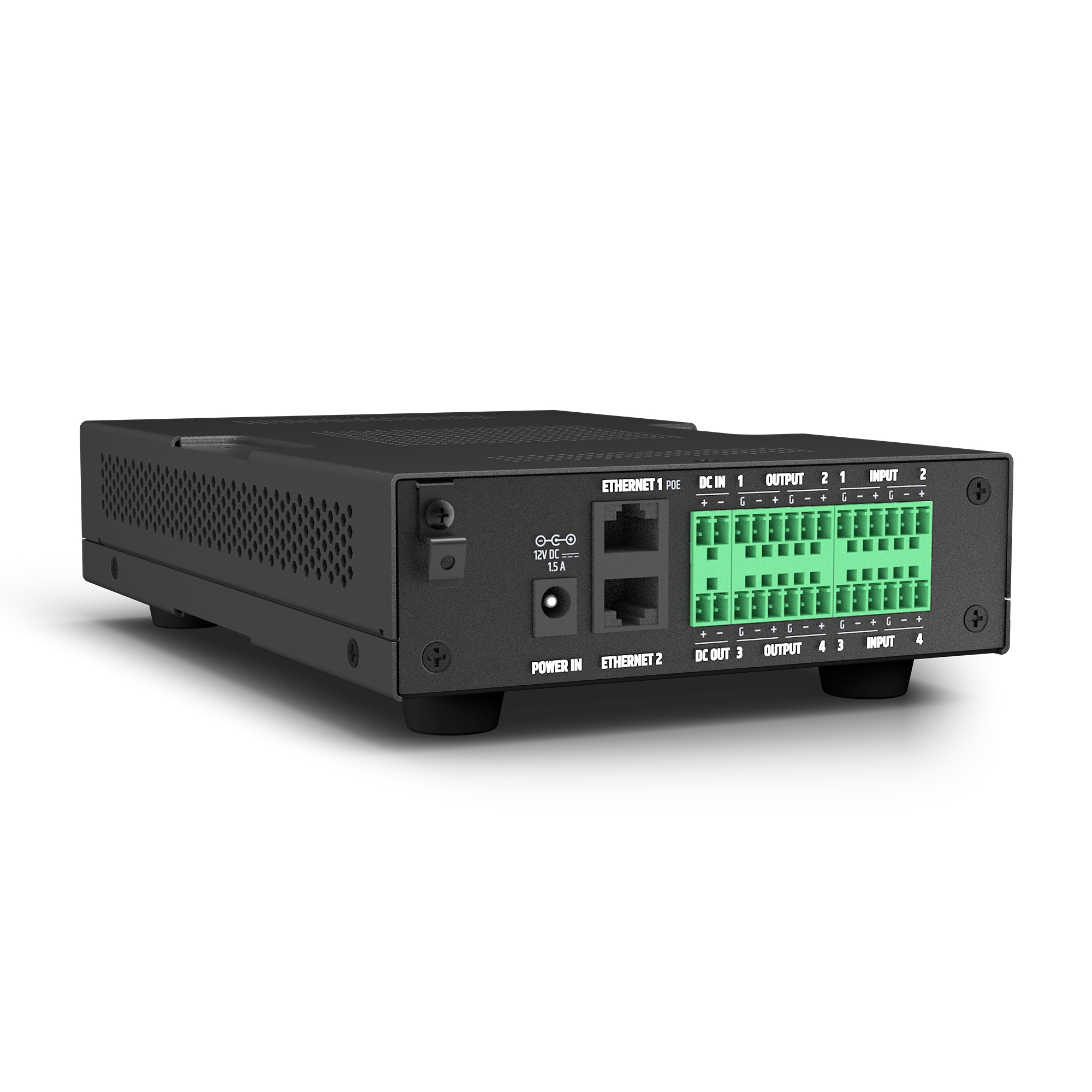

• 4 balanced mic/line inputs and 4 balanced line outputs
• Switchable 48V phantom power per input
• 28x28 AES67 network audio channels for open AoIP integration
• Dante-compatible operation for flexible networked audio connectivity
• Hybrid DSP core with flexible configuration per channel: EQ, delay & dynamics
• Includes gain-sharing mixer, gating automixer, feedback supressor and priority ducker
• PoE powered (IEEE 802.3af) with extra DC input for external power supply
• Fanless cooling for noise-sensitive environments
• Small form factor, 1/3 19″ rack, 1U
• Optional rack tray for combining with other TICA® series products
• Part number: LDNMP32
• Warranty: 5 Years
