Coming soon... Pre-order now.

The LD Systems DIO 44 is a four input & four output Dante interface to enable any analogue audio device to receive and send audio signals via a network using the Dante protocol.

Equipped with four balanced mic/line inputs and line outputs with four-step gain settings and 24V phantom power on each input

Signal presence lights on each channel enable fast installation and fault-finding.

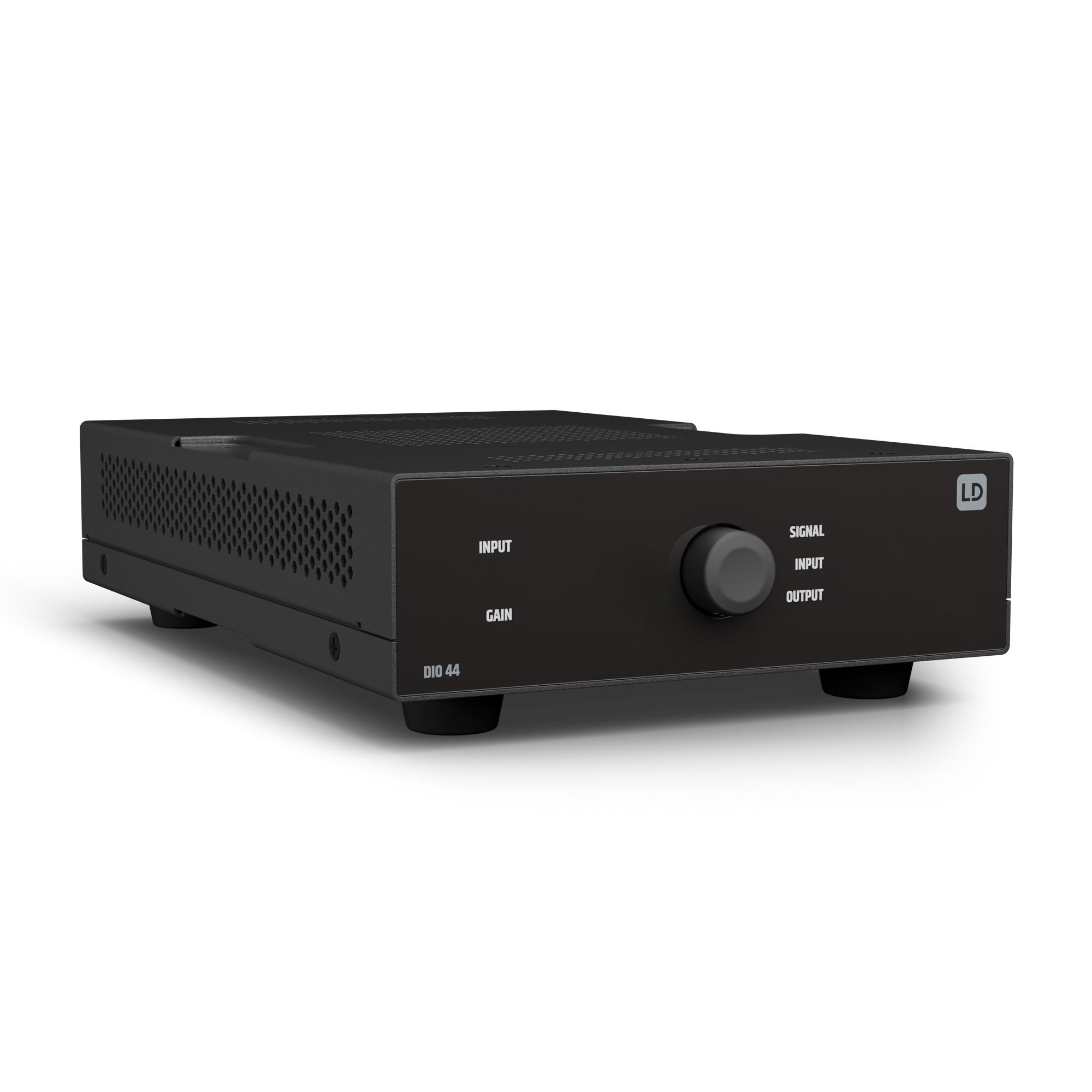

The DIO 44 is easy to configure from the front panel and can then be locked to prevent tampering.

Power from any PoE+ network switch or use the optional, external power supply.

Two Dante networked ports are provided which enables devices to be daisy chained together. If using the external power supply, the DIO44 can also be used as a PoE+ injector to power one further networked device in the chain.

Part of the TICA® series, it’s compact size (142 x 43 x 221mm) makes it ideal for mounting discreetly almost anywhere; behind screens, under tables or even in in air-handling spaces and above suspended ceilings in a variety of audio installation applications. Mounting plates are included.

Alternatively, it fits into 1/3 19 inch rack. An optional rack tray (LDTICA RK) is available to slot up to three TICA® series products alongside each other to build a bespoke system using minimal rack space. Take a look at the other LD Systems TICA products here.

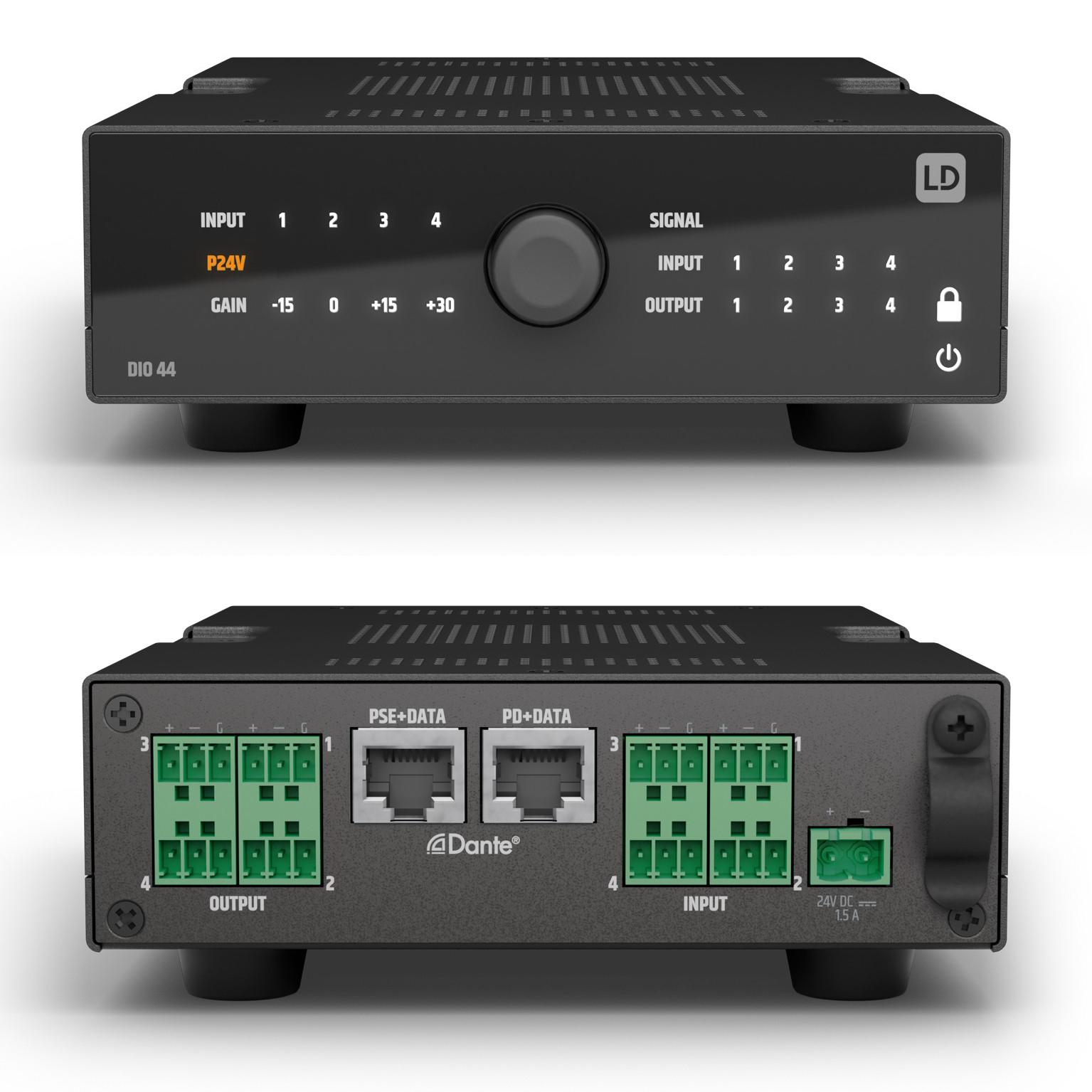

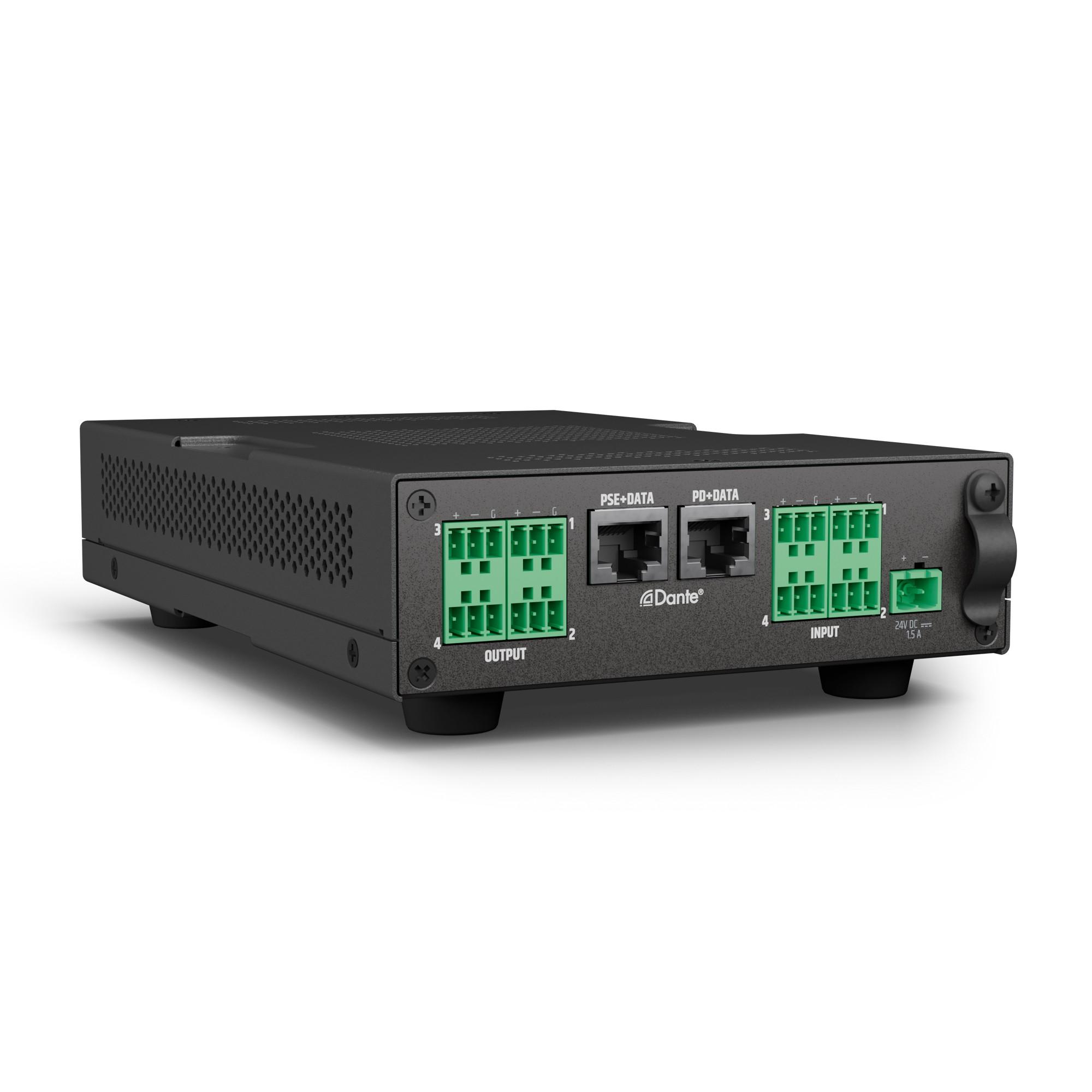

Terminal block connections on the analogue outputs make wiring easy.

The LDDIO44 is the perfect solution for professional installers wanting to interface into Dante equipment.

Dante Domain Manager and AES 67 compliant.

• Four input and output Dante interface
• Connect microphones or line level inputs
• Four-step gain control and 24V phantom power per channel
• Terminal blocks for all analogue connections
• Signal indicators on each channel
• Use PoE or an external power supply
• Use as a PoE injector to power another networked device
• Daisy-chain Dante devices together
• Easy front panel configuration and user lock
