TOA BS-678TW
TOA BS-678TW
Click to expand

TOA BS-678TW

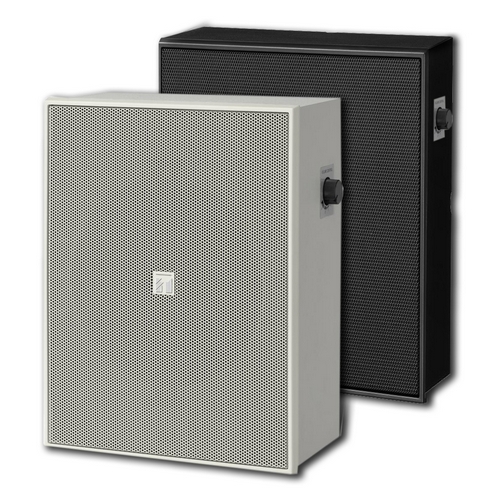

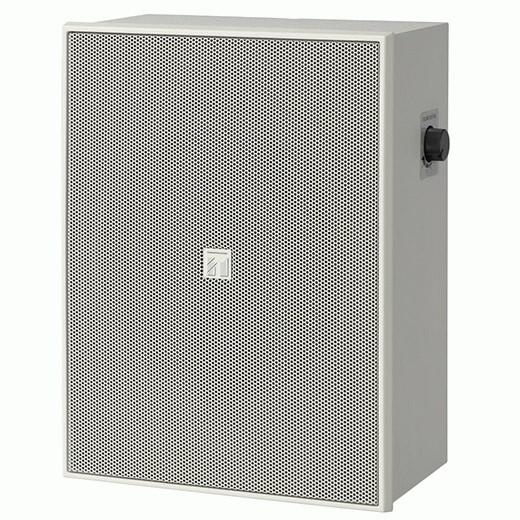

The TOA BS-678TW dual cone wooden cabinet loudspeaker with a built in volume control mounted on the side of the speaker cabinet.

White finish. Also available in black.

The compact and unobtrusive design can be installed horizontally or vertically and is ideal for background music and paging.

The TOA BS678TW is designed for use with 100 volt line (or 70.7V) distributed sound systems only and rated at 6 watts (on 100V) with several transformer tappings.

  • Stylish, compact and unobtrusive design
  • Quick and easy installation
  • Highly cost-effective
  • Horizontal / vertical installation
  • Ideal for BGM and announcements
  • Avilable in black or white.
  • Warranty: 1 Year
1a: 100V
List Ex VAT: £53.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W (100V line), 3W (70V line)
Impedance 100V line: 1.7kΩ (6W), 3.3kΩ (3W), 6.7kΩ(1.5W),13kΩ (0.8W)
70V line: 1.7kΩ (3W), 3.3kΩ (1.5W), 6.7kΩ(0.8W),13kΩ (0.4W)
Power Taps @ 100V 6W, 3W, 1.5W & 0.8W
Power Taps @ 70.7V 3W, 1.5W, 0.8W & 0.4W
SPL (1W/1m) 94dB
Frequency Range (-10dB) 150HZ - 20KHZ
Material Finish: Baffle HIPS resin,
Cabinet: Particle board with pvc sheet,
Grille: Surface-treated steel plate net,
Colour White (RAL9010) or black
Dimensions mm  250 (W) x 190 (H)  x 110 (D) mm  (9.84" x 7.48" x 4.33")
Weight (kg) 1.7kg (3.75 lb)

DOWNLOADS

TOA BS678 and BS678T Cabinet Loudspeaker
