TOA BS-678BSW
TOA BS-678BSW
Click to expand

TOA BS-678BSW

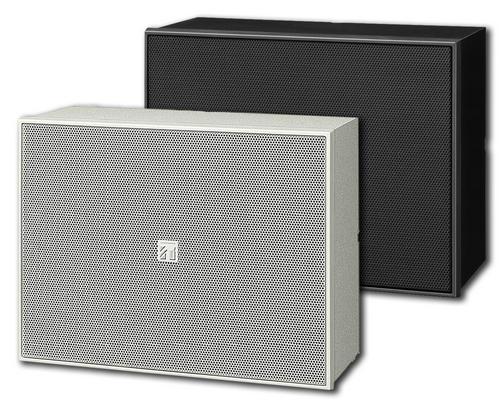

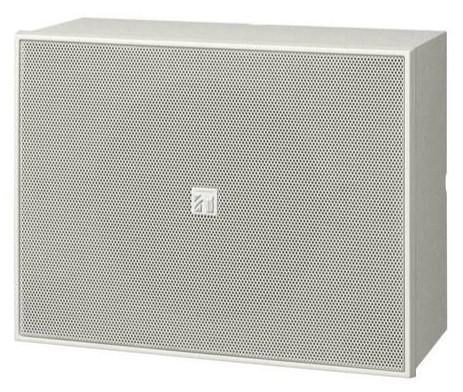

The TOA BS-678BSW dual cone wooden cabinet loudspeaker, EN54-24 certified. The compact and unobtrusive design can be installed horizontally or vertically and is ideal for background music & paging.

White finish. Also available in black.

The BS678BSW is designed for use with 100 volt line (or 70.7V) distributed sound systems only and rated at 6 watts (on 100V) with several transformer tappings.

Ceramic screw terminals ensure compliance with EN 54-24 for use in voice alrm emergency paging sound systems.

  • Stylish, compact and unobtrusive design
  • Quick and easy installation
  • Highly cost-effective
  • Horizontal / vertical installation
  • Ideal for BGM and announcements
  • Avilable in black (BS-678BSB) or white (BS-678BSW).
  • Warranty: 1 Year
1a: 100V EN54
List Ex VAT: £58.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W (100V line), 3W (70V line)
Impedance 100V line: 1.7kΩ (6W), 3.3kΩ (3W), 6.7kΩ(1.5W),13kΩ (0.8W)
70V line: 1.7kΩ (3W), 3.3kΩ (1.5W), 6.7kΩ(0.8W),13kΩ (0.4W)
Power Taps @ 100V 6W, 3W, 1.5W & 0.8W
Power Taps @ 70.7V 3W, 1.5W, 0.8W & 0.4W
SPL (1W/1m) 94dB
Frequency Range (-10dB) 150HZ - 20KHZ
Connection Ceramic screw terminals
Material Finish: Baffle HIPS resin,
Cabinet: Particle board with pvc sheet,
Grille: Surface-treated steel plate net,
Colour White (RAL9010) or black
Dimensions mm  250 (W) x 190 (H)  x 110 (D) mm  (9.84" x 7.48" x 4.33")
Weight (kg) 1.7kg (3.75 lb)
Certificate EN54-24 0359-CPD-103 Type A, ISO 7240-24

DOWNLOADS

TOA BS-678BS Spec Sheet
