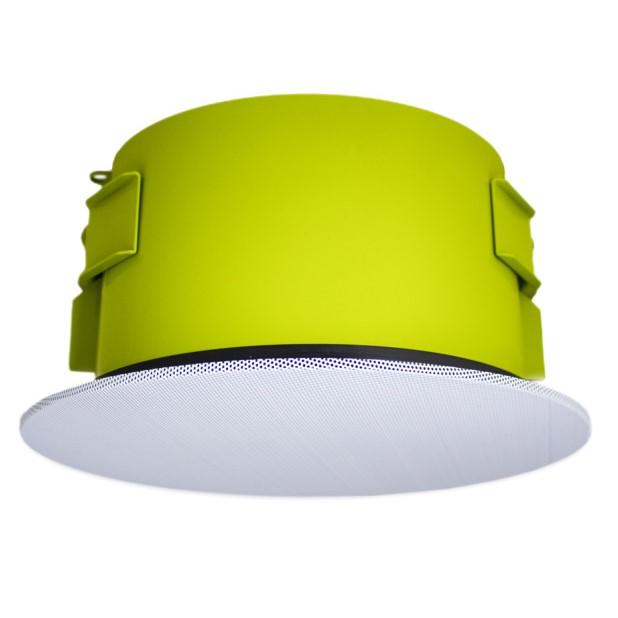

The Soundtube IPD-CM62-BGM-II-WH is a Dante®-enabled coaxial in-ceiling speaker for IP addressable audio networks on the Dante and AES67 platforms.

Supplied with a steel backcan with ABS plastic baffle.

The speaker is fitted with one 6.5 inch (165 mm) polypropylene woofer with rubber surround and one 1 inch (25.4 mm) silk dome tweeter.

BroadBeam Ring™ technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 60 Hz (-10 dB).

Low latency digital audio, power, and control are delivered to the speaker via standard CAT5 or CAT6 cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch which provides 40 W PoE (Power over Ethernet) to each speaker.

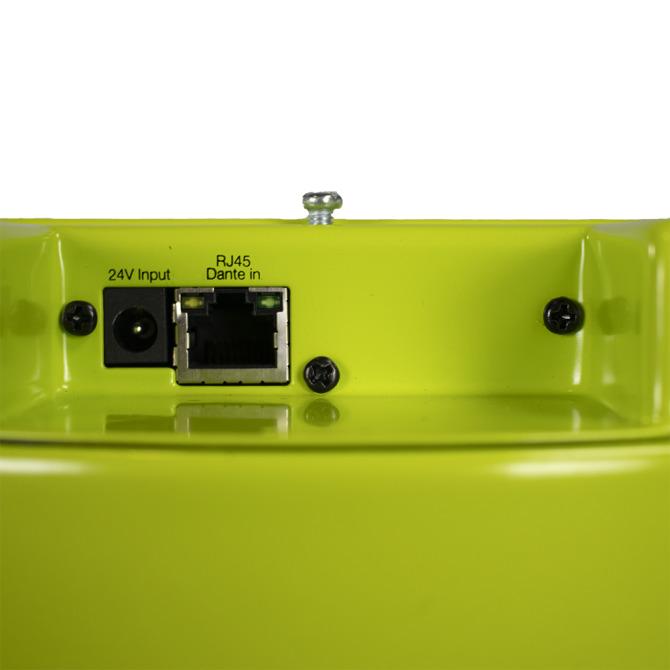

May also be powered via a 24V DC barrel connector for non-PoE installations.

Configuration and zoning of the speaker, as well as fault monitoring, are accomplished via Soundtube software.

Mounting hardware is included and features SoundTube®'s SpeedWing™ constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to 1.6 in (40.6 mm).

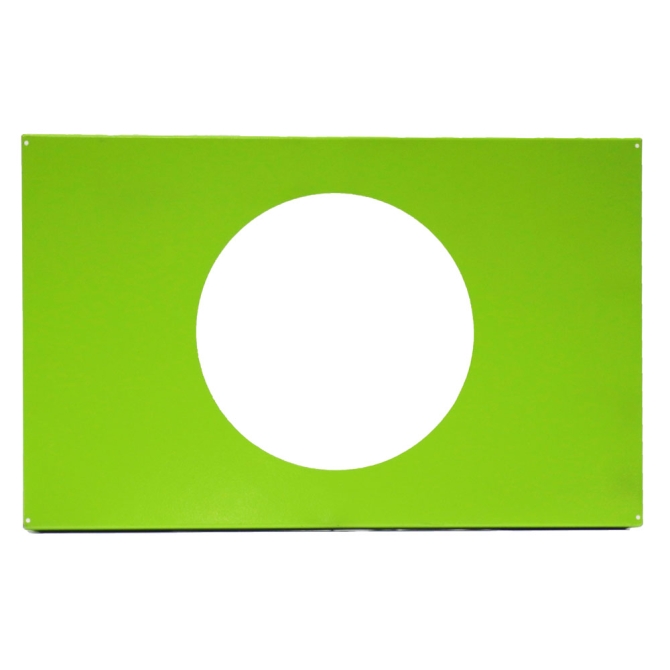

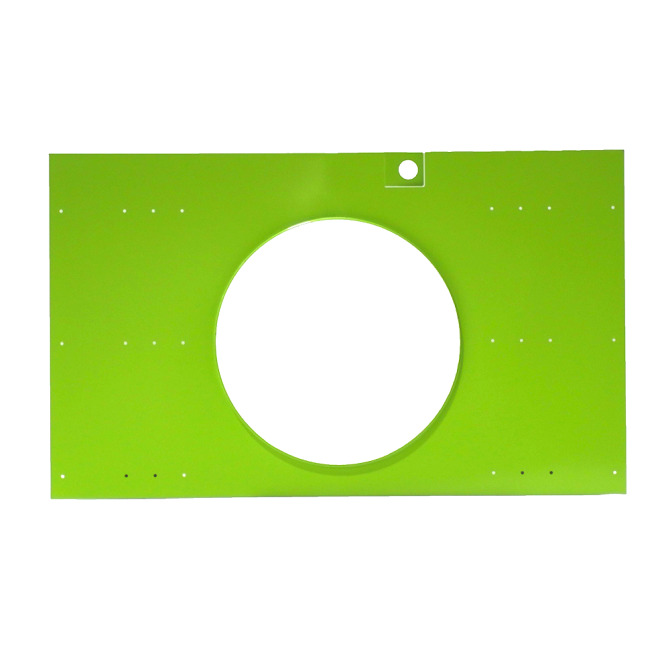

Your choice of tile bridge (AC-CMEZ6/8-TB) or pre-construction bracket (AC-CMEZ6/8-PCB) is included as well as a UL listed conduit clamp and paint shield.

• IP-addressable, self-powered (PoE) speaker.
• Dante™ and AES67 interconnectivity with any Dante or AES67 enabled audio systems.
• One 6.5” (165 mm) polypropylene woofer with rubber surround and one 1” (2.54 mm) silk dome tweeter.
• BroadBeam Ring™ technology for mid-range clarity and ultra wide off-axis performance
• Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
• 40 W PoE provided by SoundTube STNet Switch;
  also works with standard PoE+ and PoE switches.
• Provides report-back on any problems via SoundTube software.
• Tuned port on baffle for added musicality and bass response down to 50 Hz (±10 dB).

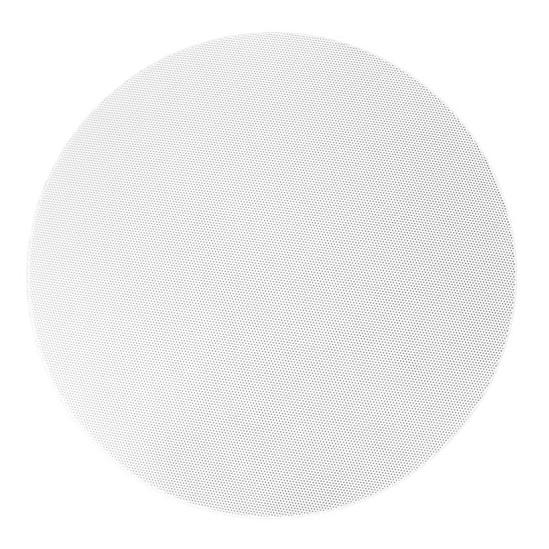

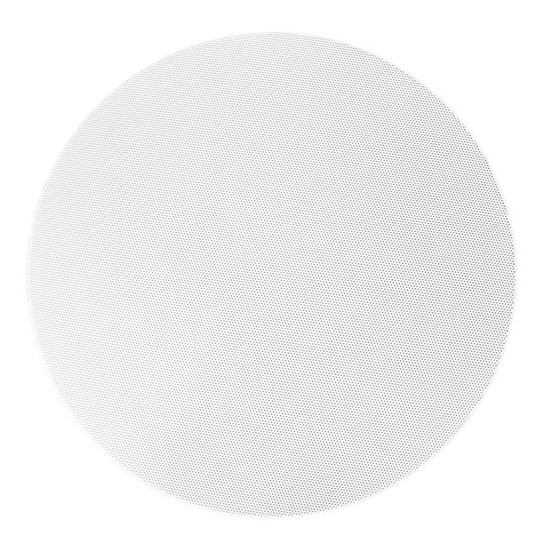

• Incorporates a painted steel grille for lasting durability.
• SpeedWing™ clamping system is adaptable to material thicknesses ranging from 0.035” (0.9 mm)to 2.5” (63.5 mm)
• High-quality white painted finish. Custom colours available.
• Included accessories: colour-coded (green) tile bridge or pre-construction bracket (AC-CMEZ6/8-PCB), UL listed 0.5” conduit clamp, paint shield.
• Warranty: 5 Years

NB. A black grille is available separately - please contact us for further information.
