Channels

6

Mono Channels:

Mono Mic and Line Input Channels

2

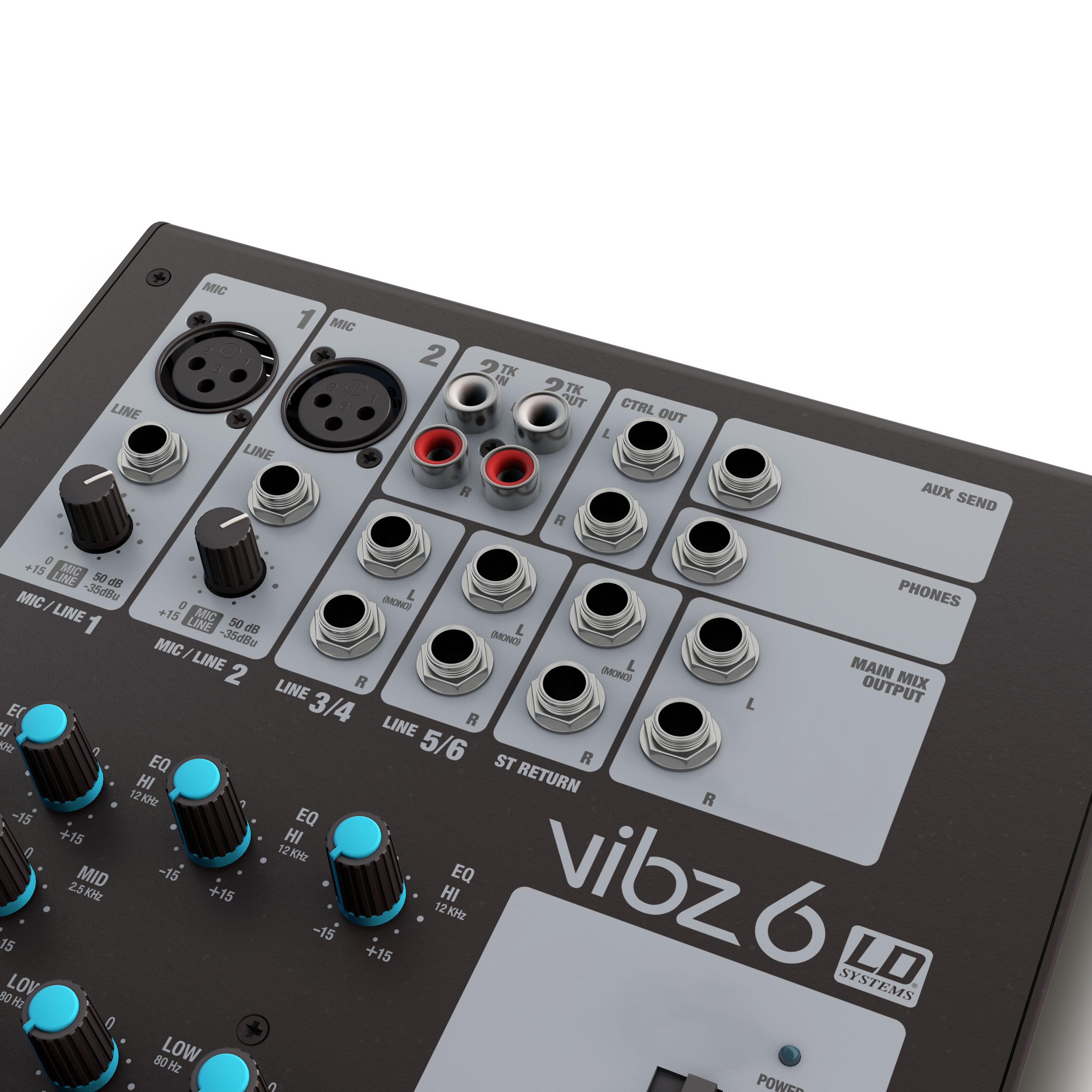

Mono Mic input connectors

6.3 mm TRS, XLR

Mono Mic Input Type

Electronically balanced

Mono Channel Equalizer High

+/- 15 dB @ 12000 Hz

Mono Channel Equalizer Mid

+/- 15 dB @ 2500 Hz

Mono Channel Equalizer Low

+/- 15 dB @ 80 Hz

Controls Mono Mic and Line Input Channels

Gain, Channel Volume, pan, AUX Post, 3-band EQ (High, Mid, Low)

Phantom power

48 V DC switchable

Stereo Channels:

Stereo Line Input Channels

2

Stereo Line Input Connectors

6.3 mm TS

Stereo Line Input Type

Unbalanced

Controls Stereo Line Input Channels

2-band EQ (High,Low), Balance, Channel Volume, AUX Post

Main Section:

AUX / Effects Send Channels

1 x 6.3 mm stereo jack unbalanced

Stereo AUX Return Channels

1 x stereo: 2 x 6.3 mm TRS

Stereo Tape Out Channel

1 x stereo: 2 x RCA (Cinch)

Stereo Tape In Channel

1 x stereo: 2 x RCA (Cinch)

Unbalanced stereo Main Outputs

1 x 6.3 mm TRS

Stereo Control Room Out

1 x 6.3 mm stereo jack unbalanced

Headphones output

1 x 6.3 mm TRS

Digital Effects Processor

No

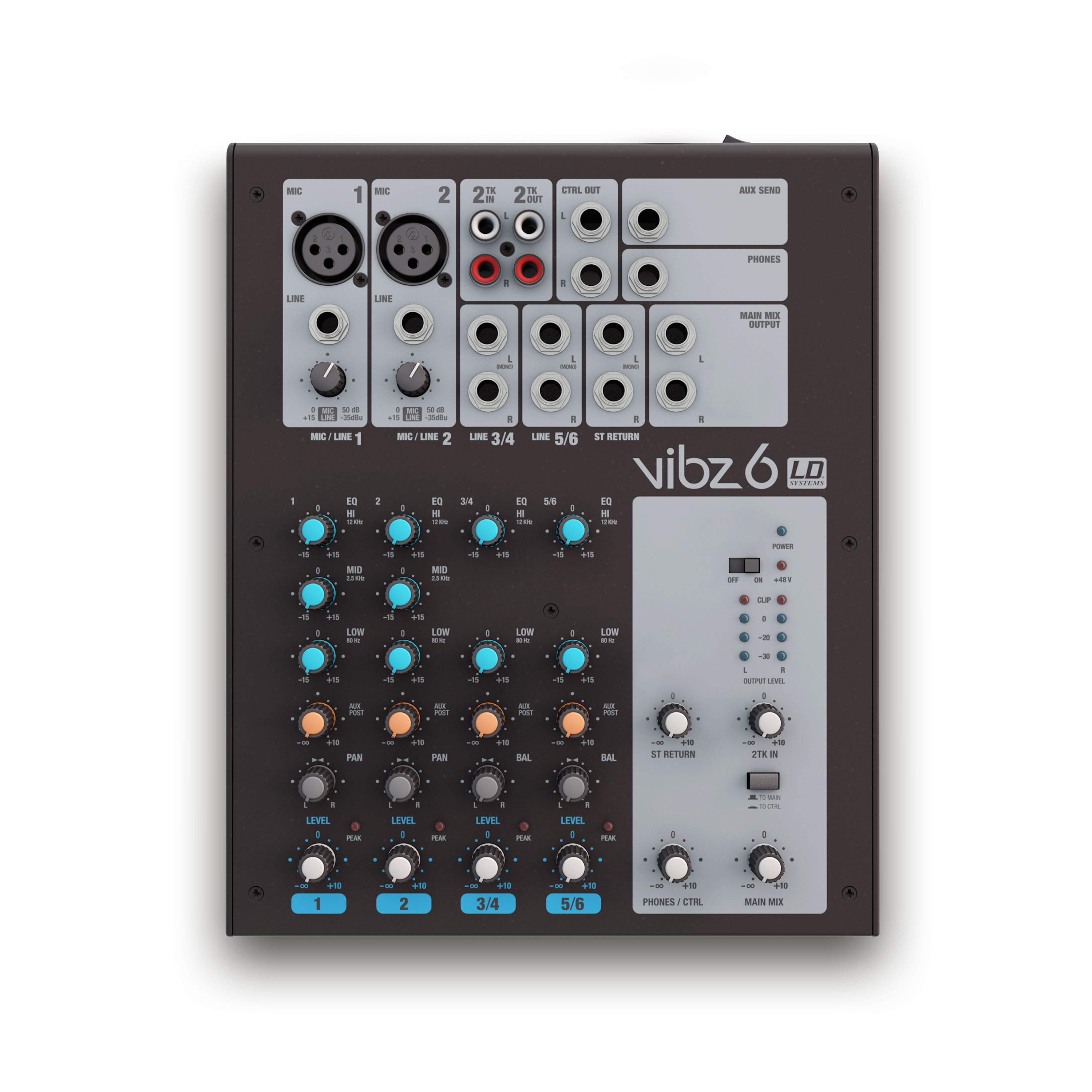

Main section controls

Stereo Return Volume, Phantom Power, Master Volume, Phones / Control Room Volume, 2-track In Volume, 2-track Assignment (Main, Contr. Room)

Indicators

Phantom Power, Channel Peak, Power, 4-segment Level Meter

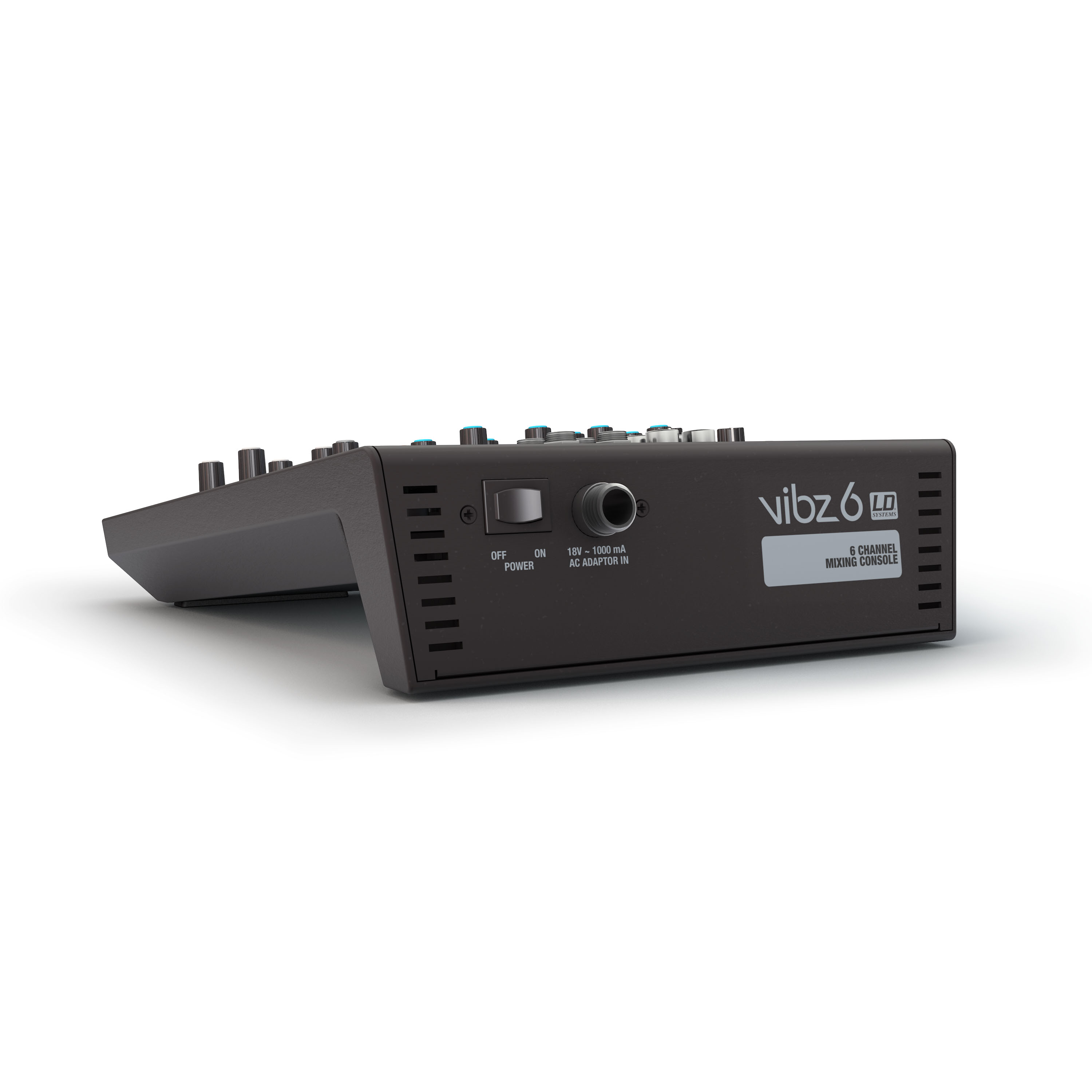

Power supply

230 V, 18V DC - 1 A, External PSU

Width x Height x Depth

210 mm x 67 mm x 262 mm

Weight

1.45 kg
