Cameo ROOT PAR TW

Flat LED PAR Light | 7 x 4 W Tunable White LEDs | Adjustable PWM frequency | DMX / WDMX* Control | EZchase DMX delay chase effects | Silent, fanless cooling

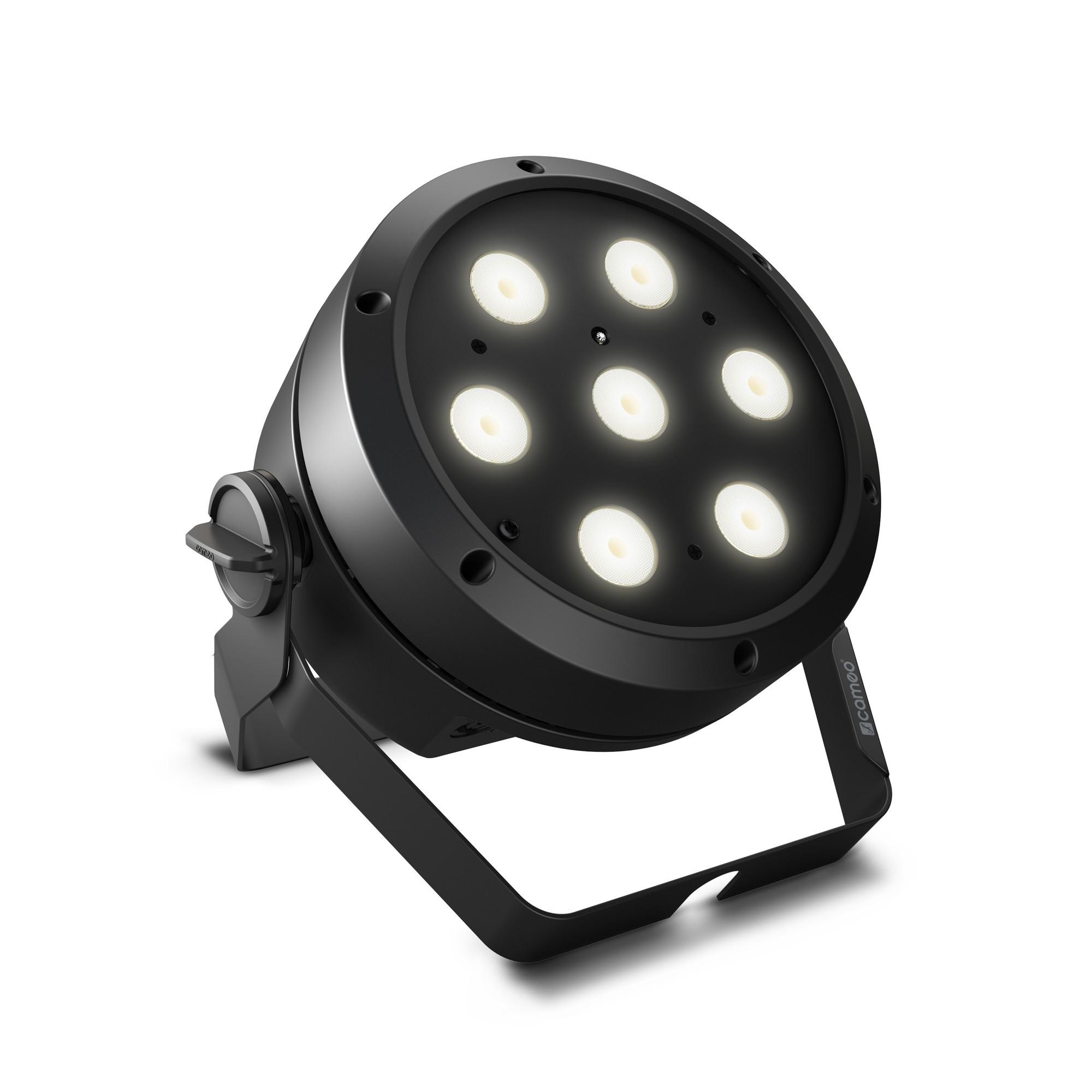

The Cameo ROOT PAR TW is a powerful LED PAR can light fixture with 7 x 4 W tunable white LEDs offering a luminous flux of 1,380 lm. With adjustable colour temperature from warm white to neutral white to daylight, it’s ideal for lighting almost any scenario with flexible white light.

The Cameo ROOT PAR TW is a great choice for sophisticated, professional lighting effects especially for smaller event locations, boasting cool, intelligent features usually only found on high-end, professional spotlights.

With Cameos unique, patented EZchase® DMX delay function you can create fascinating running light patterns from a full PAR stage lighting system simply by daisy chaining the DMX and power from the first ROOT PAR light through additional units, and with minimum programming effort.

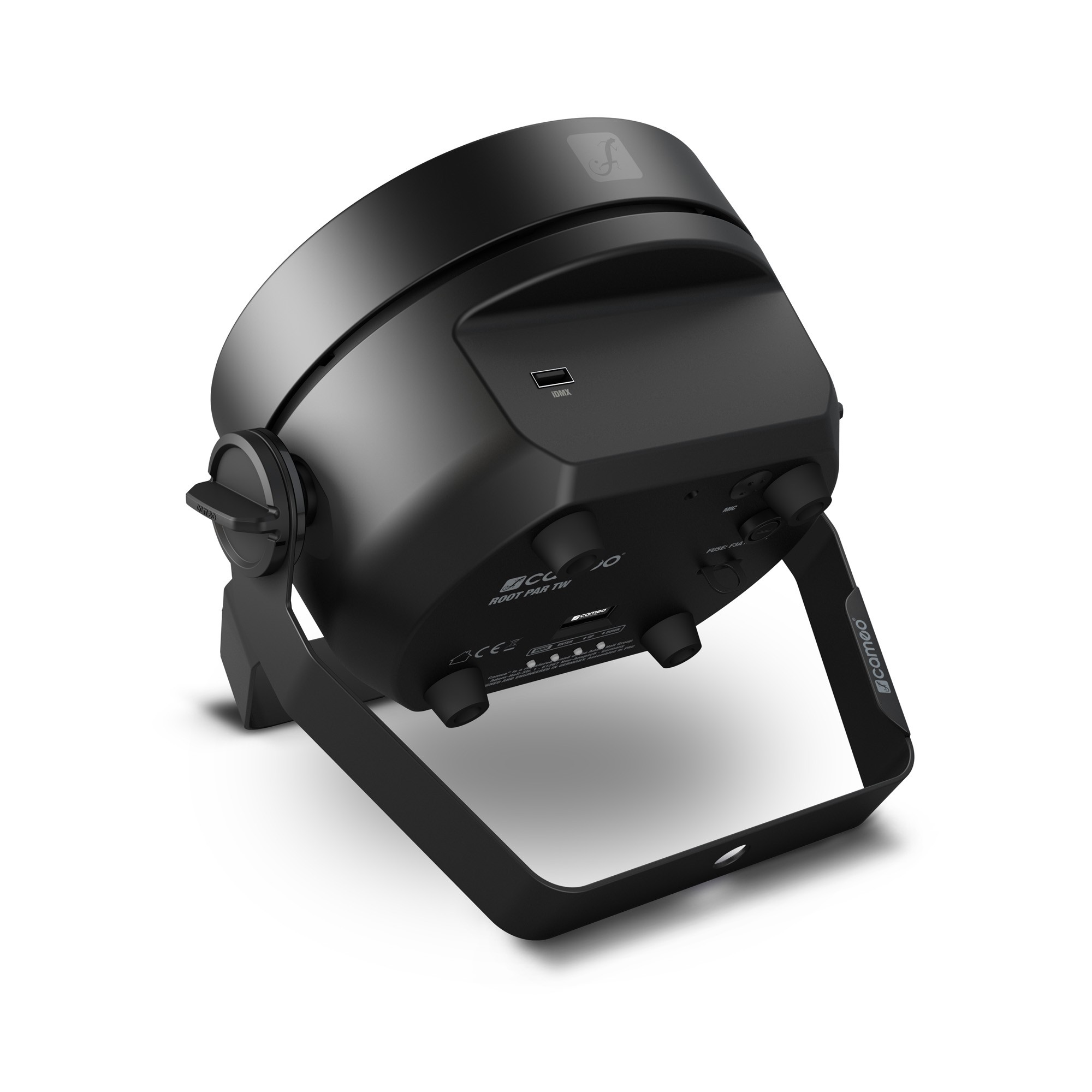

In addition to the EZchase® DMX delay function, a clean and safe power supply is guaranteed by PowerCon-compatible mains connections. To minimise cable runs, the flat-profile ROOT® PAR TW can be upgraded to W-DMX™ with the optional iDMX® stick via the integrated USB port.

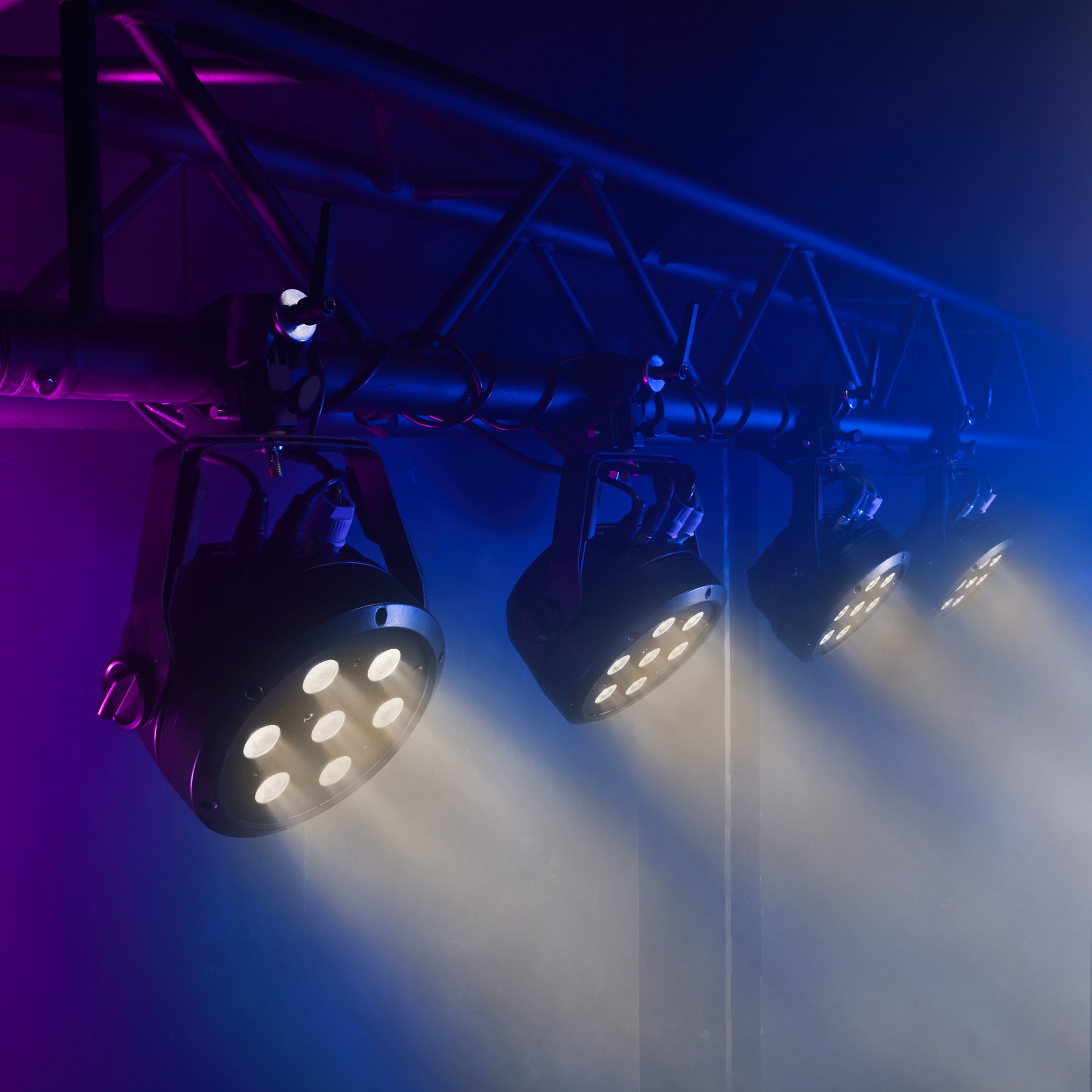

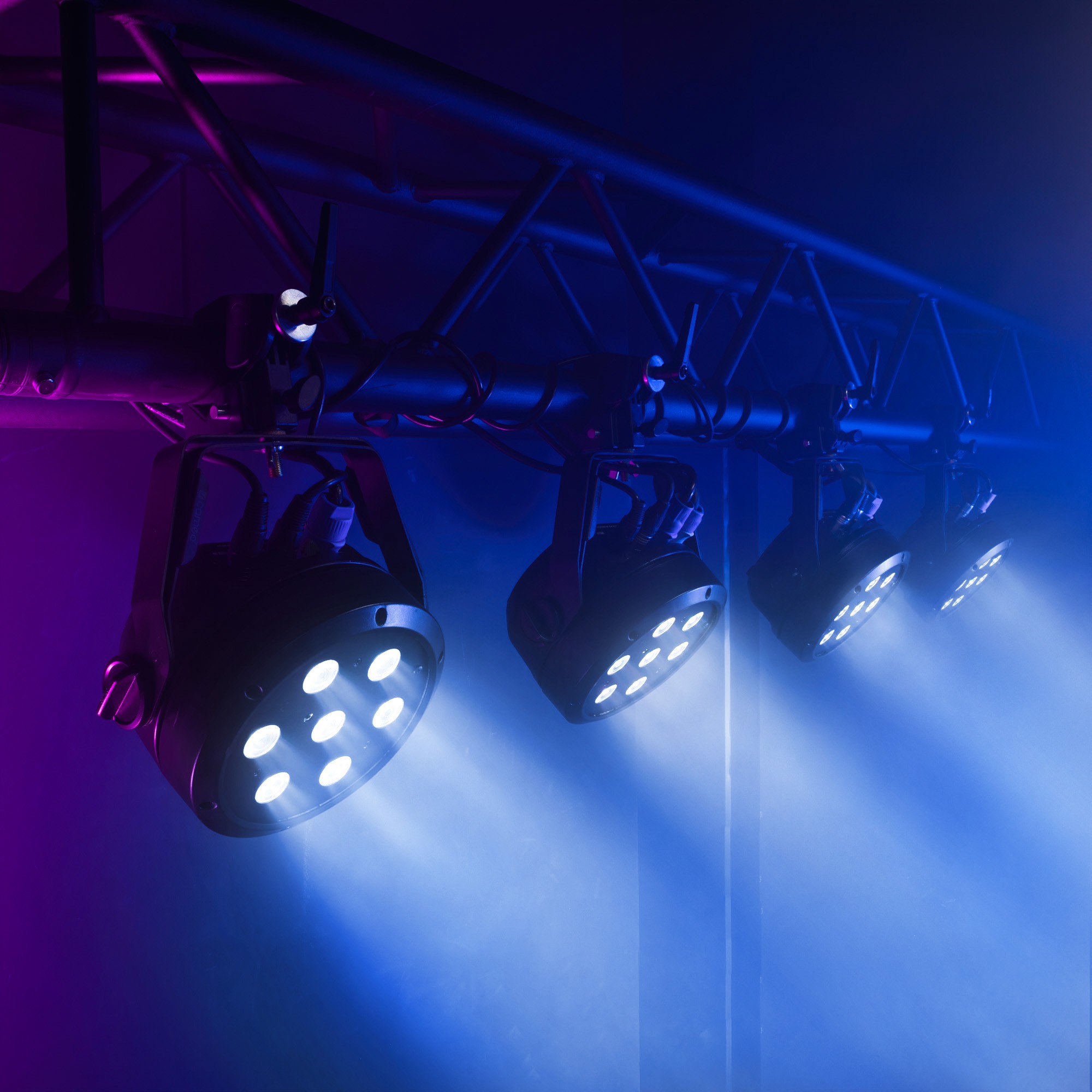

The ROOT® PAR TW delivers a powerful light output of 1,380 lm - enough to light up bands and create a visual impact on small theatre stages and at exhibitions. The 7 x 4 W Dual tunable White LED is continuously adjustable from 3100 K to 6500 K, directly on the device if required, via the four buttons and the integrated OLED display.

The unit is controlled via DMX in master-slave or stand-alone configuration and an integrated microphone facilitates sound to light synchronisation.

An optional IR remote control is also available (CLPFLAT1REMOTE).

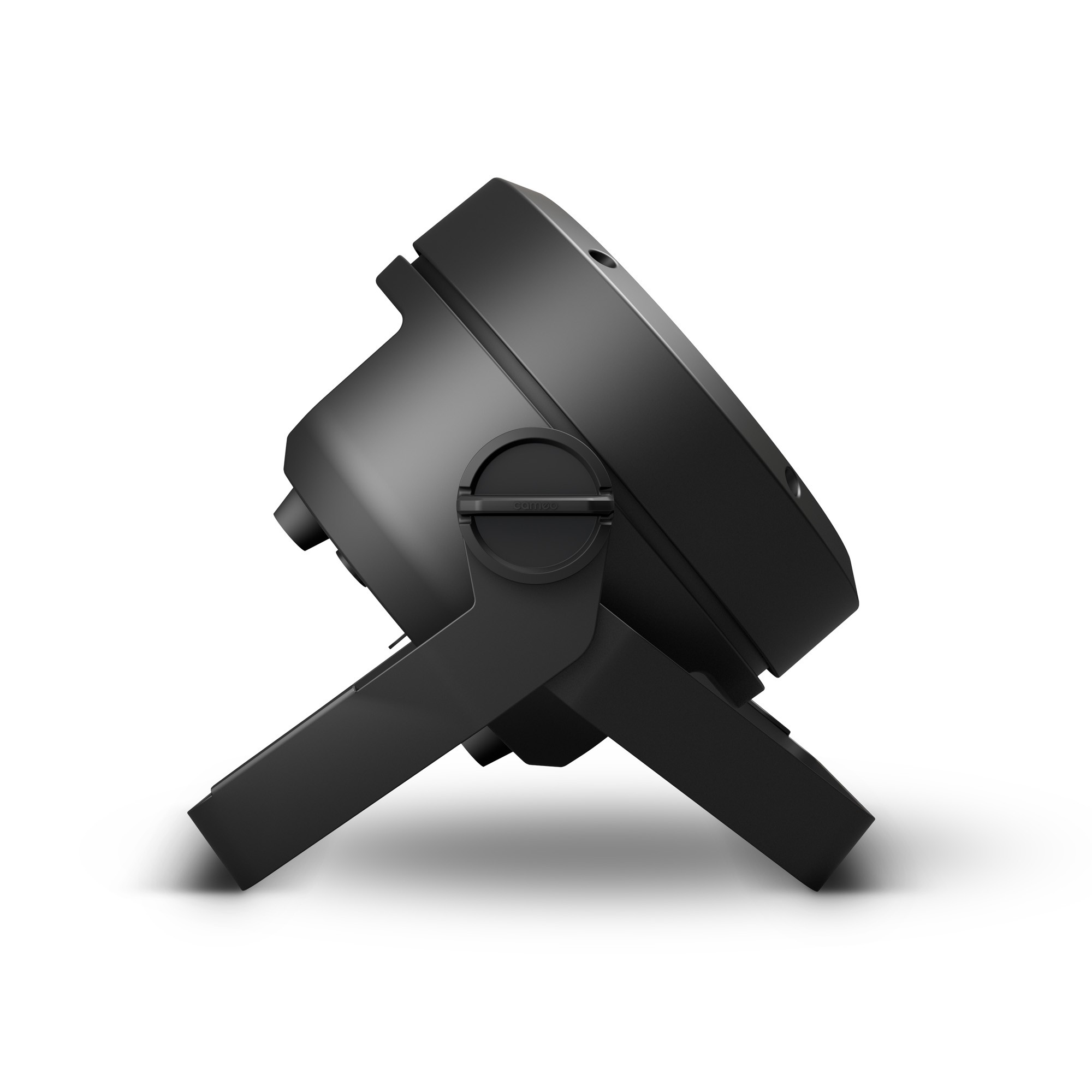

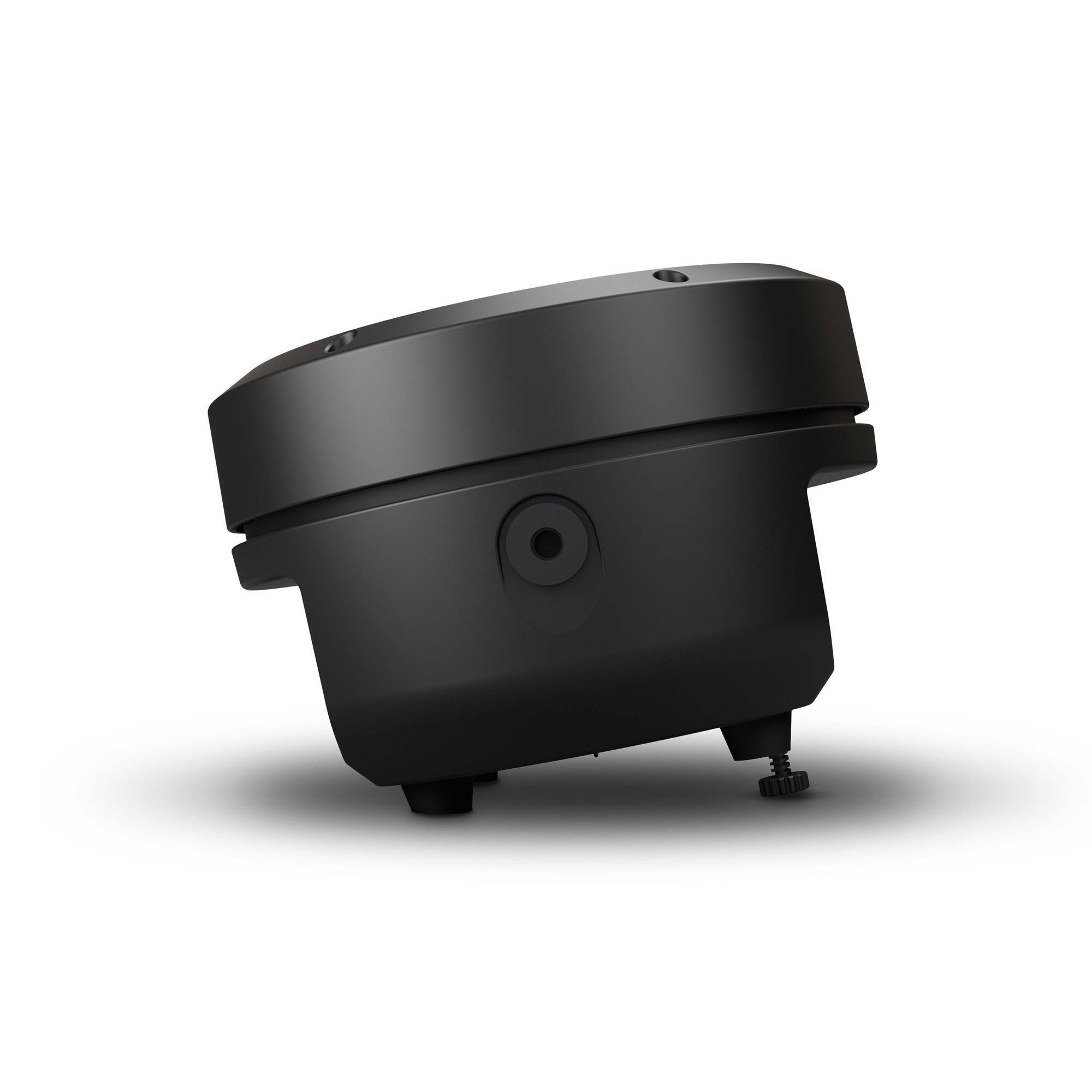

The two-way mounting bracket enhances flexibility and an integrated tilt adjustment screw enable the PAR spotlight to be used as an uplighter without a bracket.

The robust, compact housing and PowerCon-compatible power connection, passive, fan-free convection cooling ensures maximum reliability and smooth and quiet operation.

The application options are endless: Mood lighting on festival stages, object lighting in mobile theatres or ambient lighting in the lounge area of a corporate event - The ROOT® PAR TW offers professional, flexible white light for all scenarios.

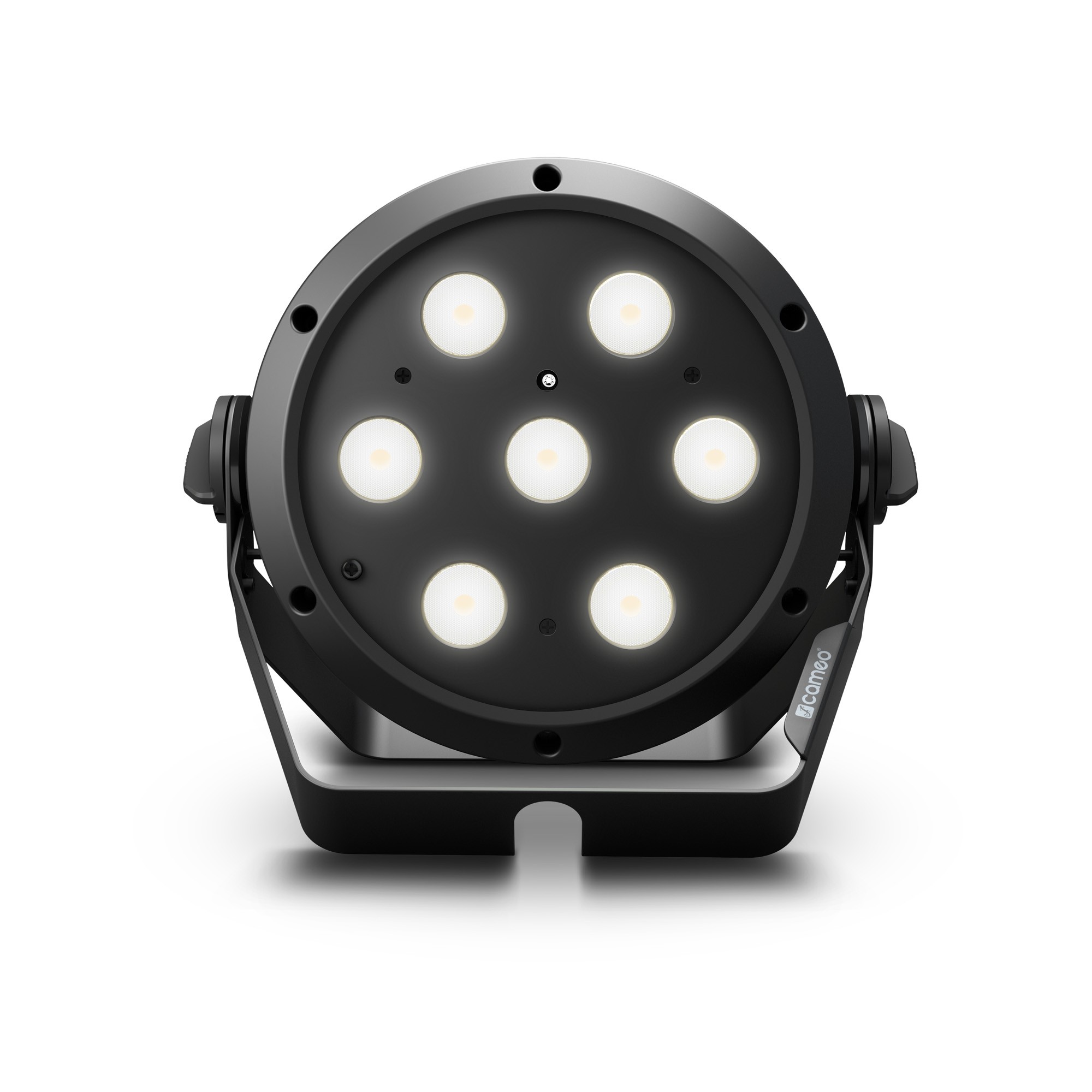

  • 7 x 4-Watt white light LED with 1,380 lm
  • Colour temperature continuously adjustable from 3100 K to 6500 K
  • Daisy chain series connection of multiple devices via DMX and power connections
  • Patented EZchase® DMX delay function for chase effects

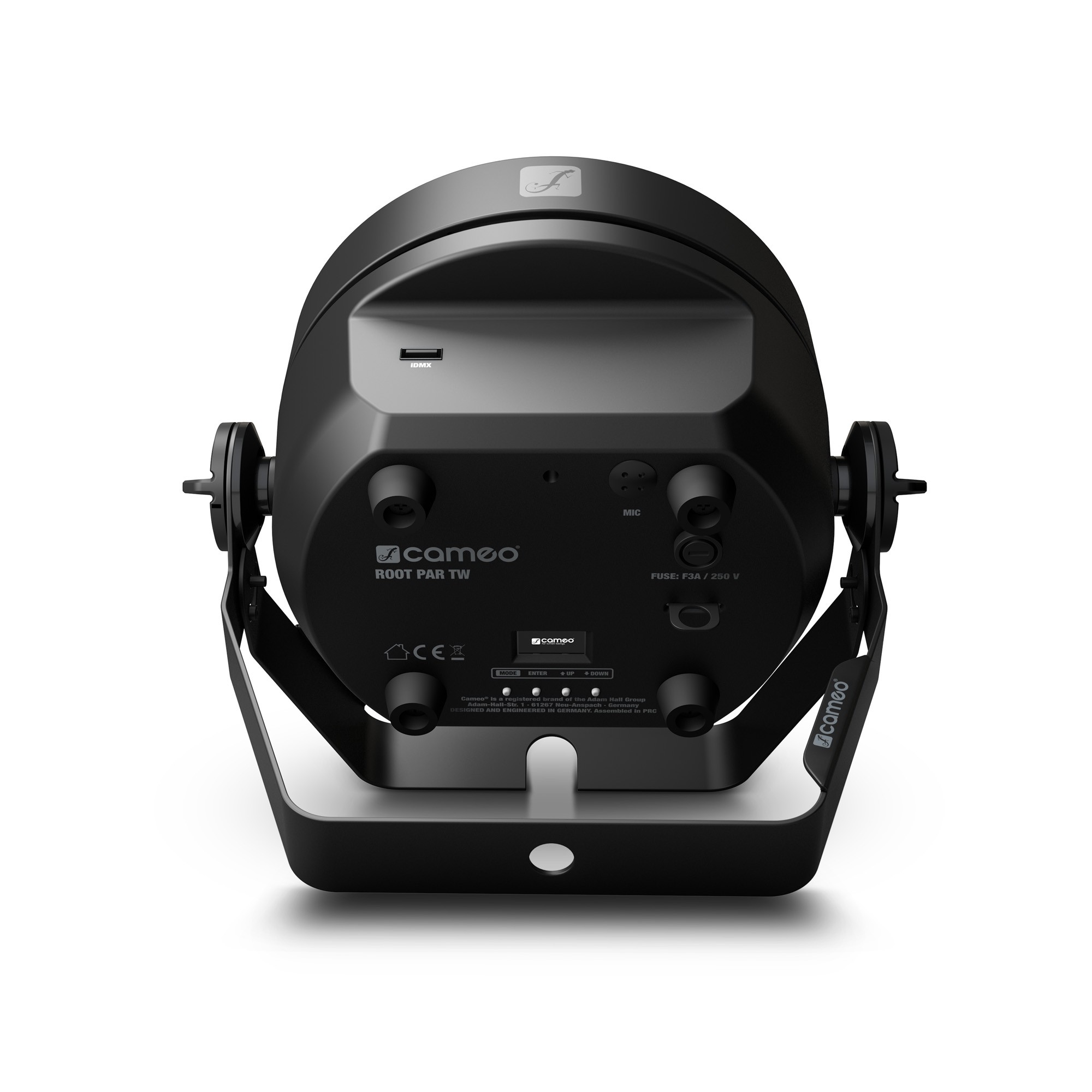

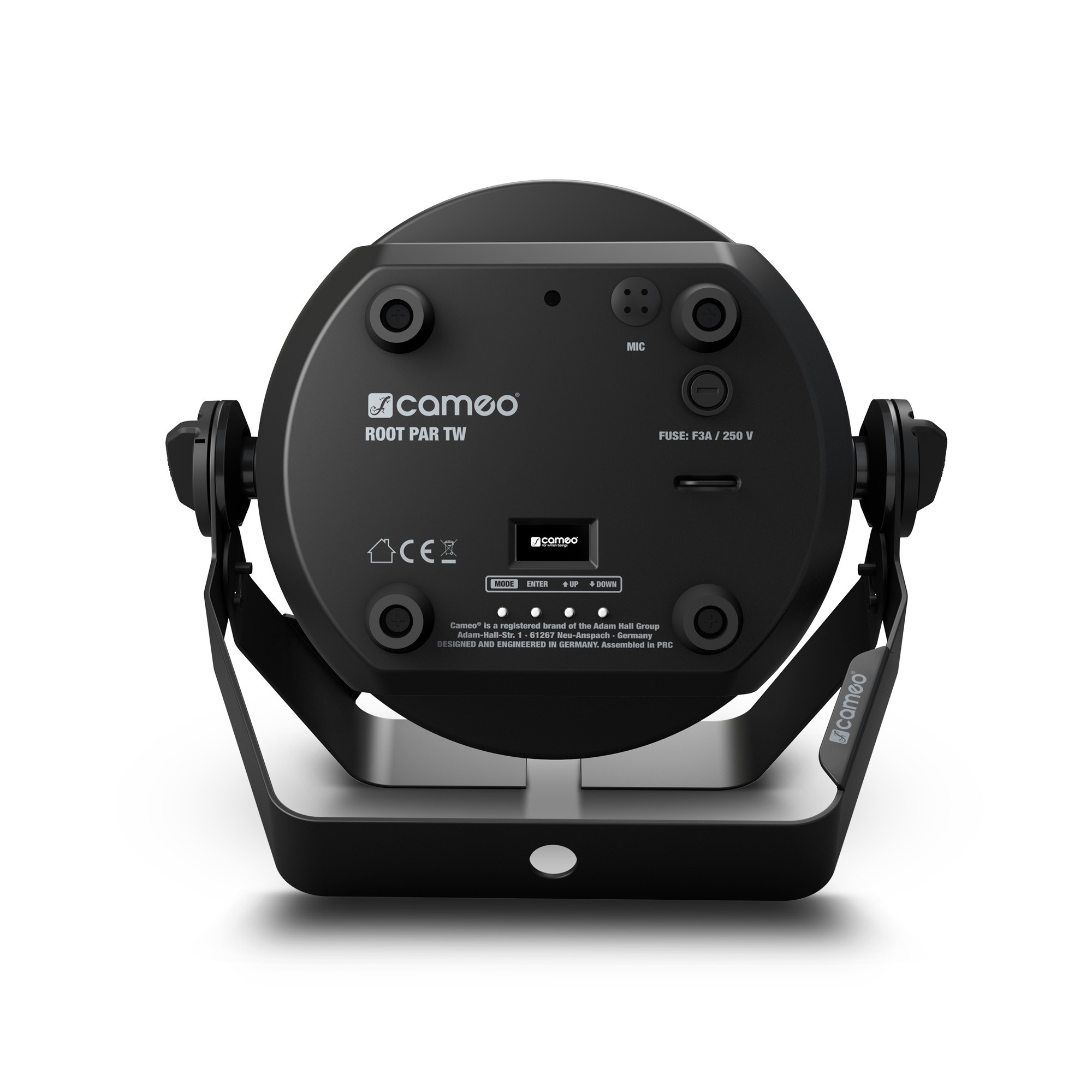

  • Four-button configuration and OLED display
  • PowerCON-compatible power supply
  • USB port for iDMX® stick for wireless DMX transmission via W-DMX™
  • Integrated microphone for sound and music synchronisation

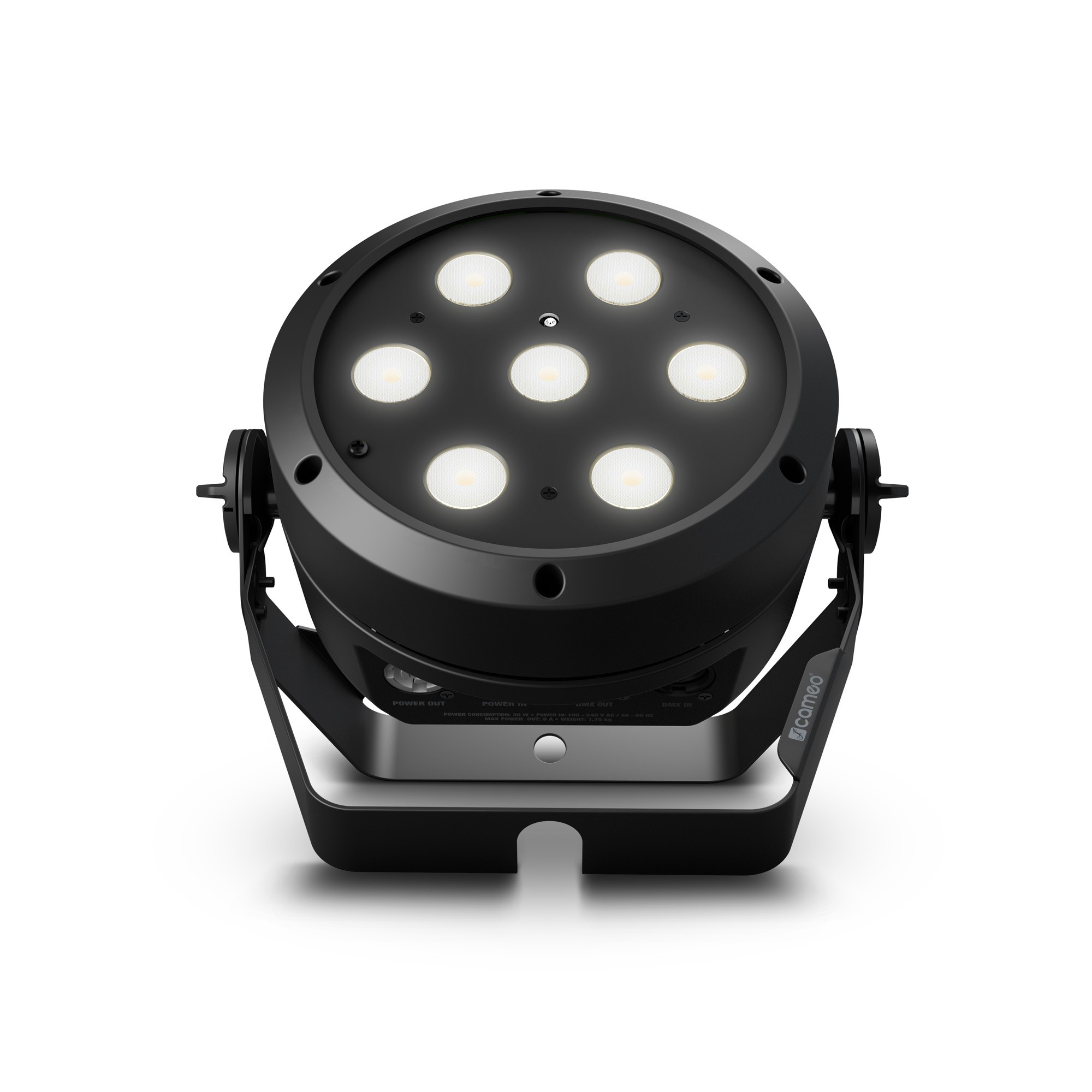

  • Two-way mounting bracket included, tilt adjustment screw for uplighter application
  • IR remote control available as an option (item no. CLPFLAT1REMOTE)
  • Part number: CLROOTPARTW
  • Warranty: 2 Years

*Wireless DMX control requires an optional iDMX stick.

z:DMX z:FlickerFree z:Green z:Mstr/Slv z:Standalone z:LED z:strobe z:Tunable z:Sound-to-Light
List Ex VAT: £91.90
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Colour spectrum

CW, WW

Number of LEDs

7 x 4 W

LED PWM Frequency

650 Hz, 1530 Hz, 2150 Hz, 4000 Hz, adjustable

Dispersion

Beam Angle: 19 °, Field Angle: 36 °

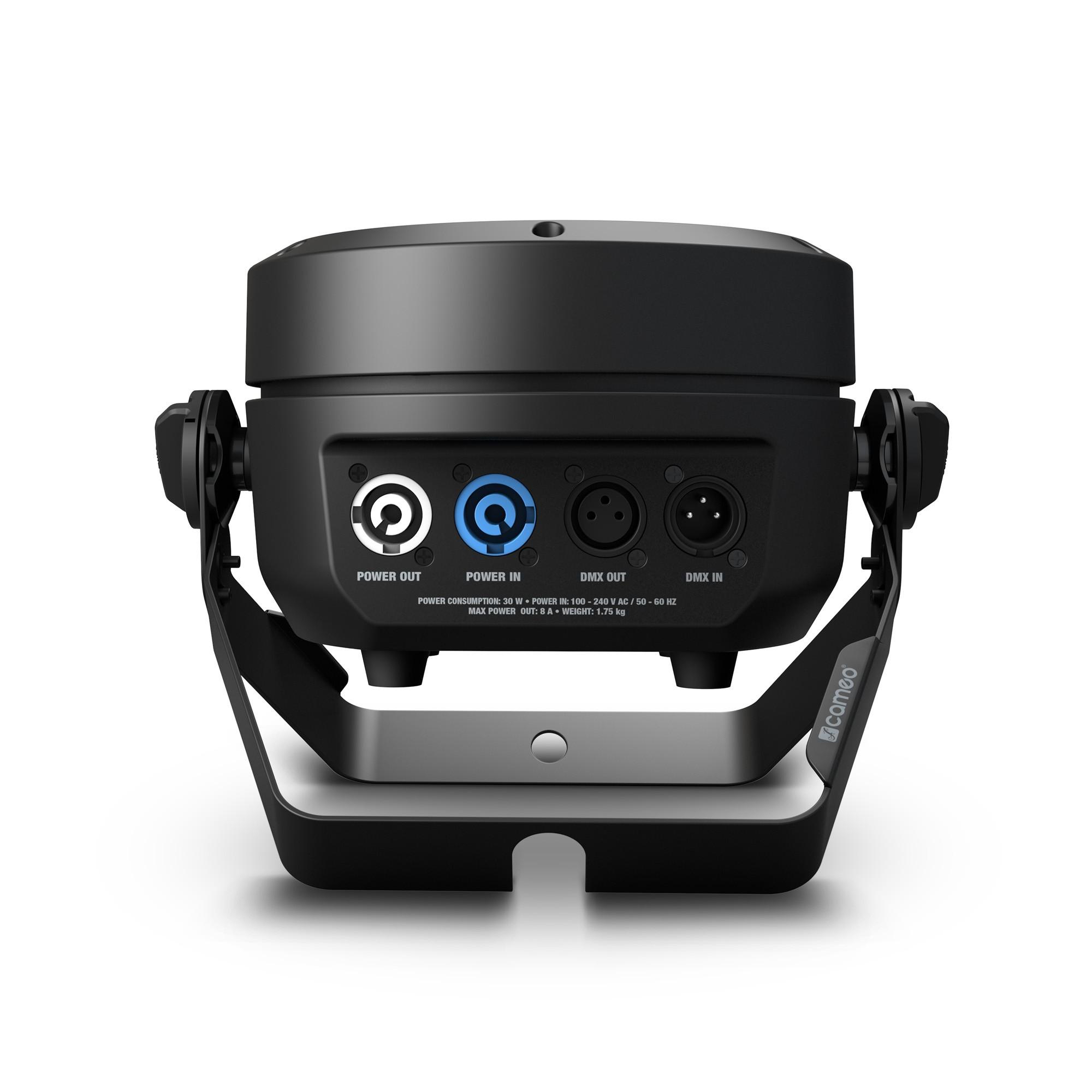

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX Functions

Cold white, Colour temperature correction, Dimmer, Dimmer Fine, DMX Delay, sound sensitivity, Strobe, Warm white

Control

DMX512, IR Remote Control, W-DMX™ (by optional iDMX®-Stick)

Standalone modes

Auto programs, CCT, sound programs

Controls

Down, Enter, Mode, Up

Indicators

OLED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

30 W

Power supply connector

Blue Power Twist, White Power Twist

Housing material

ABS plastic, Black

Cooling

Convection

Illuminance

7530 lx @ 1 m

Luminous flux

1380 lm

Dimensions (W x H x D)

195 mm x 133 mm x 195 mm

Weight

1.2 kg

Accessories (included)

Power cord
