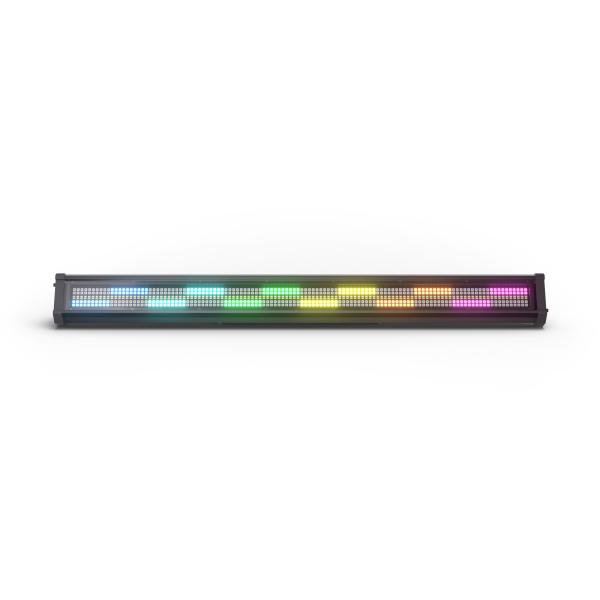

Cameo ROOT BAR SMD

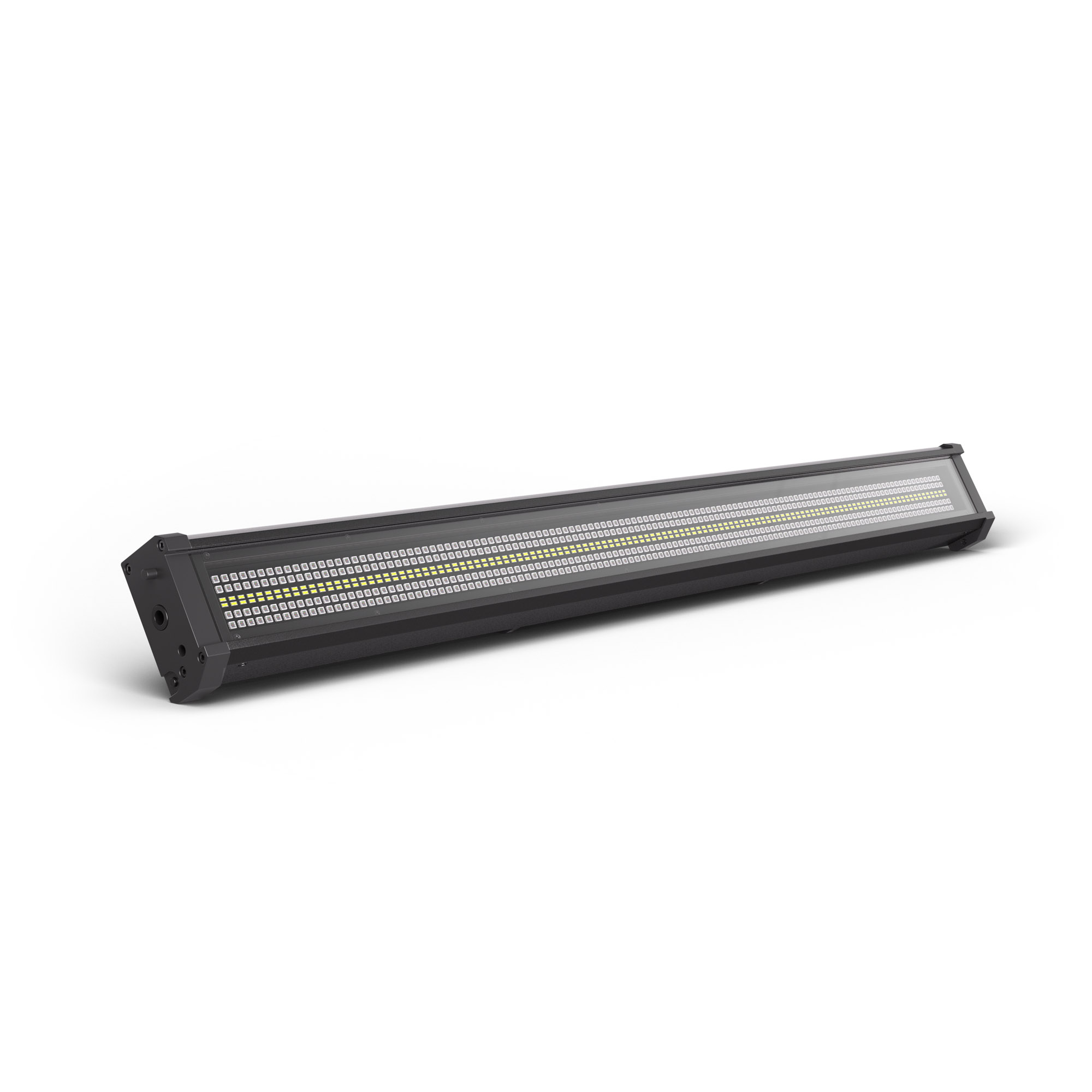

The Cameo ROOT BAR SMD is a linear LED light bar with compact design and impressive versatility, perfect for creative lighting in trendy clubs, small bars, or exclusive events, providing stunning lighting effects in any setting.

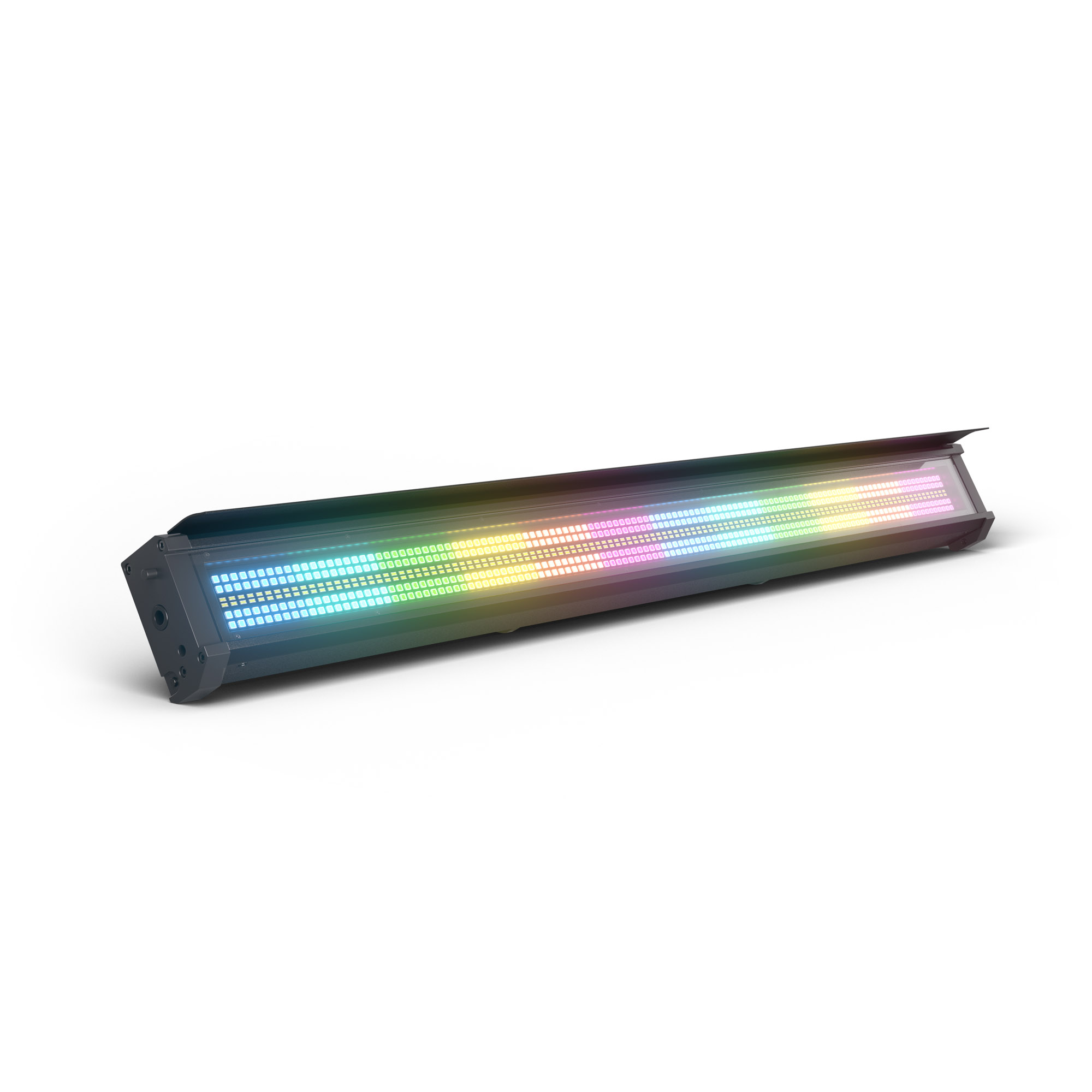

With a total of 480 x 0.2 Watt RGB LED’s and 240 x 0.5 Watt white LED’s, the SMD LED design enables individual control of the colour and brightness of each LED pixel for amazing animated graphic patterns and pixel mapping effects.

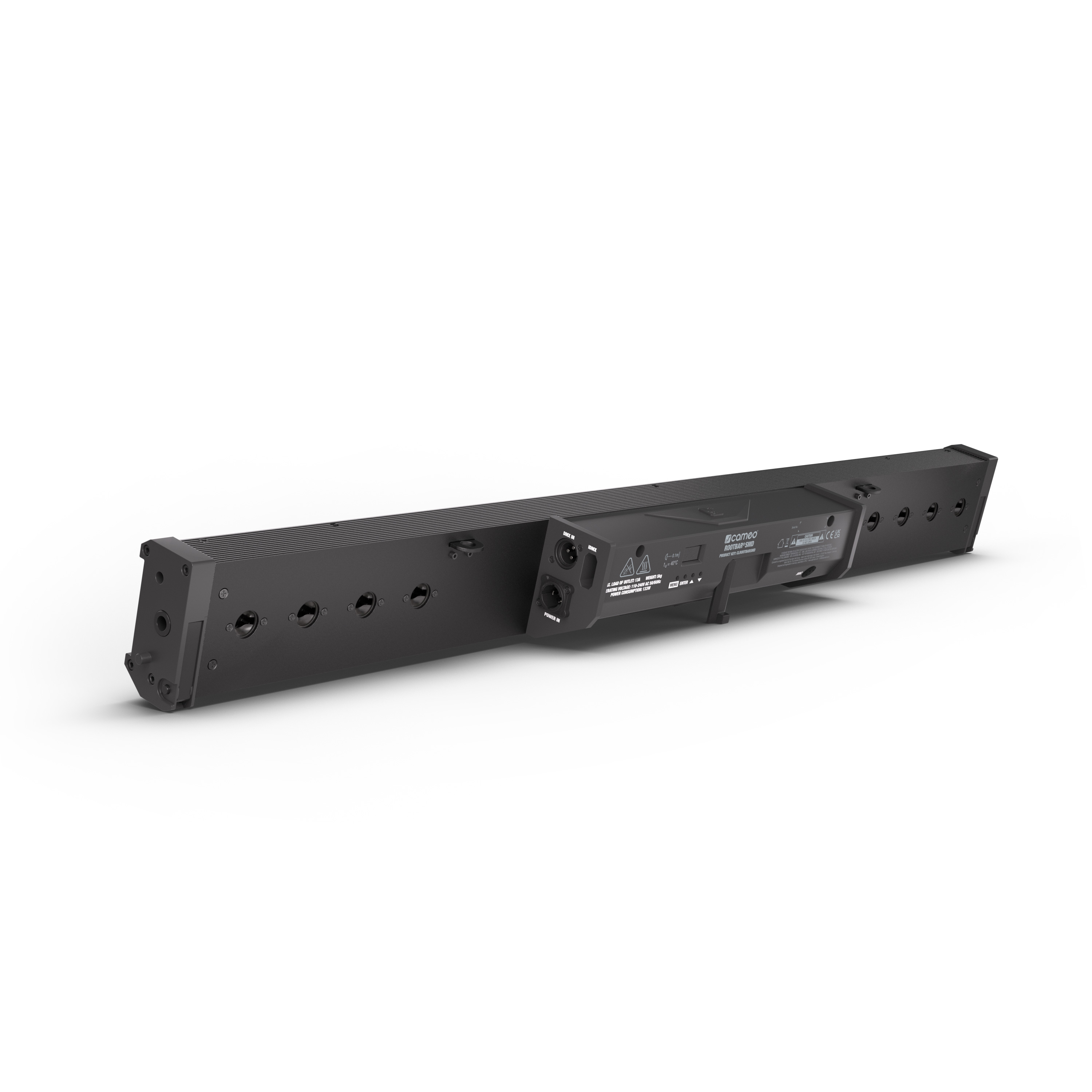

The clever housing design of the ROOT BAR SMD enables flexible positioning at various angles, with and without the included feet whilst a threaded mount enables both hanging and standing use.

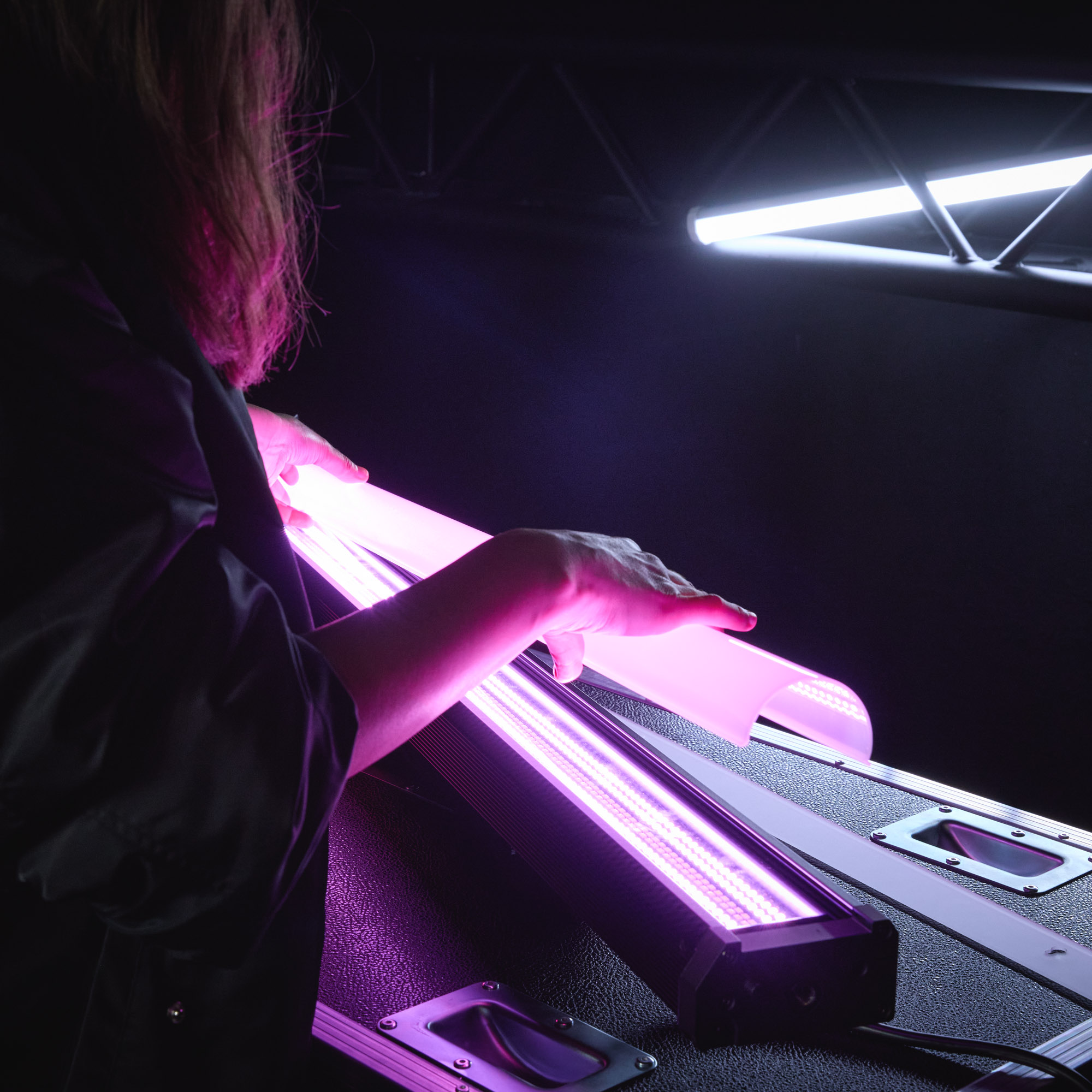

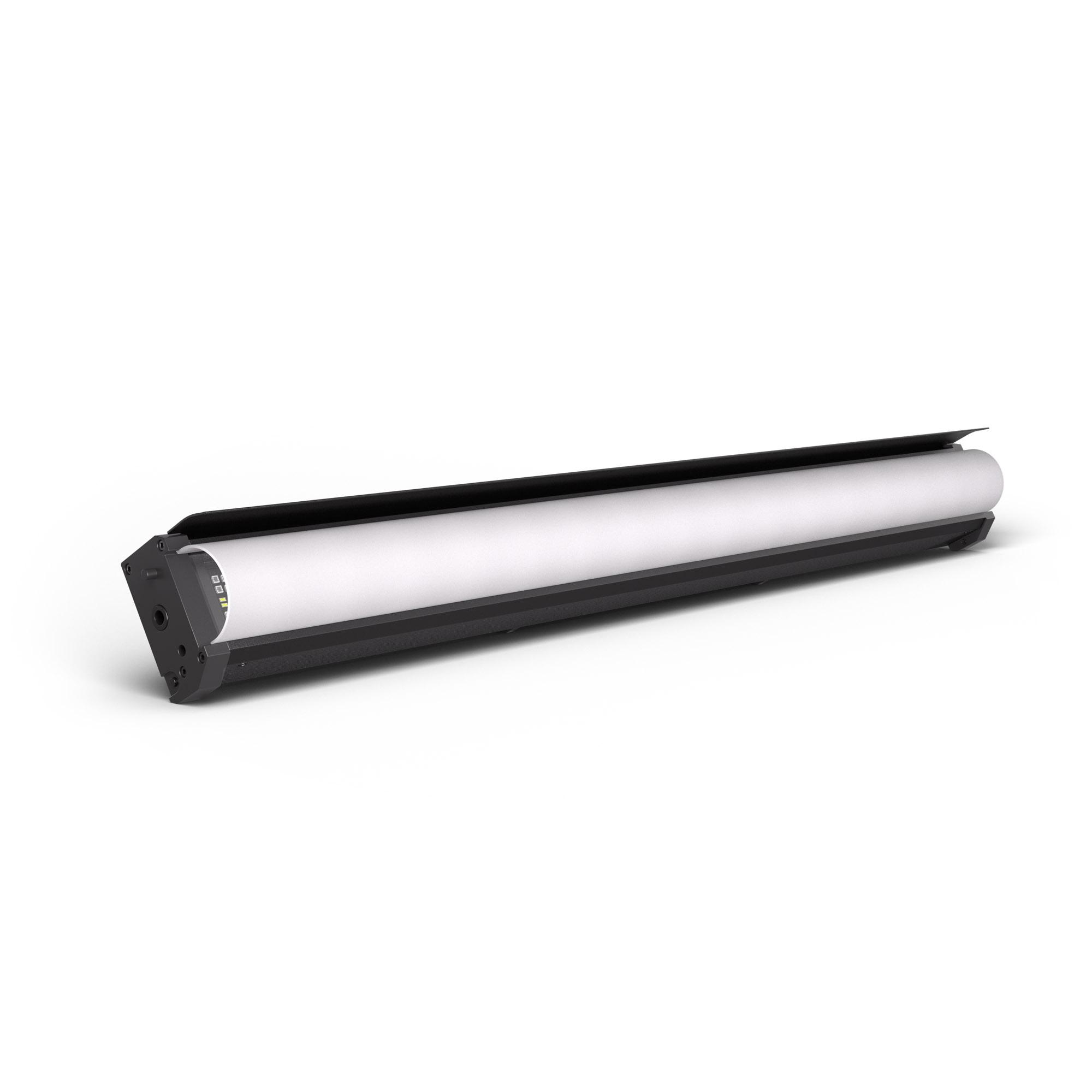

The magnetic Quick Alignment System & various Quick Lock options enable quick and precise alignment of multiple LED bar lights, creating seamless transitions and spectacular lighting installations. The included neon tube filter and glare shield provide numerous creative possibilities, adding impressive visual accents.

In addition to DMX protocol control, the ROOT® BAR can be remotely controlled via the optional IR remote. For wireless DMX connection via W-DMX™, the ROOT® BAR features a USB port for connecting the Cameo iDMX® Stick. Additionally, the unique patented EZchase® DMX delay function allows for the creation of captivating chase patterns and colour transitions with minimal programming effort.

The modern design, reliable, high quality Cameo ROOT BAR SMD sets new standards in event lighting and transforms any venue into an unforgettable experience.

Compact LED bar with 480 x 0.2 W RGB LEDs + 240 x 0.5 W white LEDs

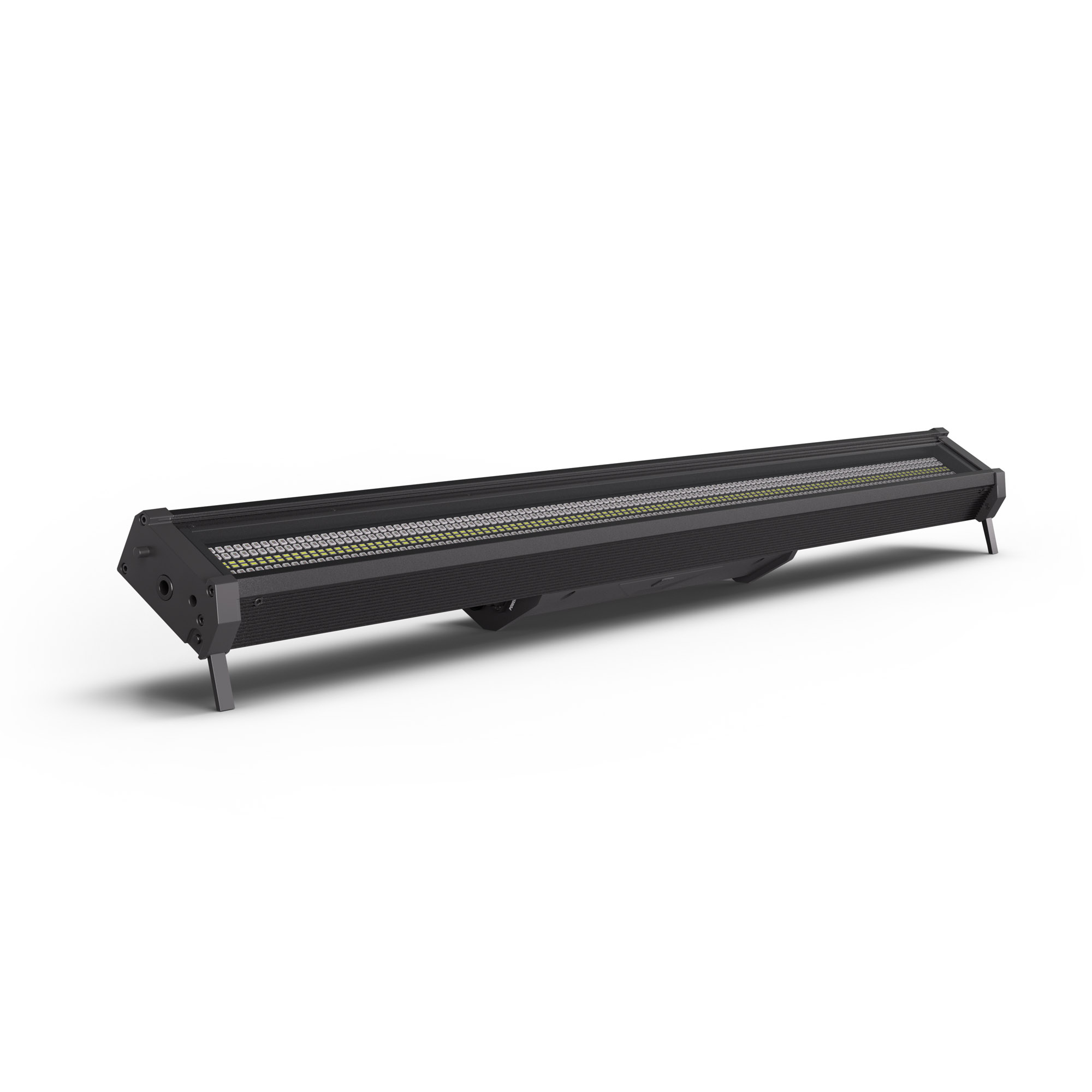

Flexible positioning at various angles, with or without feet
Magnetic Quick Alignment System for precise alignment of multiple units
Includes neon tube filter and glare shield for versatile lighting effects
Control via DMX, or W-DMX (with optional Cameo iDMX Stick)
Patented EZchase® DMX delay function for chase effects
16-bit resolution for smooth dimming and high-performance RGBW LEDs

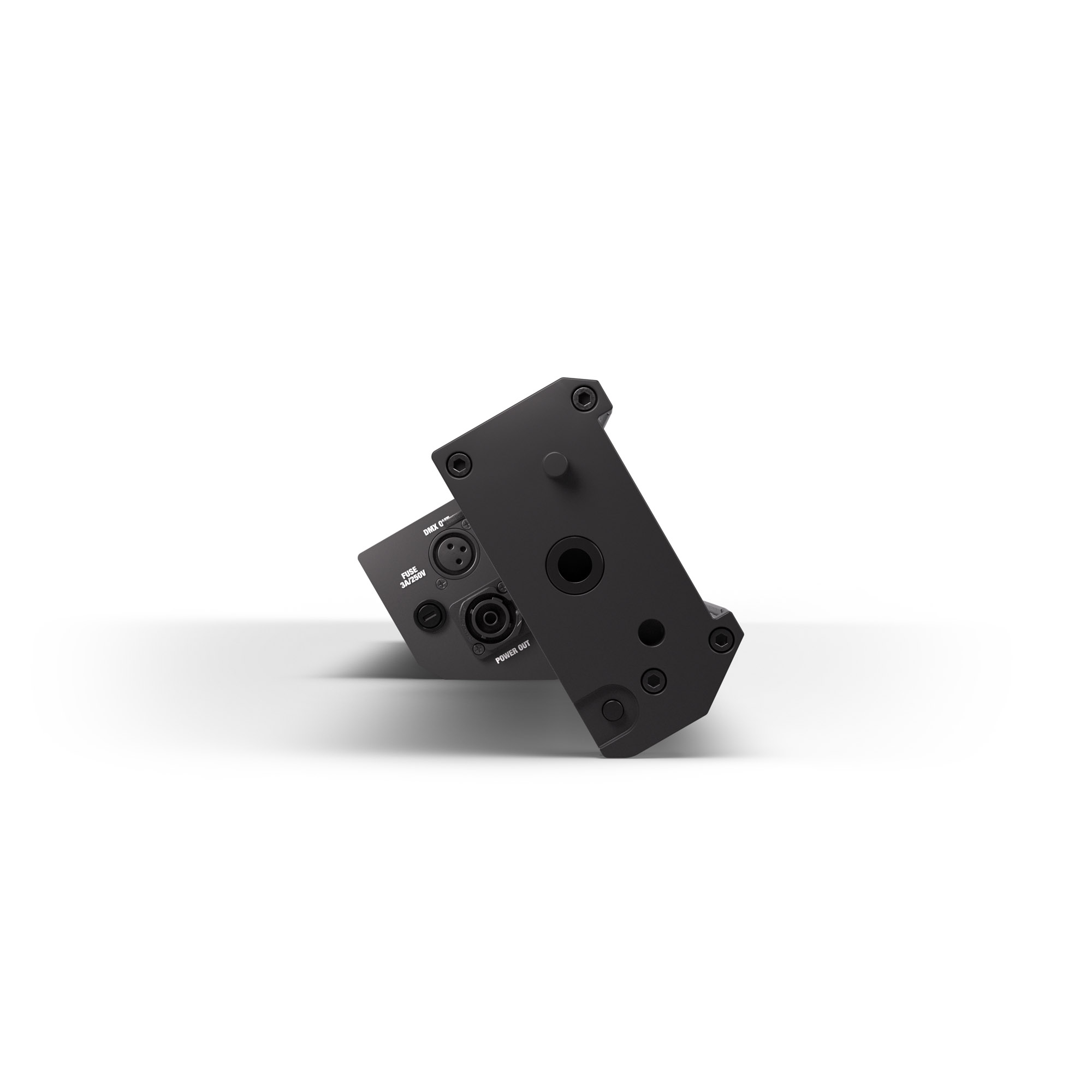

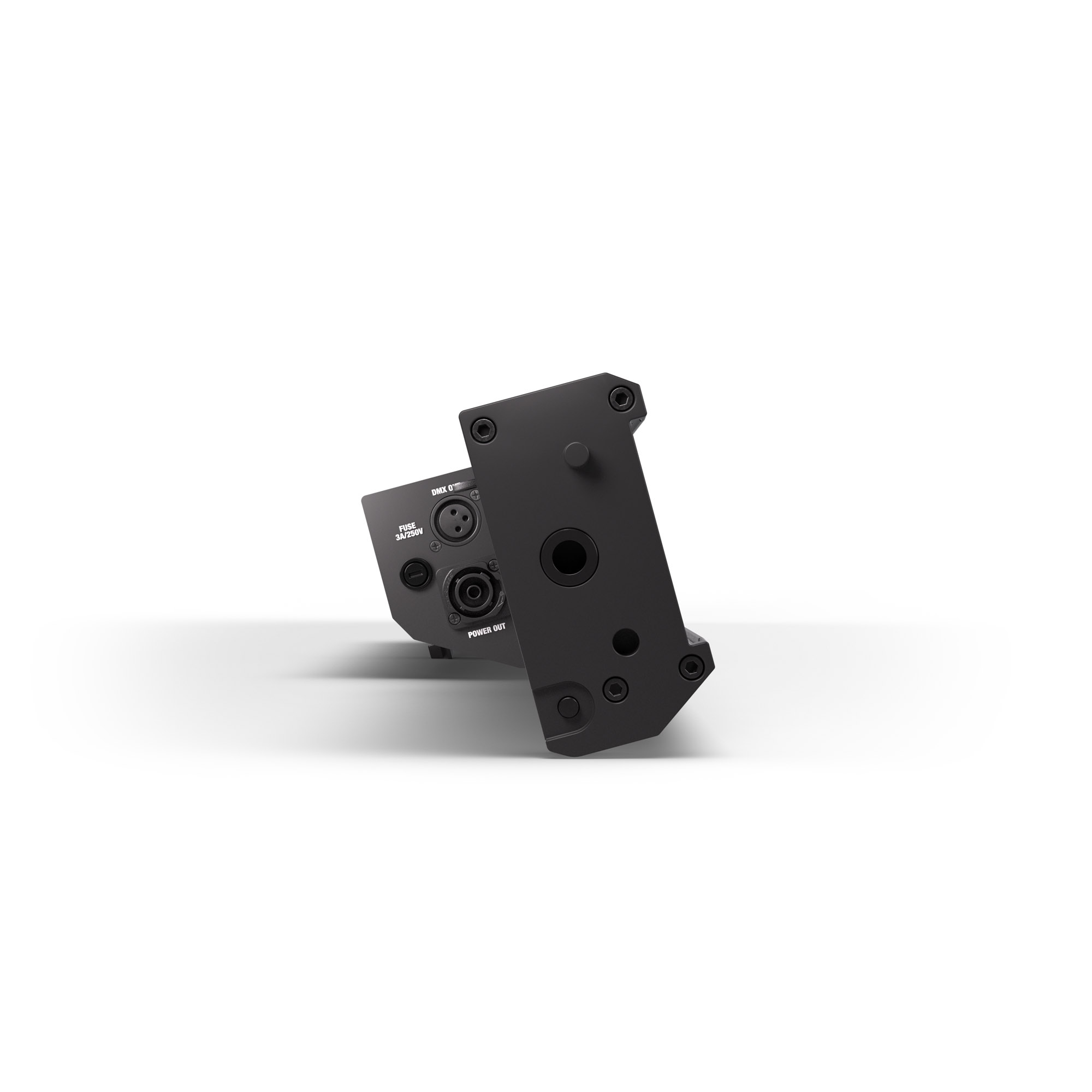

Power input via Neutrik powerCON and DMX connectors for daisy-chaining multiple units
Part number: CLROOTBARSMD
Warranty: 2 Years

List Ex VAT: £338.64

SPECIFICATIONS

LED data	480 x 0.2 W LED RGB (24 x 20) \| 240 x 0.5 W LED white
Luminous flux	5,200 lm
Beam/Field angle	102° / 127°
LED PWM frequency	12 Hz
Dimmer resolution	16 Bit
Dimmer Curves	Linear, Exponential, Logarithmic, S curve
Colour mix functions	RGB
LED colours	Red, Green, Blue, White
Colour rendering index (CRI)	> 70
Strobe	0 - 20 Hz
Controller protocols	DMX512
Additional DMX features	DMX delay, LED segment dimmer, System settings
Stand alone operating modes	Sound controlled, Autorun, Master/slave, Static, Endless loop
Data in connector	XLR 3-pole male
Data out connector	XLR 3-pole female
Mains operation voltage	100 V AC - 240 V AC / 50 - 60 Hz
Rated power	135 W
Chassis	Aluminium & Plastic. Black.
Cooling system	Convection cooling
Environmental Protection Class	IP20
Noise level in operation	0 dB
Dimensions (W x H x D)	1,024 mm x 116 mm x 106 mm
Weight	5 kg

DOWNLOADS

Cameo ROOT BAR SMD, User Manual

Cameo Root BAR SMD Datasheet

Cameo ROOT Series Feature Comparison Chart
