LD Systems ICOA PRO SUB 21 A

21" Powered Pro-Sound Subwoofer | 1500W RMS | Bluetooth 5.1 receiver | Massive bass performance | Clever & roadworthy design | Wireless App control | SysCore DSP with FIR/IIR filters | 2 x mic/line inputs | 2 x line outputs | 'Truewireless' Stereo

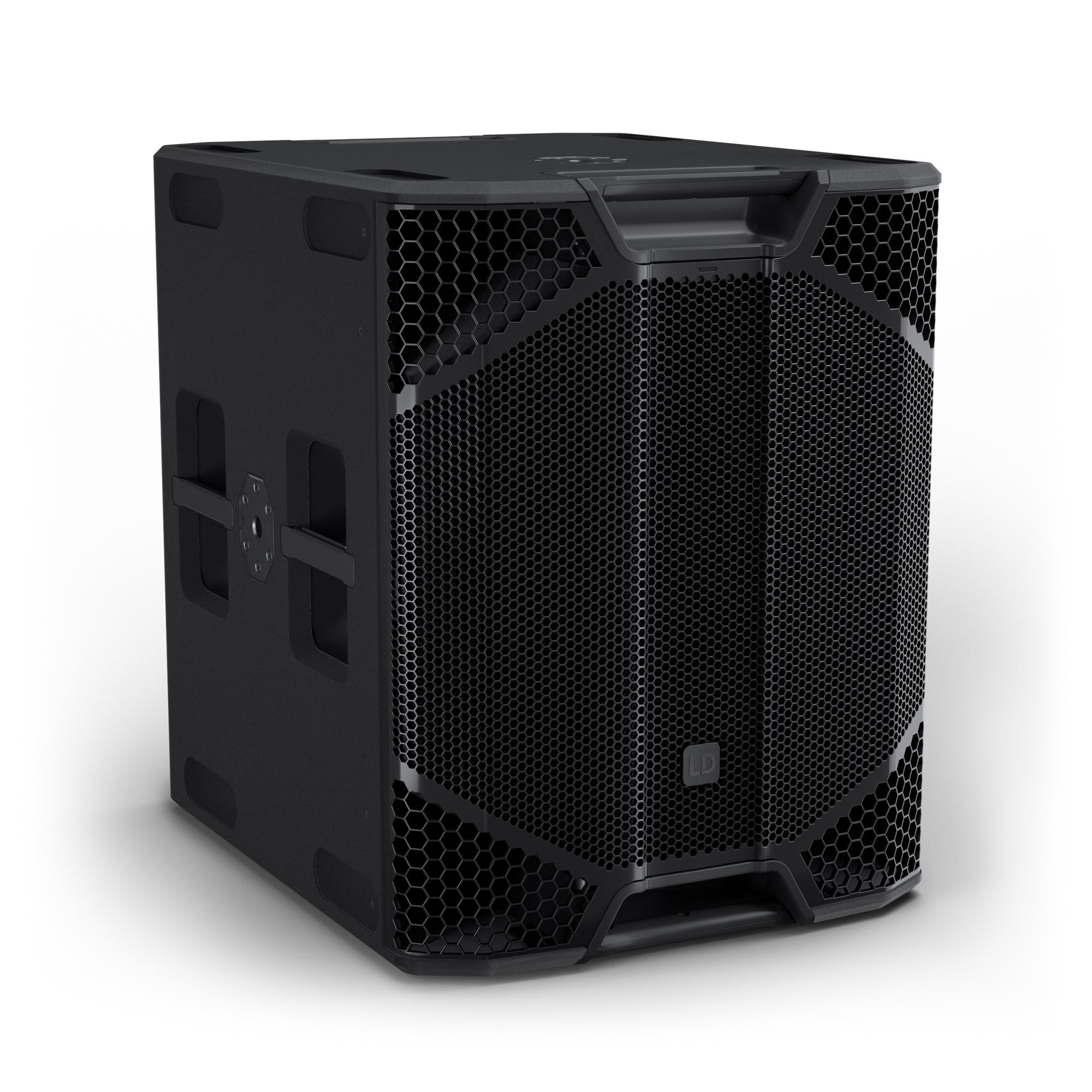

The ICOA PRO SUB 21 A is a 21ʺ high-performance subwoofer with bass reflex design and Bluetooth, delivering a massive, precise and powerful bass range with its specially developed 21ʺ neodymium woofer − ideal for mobile DJs, clubs, live events, festivals and permanent installations.

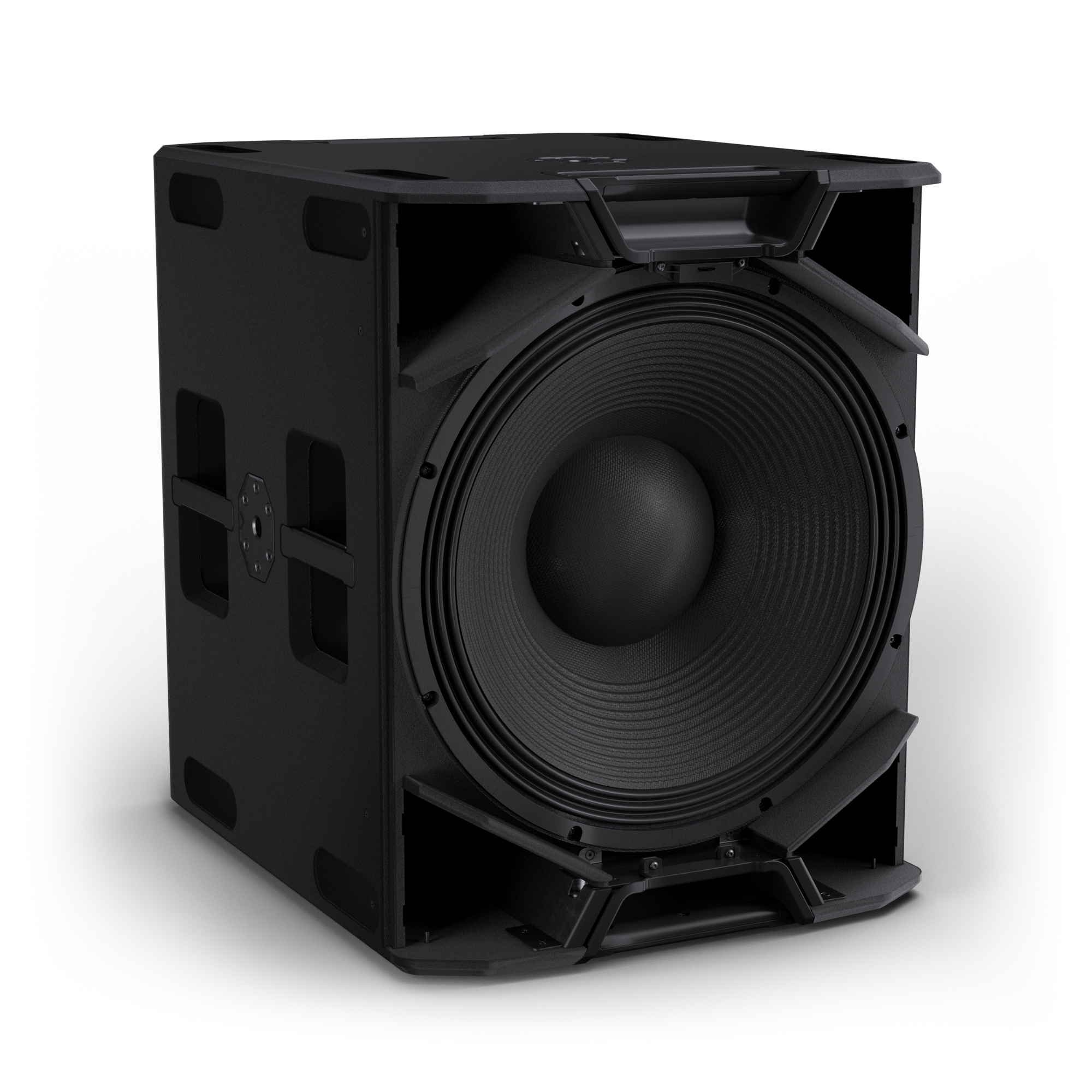

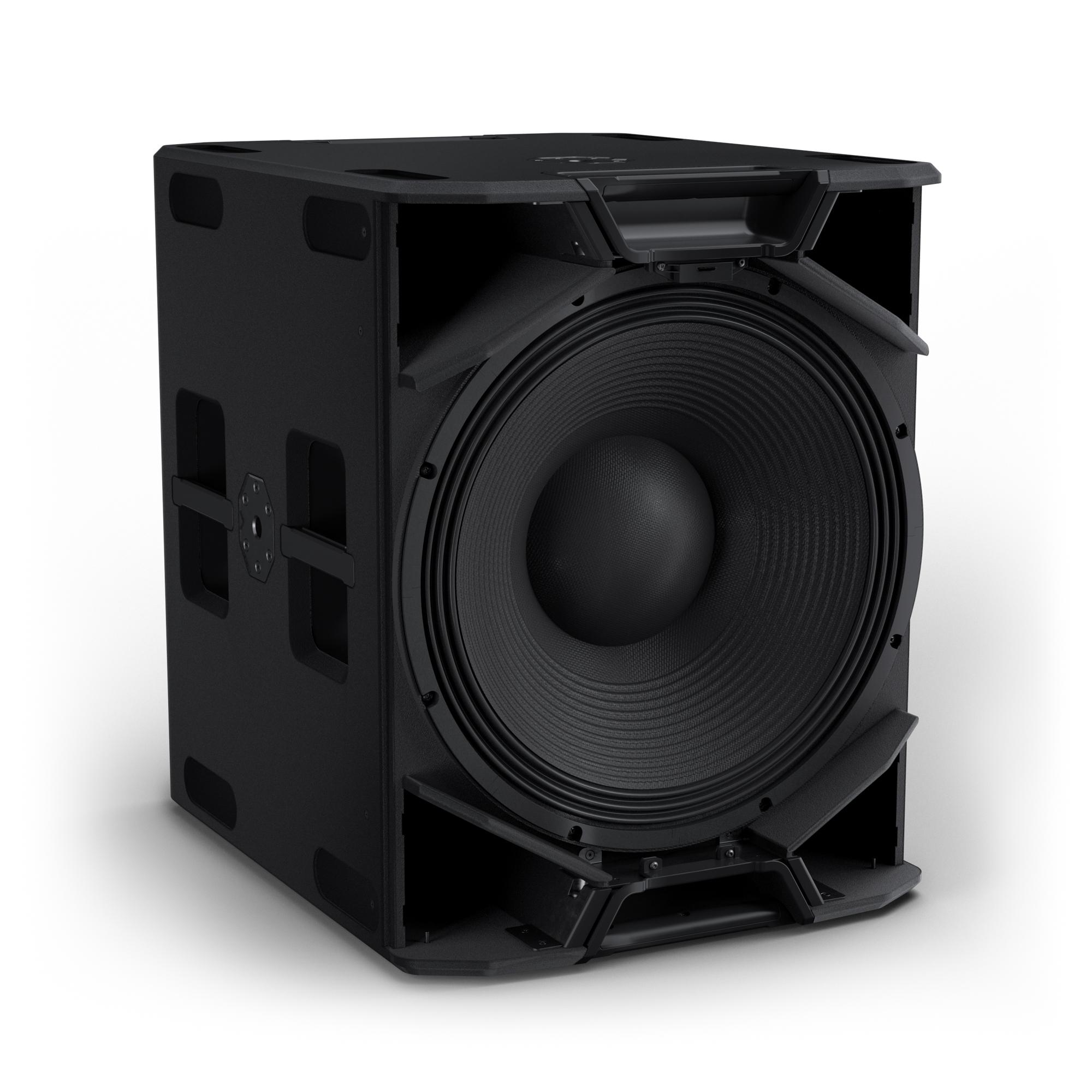

The ICOA PRO SUB 21A subwoofer boasts an extremely powerful 21ʺ woofer with a 4.5ʺ neodymium motor. The long-throw design and precisely tuned suspension unexpectedly delivers a tight, dry and precise low bass.

The powerful Class D power amplifier delivers up to 1500 W RMS (3000 W peak) and 136 dB max. SPL, providing enormous reserves and reliable low bass performance. Four extra-large, flow-optimised bass reflex ports ensure a rich low end down to 29 Hz.

The modern SysCore DSP with FIR/IIR filters and advanced limiters guarantees distortion-free sound and safe operation, even at very high volumes.

With 4-band PEQ, delay function (up to 50 m) and three selectable crossover frequencies (80 Hz, 100 Hz, and 120 Hz), the subwoofer can be flexibly adapted to different setups. Preconfigured presets are already available for low-latency monitoring and cardioid applications.

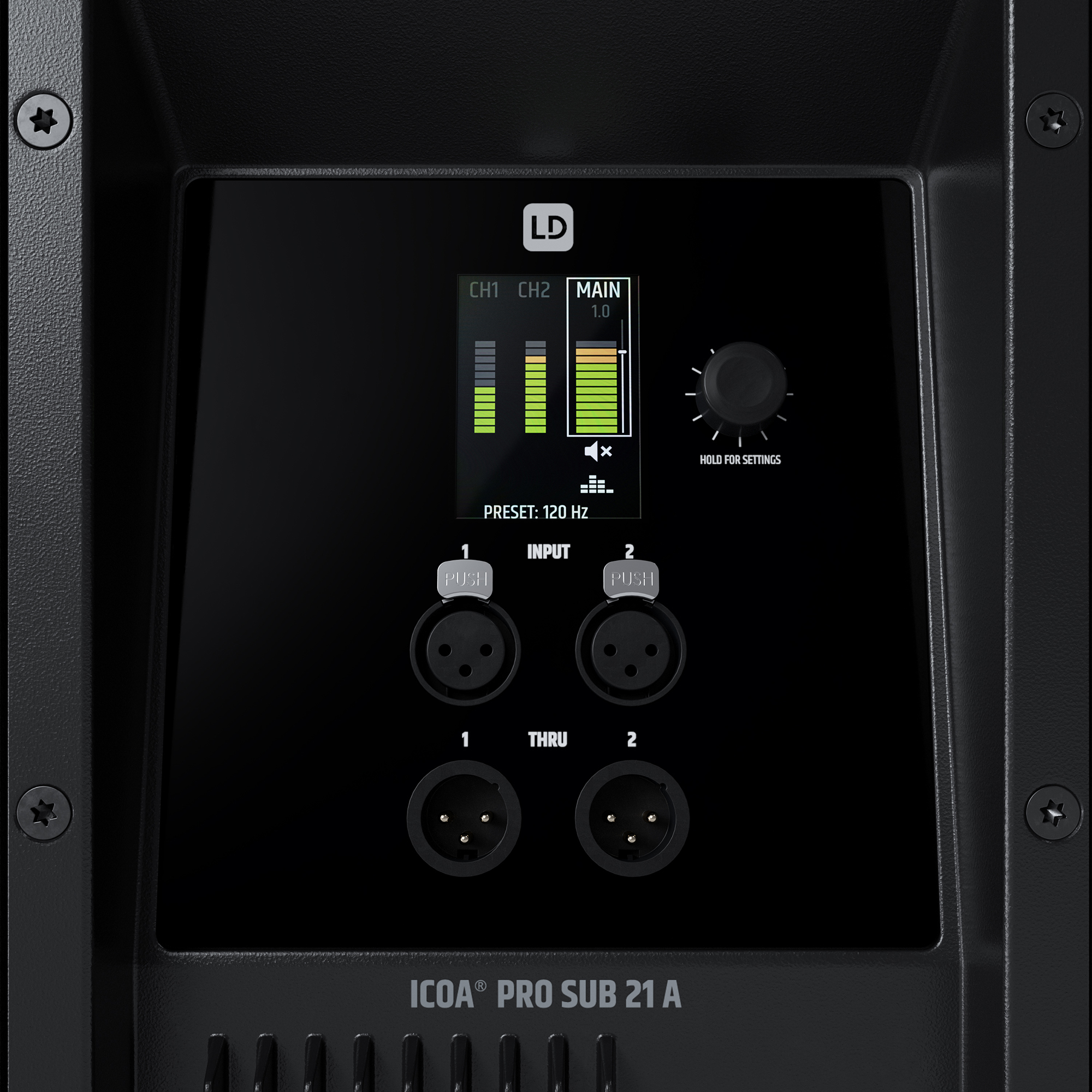

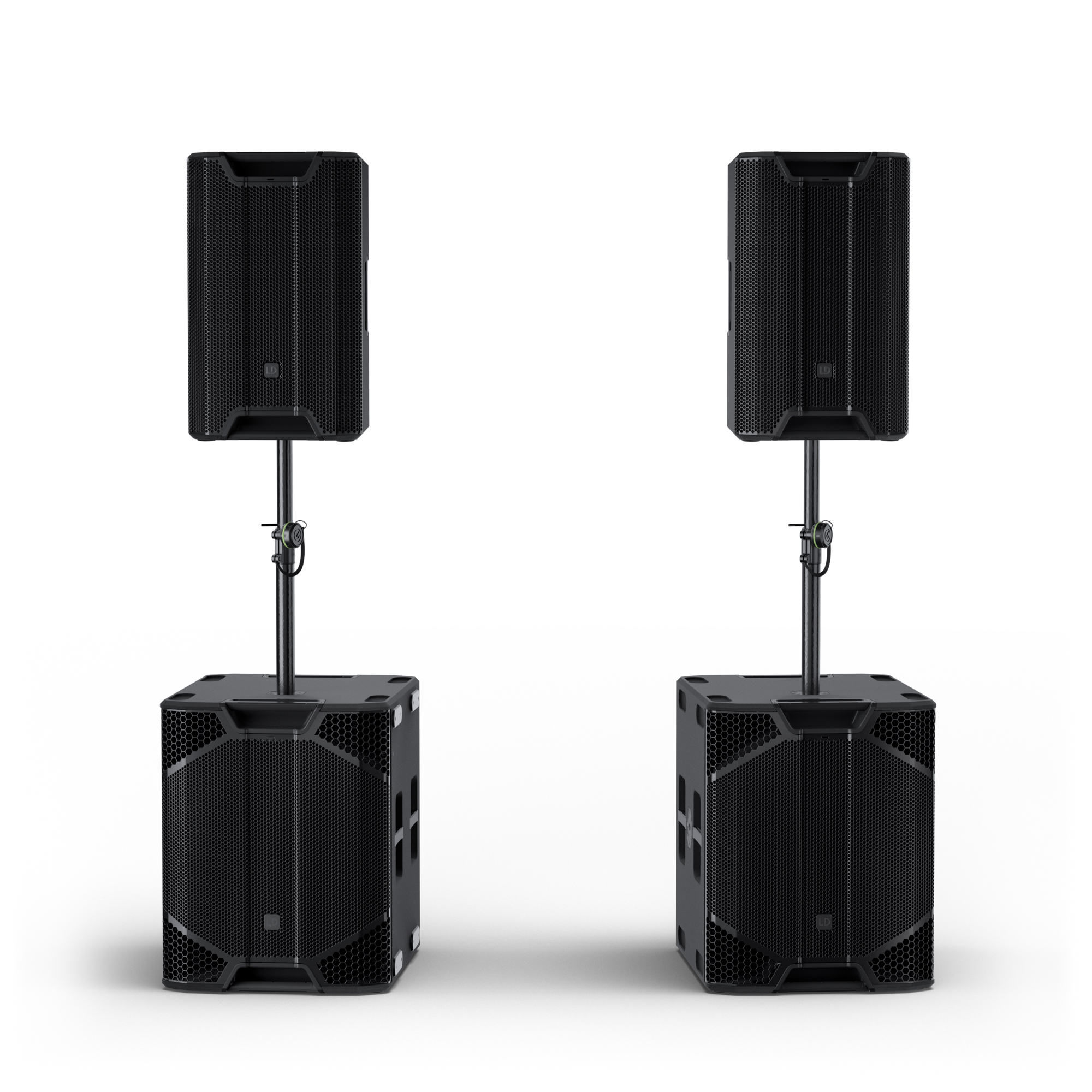

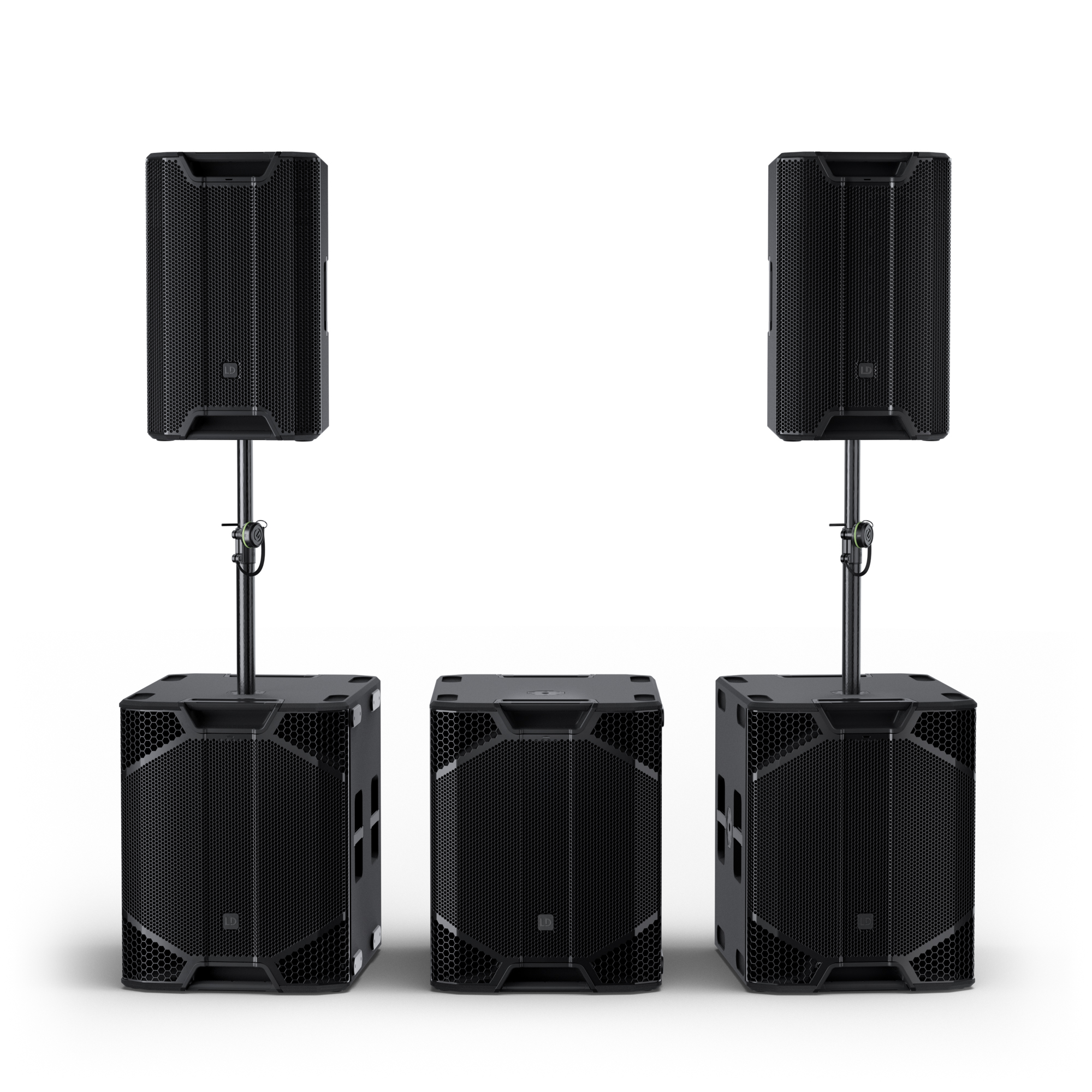

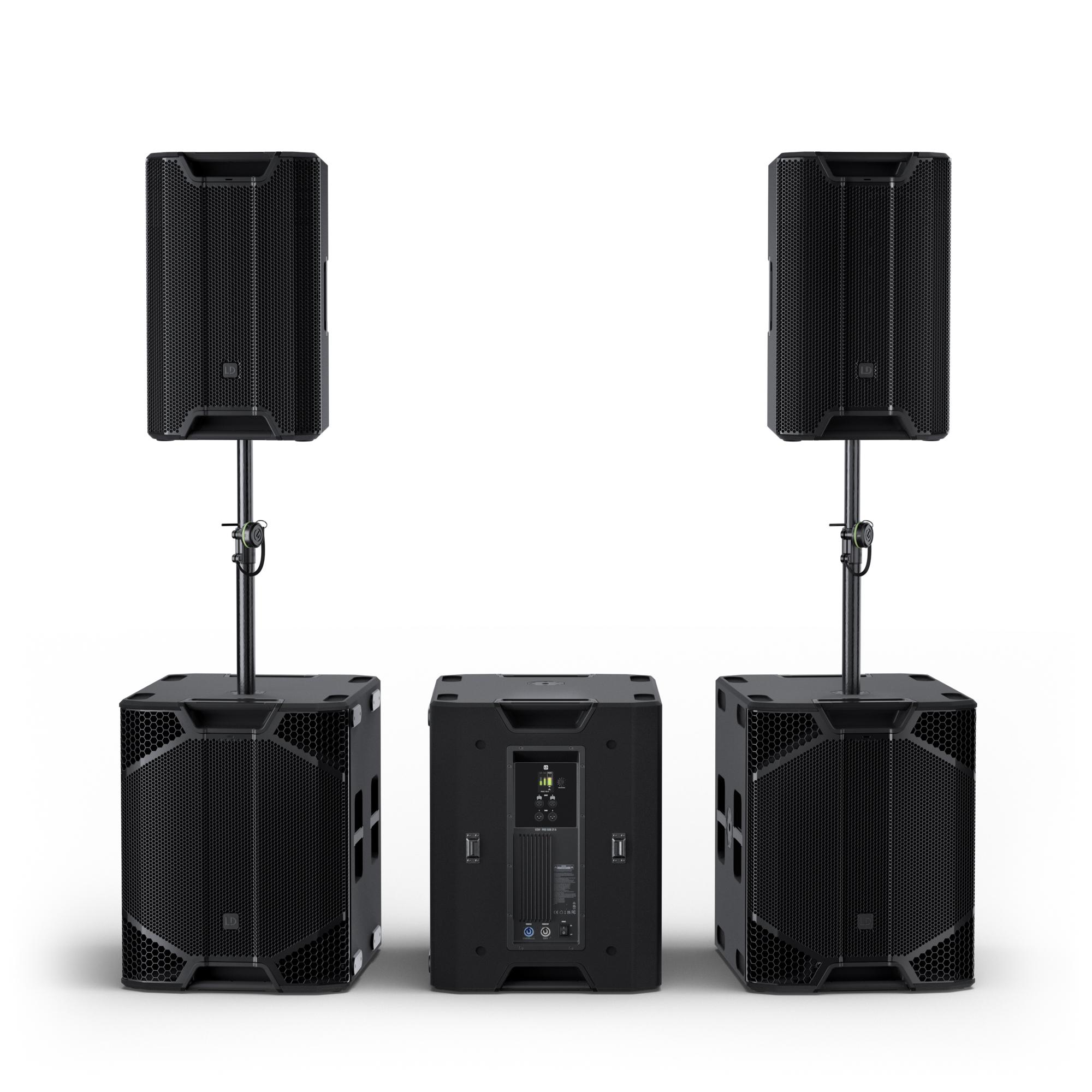

An intuitive menu is navigated using the colour display with one-knob control. Alternatively, the free ICOA PRO app enables all settings to be adjusted quickly and wirelessly, and multiple speakers can be paired with each other. A stereo setup with up to two tops and four subs, including direct music streaming via Bluetooth 5.1 and TWS, can be created and ready for use in the app in just a few seconds. A status LED on the front of the subwoofer enables easy identification and indicates if the limiter is activated.

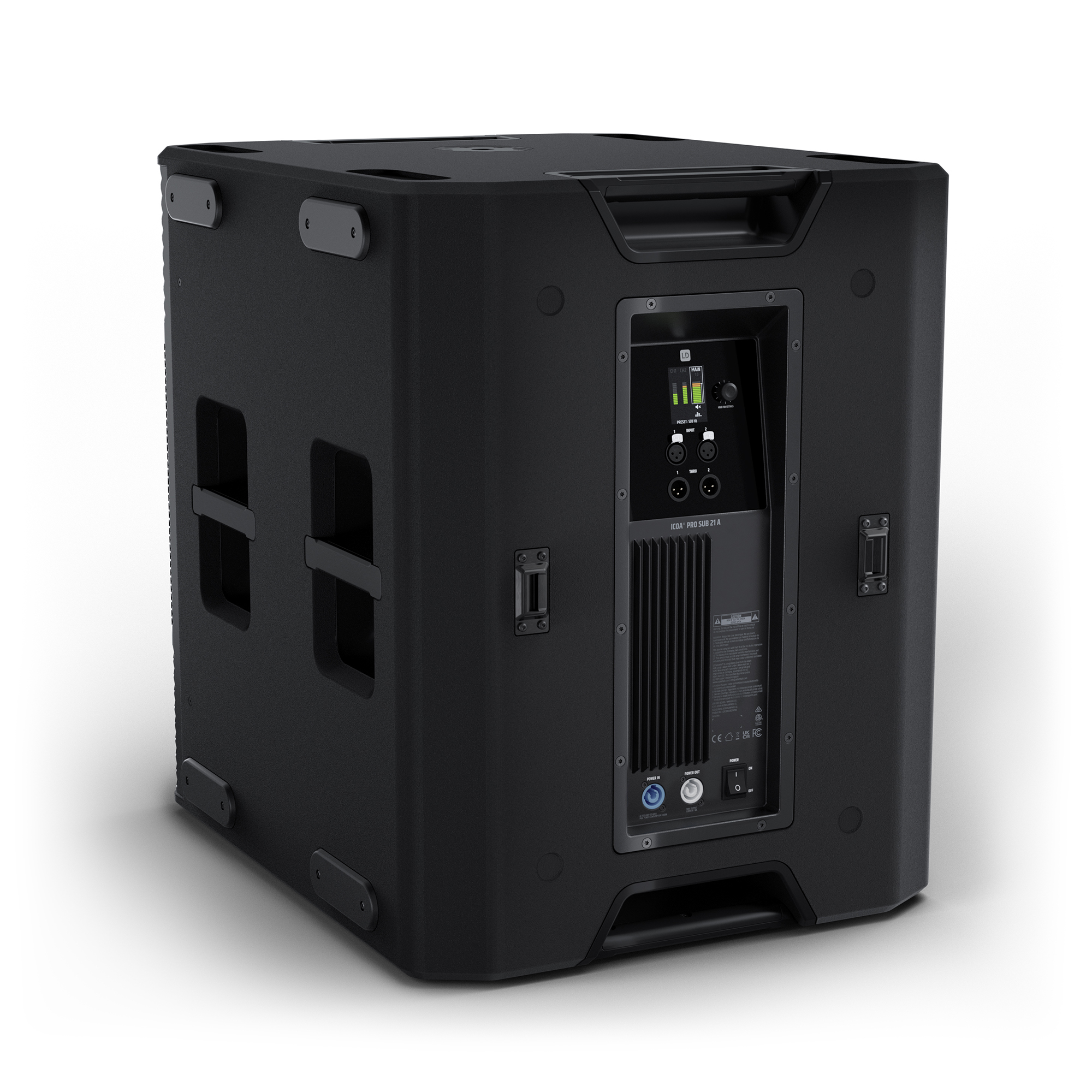

Two XLR inputs, two XLR outputs and a powerCON Loop-Thru connection enable simple system cabling and flexible expansions.

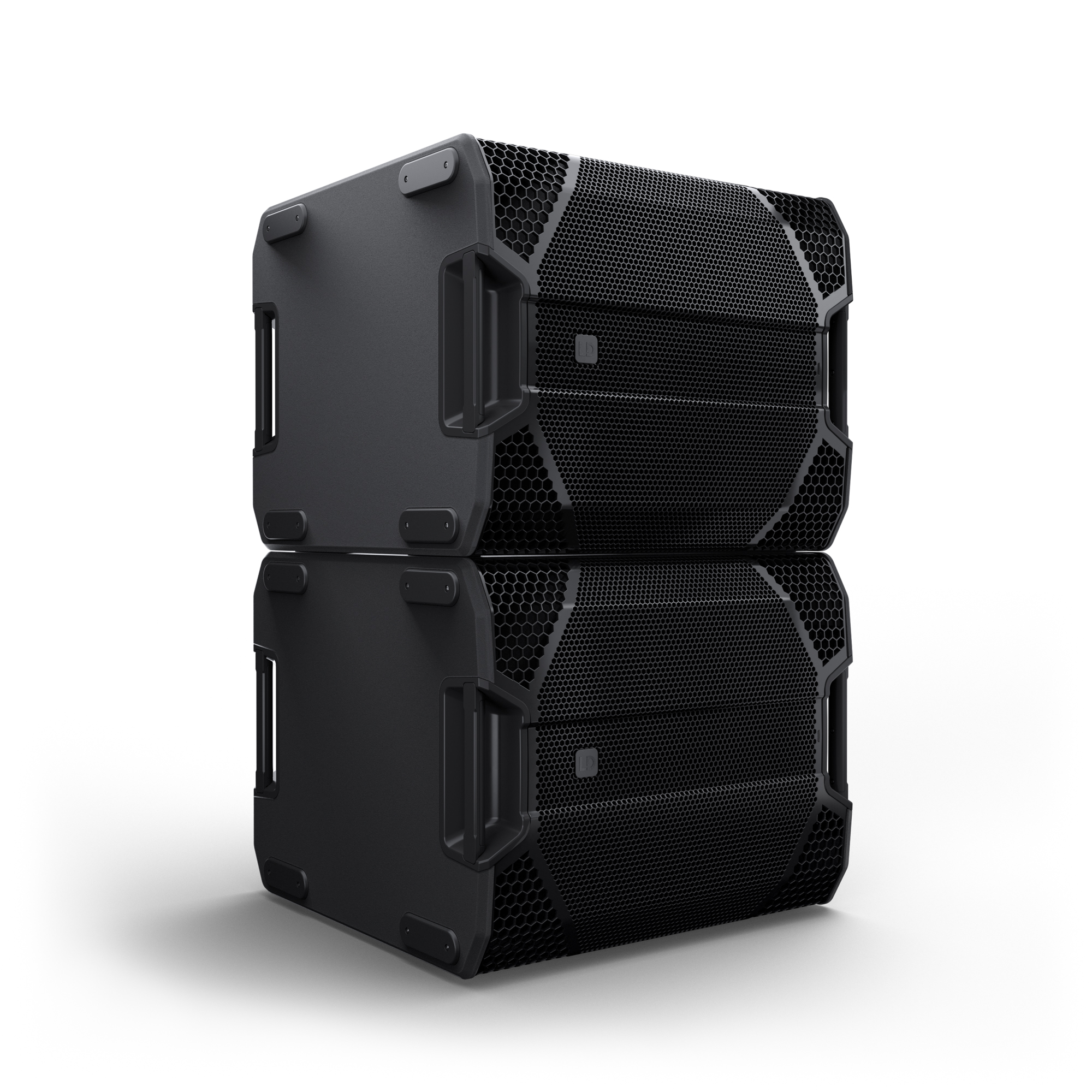

Integrated stacking recesses and two M20 flanges enable this Pro Sub to be safely stacked horizontally or vertically and flexibly built into any setup.

The compact 15−18 mm birch plywood cabinet has been thoughtfully designed with a width of just 562 mm, to fit perfectly into standard vans (Mercedes Sprinter, Fiat Ducato, Ford Transit and VW Crafter) as part of typical transport solutions (Sprinter case/TRANSflex next to subwoofer).

This space-saving design, combined with a robust polyurea coating, makes the ICOA PROSUB21A the ideal choice for touring and installation applications.

Eight ergonomic carrying handles provide a secure grip on all sides and facilitate setup and dismantling. The optional ICOA PRO SUB CB castor board makes long-distance transport considerably easier.

The ICOA PRO SUB 21 A sets new standards with its compact design, powerful low bass performance and state-of-the-art SysCore® DSP. With its impressive "headlining punch", it is the perfect tool for demanding, professional applications such as live events, club installations and mobile DJ setups.

  • 21" high-power bass reflex subwoofer with powerful low-end down to 29 Hz
  • 136 dB max. SPL and 1500 W RMS / 3000 W peak
  • Ultra-strong neodymium motor with 4.5" voice coil for fast and tight response
  • 4-band parametric EQ and 6 application presets (incl. low-latency and cardioid functions)
  • Free app for remote control via smartphone or tablet
  • SysCore® DSP with Advanced limiters incl. temperature and voltage monitoring for maximum reliability
  • Adjustable delay for up to 50 meters
  • 2 x XLR inputs and 2 x XLR-THRU outputs
  • Ultra-robust birch plywood cabinet with polyurea coating and shock-resistant grille
  • 8 Ergonomic handles for easy transport
  • 2 x M20 threads for distance poles in vertical and horizontal setups
  • Securely stackable with 2 x 4 stacking-grooves
  • Front LED indicator (identification, power and limiter)
  • PowerCON loop-through power connection
  • Fanless passive cooling system with airflow-assisted cooling of the electronics
  • Optional accessories: Castor board for easy transport and protective covers
  • Item code: LDICOASUB21APRO
  • Warranty: 2 Years

Easily control your ICOA PRO speakers with the free ‘ICOA PRO’ app. Connect and configure up to two tops and four subs simultaneously and control all functions directly from your smartphone or tablet.

Download the free ICOA PRO App

List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Loudspeaker Type

Active Subwoofer

Output power

3,000 W Peak, 1,500 W RMS

Amp class

Class D

Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %)

133 dB

Max. SPL peak (pink noise, halfspace/1 m, CF 4)

136 dB

Max. SPL average (sine burst, BW, halfspace/1 m, THD≤10 %)

129 dB

Frequency response (-10 dB, rel. Avg)

29 Hz

Protection features

Multiband Limiter, Short circuit, Overheating, Direct current

Bluetooth® version

Bluetooth® 5.1

Features

Audio Streaming (A2DP), TrueWireless™ Stereo, TrueWireless™ Mirroring, App control

Bluetooth audio decoder

SBC, AAC

Mic/line inputs

2 x XLR 3-pole female

Line outputs

2 x XLR 3-pole male

Signal processing

AD/DA converter bit depth: 24 Bit, AD/DA converter sampling rate: 48 kHz, Min. Signal-to-noise ratio (SNR): 108 dB

Bass driver

Size: 21 in, Outer diameter: 547mm, Magnet: Ferrite, Voice coil: 3 in

Tweeter

Driver size: 3 in, Outlet diameter: 36.68mm, Magnet: Neodymium, Voice coil: 4.5 in

Mains operation voltage

100 V AC - 240 V AC / 50 - 60 Hz

Rated power

1300 W

Housing Design

Bass reflex, 8 handles

Flange

M20

Chassis material

Birch Multiplex with Polyurea coating

Cooling system

Convection cooling

Colour

Black

Dimensions: Width x Height x Depth

565.5 mm x 700 mm x 698.8 mm

Weight

57 kg
