LD Systems ICOA PRO 12 A

12" Powered Pro-Sound Speaker | 1000W RMS | Bluetooth 5.1 receiver | Rotatable, BEM-optimised horn | Wireless App control | SysCore DSP with FIR/IIR filters | 2 x mic/line inputs | Mix out | 'Truewireless' Stereo

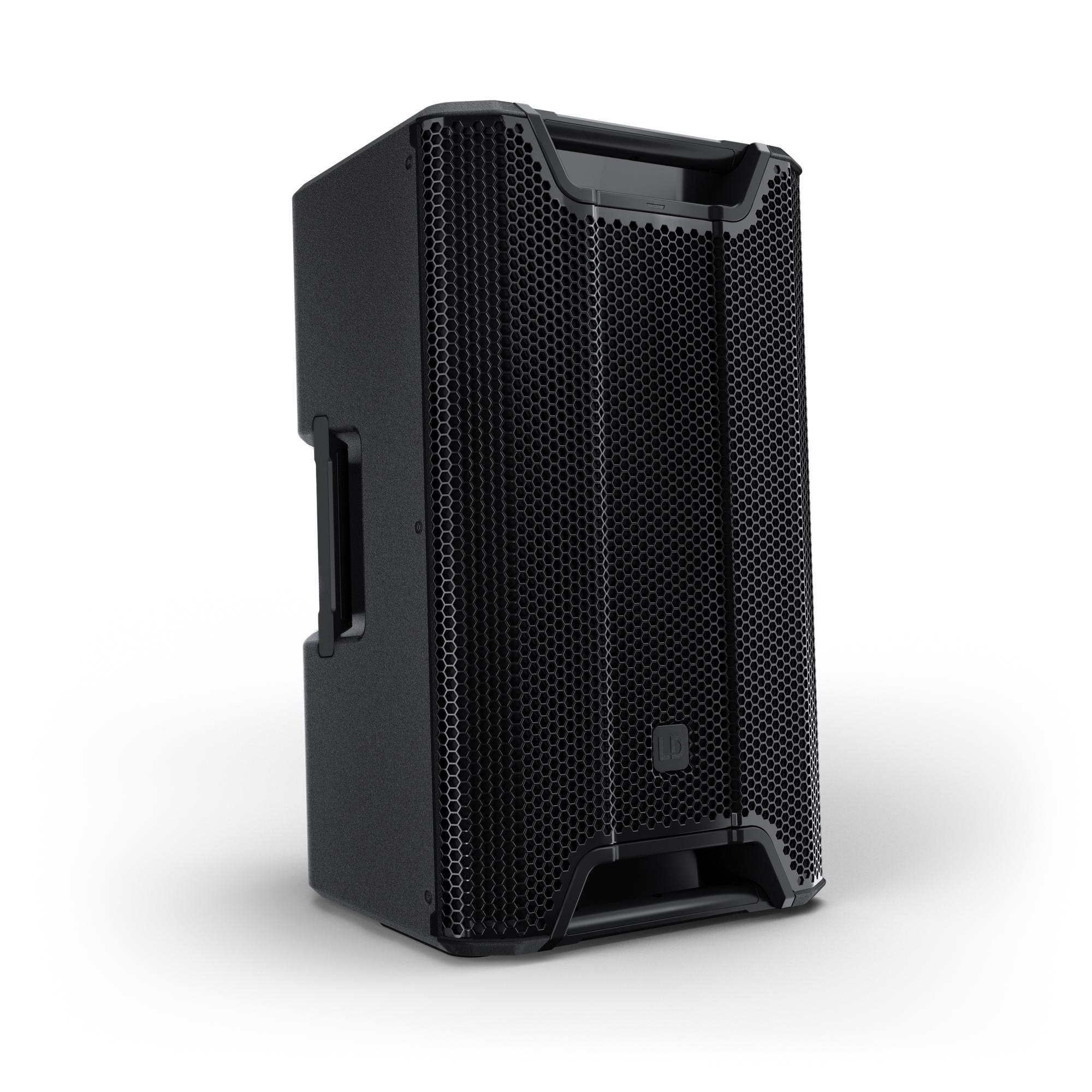

The LD Systems ICOA PRO 12 A is a compact 12” active Pro-sound loudspeaker with the sonic precision of a true coaxial system. The built-in, Bluetooth 5.1 compatible, Class D amplifier delivers up to 1000 W RMS (2000 W peak) and 133 dB max. SPL, ensuring sufficient headroom when powerful, distortion-free sound is required.

The coaxial design combines a specially manufactured 12ʺ woofer with a 3ʺ voice coil and 3ʺ titanium tweeter to create an authentic point source. The common motor design used also ensures the audio signal's improved coherence and time accuracy. The result is a particularly natural and detailed playback.

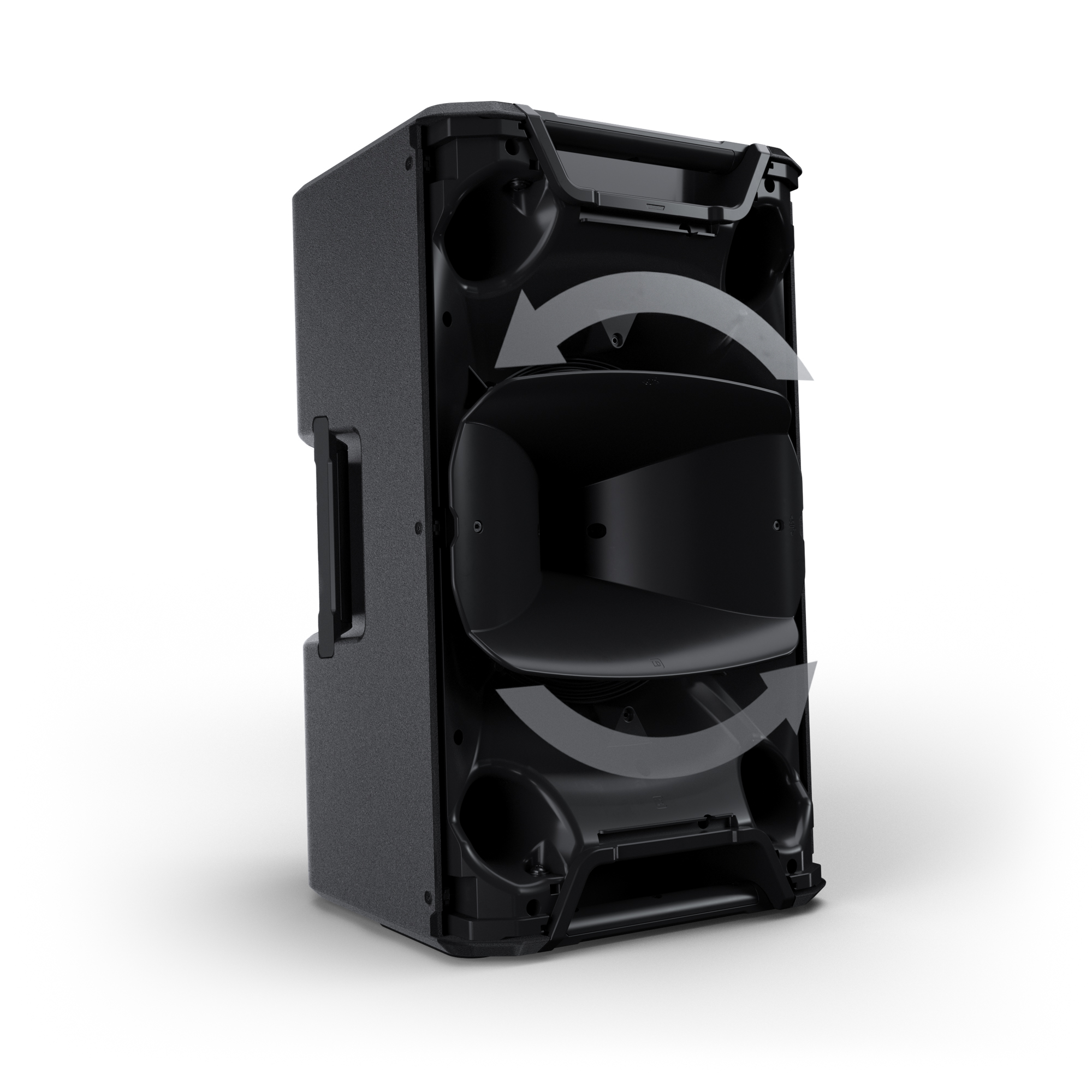

The rotatable, BEM-optimised horn ensures precise dispersion characteristics and simultaneously provides horn loading for the woofer and tweeter. This double horn loading allows the sound waves to be precisely focused deep into the mid-range (approx. 600 Hz) and offers a decisive advantage in acoustically demanding environments, as the sound energy arrives exactly where it is needed.

With flow-optimised bass reflex ports, the ICOA PRO 12 A delivers a solid low end up to 53 Hz completing it’s impressive full-range experience.

The modern SysCore DSP with FIR/IIR filters and advanced limiters guarantees distortion-free sound and safe operation with maximum clarity and punch – even at the limits.

Two line/mic input channels and an XLR mix tap enable various signal sources to be connected and forwarded.

Four application presets (including a low-latency monitor), delay function, and parametric 4-band EQs for the input and master channels enable precise settings.

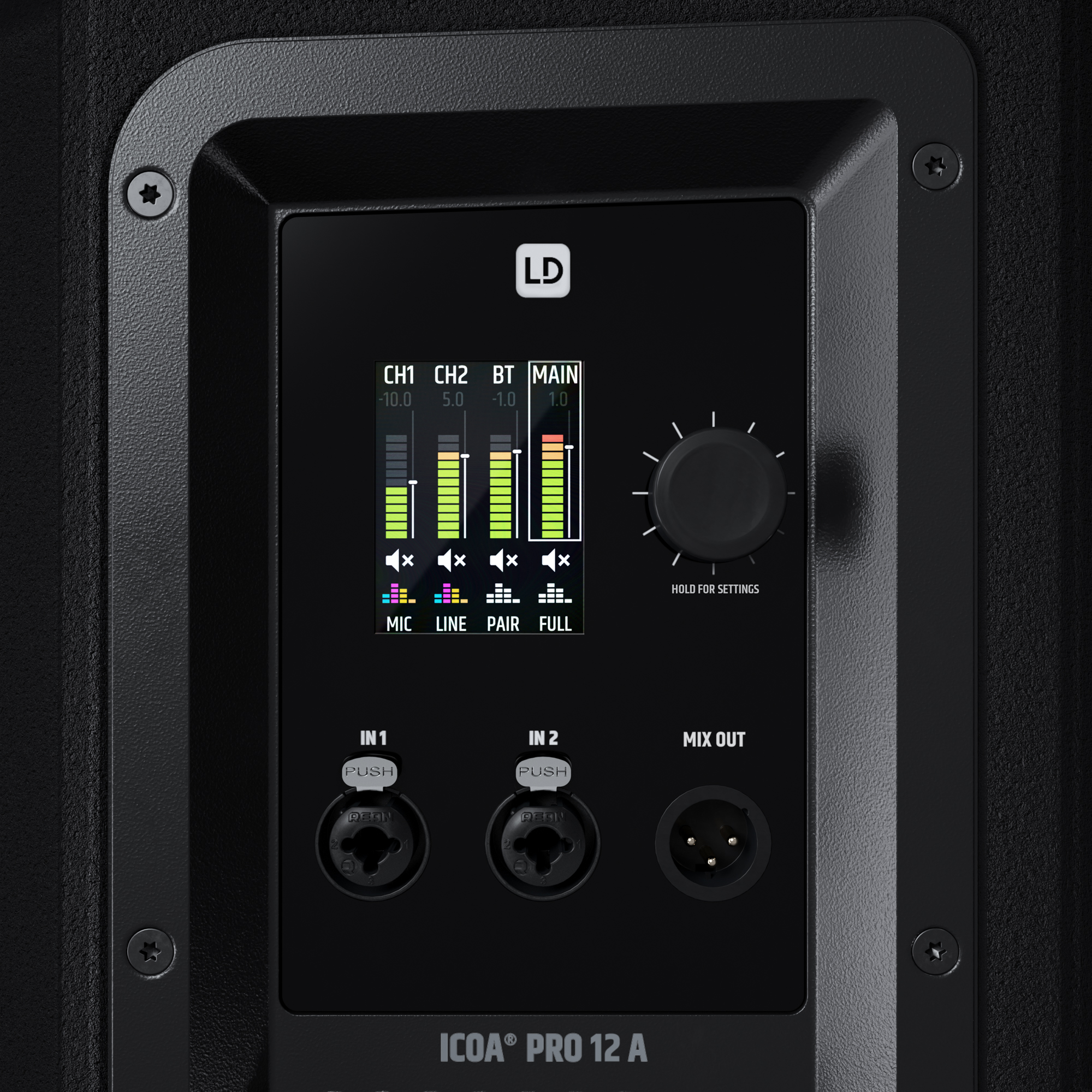

An intuitive menu is navigated using the colour display with one-knob control. Alternatively, the free ICOA PRO app enables all settings to be adjusted quickly and wirelessly, and multiple speakers can be paired with each other. A stereo setup with up to two tops and four subs, including direct music streaming via Bluetooth 5.1 and TWS, can be created and ready for use in the app in just a few seconds. A status LED on the front of the subwoofer enables easy identification and indicates if the limiter is activated.

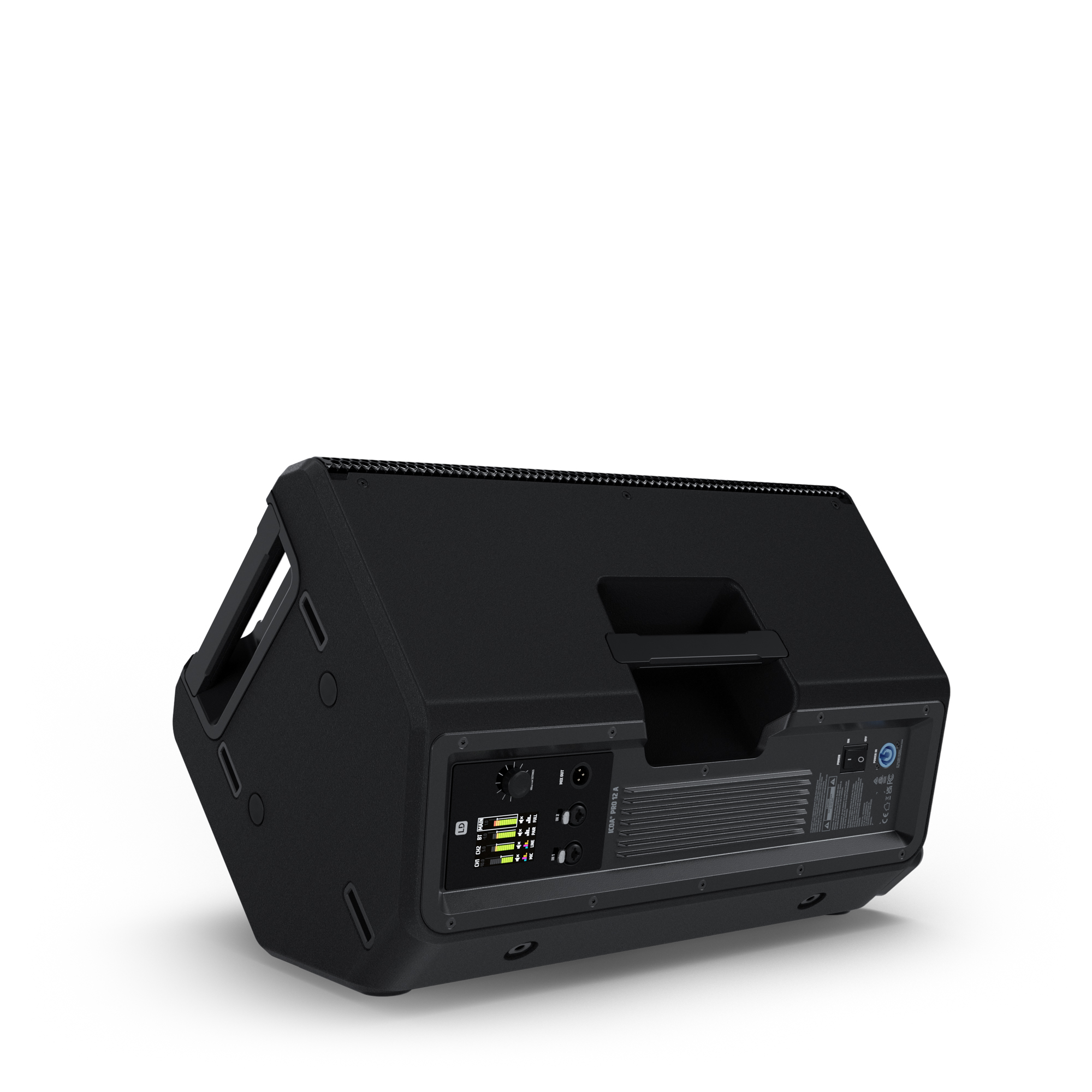

The robust ABS cabinet with steel reinforcement, sturdy front grille and 50° tilt angle make the ICOA PRO 12 A an excellent floor monitor. Four ergonomic carrying handles also ensure a secure grip while setting up and dismantling.

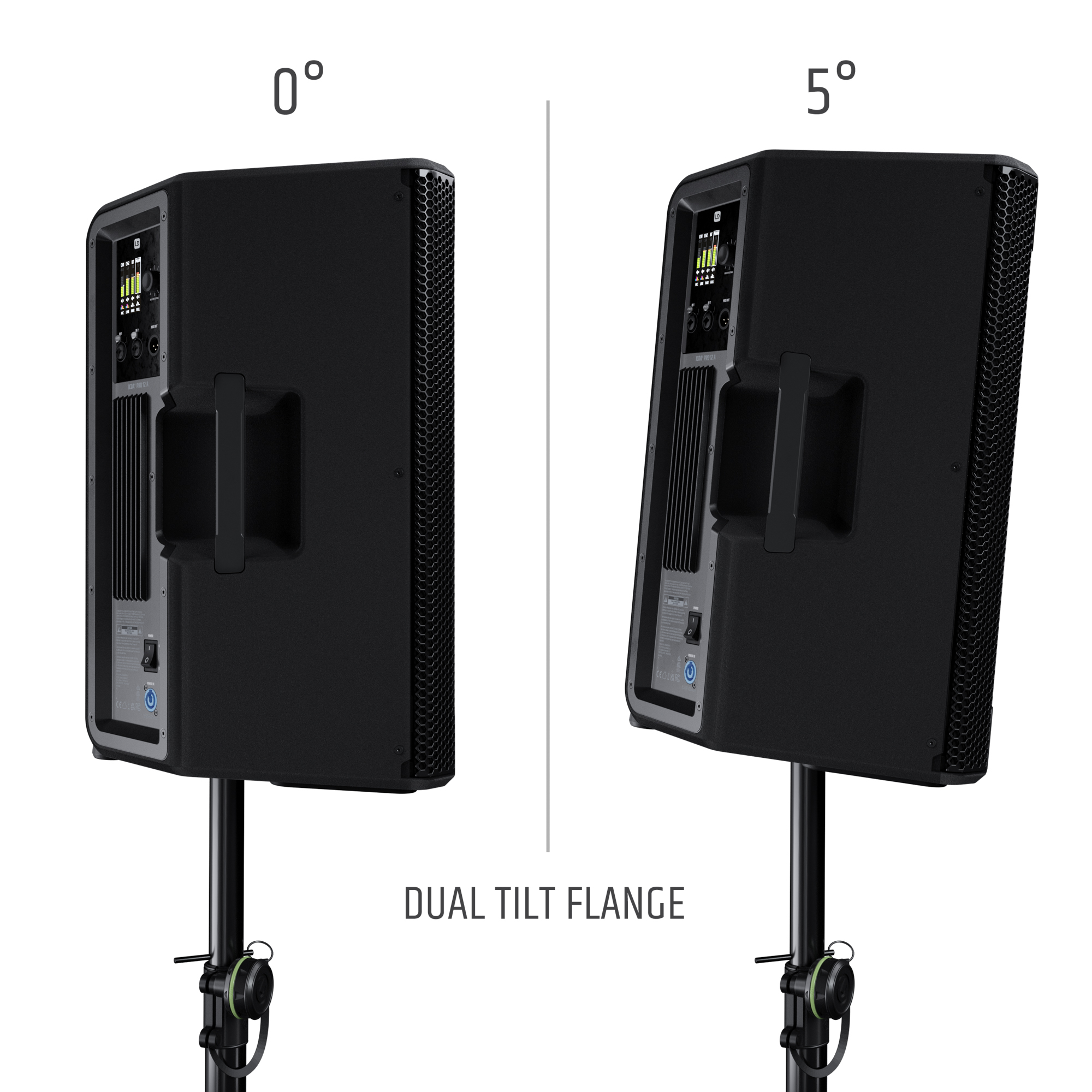

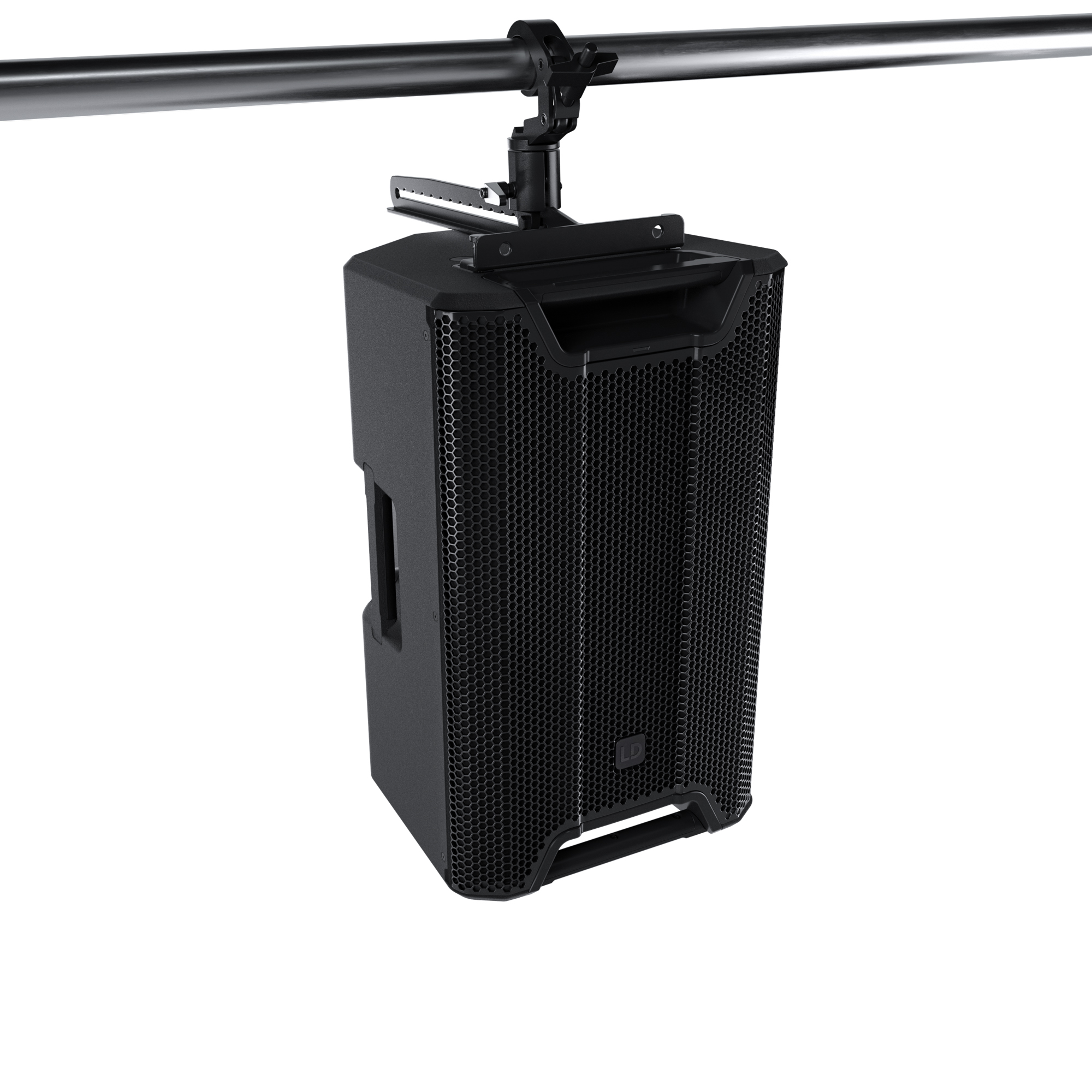

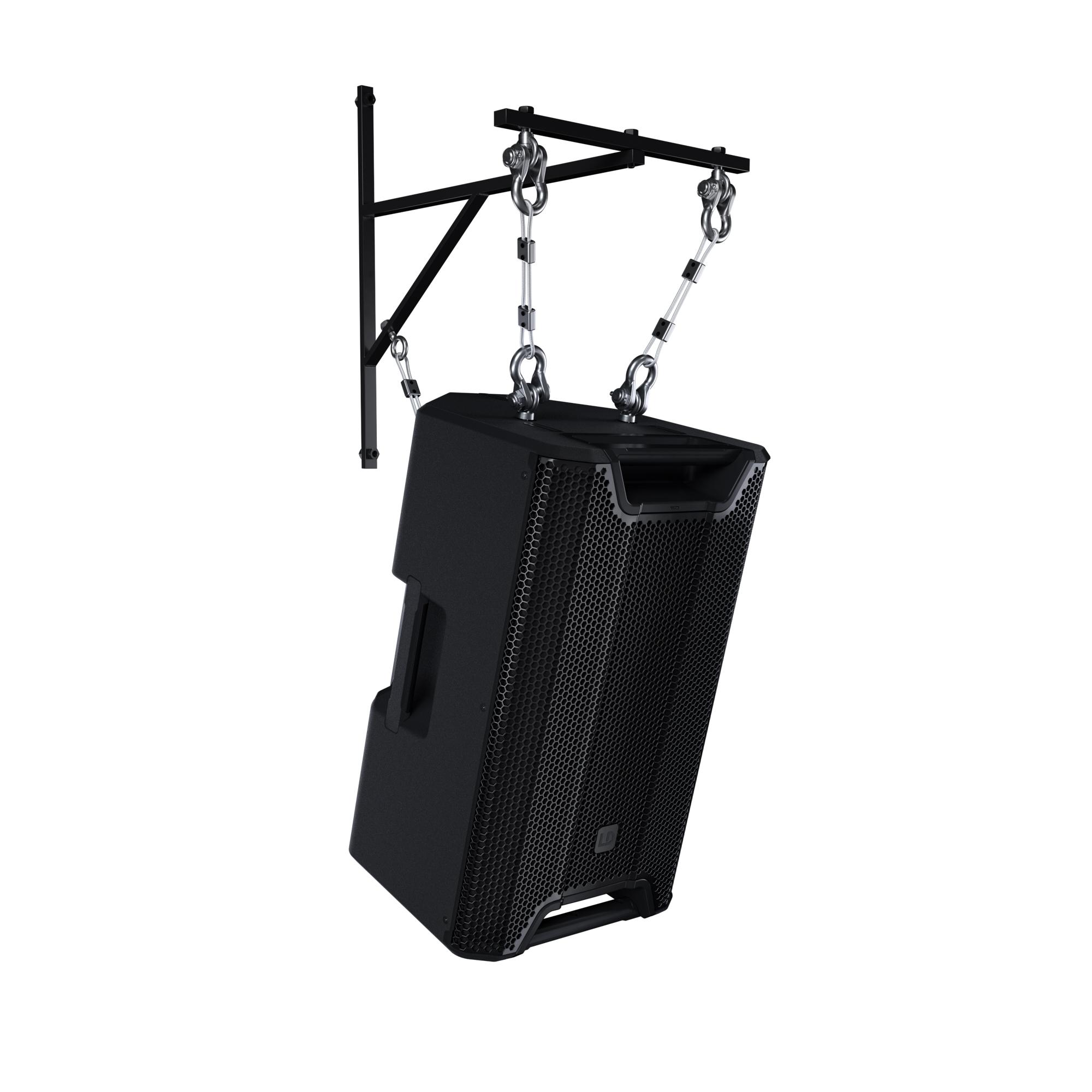

When used with a tripod stand, a tilt angle of 0° or 5° can be selected. The rotatable horn and the multiple mounting options, including 6 × M10 flying points and EasyMount truss mount, enable horizontal or vertical placement for ultimate flexibility.

The professional full-range performance and robust design of the highly versatile ICOA PRO12A makes it ideal for a wide range of applications, from club gigs to live events and permanent installations.

Padded, water-repellent custom-fit protective covers with additional storage space are available as accessories for safe use and transport.

  • High-power loudspeaker with premium components for full-range, satellite, monitor, and integrated applications
  • 133 dB max. SPL and 1000 W RMS / 2000 W peak
  • Coaxial design with common motor for a true point source
  • 12" woofer with 3" voice coil and 3" titanium HF driver
  • Large, rotatable, BEM-optimised CD horn with 800 Hz crossover for homogeneous 90° x 50° dispersion
  • Flow-optimised bass reflex ports for outstanding full-range performance
  • SysCore® DSP with FIR/IIR filters and crossover for distortion-free sound, even at maximum volume
  • 2 x line/mic inputs with individual gain control, plus 1x mono mix output

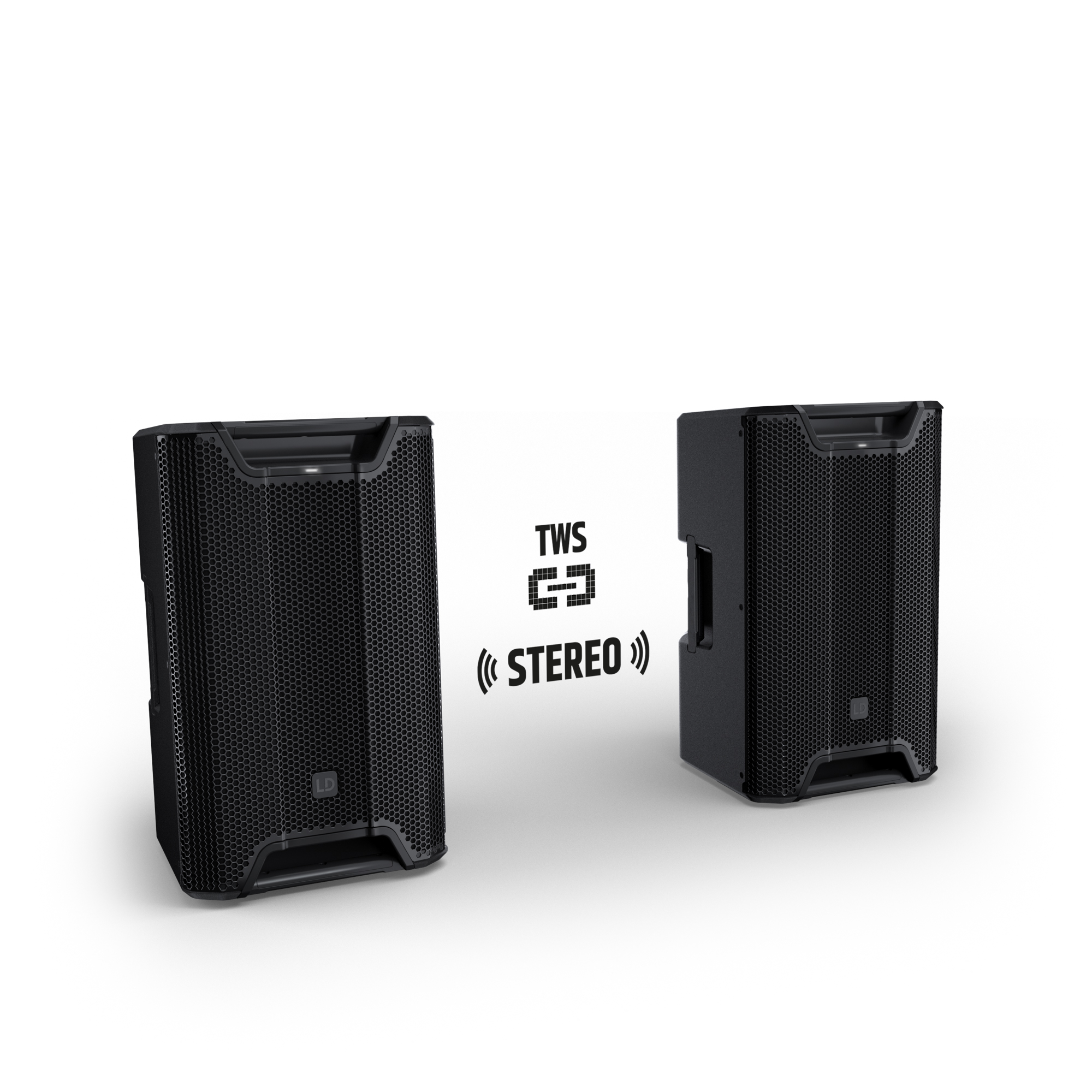

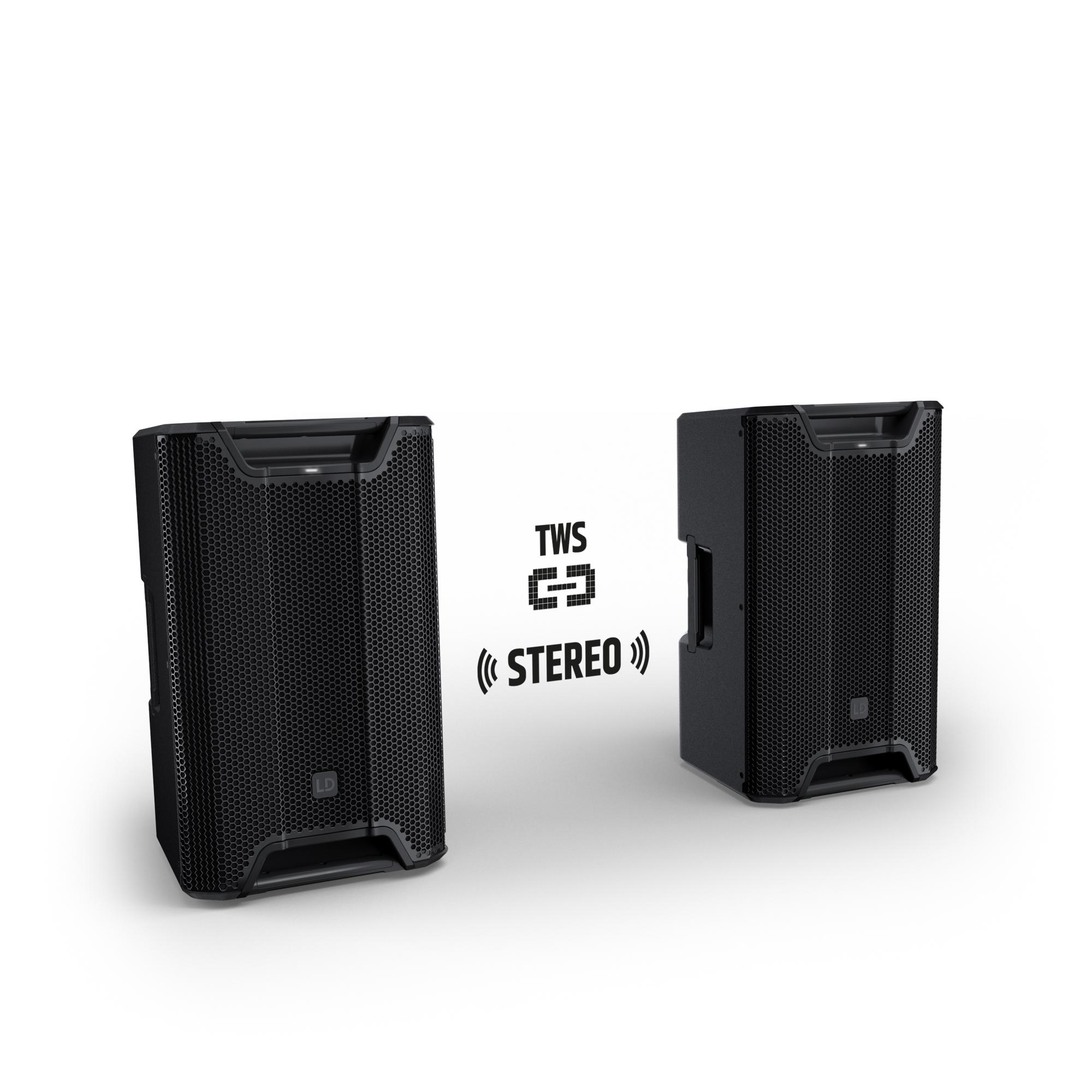

  • Bluetooth® 5.1 and stereo streaming (TWS) with two ICOA PRO 12 A
  • Free app for remote adjustments via smartphone and tablet (iOS and Android)
  • 4-band parametric EQ, 4 application presets (incl. low-latency monitor) and delay function
  • EasyMount® compatible for tool-free mounting, as well as 6 x M10 rigging points
  • 35 mm dual-tilt stand attachment with 0° and 5° tilt angles
  • Ultra-robust ABS housing with integrated steel construction and a shock-resistant grille
  • Front LED indicator (identification, power and limiter)
  • Extensive, optionally available accessories for outdoor use, installation and transport
  • Item code: LDICOA12APRO
  • Warranty: 2 Years

Easily control your ICOA PRO speakers with the free ‘ICOA PRO’ app. Connect and configure up to two tops and four subs simultaneously and control all functions directly from your smartphone or tablet.

Download the free ICOA PRO App

List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Loudspeaker Type

Active

Output power

2,000 W Peak, 1,000 W RMS

Amp class

Class D

Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %)

127 dB

Max. SPL peak (pink noise, fullspace/1 m, CF 4)

133 dB

Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %)

118 dB

Frequency response (-10 dB, rel. Avg)

50 - 20,000 Hz

Speaker system

2-way coaxial system (Common Motor Design)

Crossover frequency

800 Hz

Beam angle

90° (hor.) / 50° (vert.)

Monitor angle

50 °

Protection features

Multiband Limiter, Short circuit, Overheating, Direct current

Bluetooth® version

Bluetooth® 5.1

Features

Audio Streaming (A2DP), TrueWireless™ Stereo, TrueWireless™ Mirroring, App control

Bluetooth audio decoder

SBC, AAC

Mic/line inputs

2 x XLR combo socket

Line outputs

1 x XLR

Signal processing

AD/DA converter bit depth: 24 Bit, AD/DA converter sampling rate: 48 kHz, Min. Signal-to-noise ratio (SNR): 108 dB

Bass driver

Size: 12 in, Outer diameter: 312.3 mm, Magnet: Ferrite, Voice coil: 3 in

Tweeter

Driver size: 3 in, Outlet diameter: 36.68 mm, Magnet: Ferrite, Voice coil: 3 in

Mains operation voltage

100 V AC - 240 V AC / 50 - 60 Hz

Rated power

650 W

Housing Design

Bass reflex, 4 handles, 6 mounting points

Flange

35 mm (0°/5°)

Chassis material

ABS

Cooling system

Convection cooling

Colour

Black

Dimensions: Width x Height x Depth

376 mm x 627.8 mm x 393.6 mm

Weight

23.1 kg
