Signet APXM/M

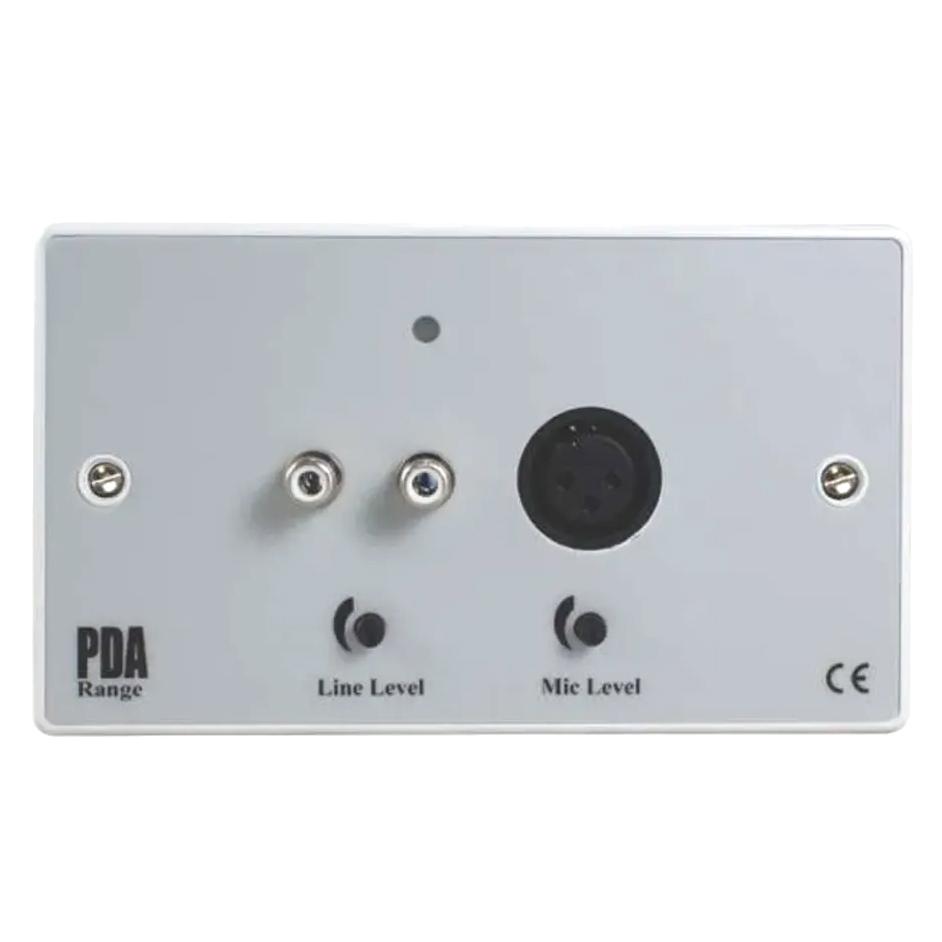

The SigNET APXM/M Outreach plate provides an XLR microphone input socket and twin Phono line level inputs on a double gang electrical style faceplate.
The APXM/M is part of the SigNET range of Outreach plates which can be used to extend the functionality of your audio frequency induction loop system (AFILS).
Mounts onto a standard 25mm depth UK 2 gang back box.
Each plate features a built-in mixer, pre-amp, input level control and balanced output for connection to any of the SigNET PDA range of induction loop amplifiers. Fitting at the most convenient point on an installation overcomes the need for long and potentially hazardous microphone/audio leads.
Typically, up to 10 Outreach plates (any mix) can be daisy-chained to one balanced line level input with cable lengths of up to 100m easily achievable using standard two-pair audio cable with no recognisable degradation of audio signal quality.
- Combines the functions of an APXM microphone Outreach plate and an APL dual phono Outreach plate in one double gang device.
- Accepts balanced or unbalanced microphones with standard 3 pin XLR connectors AND dual phono line level inputs.
- Gives a more attractive appearance than separate, side-by-side, single gang Outreach Plates.
- Counts as one of the total of ten plates permitted as part of C-TEC’s patented ‘Outreach Plate’ audio input extension system.
- Compatible with C-TEC’s entire range of PDA102, 200E, Pro-range and ML1 induction loop amplifiers.
- Can be connected to any third-party audio or induction loop amplifier using an APV 24V 250mA power supply.
- Mounts on a 25mm standard UK double gang back box.
- Warranty: 18 Months
Each plate requires four wires; two balanced line (Line/A +, Line/A –), one ground (GND) and one power connection (V+ = 12-32V d.c.).
