LD Systems XS200
Click to expand

LD Systems XS200

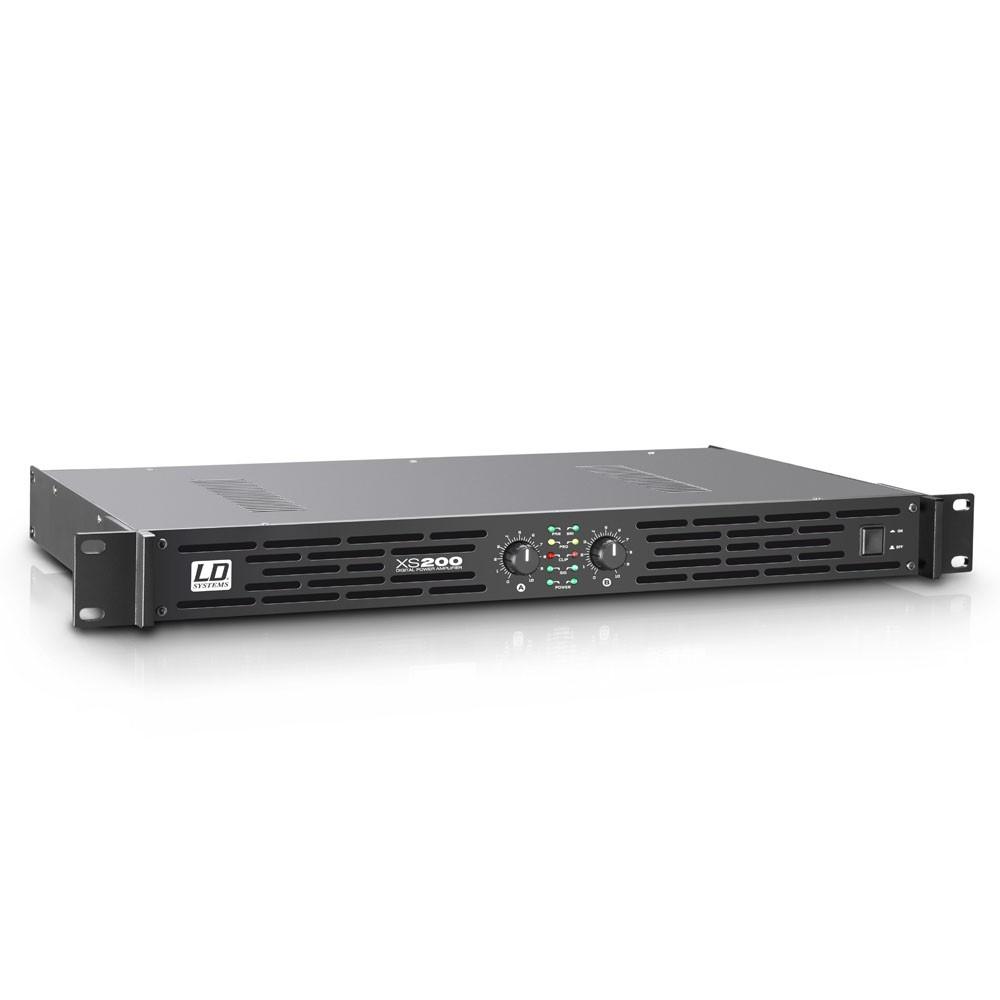

The LD Systems XS200 Power Amplifier is a two channel, low impedance power amplifier with an output of 100W per channel at 4 ohms or 200W in 8-ohm bridged mode.

The Class D design of the XS200 enables a high performance from a slimline, rack mountable, 1U chassis. Lightweight to transport, its ideal for mobile use as well as permanent installation.

Protection circuits are provided against short-circuiting, DC, overheating, and overloading and it has a soft-start delay.

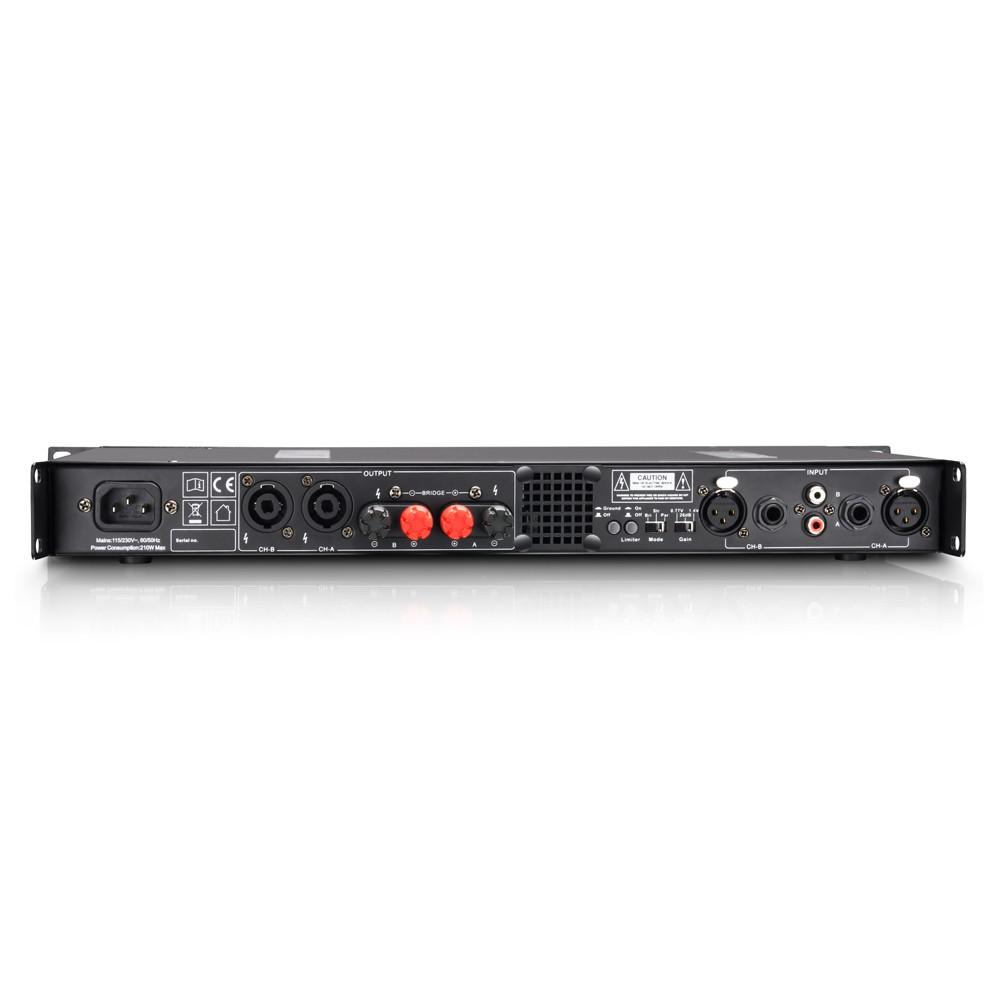

Amplifier inputs are XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs.

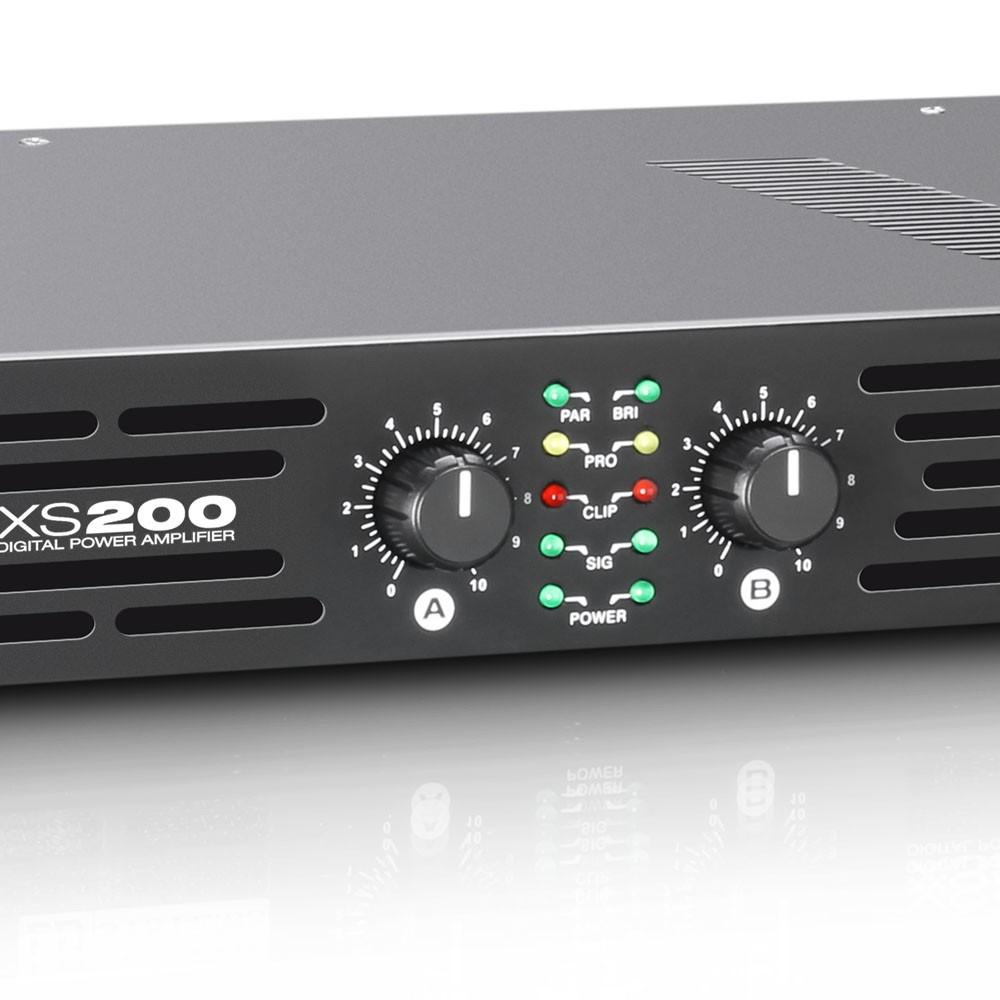

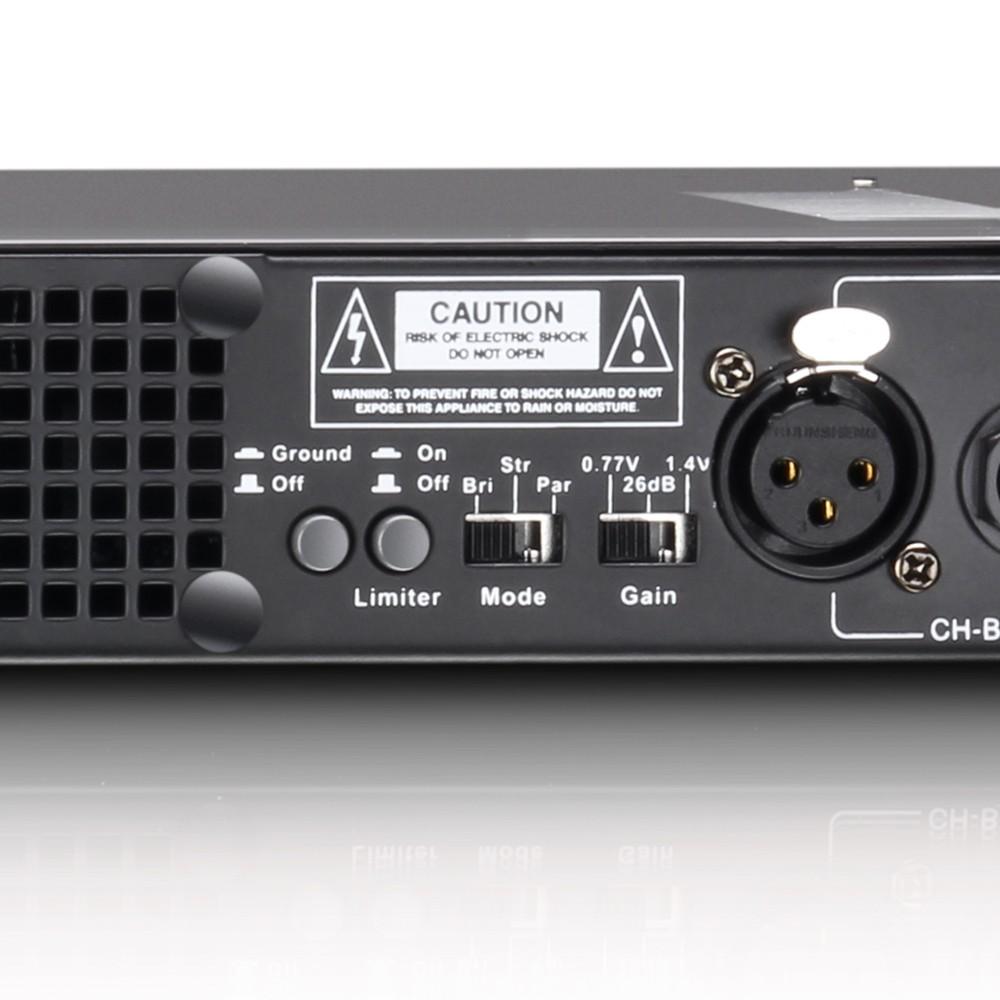

Mode of operation, limiter, ground lift and gain control switches can be found on the rear and LEDs on the front panel indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation.

  • Warranty: 2 Years
multi-ch 4ohms 8ohms 1U
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated output power

(1kHz @ 4 Ohms) 2 x 100 W

(1kHz @ 8 Ohms) 2 x 50 W

(1kHz @ 8 Ohms, bridged) 200 W

Output circuitry

Class D

Frequency response (Hz)

20 - 20000

Protection circuits

DC, over-current, short circuit, soft start, thermal overload

Controls

Gain, ground lift, limiter, Mode, On / Off, volume

Indicators

clip, Mode, Power, Protect (protection circuit engaged), Signal

Line inputs

2: 6.3 mm jack, RCA

Loudspeaker outputs

2: Speakon compatible, Terminal posts

Cooling

low-noise fan

Operating voltage

Switching power supply

Operating voltage

115 V AC / 230 V AC (switchable)

Width x Height x Depth

482 mm x 44 mm x 244 mm

Weight

3.0 kg
