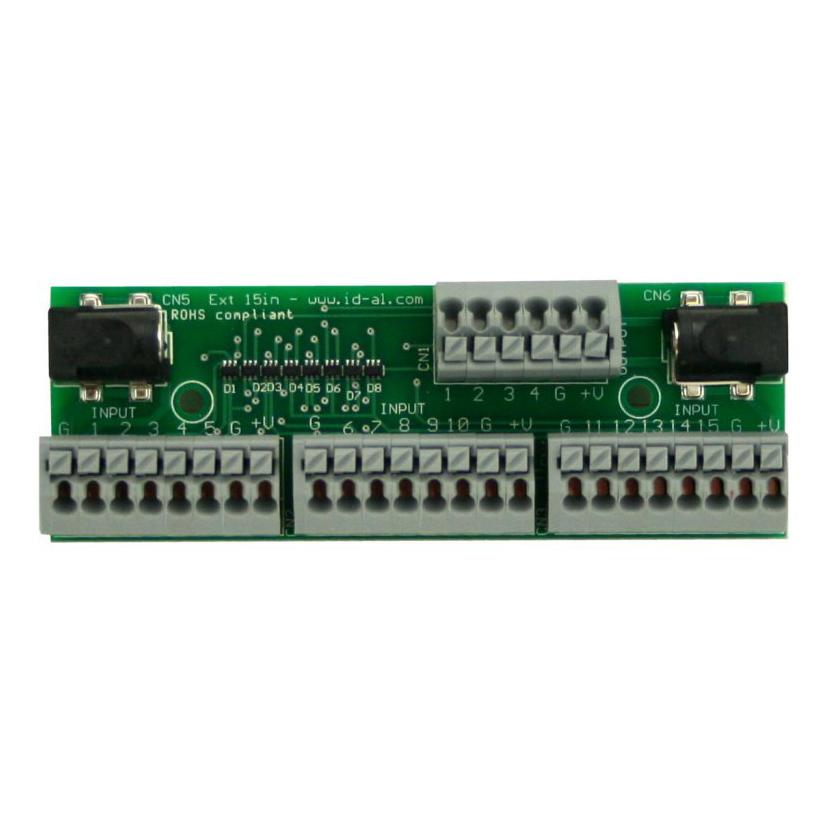

Waves System EXT15IN
The Waves System EXT15IN 15-input expansion card extends the number of inputs available from 4 to 15.

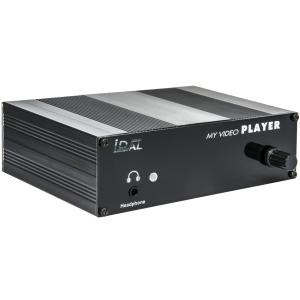

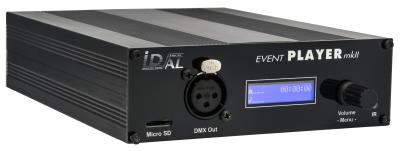

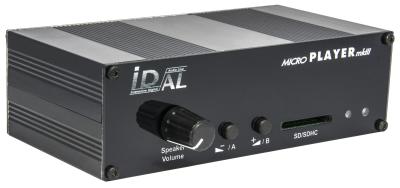

It is compatible with MicroPlayer / EventPlayer / ChronoPlayer / My Video Player (VP320 / VP330) and for all products that have a combination of inputs.
Facilitates wiring by transforming 4 binary inputs into 15 independent inputs.
The card does not need to be powered.
A power connector is provided to defer power to the player to other devices if needed.
- 15 input contacts on terminal block. 3 part of 5 contacts +
- GND + Power supply report
- Combination of 15 inputs into 4 binary outputs
- MicroPlayer, EventPlayer, My Video Player compatible
- The card does not require power
- Size: 91 x 32 mm
