Adastra CC5V (952.184)

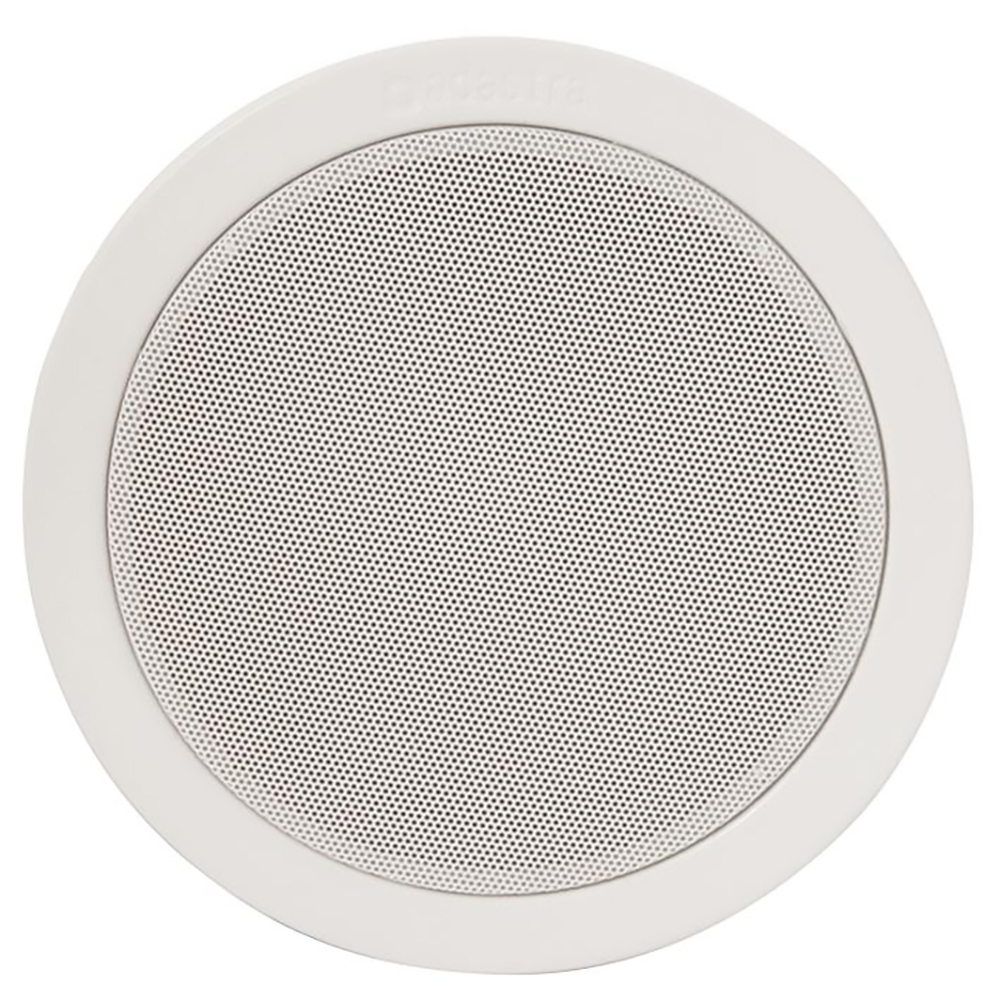

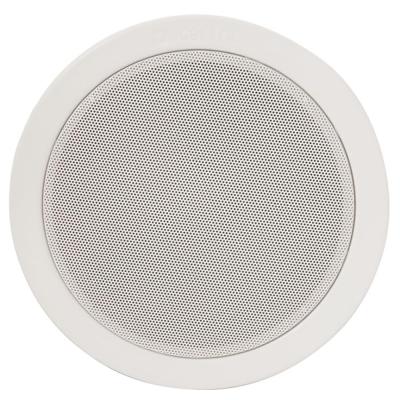

The Adastra CC5V (952.184) 2-way quick-fit, flush mount ceiling speaker is fitted with a PP mica bass driver and directional dome tweeter for excellent frequency response, all housed in a white polymer frame with metal grille.

Clearance line - limited stock. Please call for up to date availability.

Rated at 20 watts RMS, 100 Volt line or 40 watts RMS at 8 Ohms.

A rotary selector switch is provided for 100V line tappings or 8Ω.

Fitted with ‘dog-ear’ mounts for fixing to ceiling tiles 1-20mm in thickness and spring loaded terminals for easy connection.

100V 8ohms
List Ex VAT: £5.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency response

85Hz - 20kHz

Woofer

133mmØ (5.25")

Tweeter

38mmØ (1.5")

Power rms : 100V line

20W

Power rms : 8 Ohms

40W

Cutout

166mmØ

Mounting depth

84mm

SPL @ 1W/1m

84dB (±2dB)

Tappings

2.5, 5, 10, 15, 20W & 8 Ohms

Dimensions

88 x 202mmØ

Weight

1.15kg

Power max. : 8 Ohms

80W

Dispersion angle

160°

DOWNLOADS

Adastra CC5V (952.184) Datasheet
