Cloud Electronics CVS-C52TW
Click to expand

Cloud Electronics CVS-C52TW

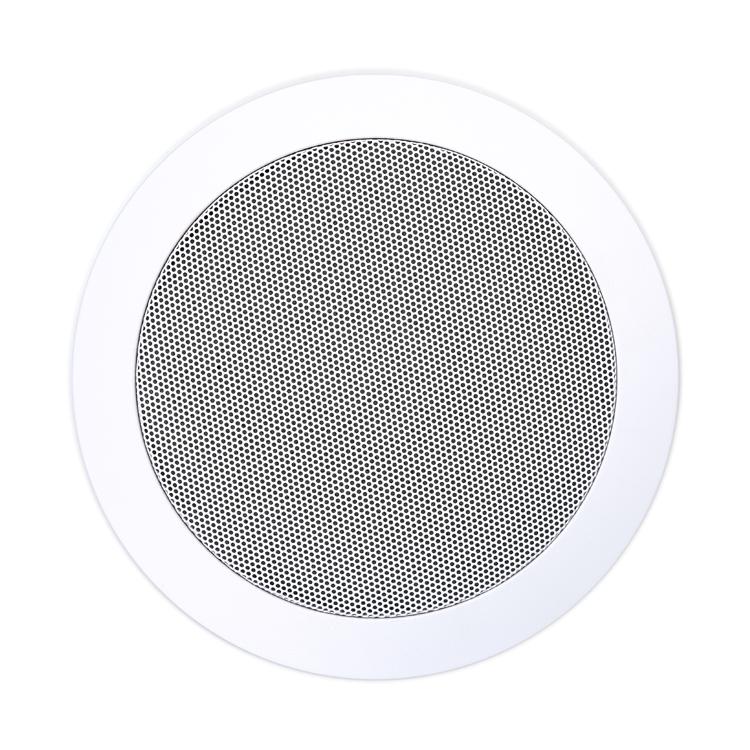

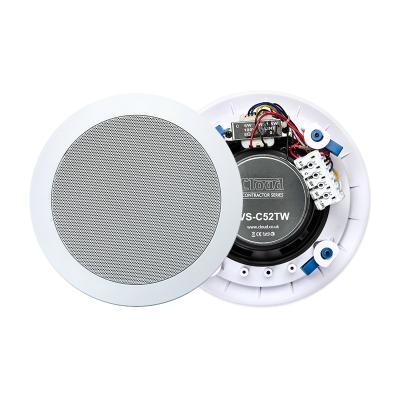

The Cloud Electronics CVS-C52TW ceiling speaker is fitted with a 5¼” 2 way coaxial driver and is rated at 20 watts, 8 Ohms or 6 Watts, 100V line.

The CVSC52TW is part of the Cloud CVS Contractor Series - a low-cost range of quality loudspeakers for flush in-ceiling installation.

Ideal for background music and announcements in general public areas and buildings where good musical reproduction and high speech intelligibility are required.

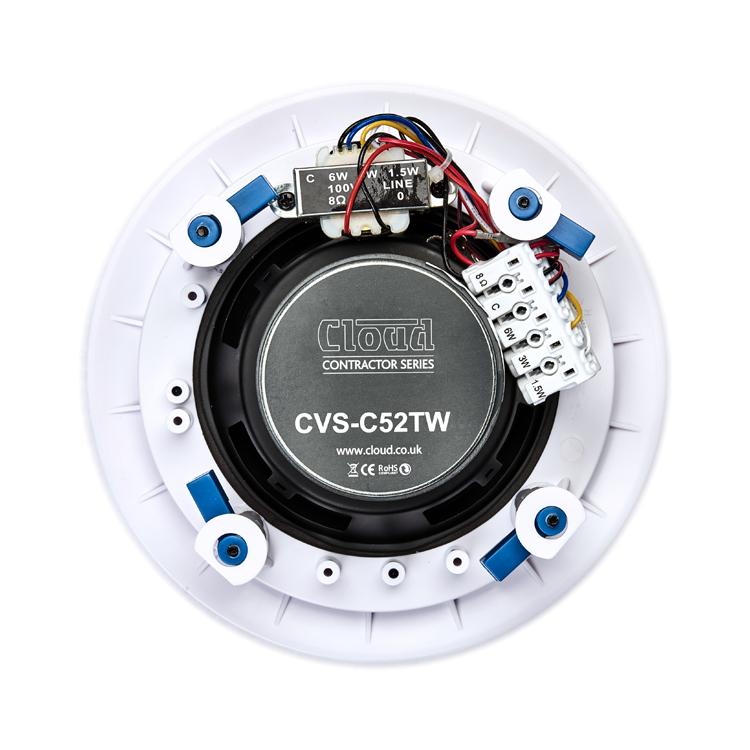

Constructed in lightweight ABS plastic with open back, infinite baffle characteristics and a painted aluminium grille. Connections are made via a multi-pin “Easy Connect” terminal block on a flying lead.

Finished in white, RAL9010.

  • Coaxial driver design
  • Snap-on grille – easy to fit and remove
  • Cutting template supplied
  • Good musical quality and speech intelligibility
  • 100 V-line - 6W, 3W or 1.5W integral multi-tap transformer
  • Low impedance 8Ω - Max 40W
  • Low profile back can for installation into ceiling voids with limited height
  • “Easy Connect” terminal block simplifies installation
  • Warranty: 2 Years.

Download the full
Cloud Electronics Product Catalogue here.

Cloud Electronics Product Brochure
100V 8ohms
List Ex VAT: £39.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Nominal driver diameter

5¼”

Type

2-way coaxial

Tweeter design

½” Mylar dome

Woofer design

5¼” treated paper, with cloth surround

Frequency Response (-3 dB)

98 Hz – 20 kHz

Frequency Response (-10 dB)

73 Hz – 20 kHz

Crossover frequency

9 kHz

Driver impedance

8 ohms

Sensitivity (1 W @ 1m)

88 dBA

Dispersion Angle

90°

Coverage (CM²)

96.769

Power rating

20 W

Max power input

40 W

Transformer taps

6 W, 3 W, 1.5 W, lo-Z

Cutout hole size

169 mm

Grille type

Painted aluminium

Overall dimensions (dia x height)

8.1” x 3.2”

(205 mm x 80 mm)
