Bosch LB1-UW06-D1

Bosch LB1-UW06-D1

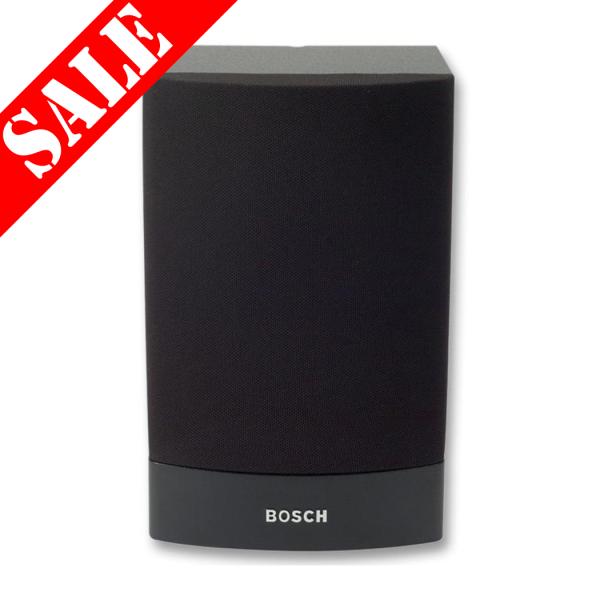

The Bosch LB1-UW06-D1 is a 6 Watt, general-purpose, cost-effective loudspeaker for indoor use. Suitable only for 100 Volt line commercial audio systems.

Clearance line - One only!

Keyholes at the rear are provided for quick and easy wall mounting.

The LB1UW06-D1 speaker cabinets are constructed from robust, solid MDF (medium density fibre board) & covered with a durable, easy-to-clean vinyl finished in black.

The ABS fronts are covered with fine woven cloth in matching colour.

The angled front baffle results in improved high frequency reproduction in the listening area.

  • 6 watts, 100 volt line.
  • General-purpose, cost-effective loudspeaker for indoor use.
  • Robust, solid MDF enclosure covered with durable, easy-to-clean vinyl.
  • ABS front covered with fine woven cloth in matching colour.
  • Keyhole wall mounting.
  • Angled front baffle for better sound.
  • Finished in black.
  • Priced & sold individually.
100V
List Ex VAT: £10.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Maximum power

9 W

Rated power

6 / 3 / 1.5 W

Sound pressure level at 6 W / 1 W (1 kHz, 1 m)

99 dB / 91 dB (SPL)

Sound pressure levelat 6 W / 1 W (4 kHz, 1 m)

100 dB / 92 dB (SPL)

Effective frequency range

180 Hz to 20 kHz (-10 dB)

Opening angle 1 kHz / 4 kHz (-6 dB)

Horizontal 165° / 95°, Vertical 158° / 73°

Rated input voltage

100 V

Rated impedance

1667 ohm

Connector

4‑pole push‑in terminal block

Dimensions (H x W x D)

240x151x141/119 mm, (9.4 x 5.9 x 5.6/4.7 in)

Weight

0.9 kg (2 lb)

DOWNLOADS

Bosch LB1-UW06-D1 Datasheet
