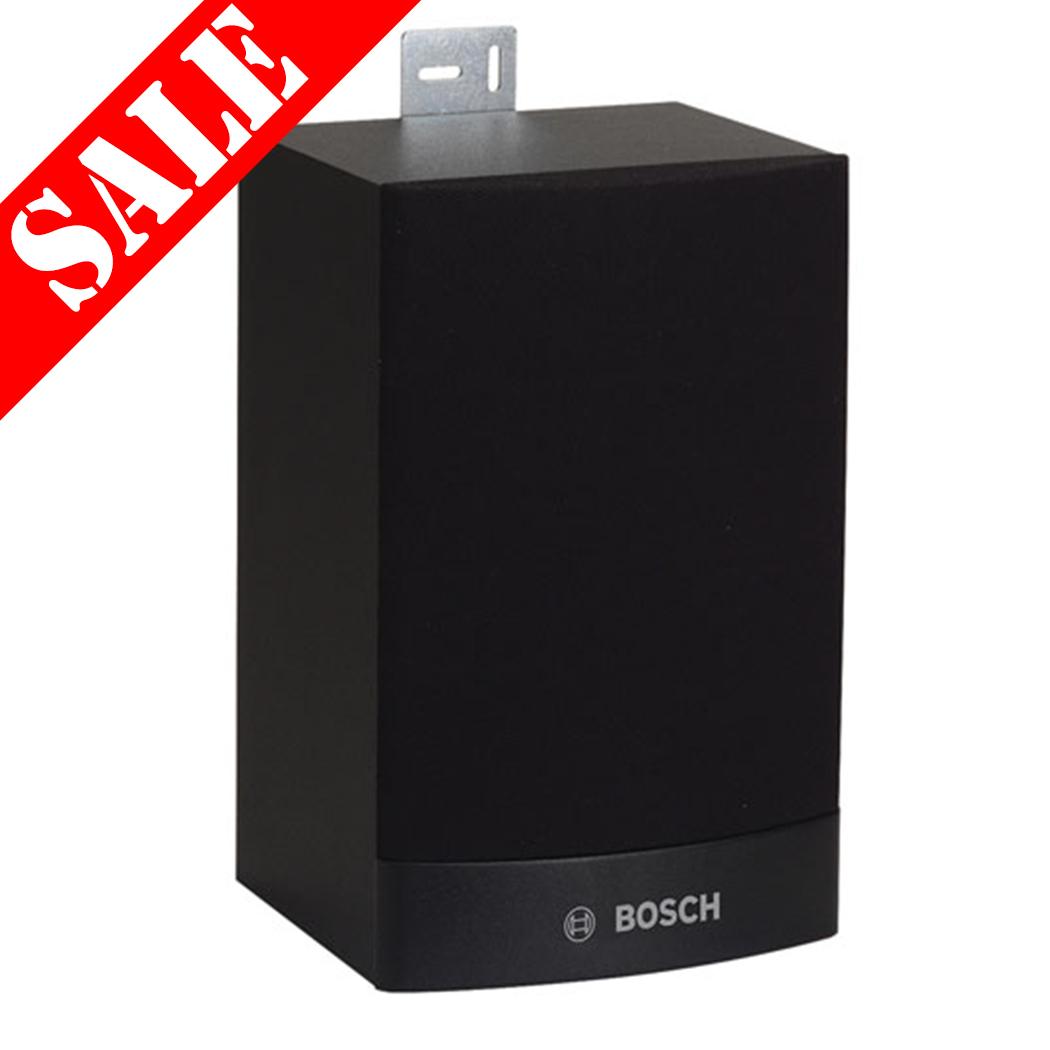

Bosch LB1-UW06F-D1

The Bosch LB1-UW06F-D1 is a 6 Watt, general-purpose, cost-effective loudspeaker for indoor use. Suitable only for 100 Volt line commercial audio systems.

Clearance line - One only!

Two mounting brackets, fixed to the rear panel provide easy and quick wall mounting or ceiling mounting. This is to comply with international installation and safety regulations. However, they can be removed and the unit can still be wall mounted using the three keyholes in the rear panel.

The LB1UW06F-D1 speaker cabinets are constructed from robust, solid MDF (medium density fibre board) & covered with a durable, easy-to-clean vinyl finished in black.

The ABS fronts are covered with fine woven cloth in matching colour.

  • 6 watts, 100 volt line.
  • General-purpose, cost-effective loudspeaker for indoor use.
  • Robust, solid MDF enclosure covered with durable, easy-to-clean vinyl.
  • ABS front covered with fine woven cloth in matching colour.
  • Keyhole wall mounting AND 2 removeable mounting brackets.
  • Finished in black.
  • Priced & sold individually.
100V
List Ex VAT: £10.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Maximum power

9 W

Rated power

6 / 3 / 1.5 / 0.75W

Sound pressure level at 6 W / 1 W (1 kHz, 1 m)

99 dB / 91 dB (SPL)

Sound pressure levelat 6 W / 1 W (4 kHz, 1 m)

100 dB / 92 dB (SPL)

Effective frequency range

185 Hz to 17 kHz (-10 dB)

Opening angle 1 kHz / 4 kHz (-6 dB)

Horizontal 194° / 82°

Rated input voltage

70 / 100 V

Rated impedance

835 / 1667 ohm

Connector

2 x 5‑pole push‑in terminal block

Dimensions (H x W x D)

240x151x139mm, (9.4 x 5.9 x 5.5 in)

Weight

1.68 kg (3.7 lb)
